Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

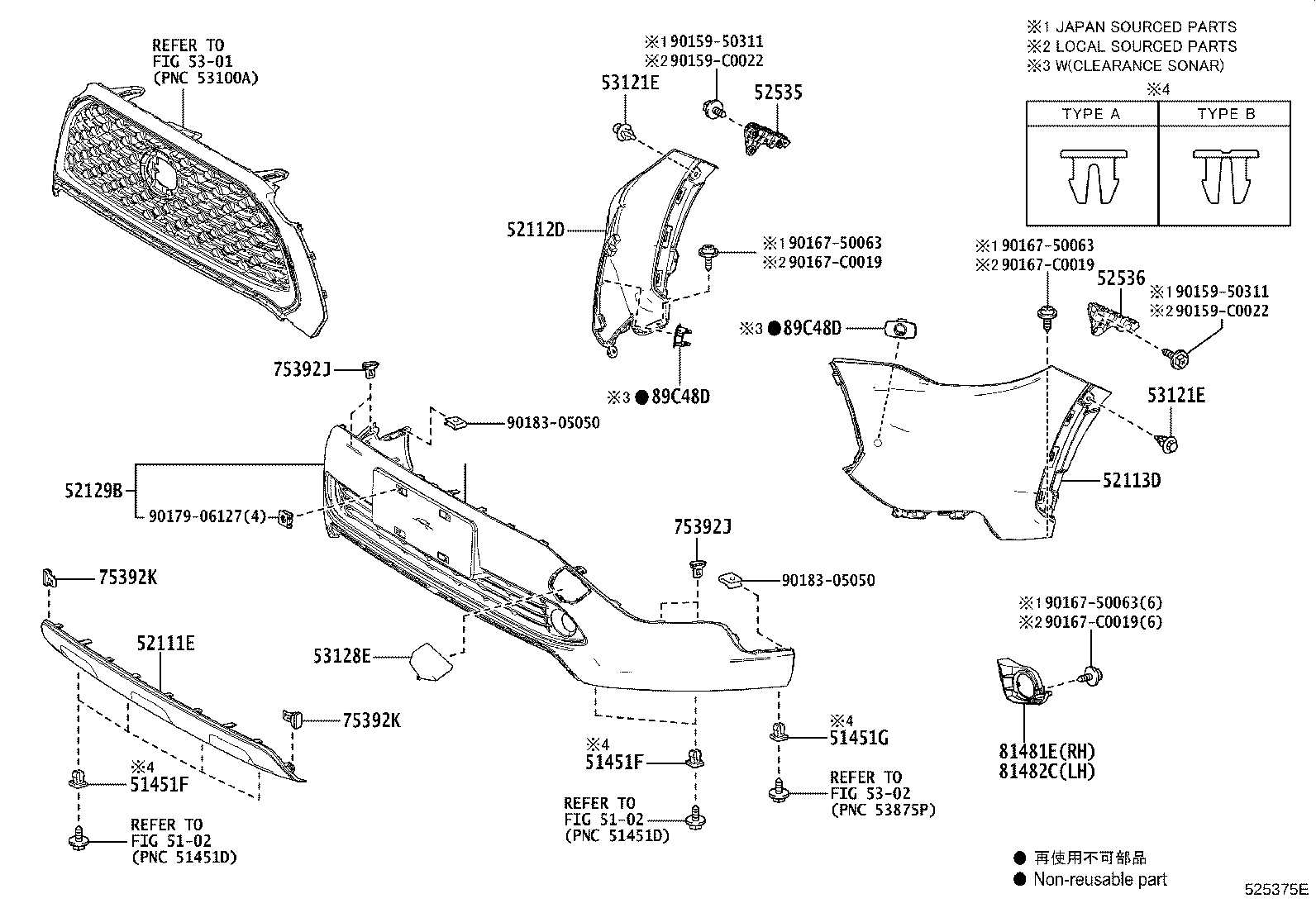

Figure 525374 525374 2022-01 → — Figure 525375E 525375E 2022-01 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52129B Cover, Front Bumper, Lower
52132A Reinforcement, Front Bumper, NO.2
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53121E Clip(FOR FRONT BUMPER), NO.1
53128E Grille, Radiator, Lower Side LH
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
