Toyota Corolla Cross (TFTM)
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General
Supported model
Data version 2023-06

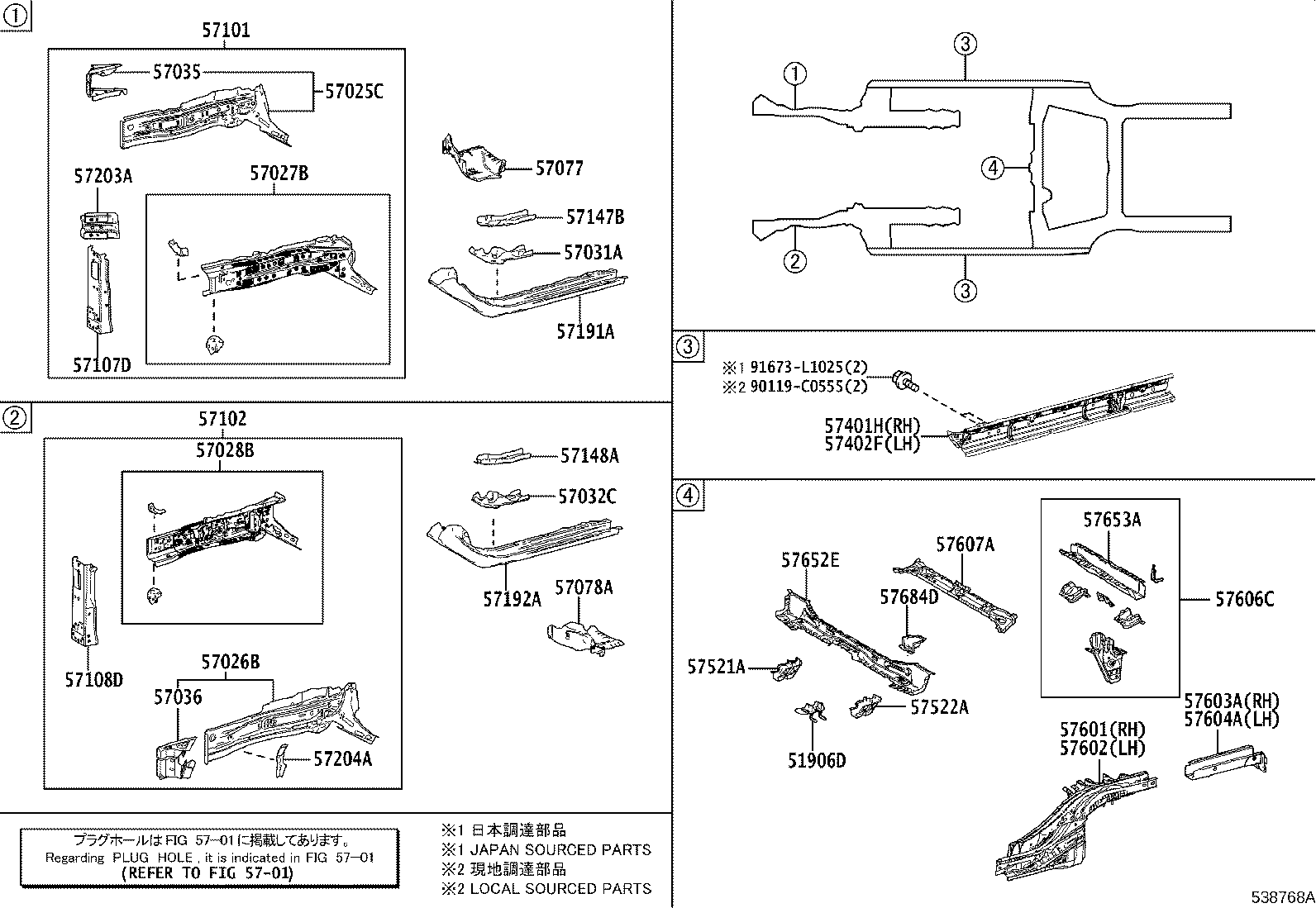

Floor Side Member
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51906D | Hanger Sub-assy, Exhaust Pipe, NO.6 |
| 57025C | Member Sub-assy, Front Side, Outer RH |
| 57026B | Member Sub-assy, Front Side, Outer LH |
| 57027B | Member Sub-assy, Front Side, Inner RH |
| 57028B | Member Sub-assy, Front Side, Inner LH |
| 57031A | Reinforce Sub-assy, Front Side Member, NO.2 RH |
| 57032C | Reinforce Sub-assy, Front Side Member, NO.2 LH |
| 57035 | Panel Sub-assy, Front Step, RH |
| 57036 | Panel Sub-assy, Front Step, LH |
| 57067 | Bracket Sub-assy, Fuel Tank Mounting, NO.1 |
| 57068C | Bracket Sub-assy, Fuel Tank Mounting, NO.2 |
| 57077 | Box Sub-assy, Torque, Front RH |
| 57078A | Box Sub-assy, Torque, Front LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107D | Reinforce Sub-assy, Front Bumper Mounting, RH |
| 57108D | Reinforce Sub-assy, Front Bumper Mounting, LH |
| 57147B | Plate, Front Side Member, Rear RH |
| 57148A | Plate, Front Side Member, Rear LH |
| 57191A | Member, Front Side, Inner Rear RH |
| 57192A | Member, Front Side, Inner Rear LH |
| 57203A | Extension Sub-assy, Front Side Member, NO.2 RH |
| 57204A | Extension Sub-assy, Front Side Member, NO.2 LH |
| 57401H | Member Sub-assy, Floor Side, Inner RH |
| 57402F | Member Sub-assy, Floor Side, Inner LH |
| 57521A | Bracket, Center Floor Crossmember, RH |
| 57522A | Bracket, Center Floor Crossmember, LH |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57603A | Member Sub-assy, Rear Floor Side, Rear RH |
| 57604A | Member Sub-assy, Rear Floor Side, Rear LH |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57652E | Member, Rear Floor Cross, NO.1 |
| 57653A | Member, Rear Floor Cross, NO.2 |
| 57684D | Bracket, Fuel Tank Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
