Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

11 part groups · 2 illustrations

Illustrations

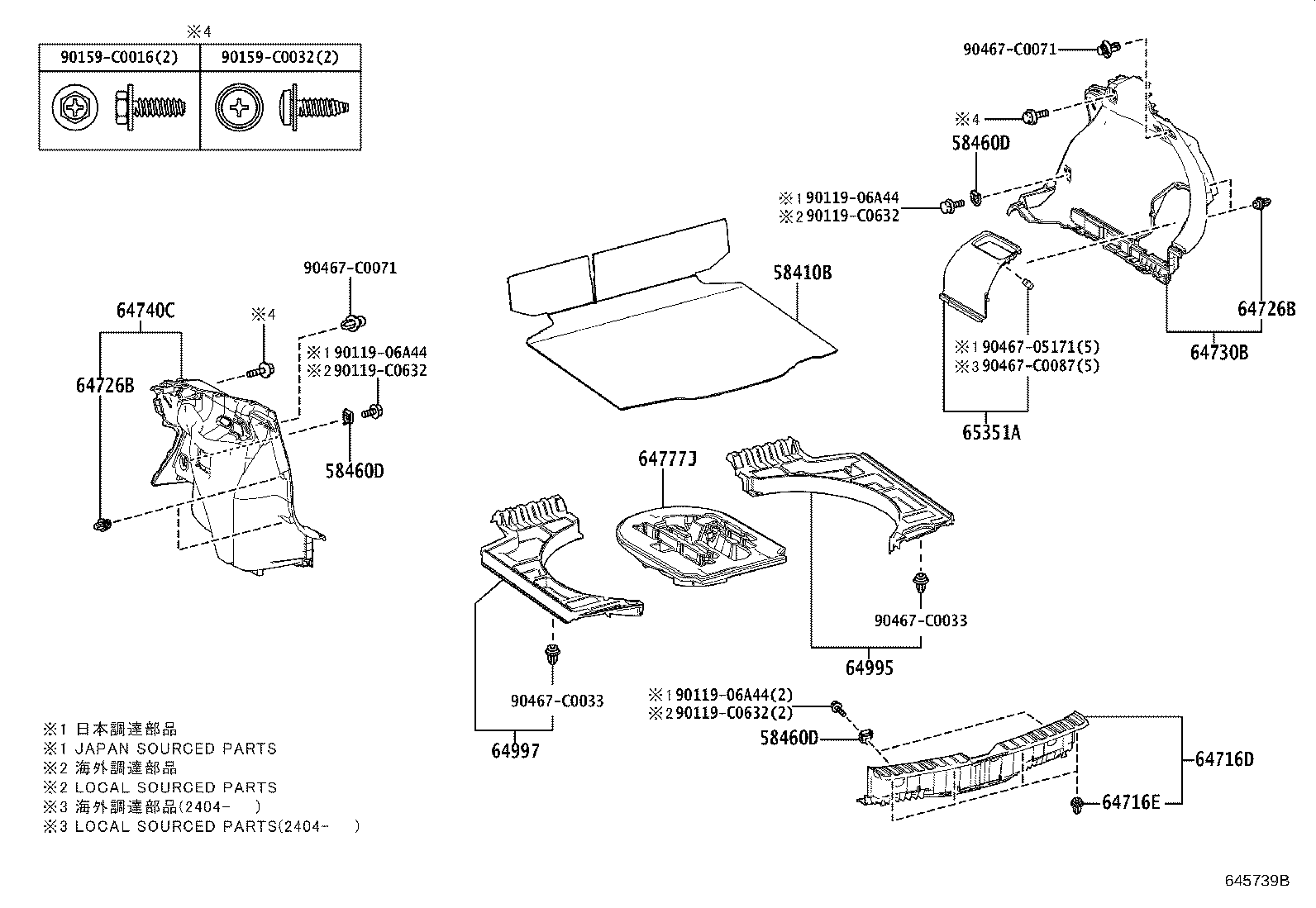

Figure 645318A 645318A 2022-01 → — Figure 645739B 645739B 2023-07 → —

Part groups

PNCDescription
58410B Board Assy, Deck
58460D Striker Assy, Luggage Hold Belt
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64726B Clip, Deck Rear Trim
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64777J Cushion, Spare Wheel
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
65351A Cover, Battery Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
