Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 2 illustrations

Illustrations

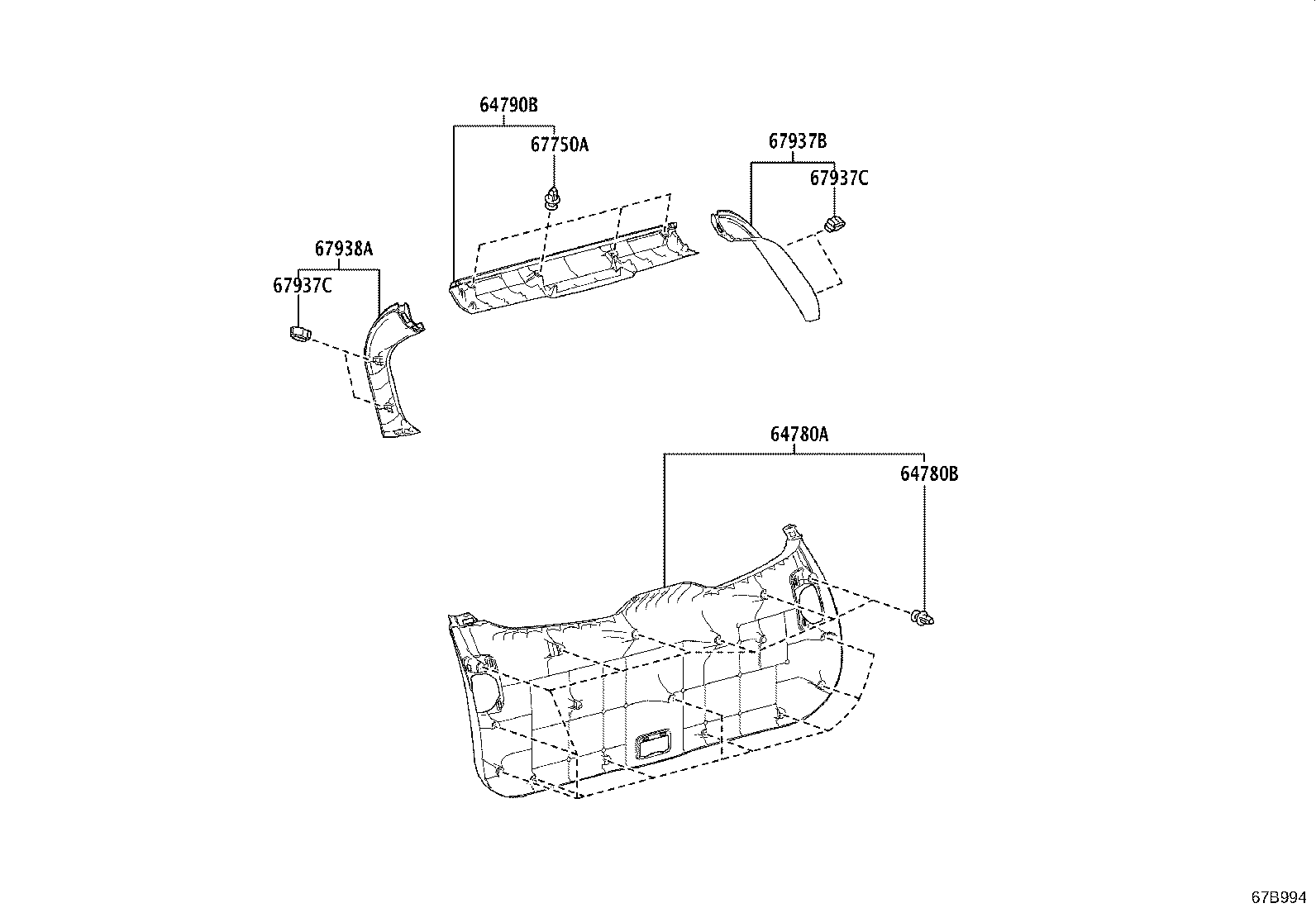

Figure 67B993B 67B993B 2022-01 → — Figure 67B994 67B994 2022-01 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64790B Panel Assy, Back Door Trim, Upper
64813B Dam, Back Window Glass Adhesive
64818B Spacer, Back Door Glass, NO.1
64819B Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67837N Seal, Back Door Dust Proof
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68294D Dam, Back Door Glass Adhesive, NO.2
68699 Spacer, Back Door Window Frame
69290G Base Assy, Glide Door Inside Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
