Toyota Corolla Cross (TFTM)
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General
Supported model
Data version 2023-06

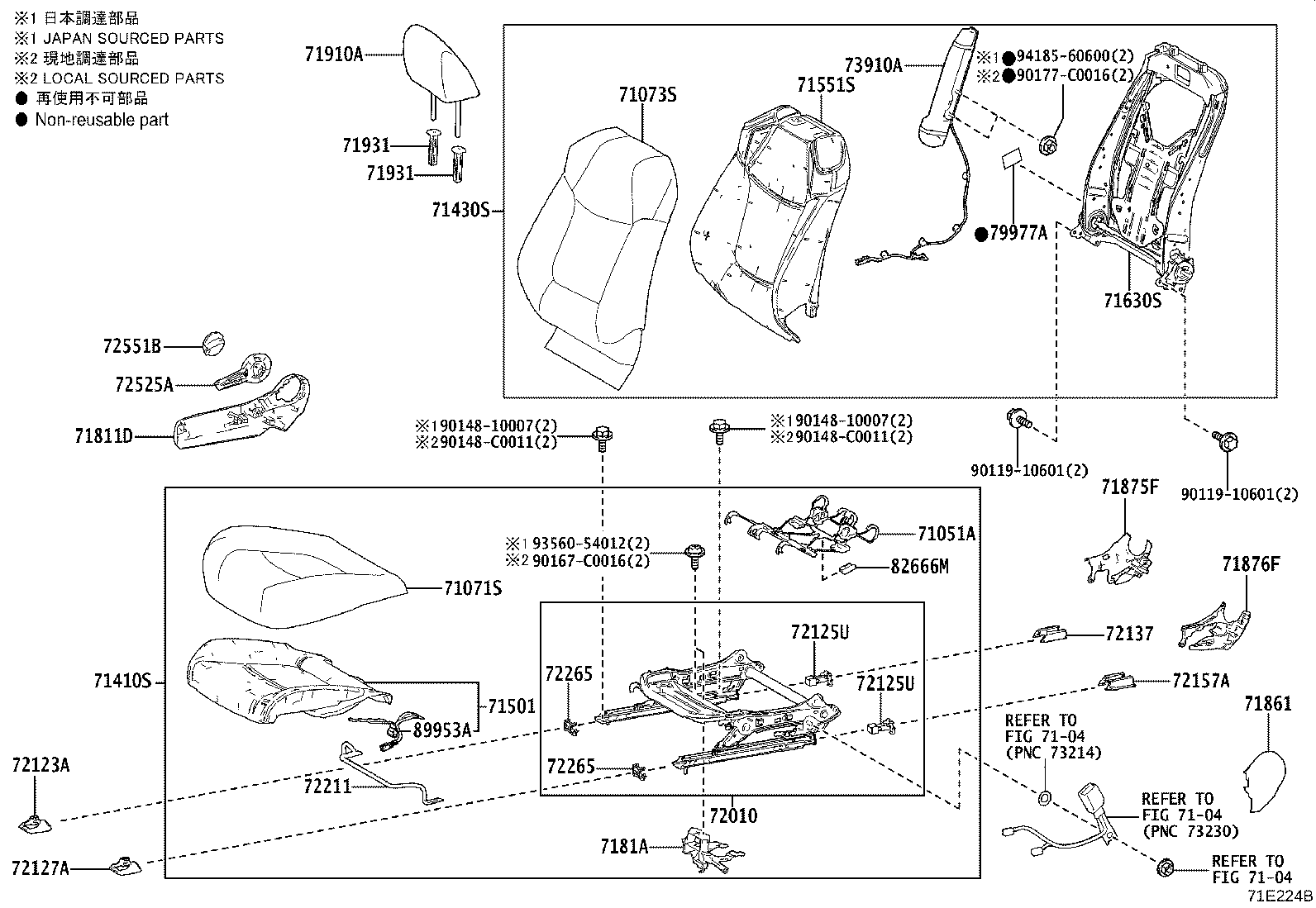

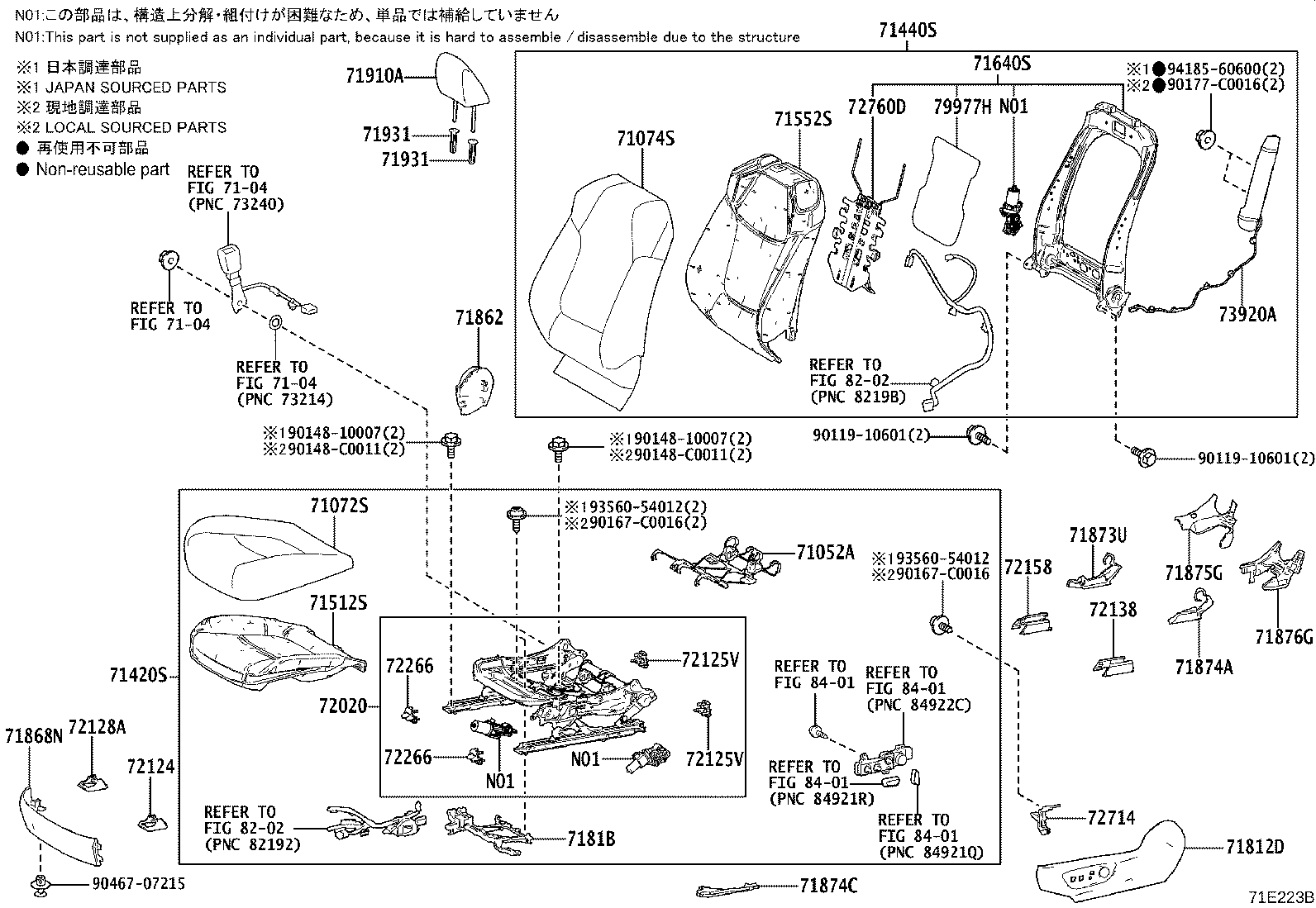

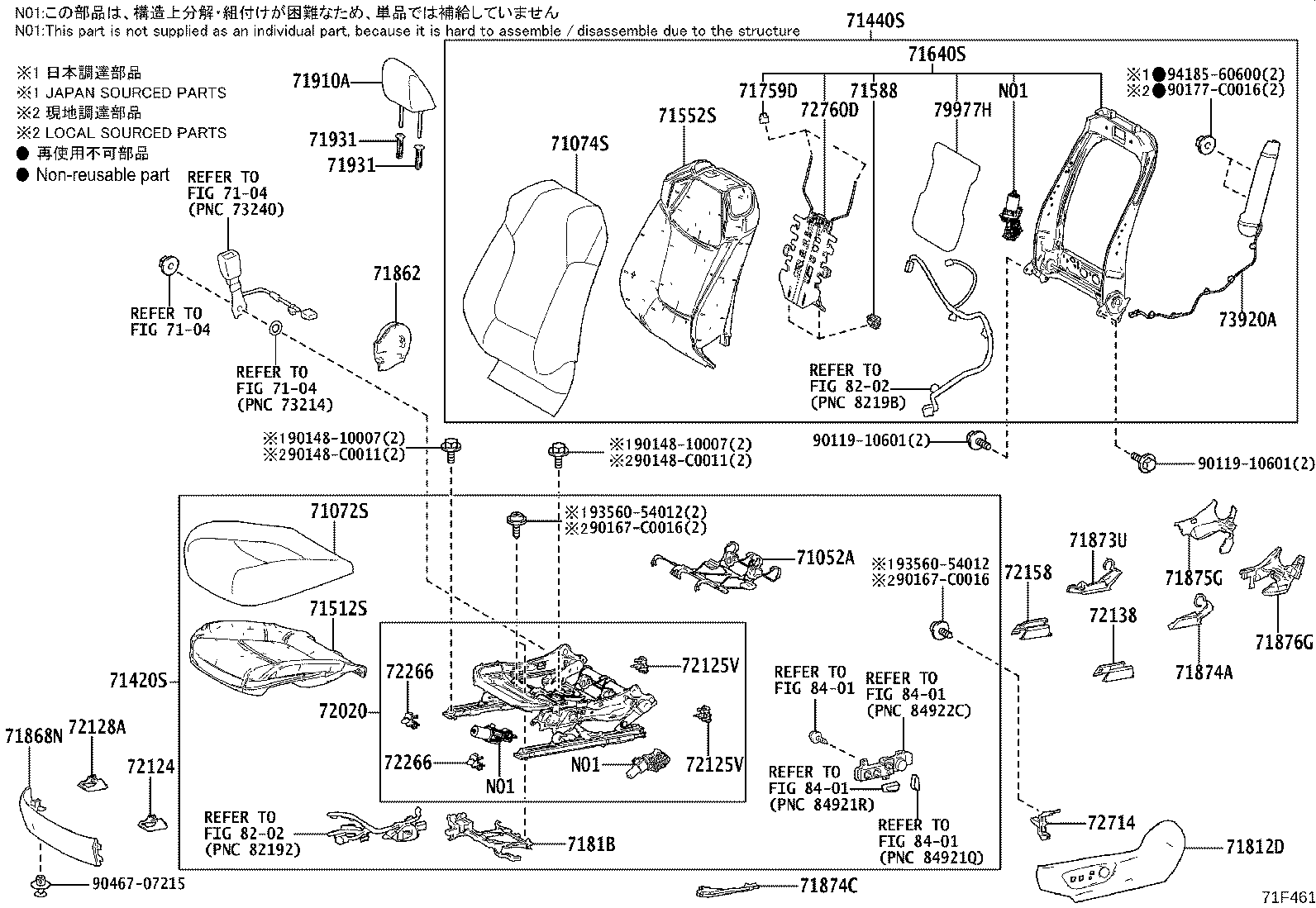

Front Seat & Seat Track
64 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71501 | Pad Sub-assy, Front Seat Cushion, RH |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868N | Shield, Front Seat Cushion, Front LH |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72498A | Cover, Vertical Adjuster Bracket, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72714 | Bracket, Seat Adjuster Shield Clamp, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79977A | Felt, Seatback |
| 79977H | Felt, Front Seatback, LH |
| 82666M | Holder, Connector |
| 89953A | Sensor, Belt Warning Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
