Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 2 illustrations

Illustrations

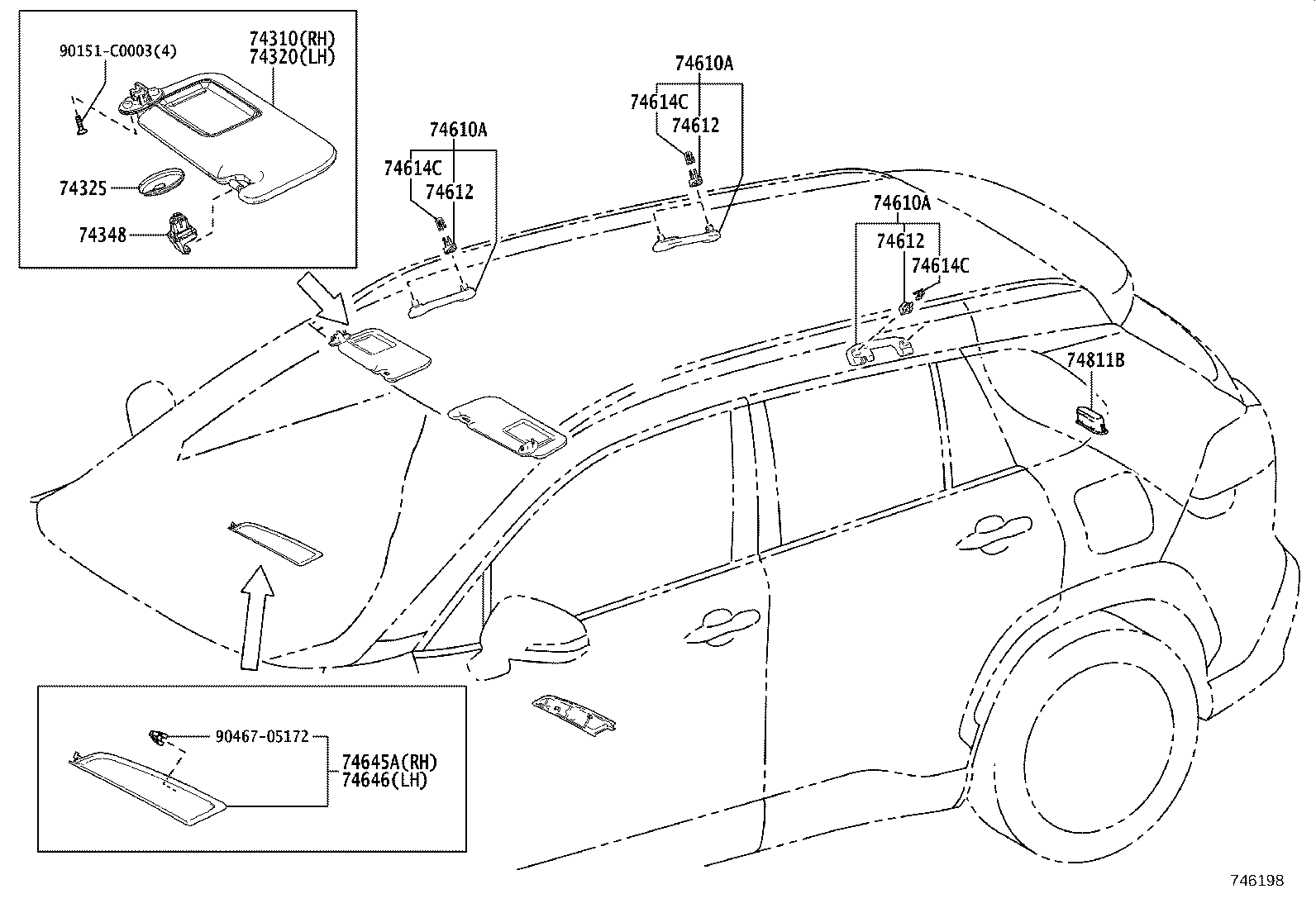

Figure 746197D 746197D 2022-01 → — Figure 746198 746198 2022-01 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611Q Clip
74612 Cover, Assist Grip
74614C Plate, Assist Grip Lock
74635A Clip
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
74811B Handle, Door Pull
74813C Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
