Toyota Corolla Cross (TFTM)
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General
Supported model
Data version 2023-06

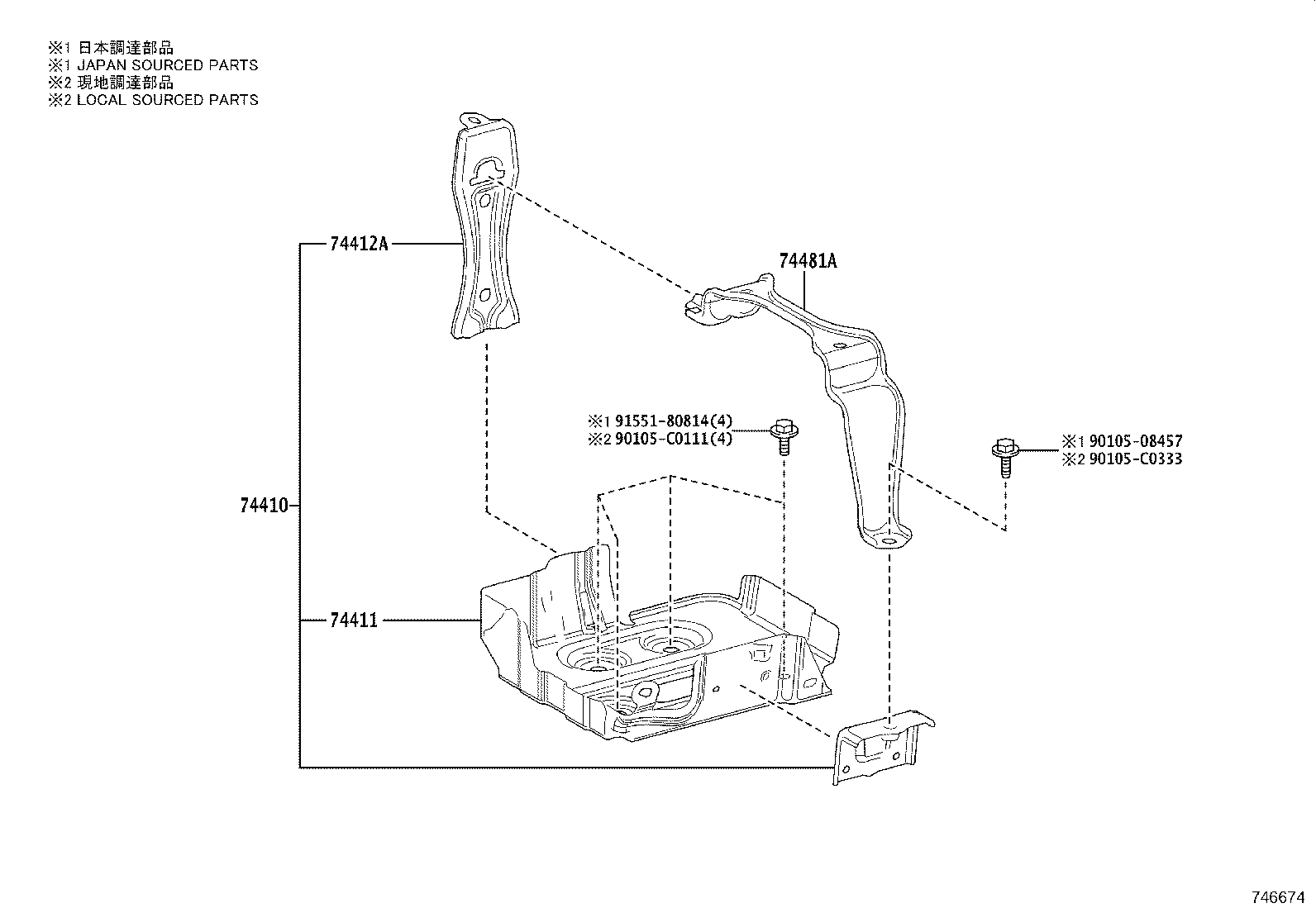

Battery Carrier
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74042 | Bracket Sub-assy, Battery |
| 74404A | Clamp Sub-assy, Battery |
| 74410 | Carrier Assy, Battery |
| 74411 | Carrier, Battery |
| 74412A | Carrier, Battery, NO.2 |
| 74451B | Bolt, Battery Clamp |
| 74481A | Clamp, Battery |
| 74482 | Clamp, Battery, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
