Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

2 part groups · 3 illustrations

Illustrations

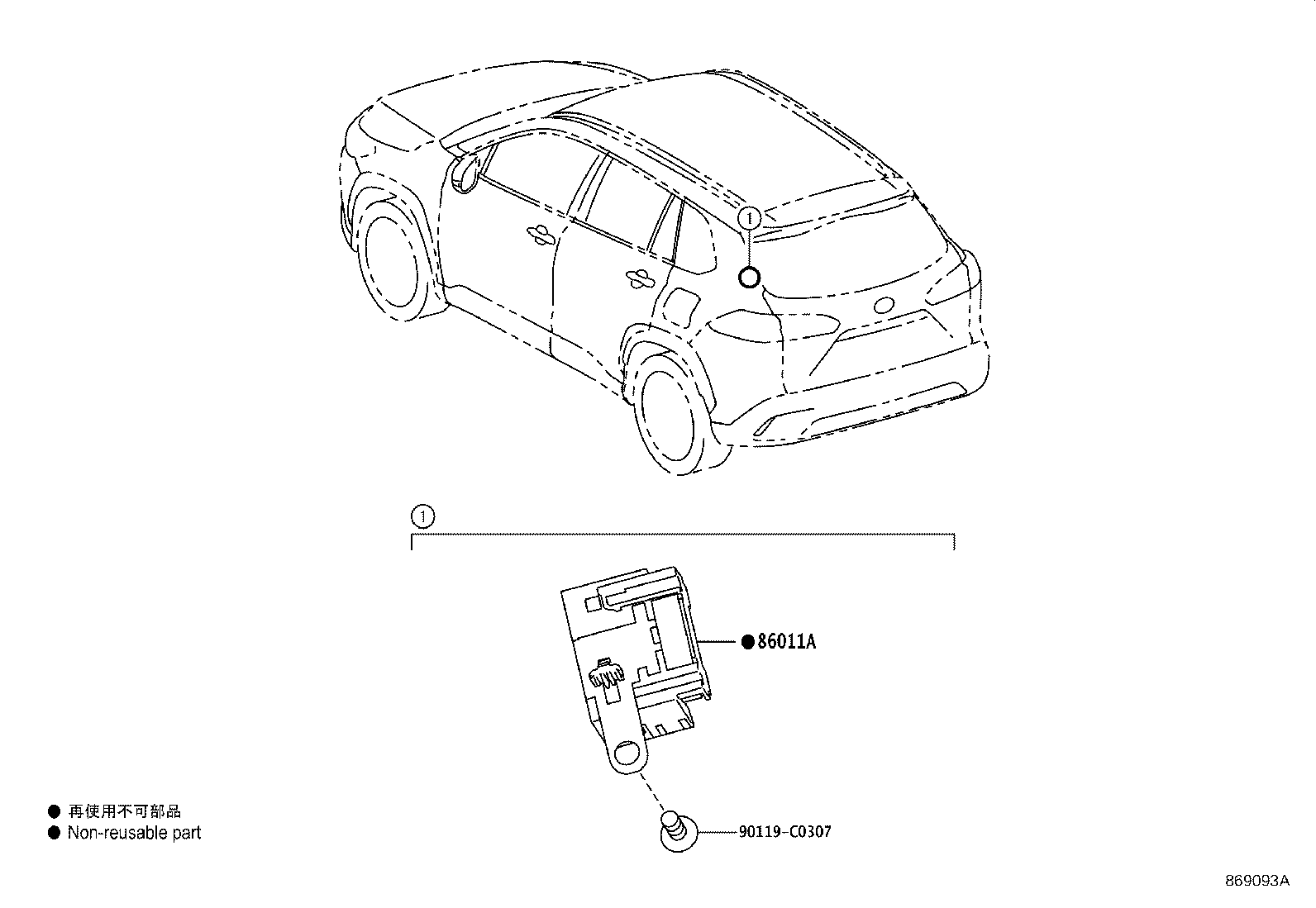

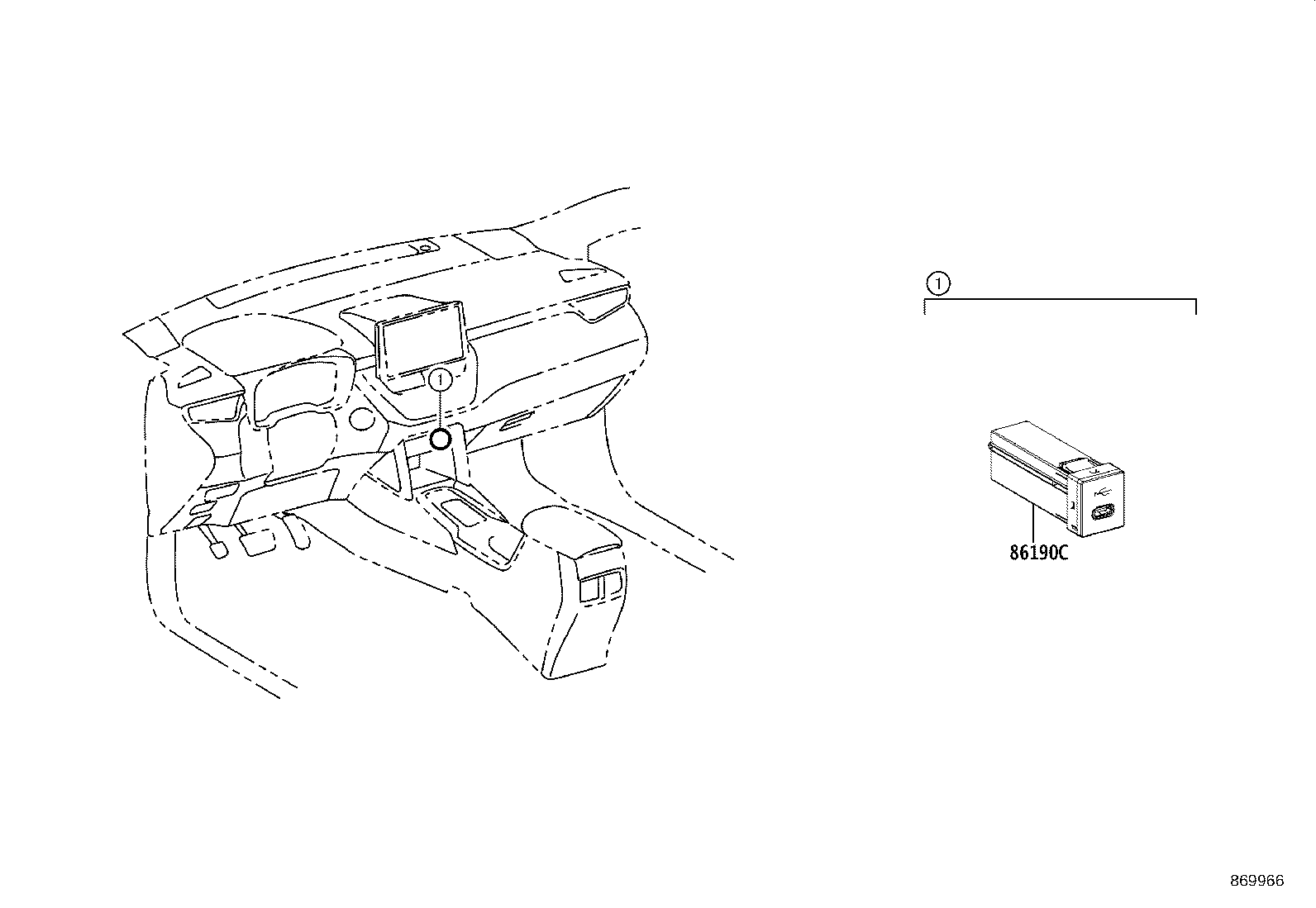

Figure 869083 869083 2022-01 → 2023-04 Figure 869966 869966 2023-04 → — Figure 869093A 869093A 2022-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86190C Adapter Assy, Stereo Jack, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
