Toyota Corolla Cross (TFTM)

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 554310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 2 illustrations

Illustrations

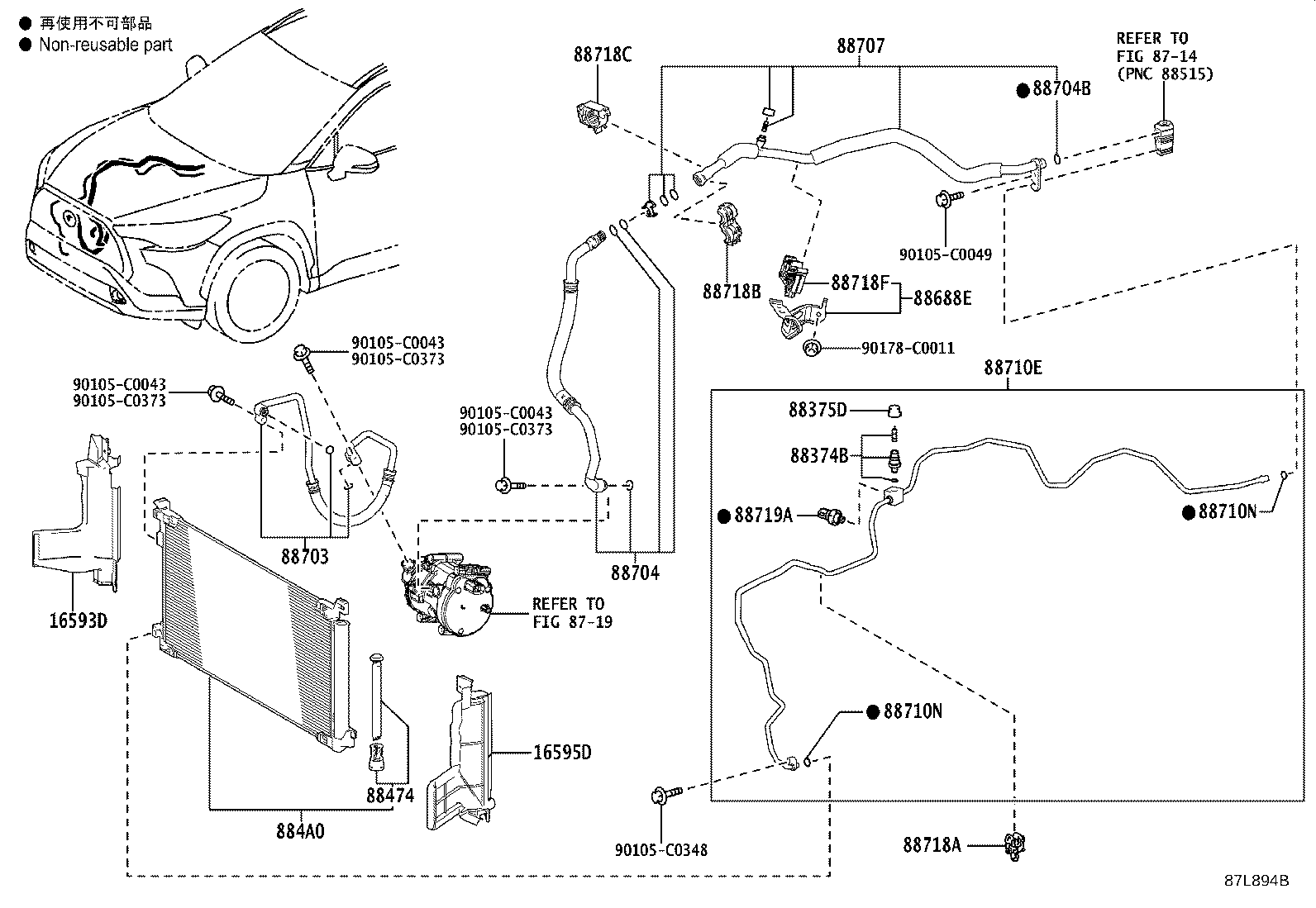

Figure 87K583E 87K583E 2022-01 → — Figure 87L894B 87L894B 2023-07 → —

Part groups

PNCDescription
16593D Guide, Radiator Air, NO.1 RH
16595D Guide, Radiator Air, NO.1 LH
88374B Valve, Service, NO.1
88375D Cap, Service Valve, NO.2
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88704D Ring, O, NO.2 (FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
