Toyota Front Lander
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General
Supported model
Data version 2023-06

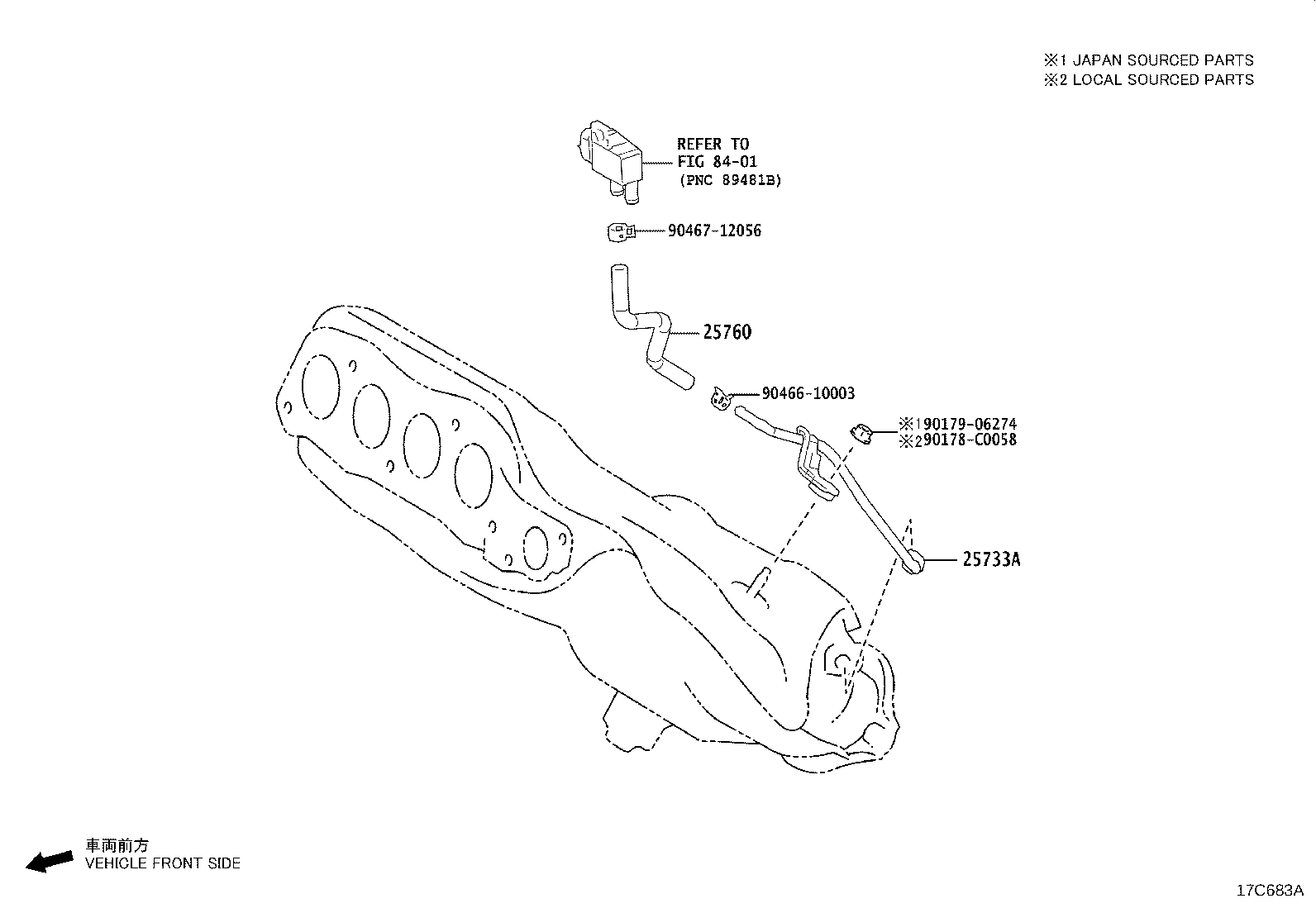

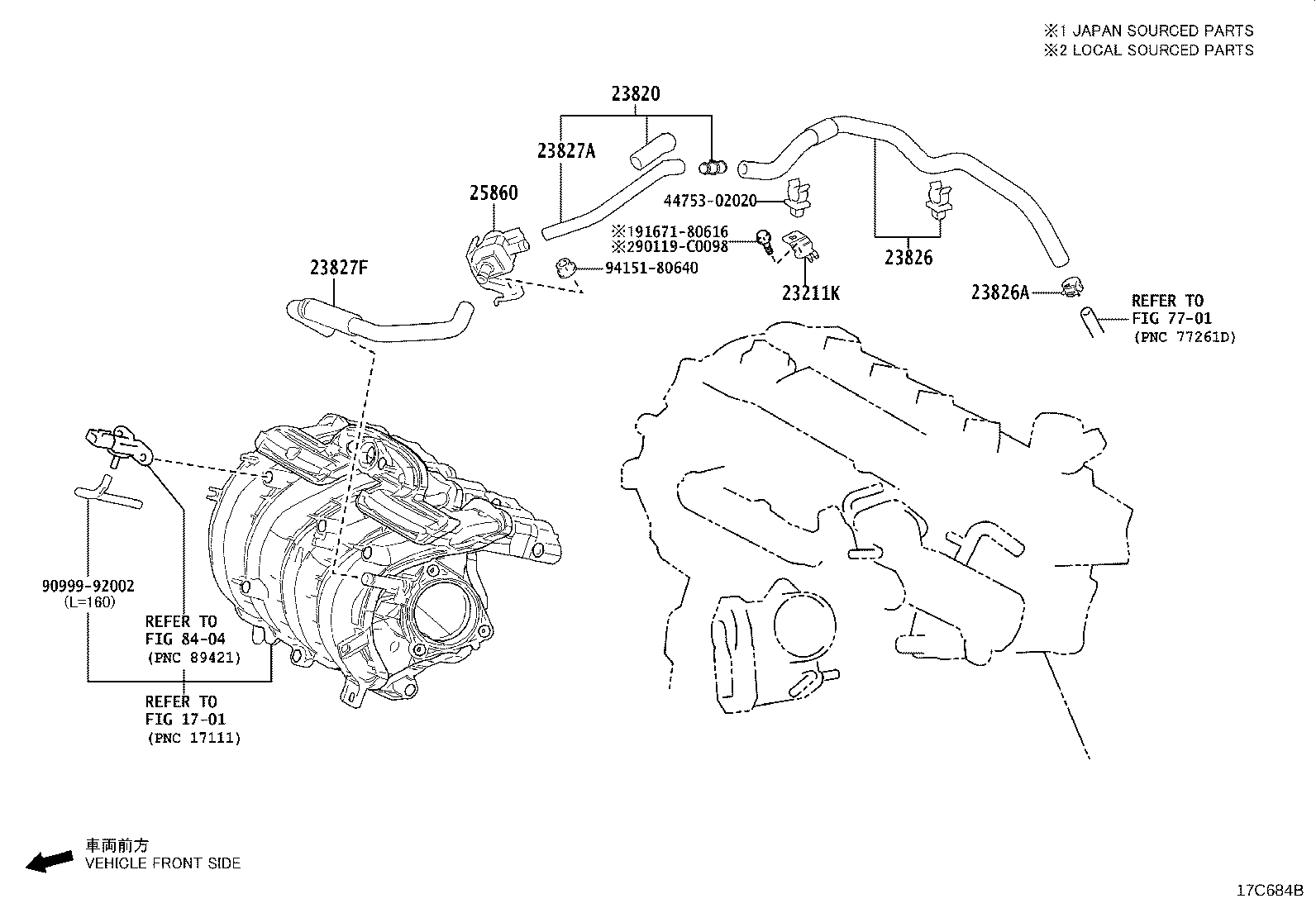

Vacuum Piping
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23211K | Bracket |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23827F | Hose, Fuel Vapor Feed, NO.3 |
| 23827G | Clip(FOR FUEL VAPOR FEED HOSE, NO.3) |
| 25719 | Tank, Vacuum Surge |
| 25733A | Pipe, Vacuum, NO.1 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
