Toyota Front Lander
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General
Supported model
Data version 2023-06

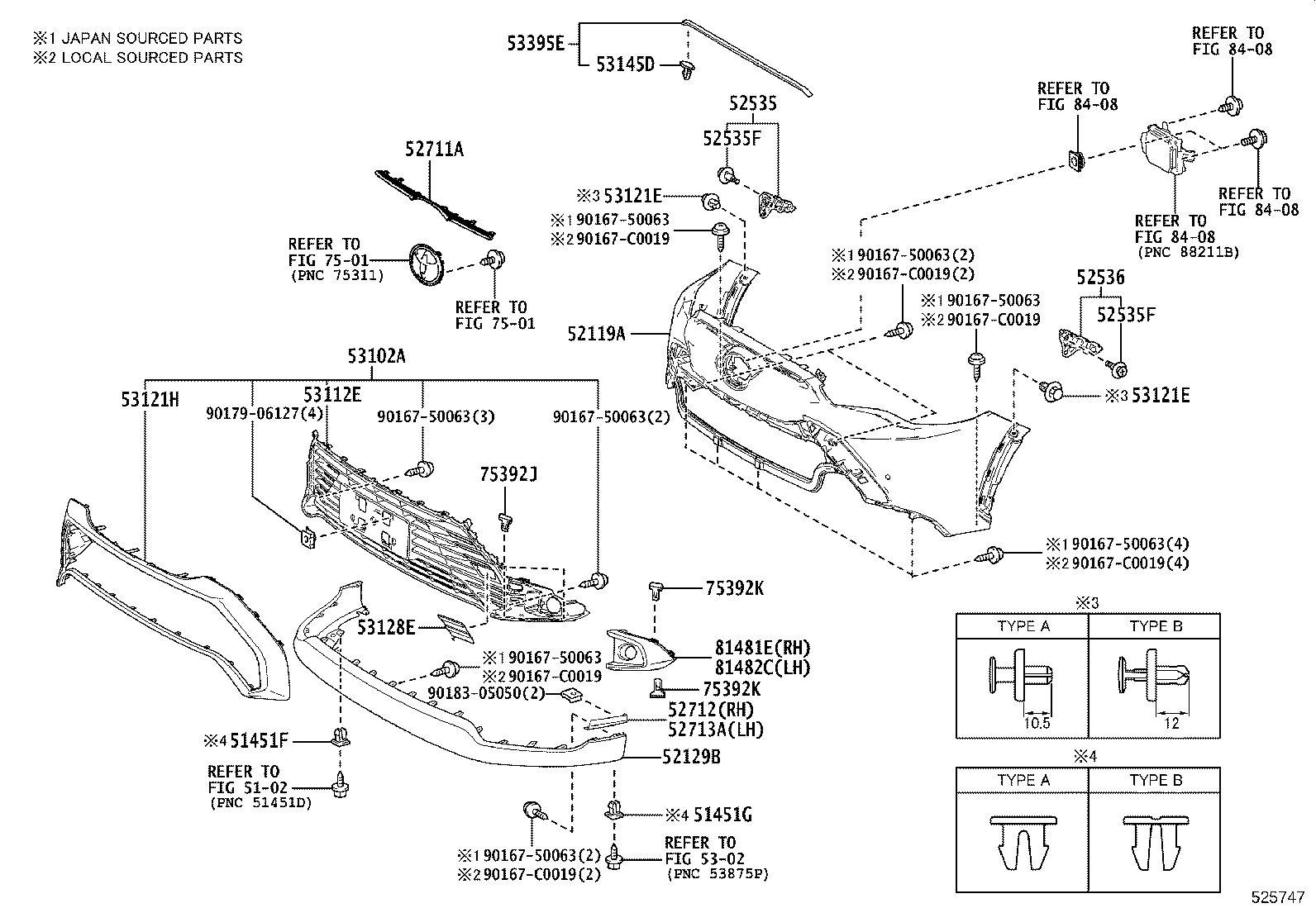

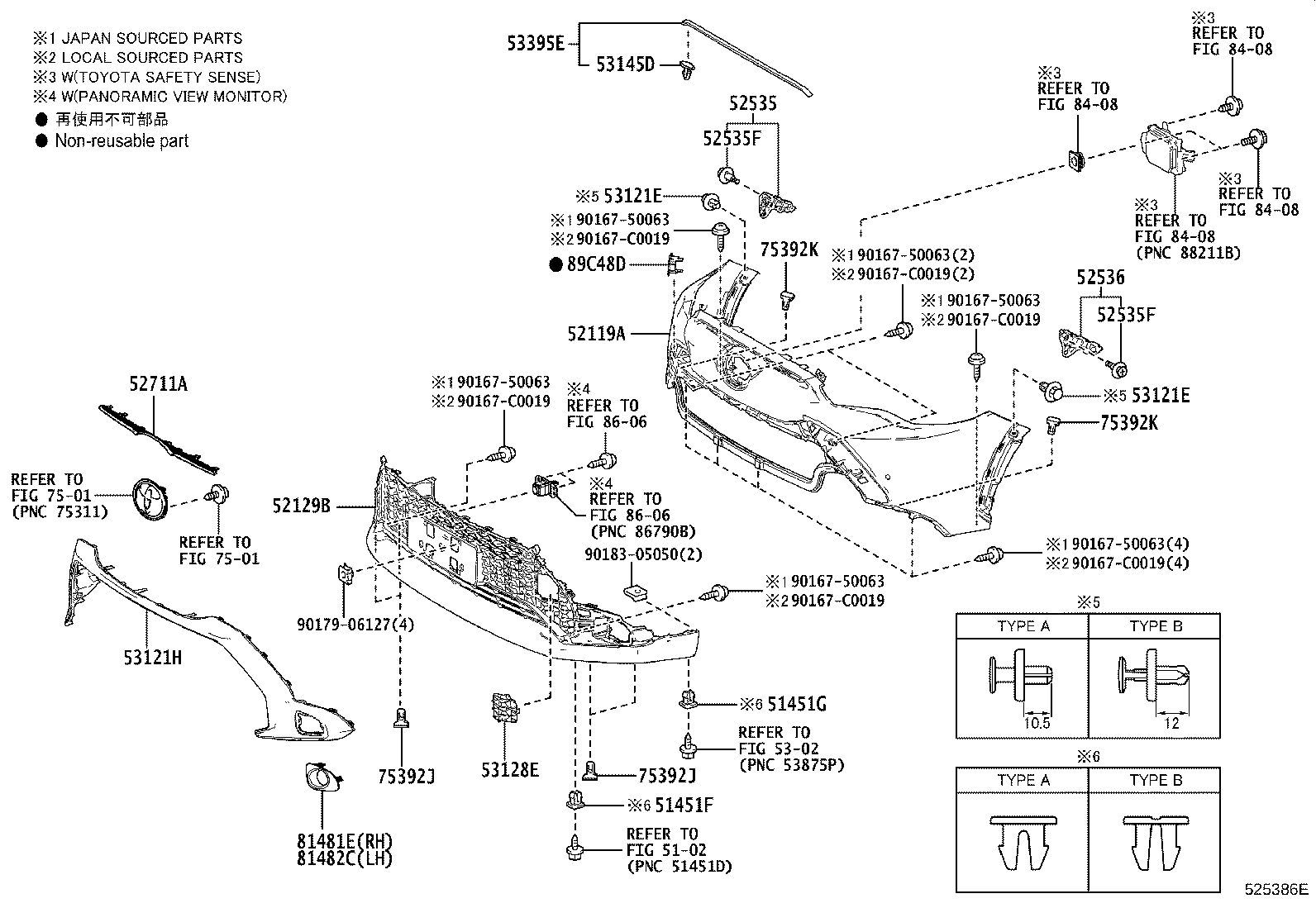

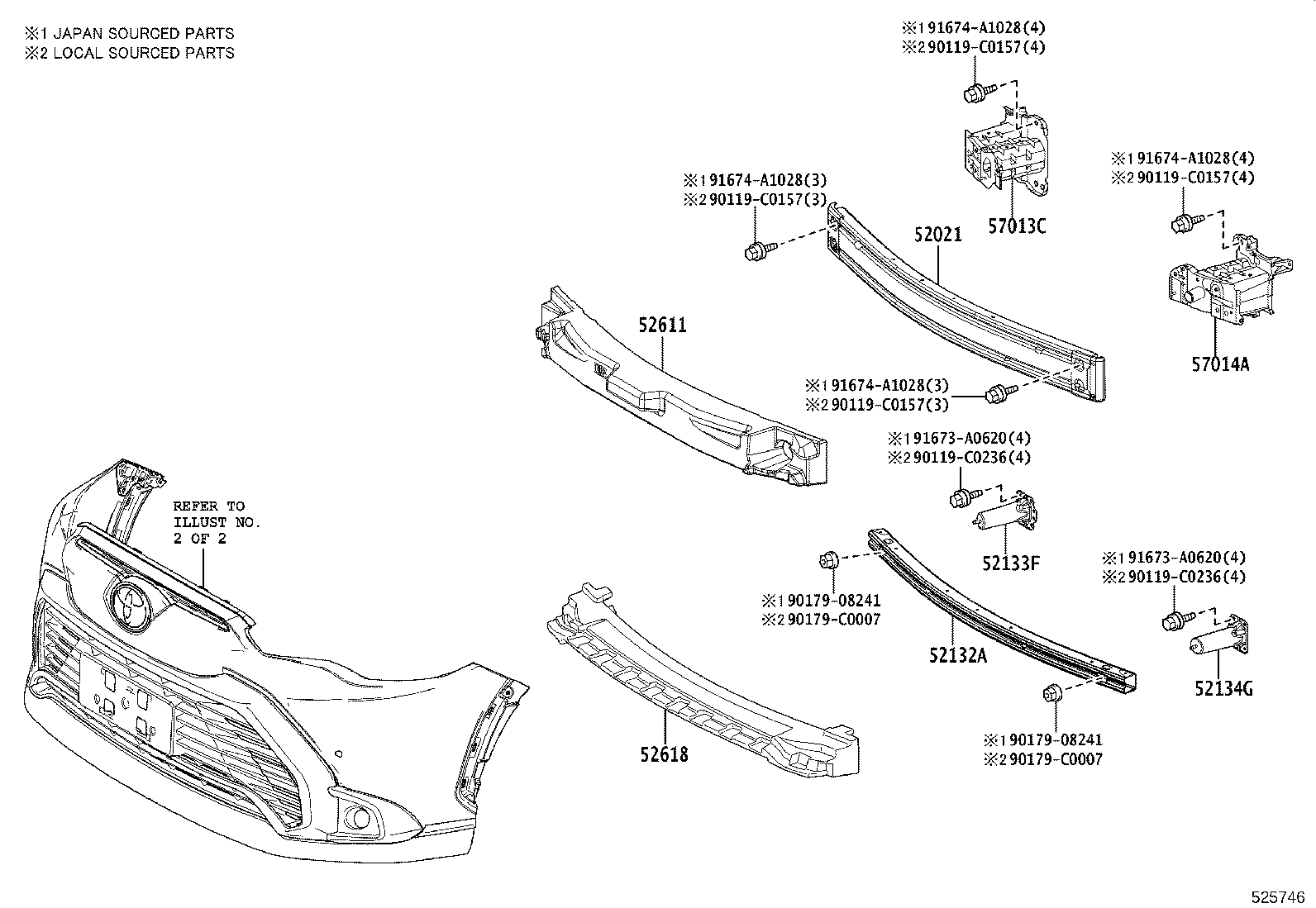

Front Bumper & Bumper Stay
30 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451F | Grommet, NO.1 |
| 51451G | Grommet, NO.2 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52129B | Cover, Front Bumper, Lower |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52133F | Bracket, Front Bumper, RH |
| 52134G | Bracket, Front Bumper, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535F | Clip, Front Bumper Side Retainer |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52711A | Garnish, Front Bumper |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53121H | Moulding, Radiator Grille, NO.1 |
| 53128E | Grille, Radiator, Lower Side LH |
| 53145D | Clip, Radiator Grille |
| 53395E | Seal, Hood TO Front End Panel |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 75392J | Retainer, Outside Moulding |
| 75392K | Retainer, Outside Moulding, NO.2 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
