Toyota Front Lander

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 3 illustrations

Illustrations

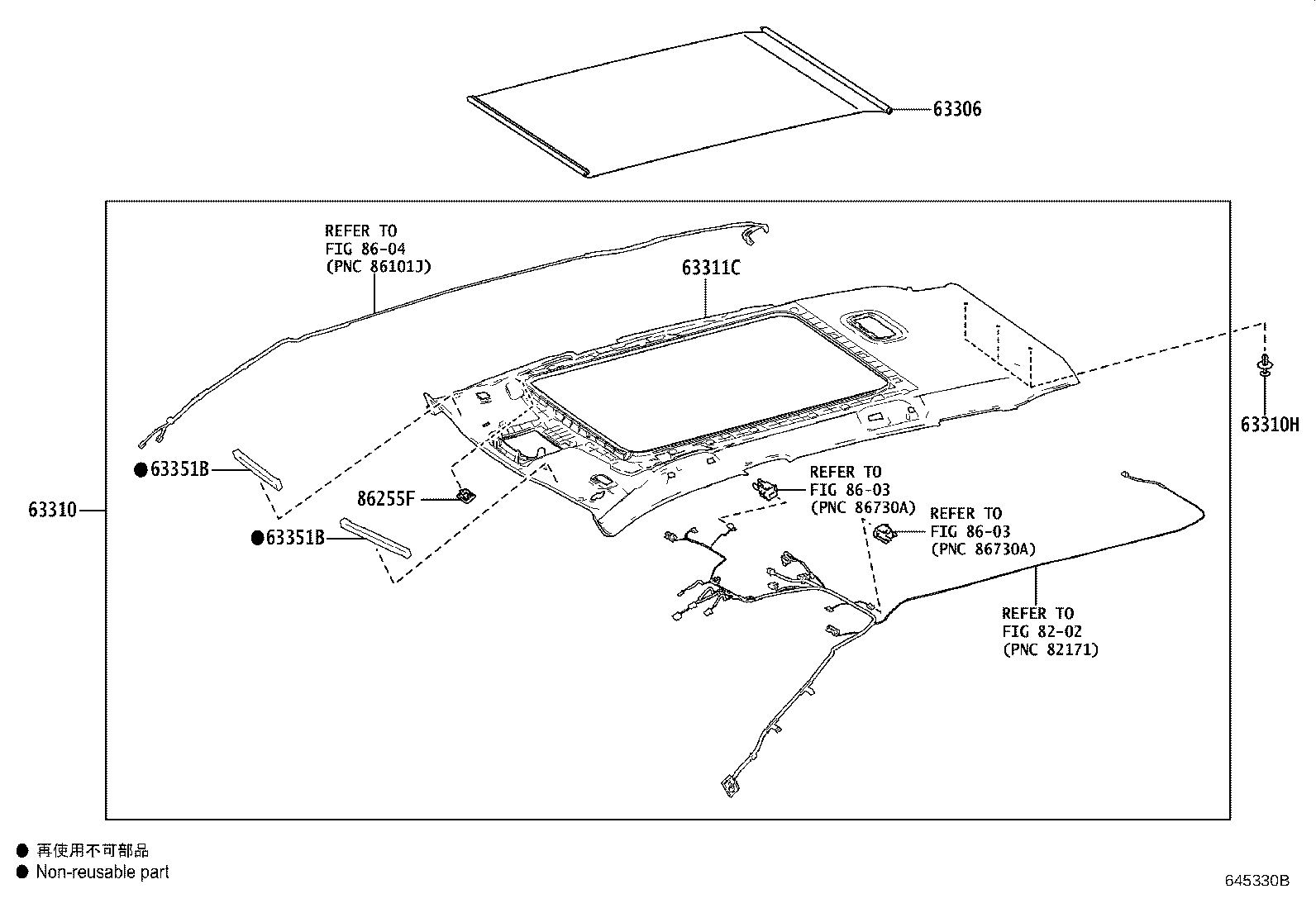

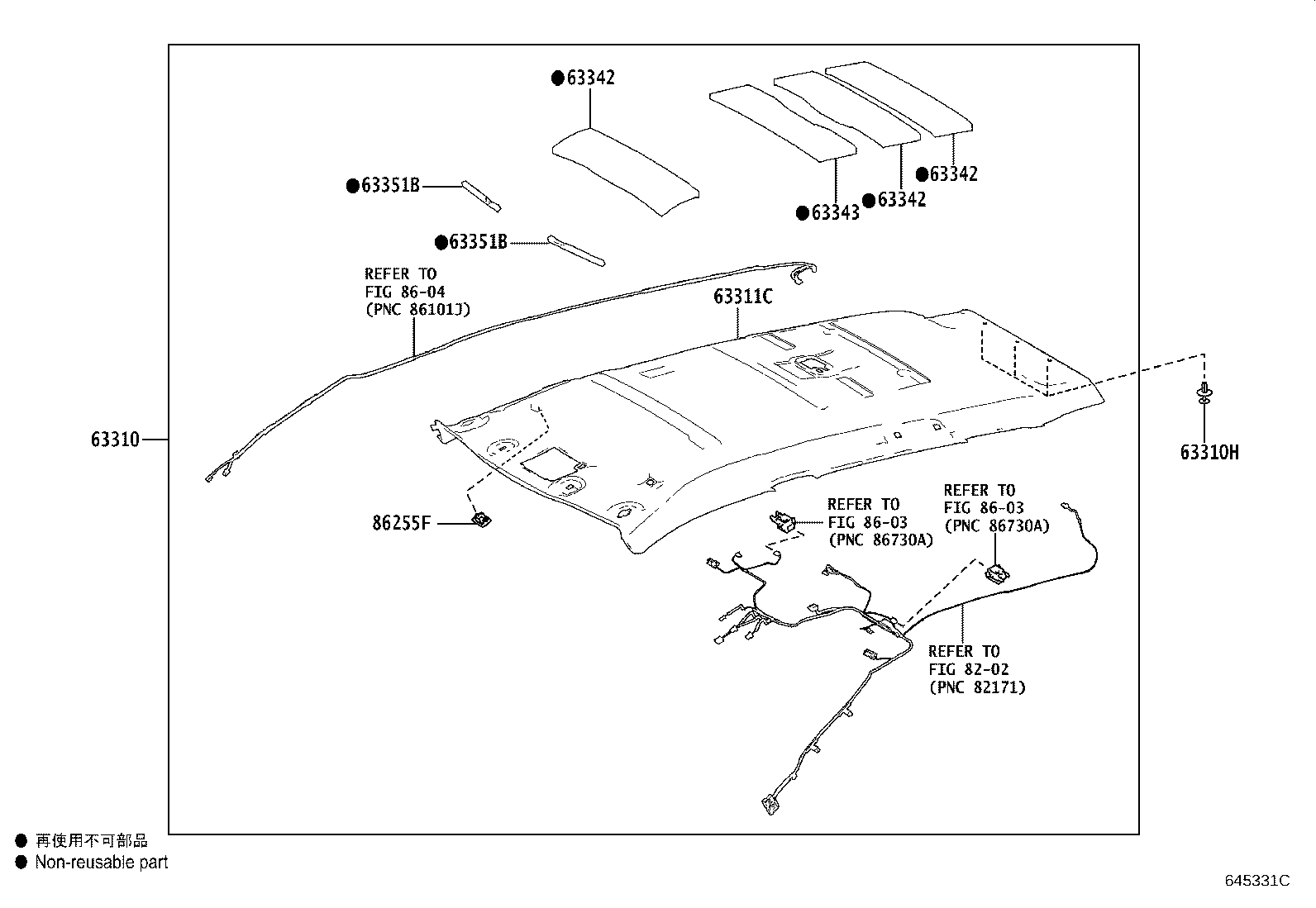

Figure 645329B 645329B 2022-01 → — Figure 645330B 645330B 2022-01 → — Figure 645331C 645331C 2022-01 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
