Toyota Front Lander
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General
Supported model
Data version 2023-06

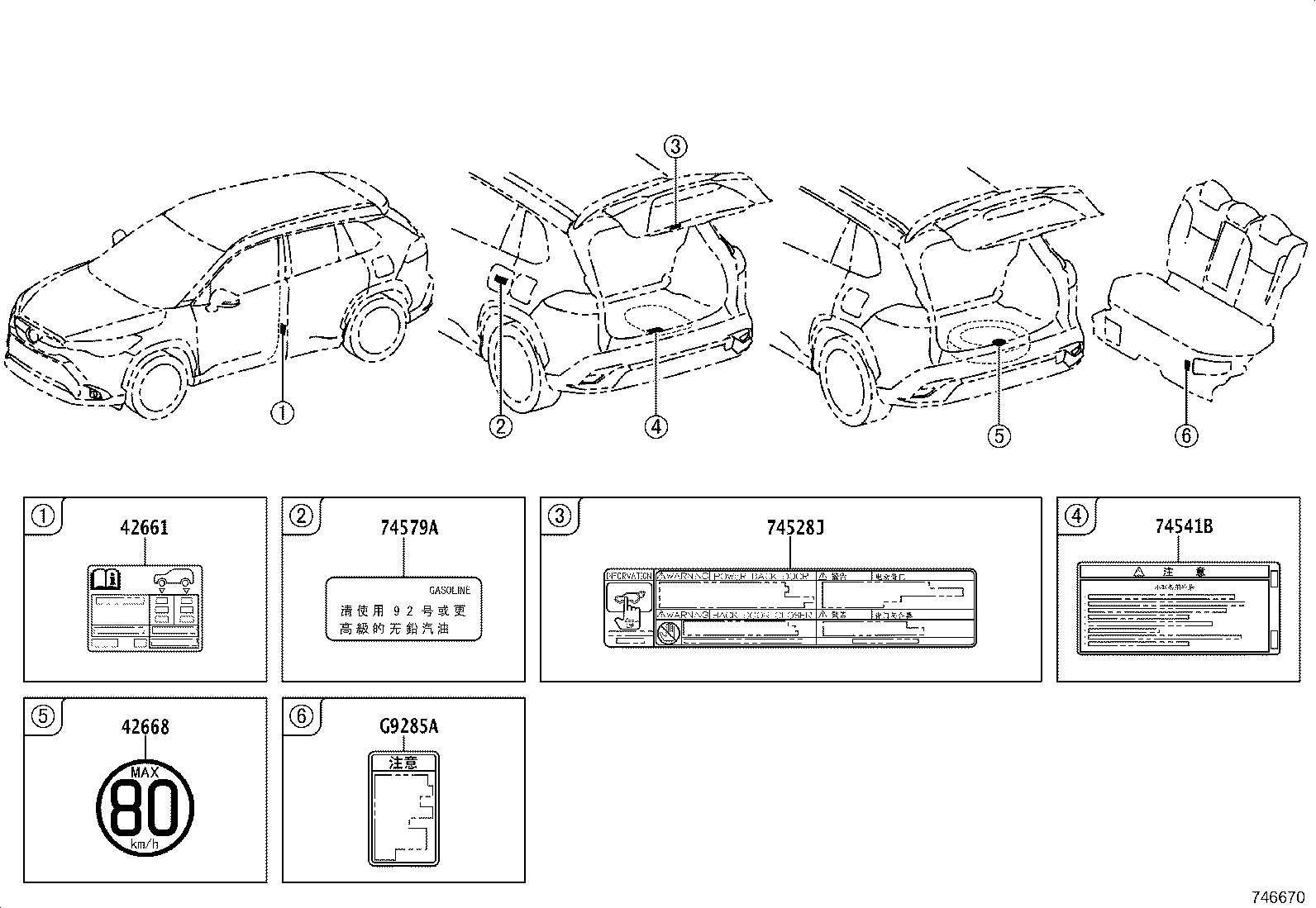

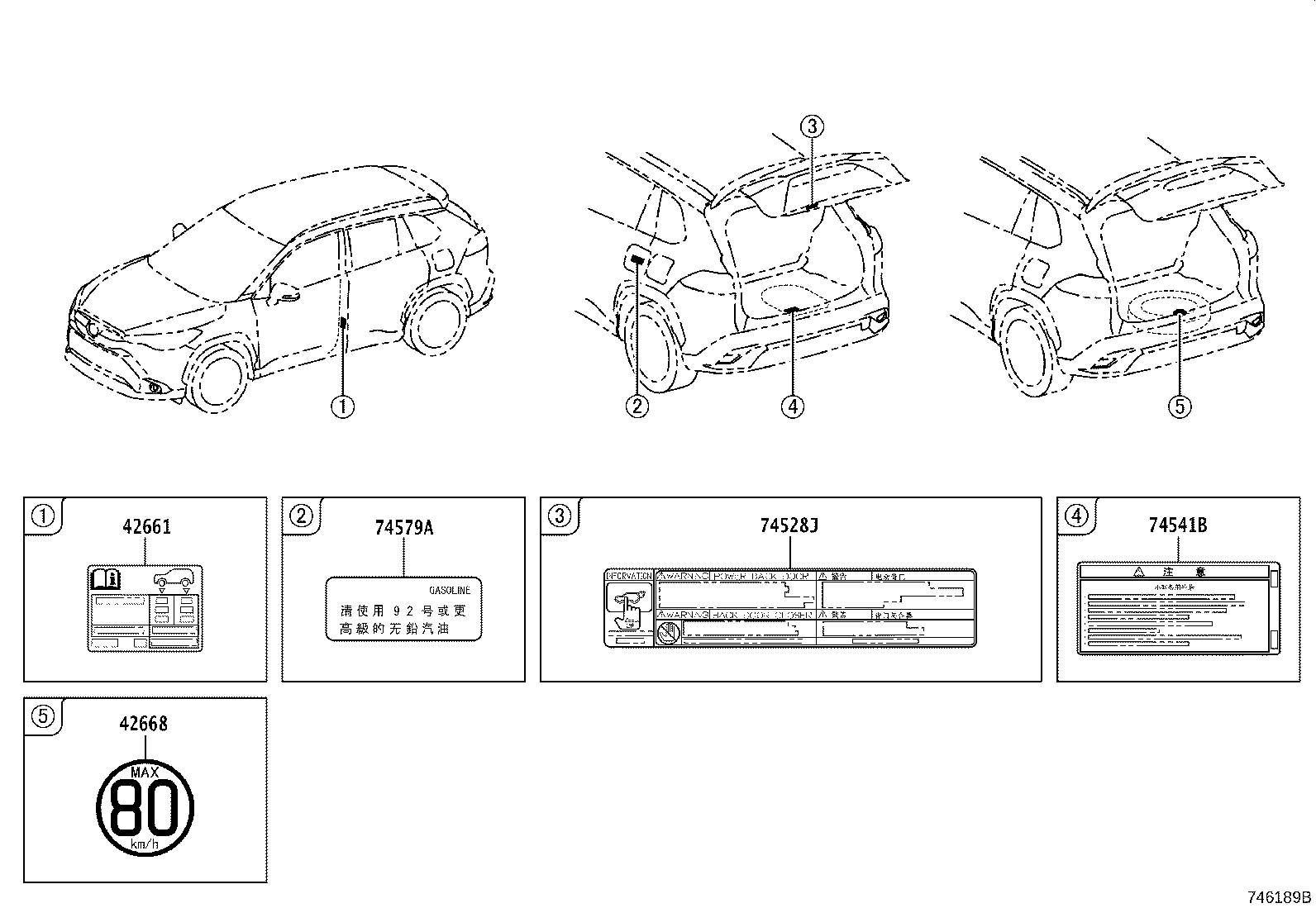

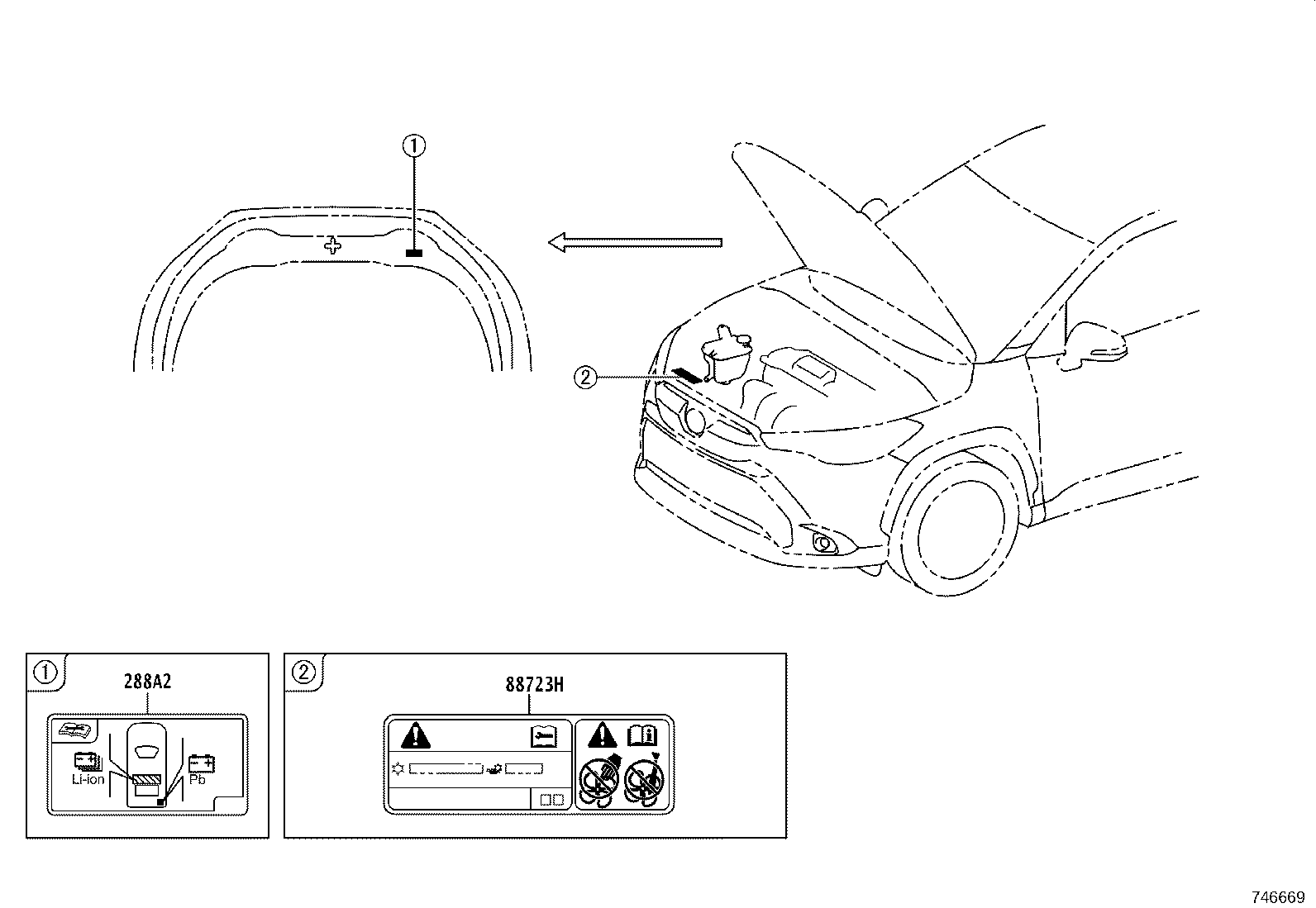

Caution Plate (EXTERIOR & INTERIOR)
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 288A2 | Label, Battery Location |
| 42661 | Label, Tire Pressure Information |
| 42668 | Label, Compact Spare Tire Caution |
| 74528J | Label, Power Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74579A | Label, Unleaded Fuel Information |
| 88723H | Label, Cooler Service Caution |
| G9285A | Label, HV Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
