Toyota Front Lander
2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General
Supported model
Data version 2023-06

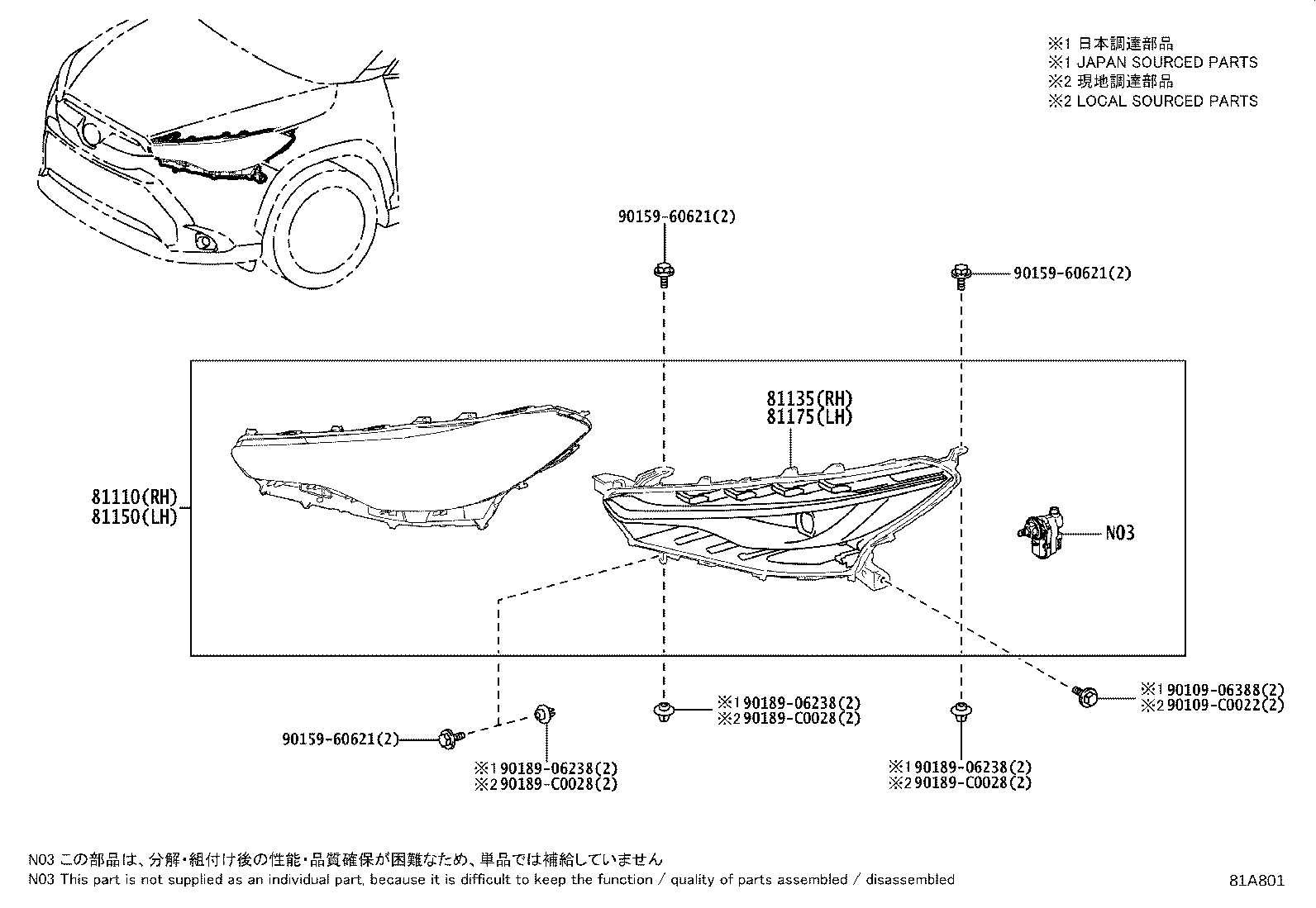

Headlamp
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81135F | Cover, Headlamp Back |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81510J | Bulb(FOR DAYTIME RUNNING LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
