Toyota Front Lander

2022-01 → present · chassis MXGA10,MXGH10 · catalogue 555310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

26 part groups · 3 illustrations

Illustrations

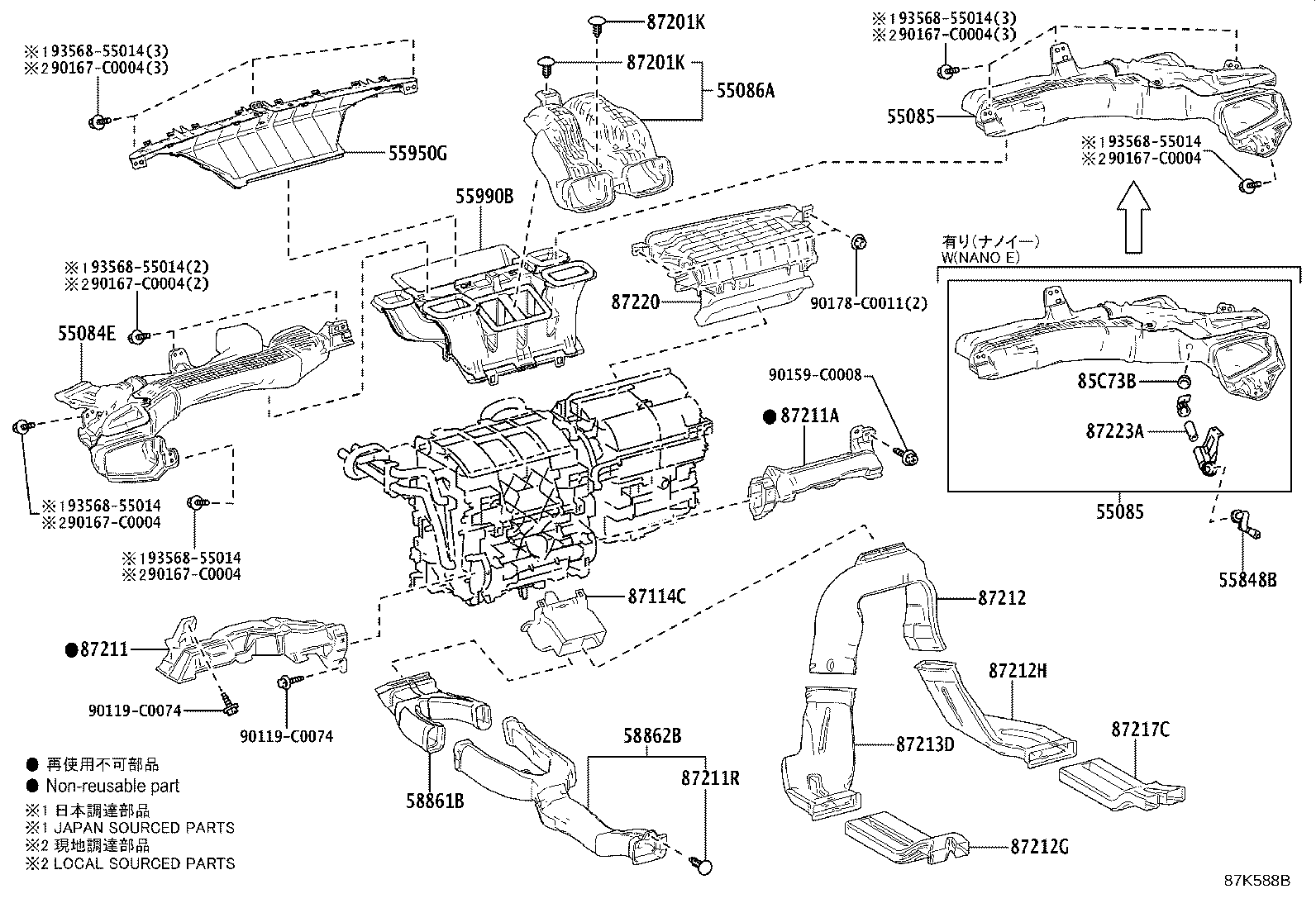

Figure 87K586 87K586 2022-01 → — Figure 87K588B 87K588B 2022-01 → — Figure 87K590 87K590 2022-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55848B Duct, Heater TO Register, NO.6
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
85C73B Grommet, Washer
87114C Cover, Heater
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87213D Duct, Air, Rear NO.2
87217C Duct, Air, Rear NO.5
87220 Duct Assy, Air
87223A Pad, Air Duct
88326C Plate, Cover
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
