Toyota BZ4X (GTMC)
2022-11 → present · chassis XEAM10,YEAM15 · catalogue 562310 · General
Supported model
Data version 2024-10

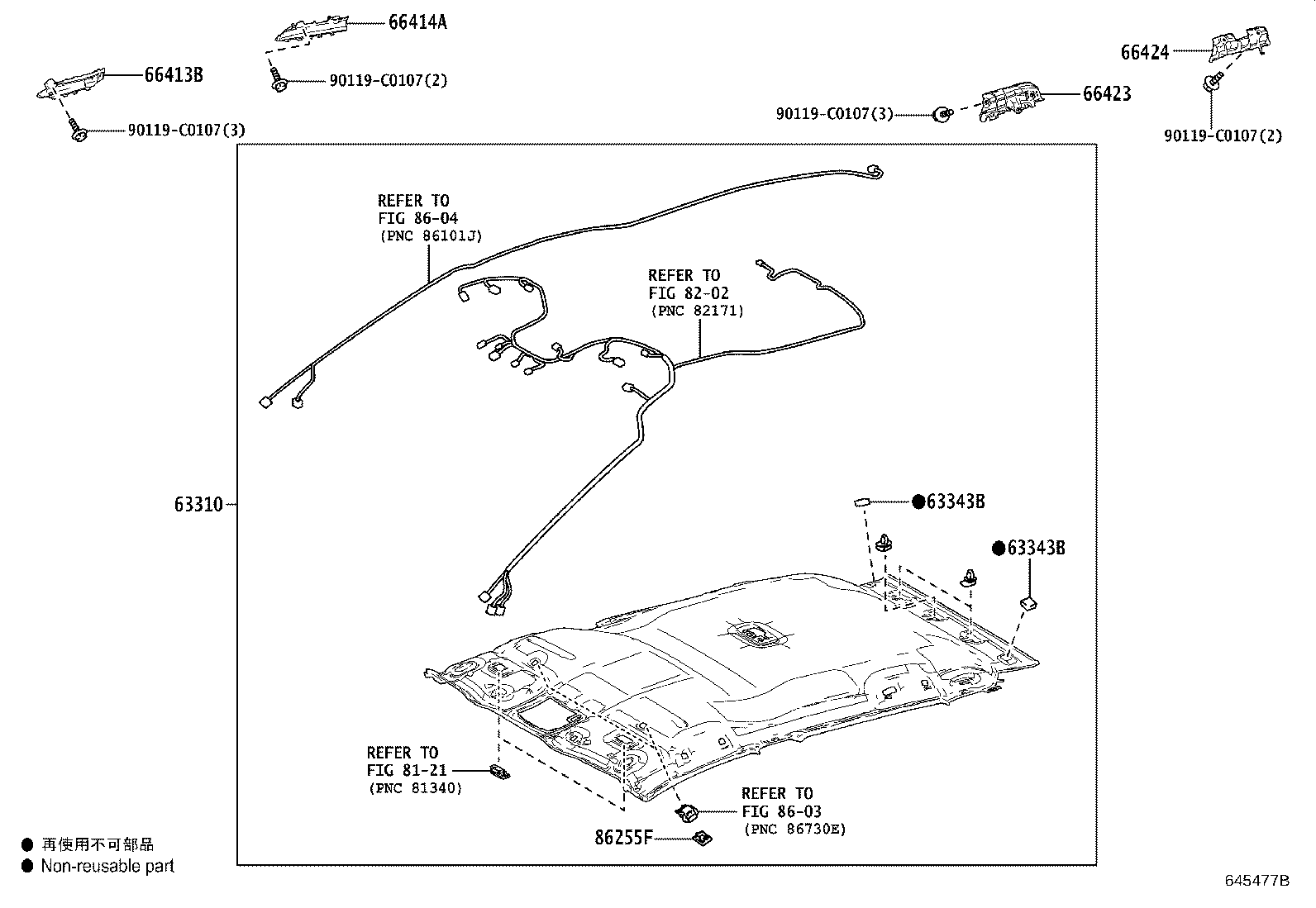

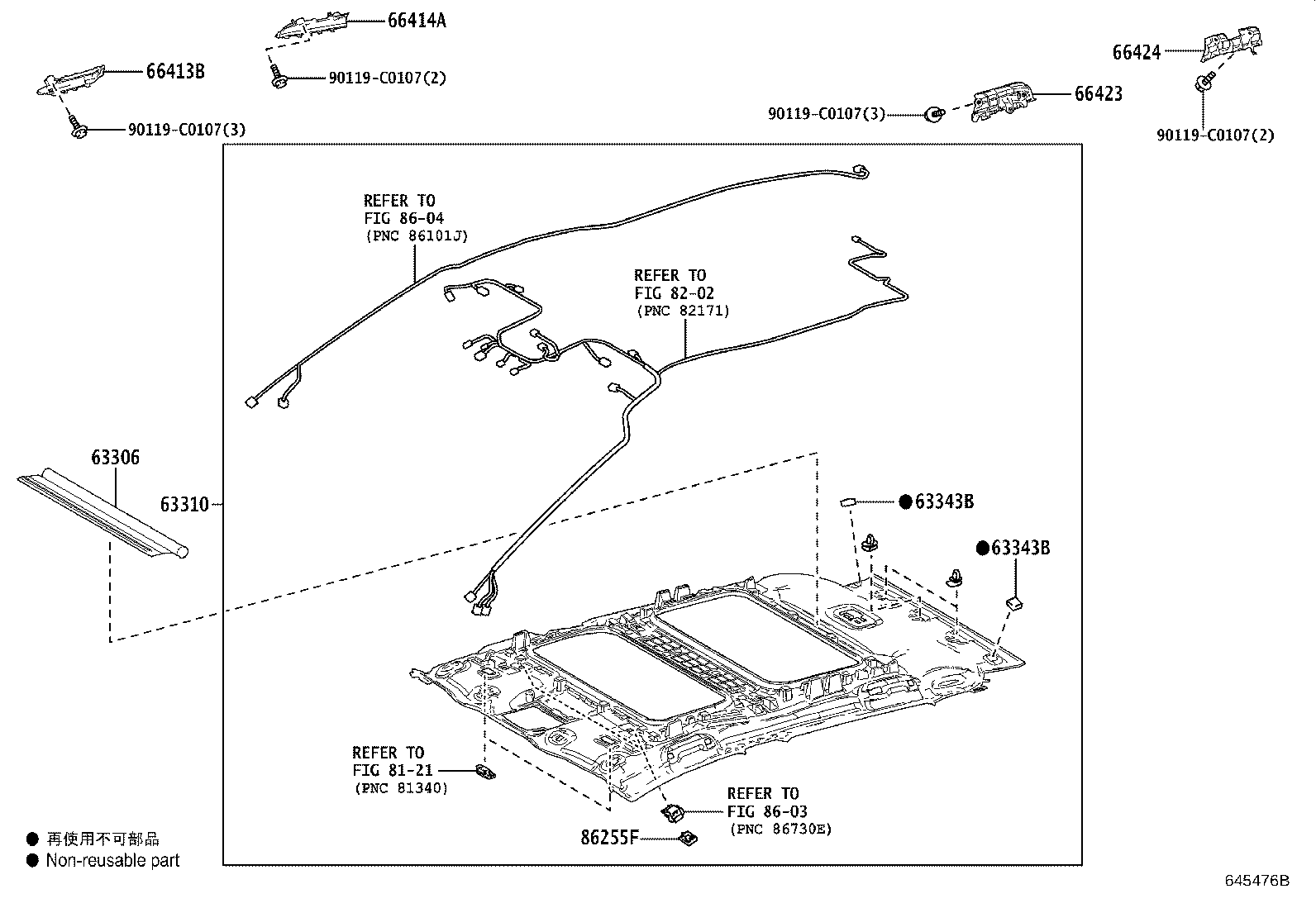

Roof Headlining & Silencer Pad
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63343B | Pad, Roof Silencer, Rear |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 86255F | Case, Microphone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
