Toyota BZ4X (TFTM)
2022-10 → present · chassis XEAM10,YEAM15 · catalogue 563310 · General
Supported model
Data version 2022-06

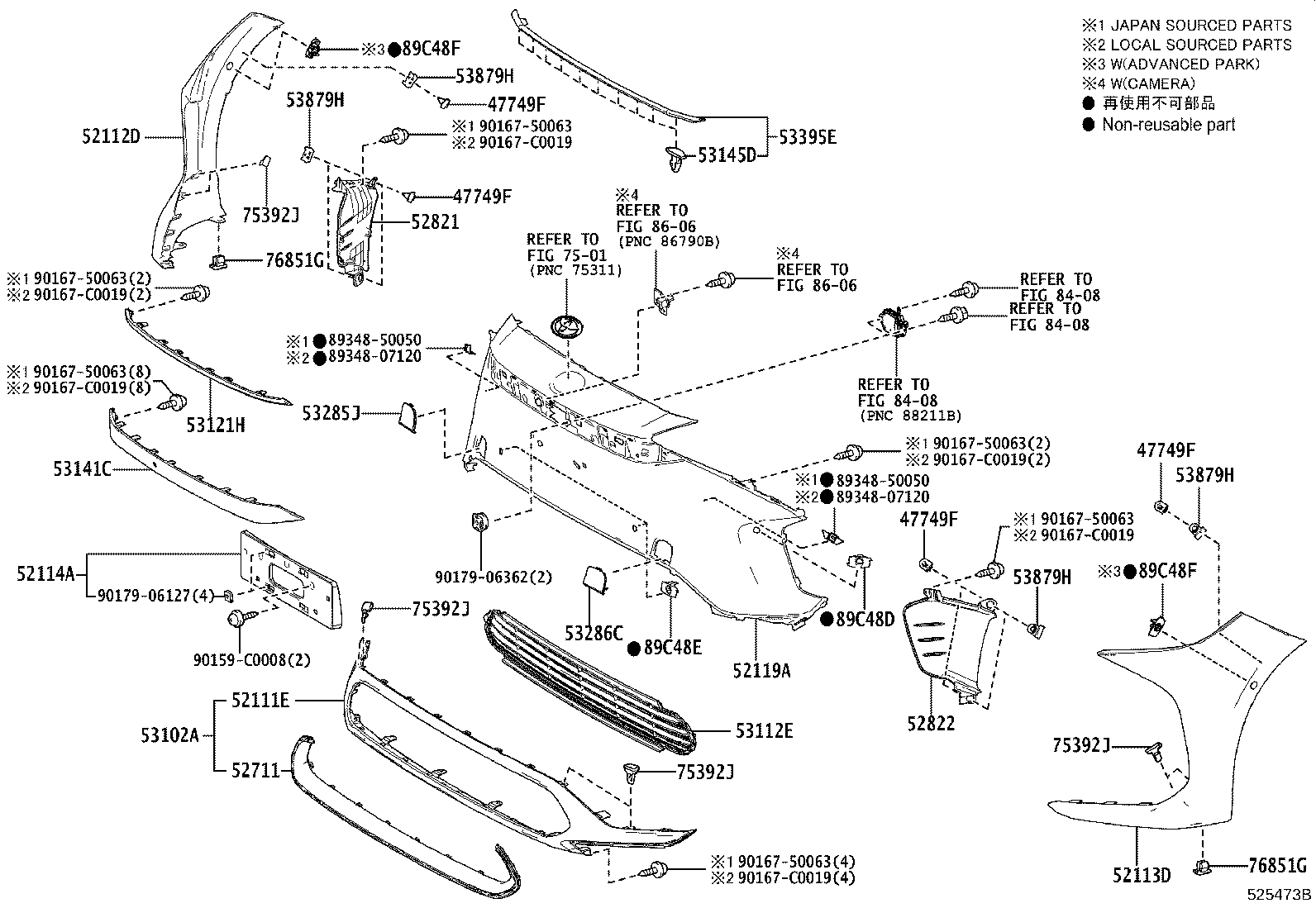

Front Bumper & Bumper Stay
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029C | Reinforcement Sub-assy, Front Bumper, NO.2 |
| 52102F | Extension Sub-assy, Front Bumper, RH |
| 52103A | Extension Sub-assy, Front Bumper, LH |
| 52111E | Bar, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52614 | Absorber, Front Bumper Energy, NO.2 |
| 52618 | Absorber, Front Bumper, Lower |
| 52711 | Moulding, Front Bumper |
| 52821 | Duct, Air Intake, RH |
| 52822 | Duct, Air Intake, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121H | Moulding, Radiator Grille, NO.1 |
| 53141C | Garnish, Radiator Grille |
| 53145D | Clip, Radiator Grille |
| 53285J | Cover, Front Bumper Arm Hole, RH |
| 53286C | Cover, Front Bumper Arm Hole, LH |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 75392J | Retainer, Outside Moulding |
| 76851G | Grommet, Screw, NO.1 |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
| 89C48F | Retainer, Ultrasonic Sensor, Front Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
