Toyota BZ4X (TFTM)
2022-10 → present · chassis XEAM10,YEAM15 · catalogue 563310 · General
Supported model
Data version 2022-06

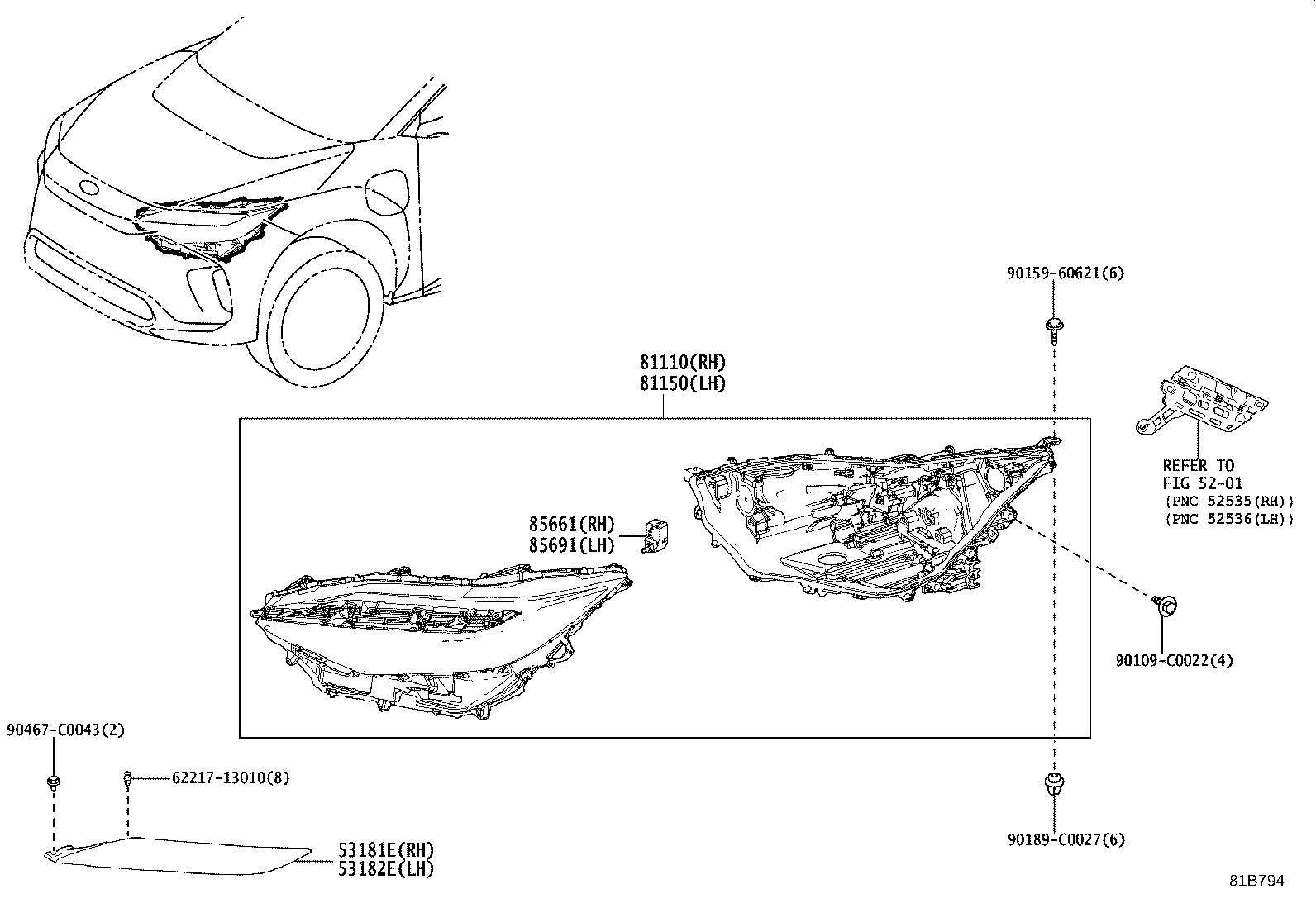

Headlamp
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81150 | Headlamp Assy, LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
