Toyota BZ4X (TFTM)

2022-10 → present · chassis XEAM10,YEAM15 · catalogue 563310 · General

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 2 illustrations

Illustrations

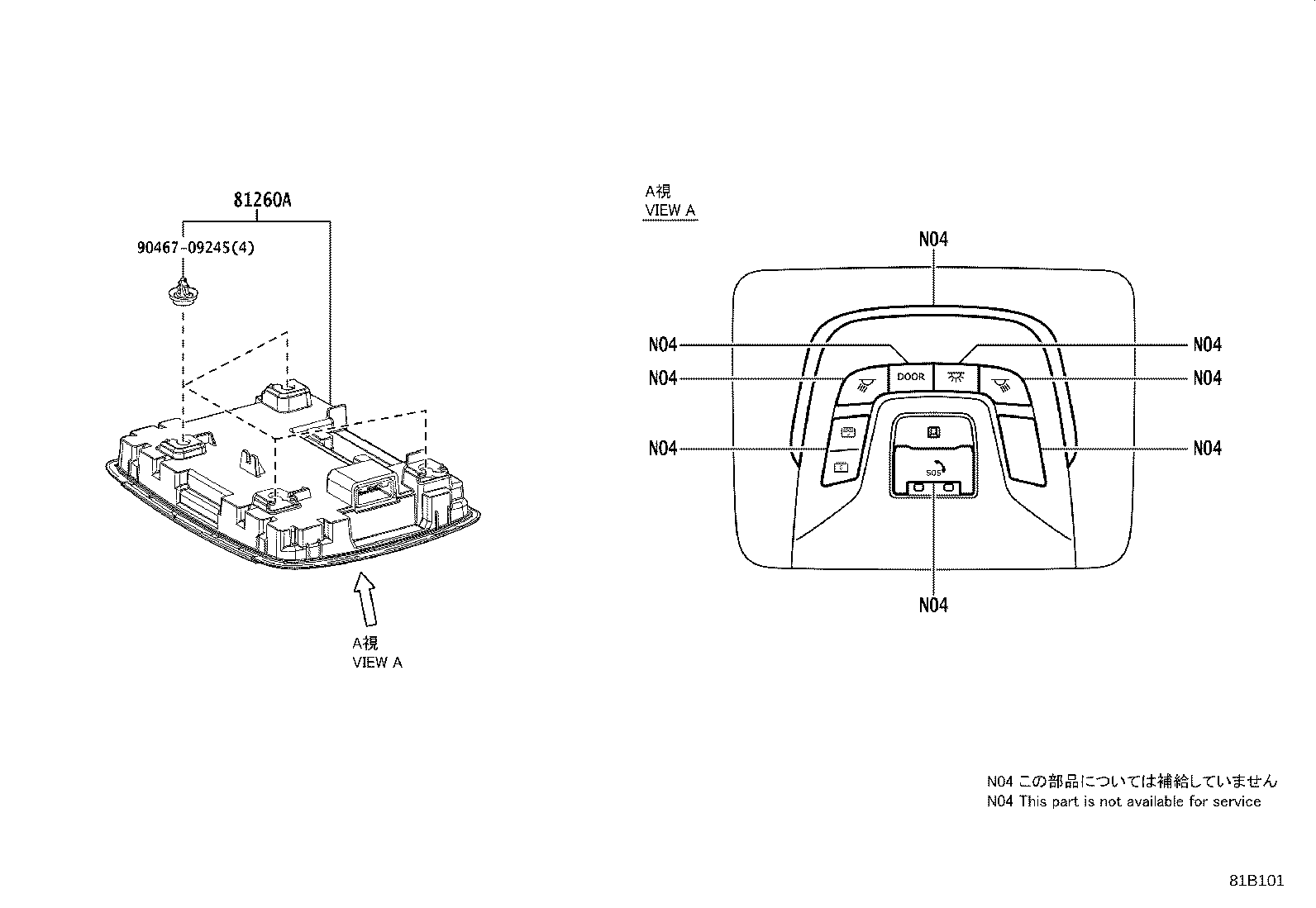

Figure 81B100 81B100 2022-10 → — Figure 81B101 81B101 2022-10 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81081 Lamp Sub-assy, Interior Illumination
81240 Lamp Assy, Room, NO.1
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
