Toyota BZ4X (TFTM)
2022-10 → present · chassis XEAM10,YEAM15 · catalogue 563310 · General
Supported model
Data version 2022-06
Switch & Relay & Computer
107 part groups · 12 illustrations
Illustrations
Part groups

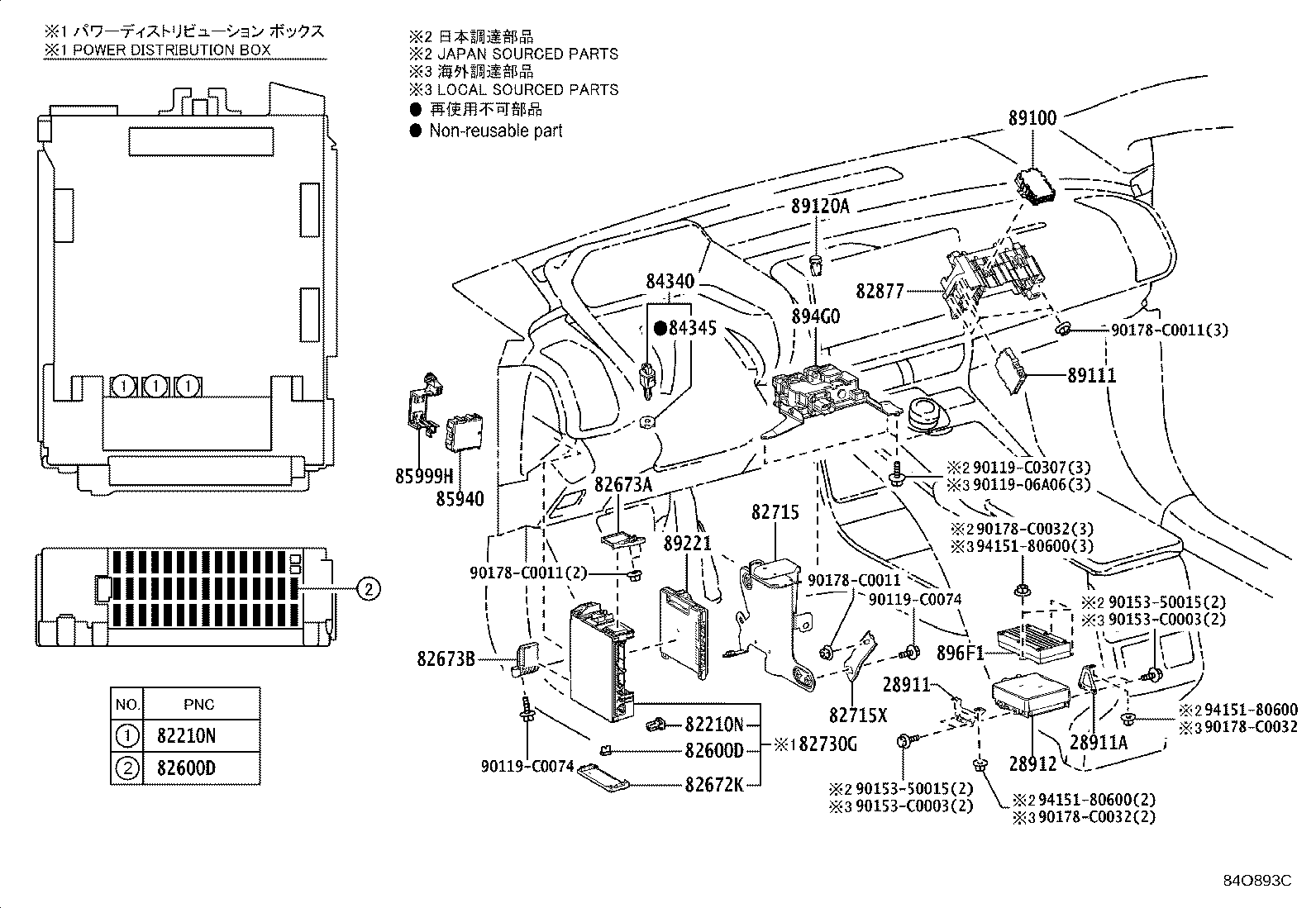

| PNC | Description |
|---|---|
| 28371L | Relay, Igp |
| 28371M | Relay, Igp, NO.2 |
| 28800R | Relay, Battery Fan |
| 28850C | Sensor Assy, Battery State |
| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28911A | Bracket, Integration Control Supply, NO.2 |
| 28912 | Supply, Integration Control |
| 35300G | Relay, Oil Pump |
| 82210N | Instrument Panel Fusible Link |
| 82210Q | Front Compartment Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600F | Fuse, Fuse Block |

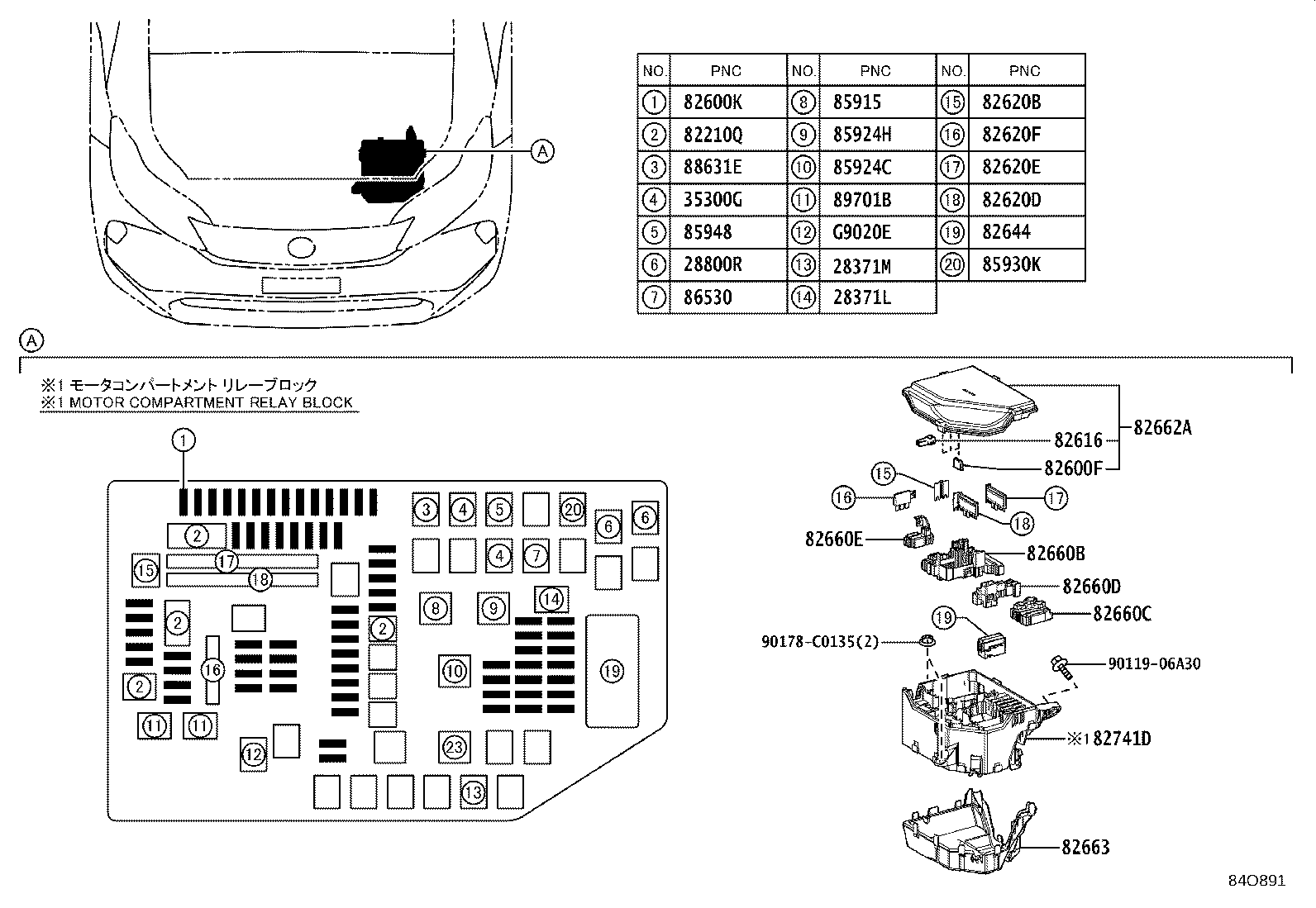

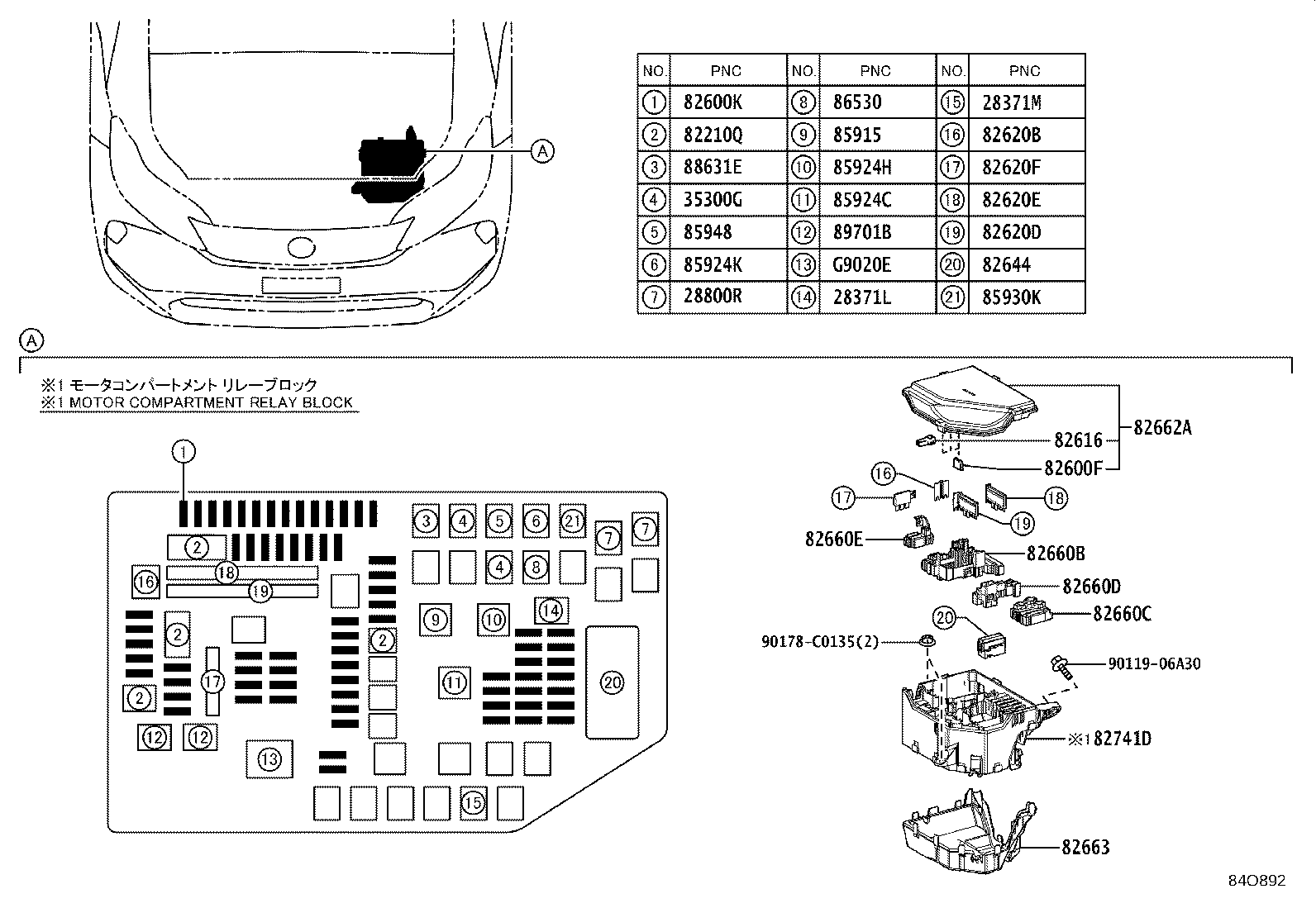

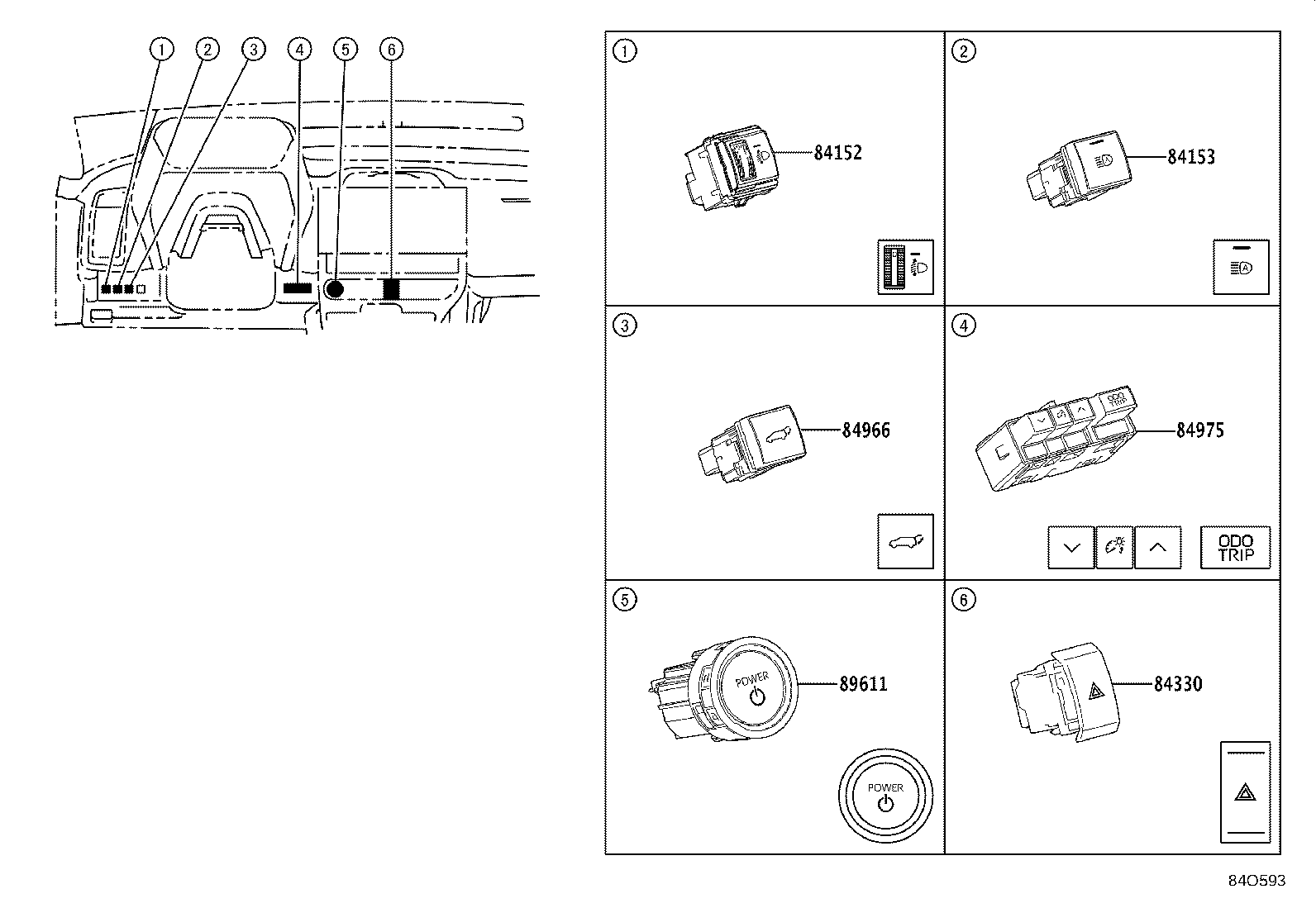

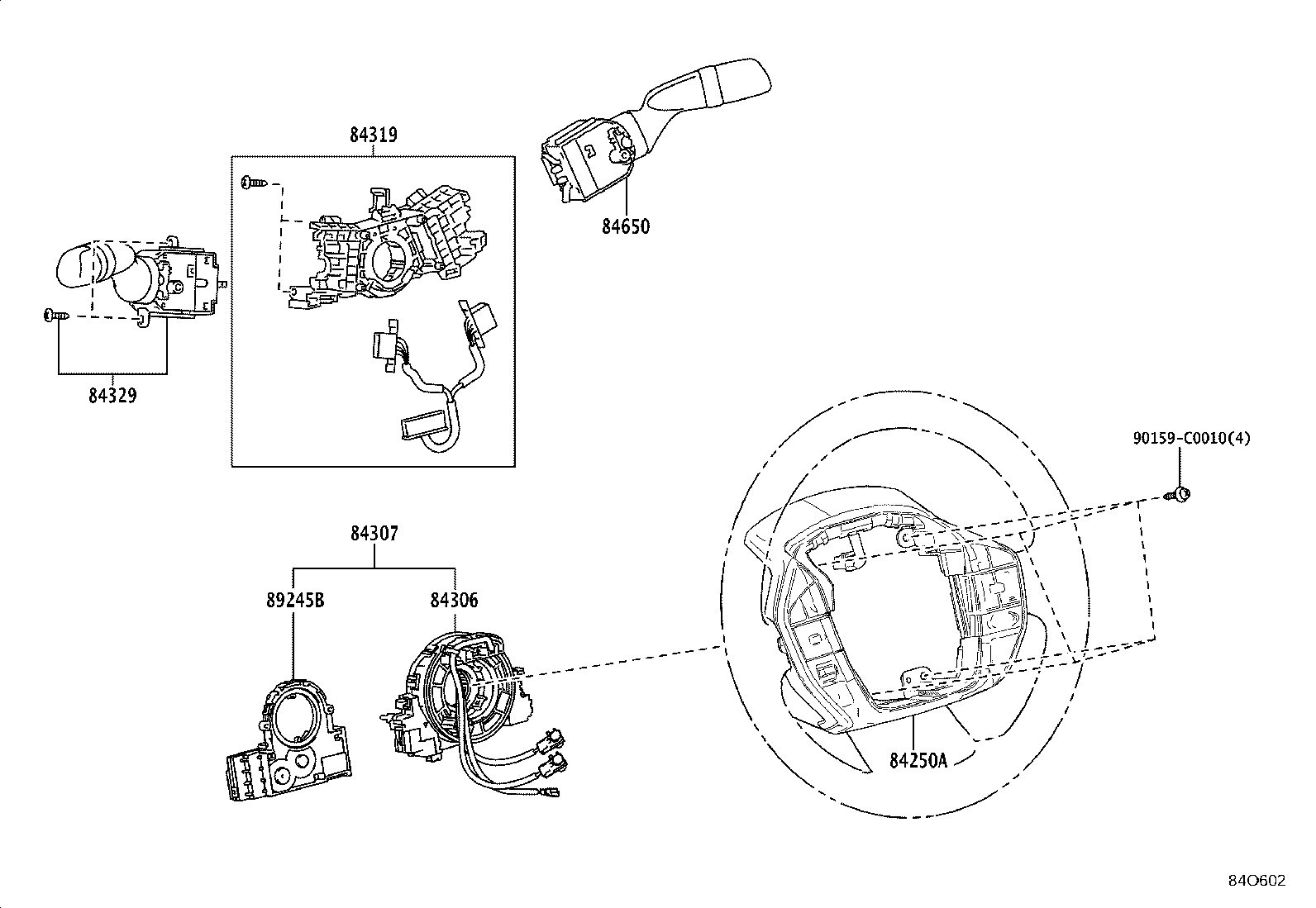

| 82600K | Front Compartment Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82730G | Box Assy, Power Distribution |
| 82741D | Block, Front Compartment Relay |
| 82877 | Box, Computer Integration, RH |
| 84040 | Master Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 841A0 | Switch Assy, Headlamp & Windshield Wiper |
| 84250A | Switch Assy, Steering Pad |

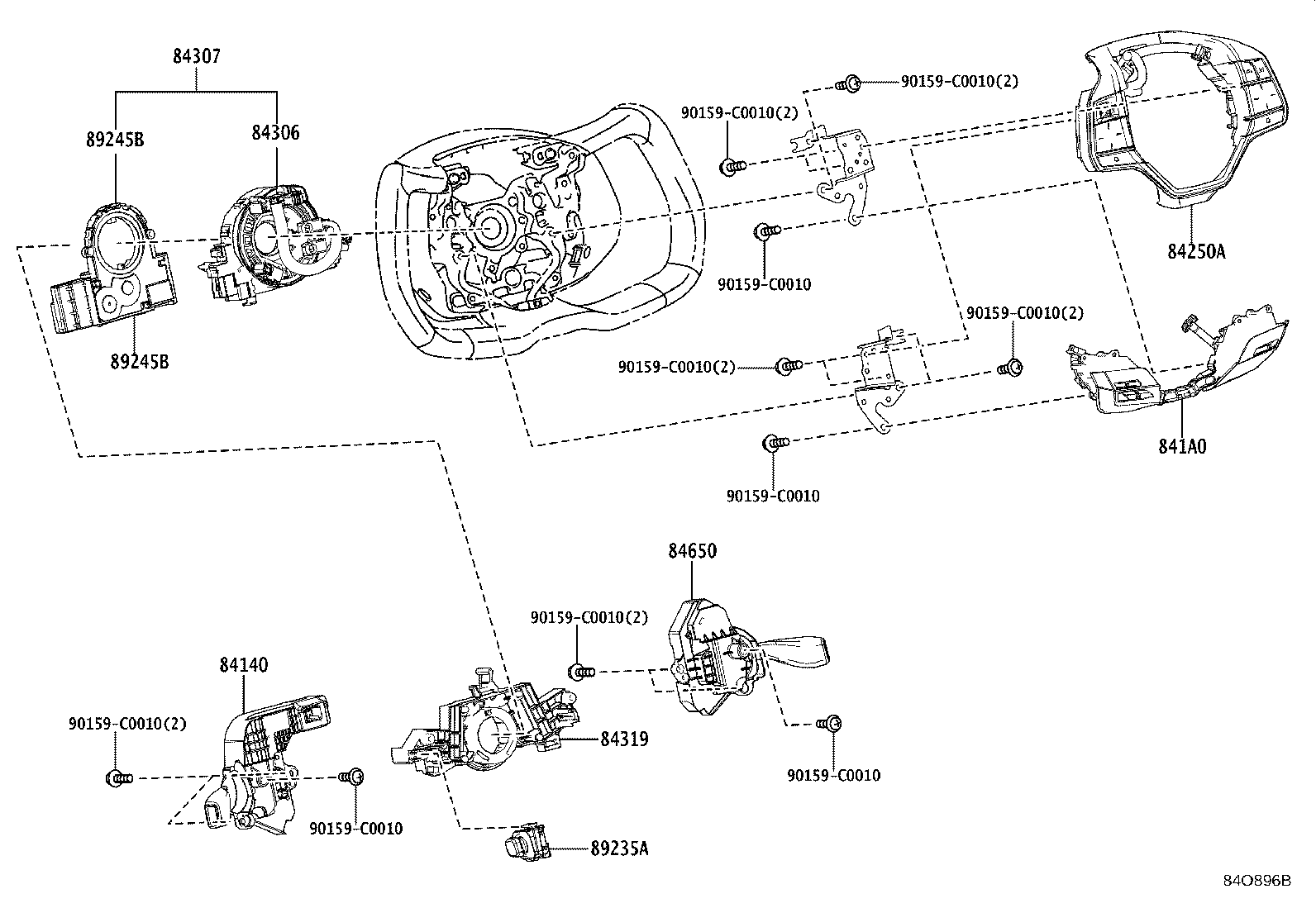

| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |

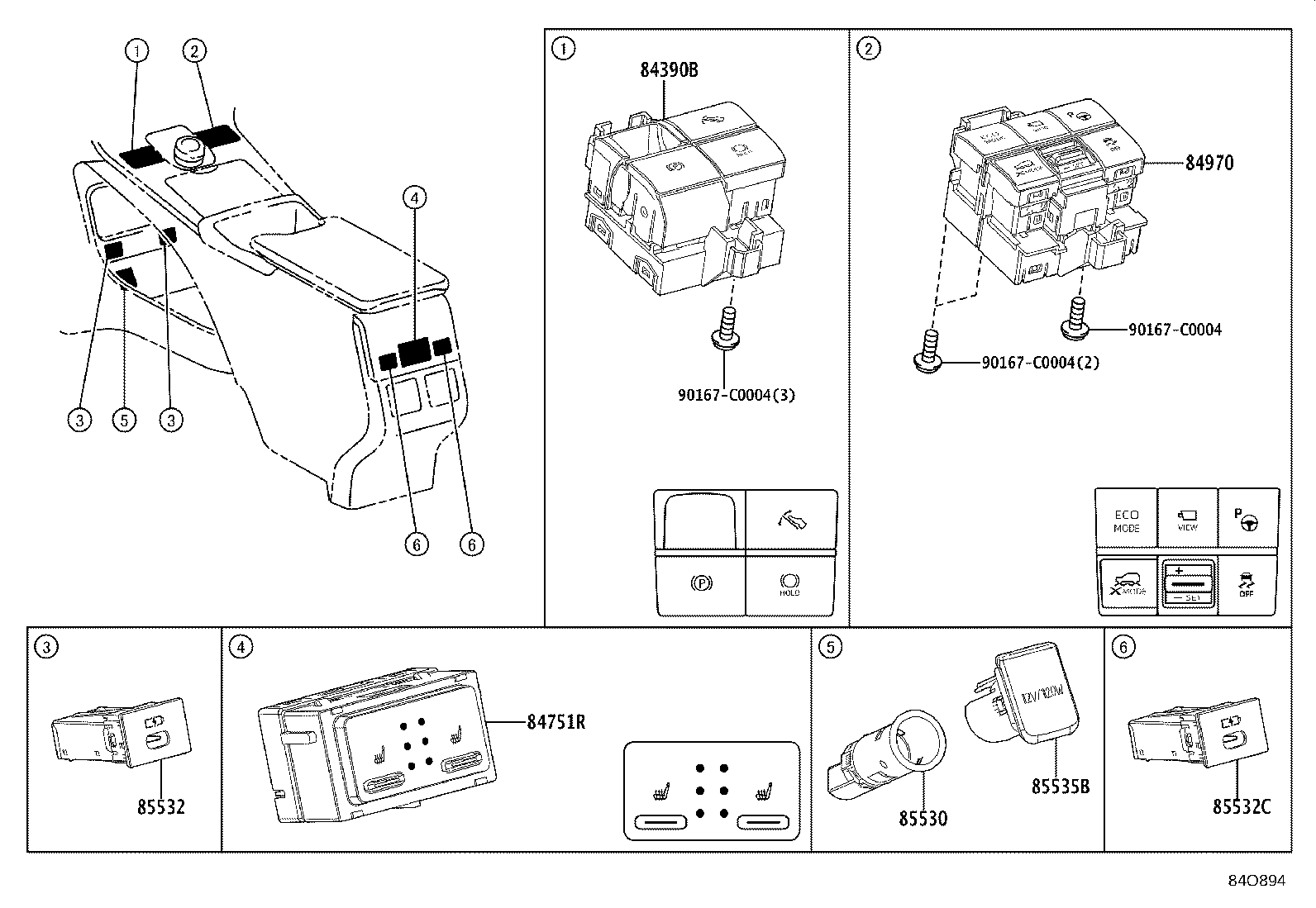

| 84390B | Switch Assy, Electric Parking Brake |
| 84485C | Switch, Power Outlet |
| 84650 | Switch Assy, Windshield Wiper |
| 84751R | Switch, Seat Heater(REAR) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |

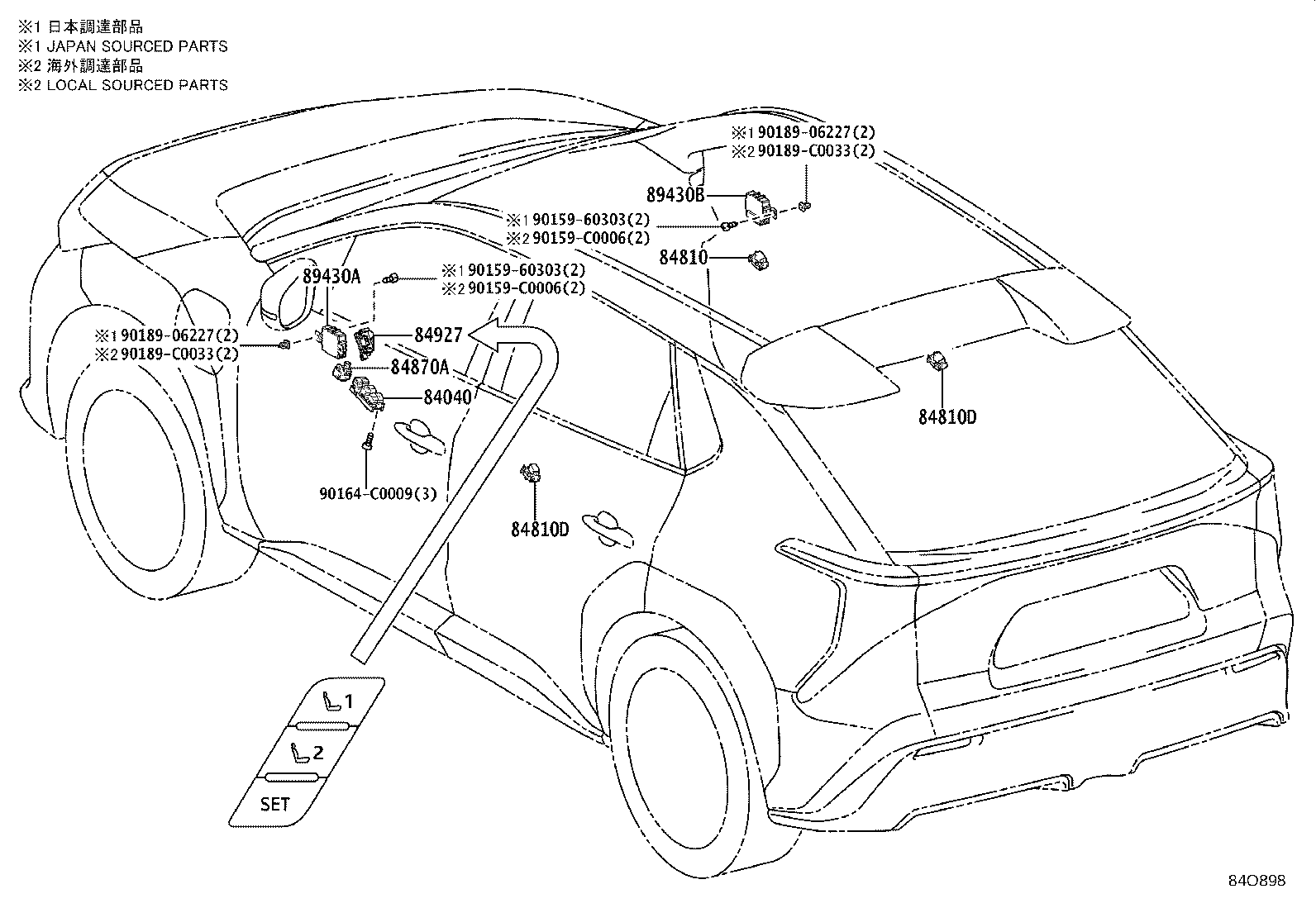

| 84870A | Switch Assy, Outer Mirror |

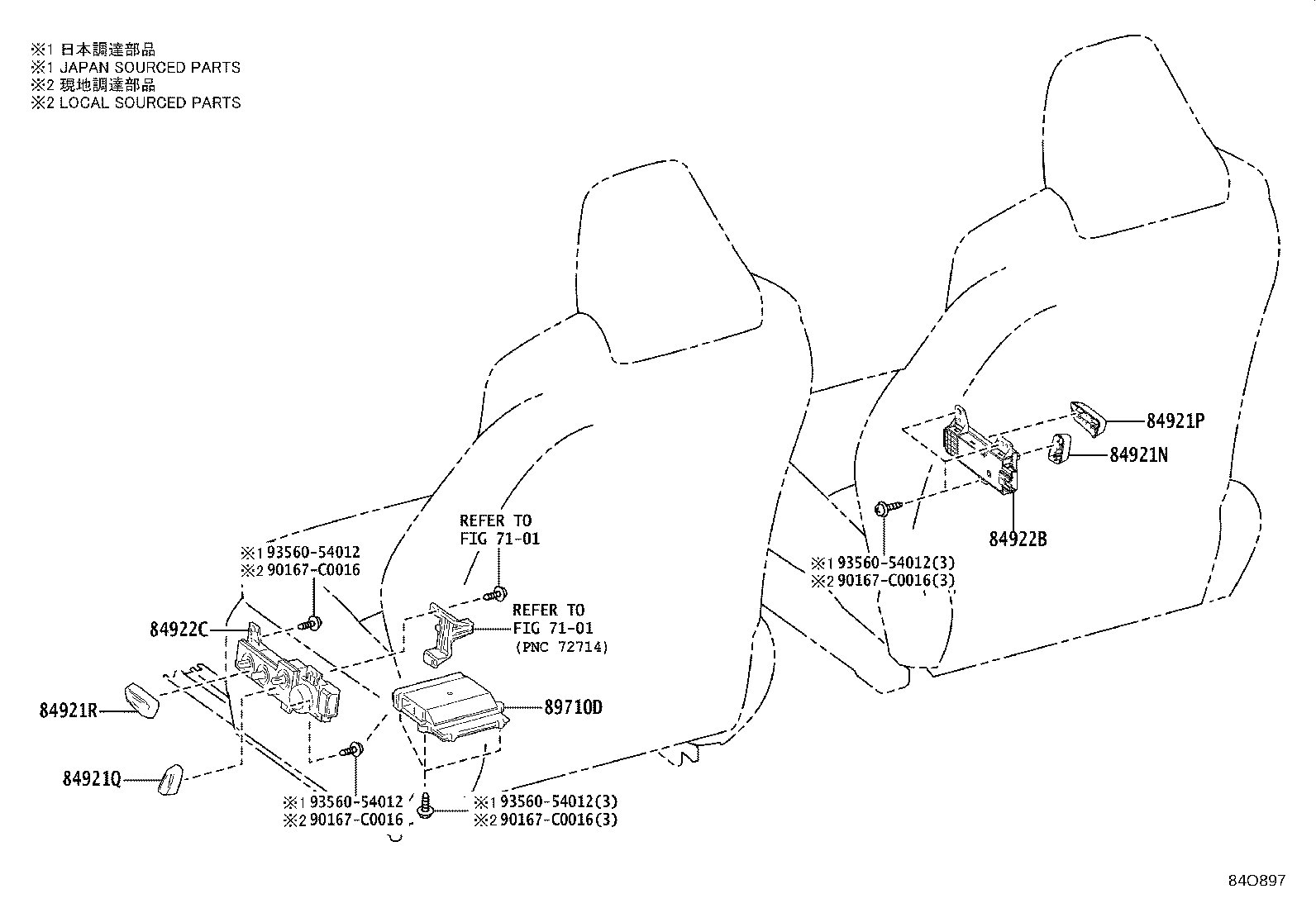

| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84930P | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84966 | Switch, Power Back Door Control |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85915 | Relay, Main |
| 85924C | Relay, Igct |
| 85924H | Relay, Igct-scene |
| 85924K | Relay, Igct, NO.2 |
| 85930K | Relay, Acc, NO.2 |
| 85940 | Relay Assy, Windshield Wiper |
| 85948 | Relay, Windshield Wiper |
| 85999H | Bracket, Relay |
| 86247A | Bracket, Voltage Inverter |
| 86247C | Bracket, Voltage Inverter, NO.2 |
| 86247D | Bracket, Voltage Inverter, NO.3 |
| 8624A | Inverter, Voltage |
| 86530 | Relay Assy, Horn |

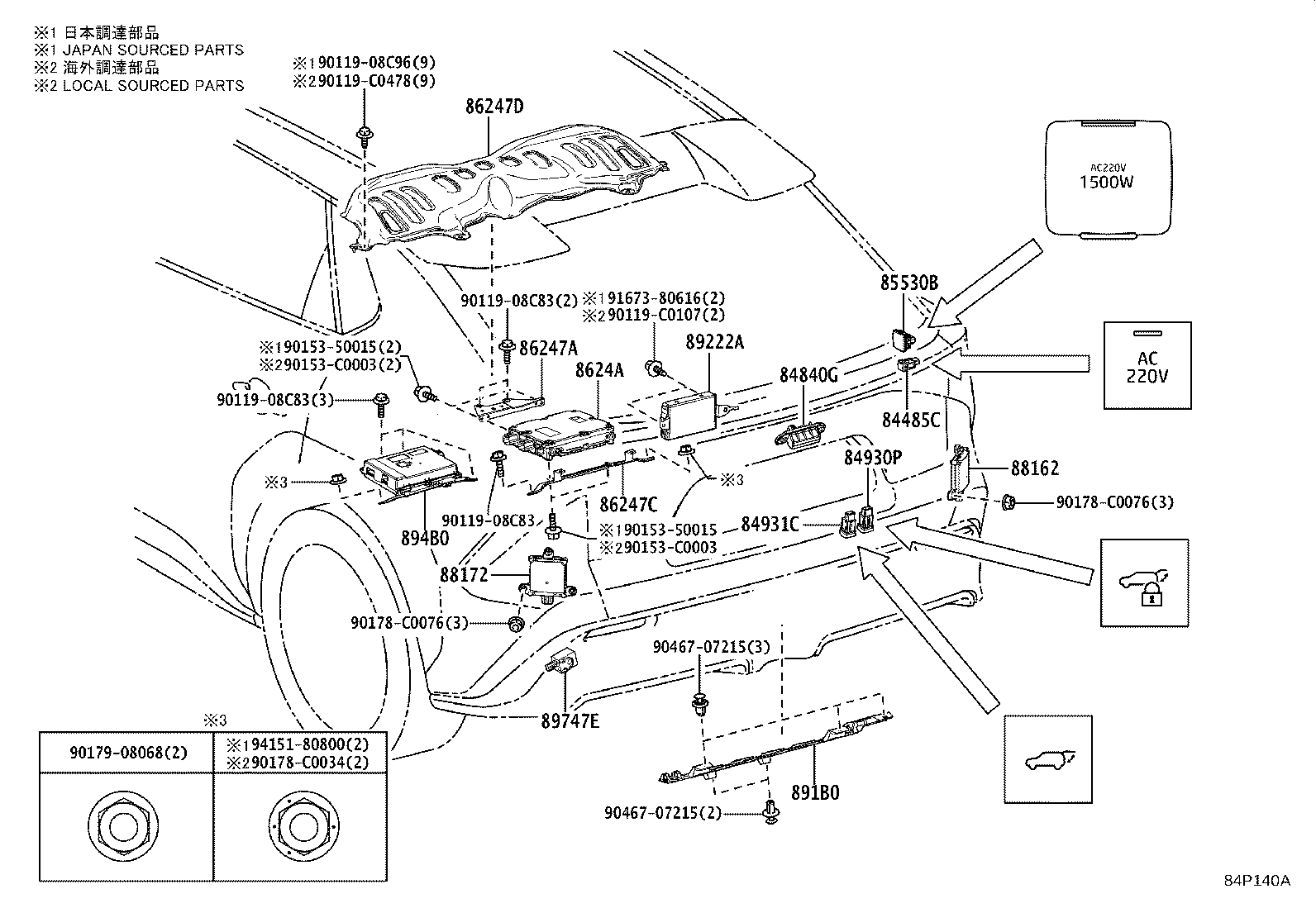

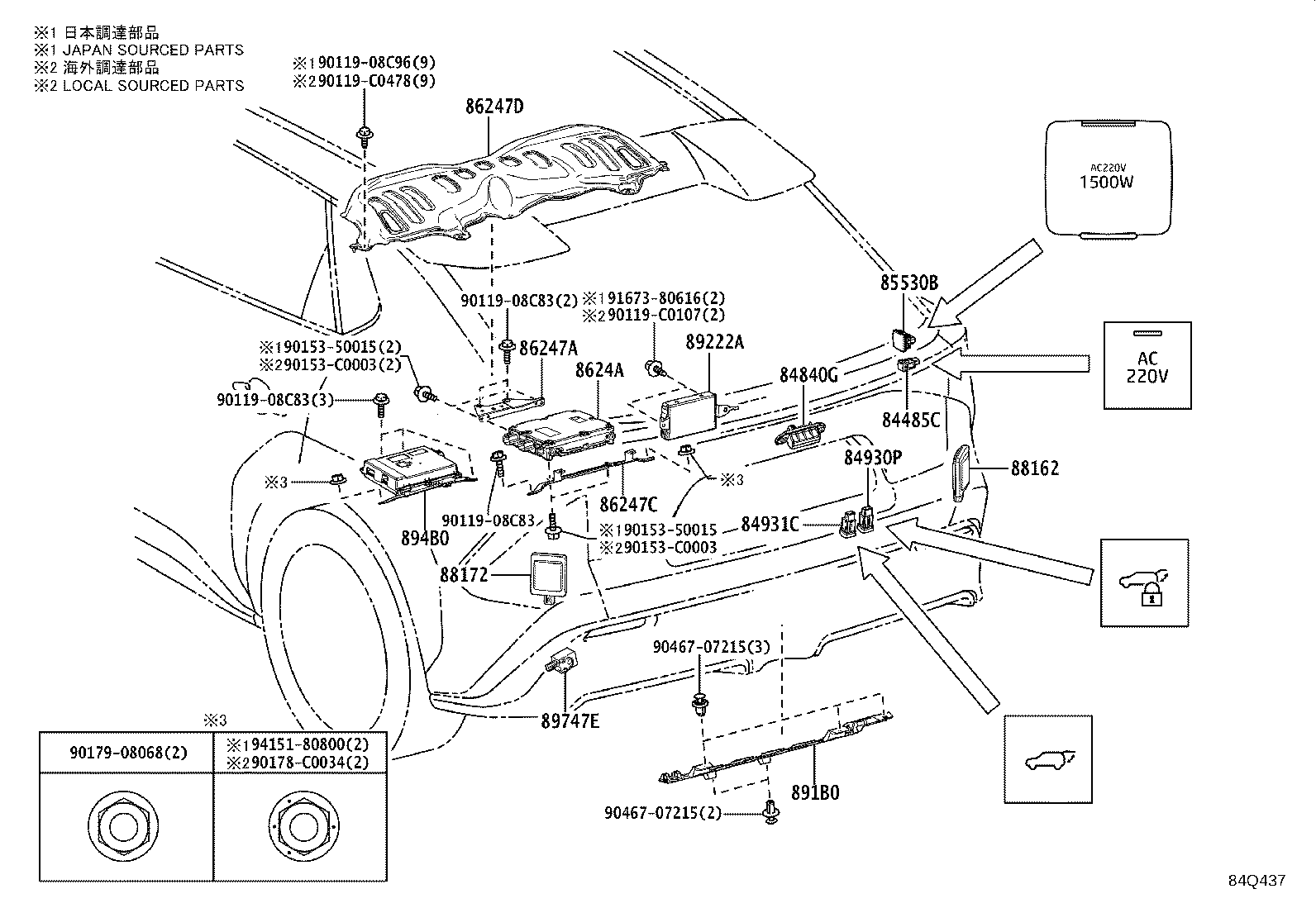

| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88631E | Relay, Airconditioner |
| 89100 | Computer Assy, Network Gateway(FOR DC POWER SUPPLY) |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B0 | Sensor Assy, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 894B0 | Computer Assy, Solar Energy Control |
| 894G0 | Block Assy, High Voltage Junction |
| 89611 | Switch, Push Start |
| 89650 | Computer Assy, Power Steering |
| 896F1 | Supply, Steering Control Power |
| 89701B | Relay, Plugin Charge Control |
| 89710D | Computer Assy, Position Control, LH |
| 89747E | Buzzer, Power Back Door Warning |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
