Toyota BZ4X (TFTM)

2022-10 → present · chassis XEAM10,YEAM15 · catalogue 563310 · General

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

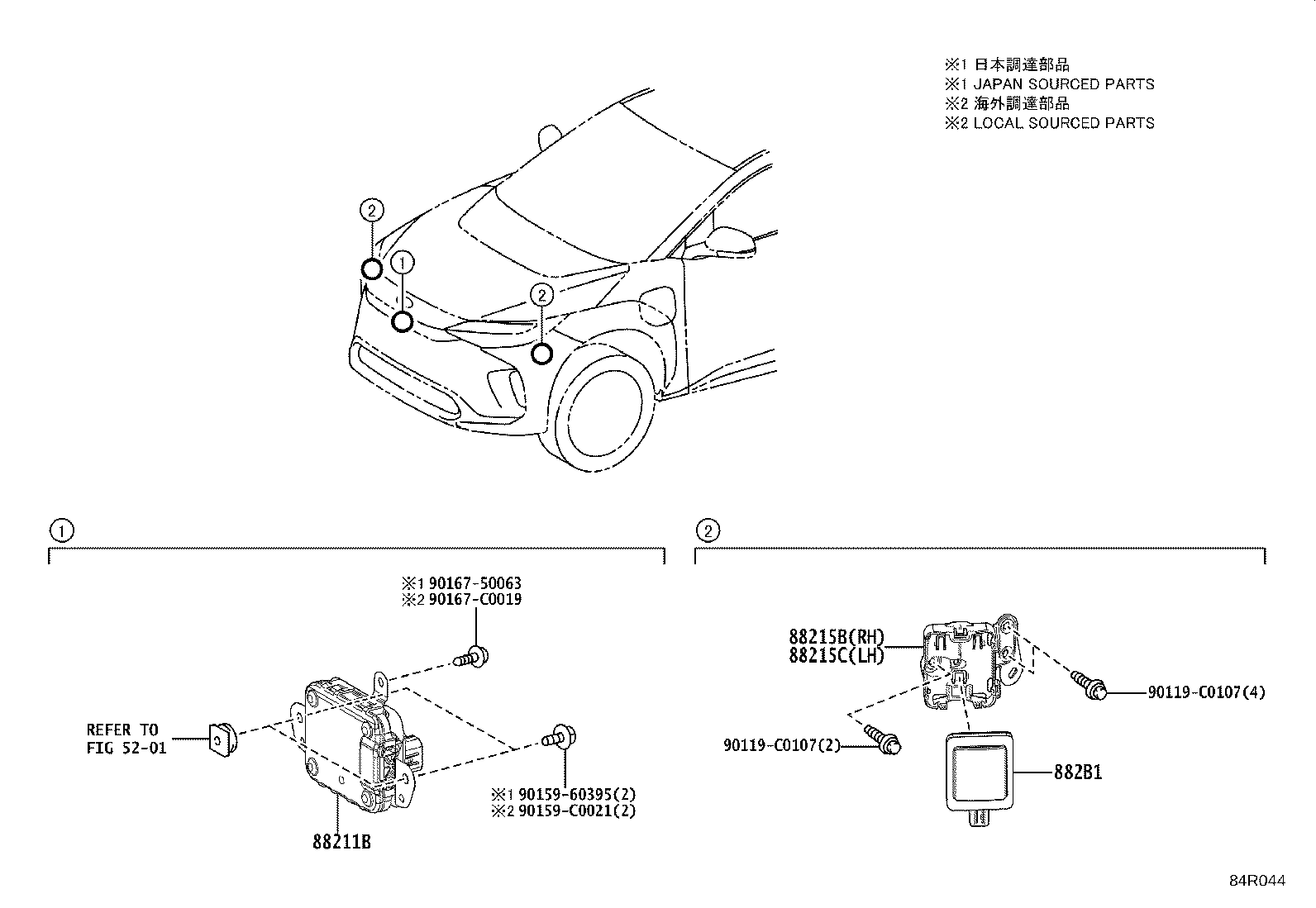

Figure 84O901A 84O901A 2022-10 → 2023-06 Figure 84R044 84R044 2023-06 → —

Part groups

PNCDescription
88211B Sensor Assy, Millimeter Wave Radar
88215B Bracket, Front Side Radar Sensor, RH
88215C Bracket, Front Side Radar Sensor, LH
882B1 Sensor, Front Side Radar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
