Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

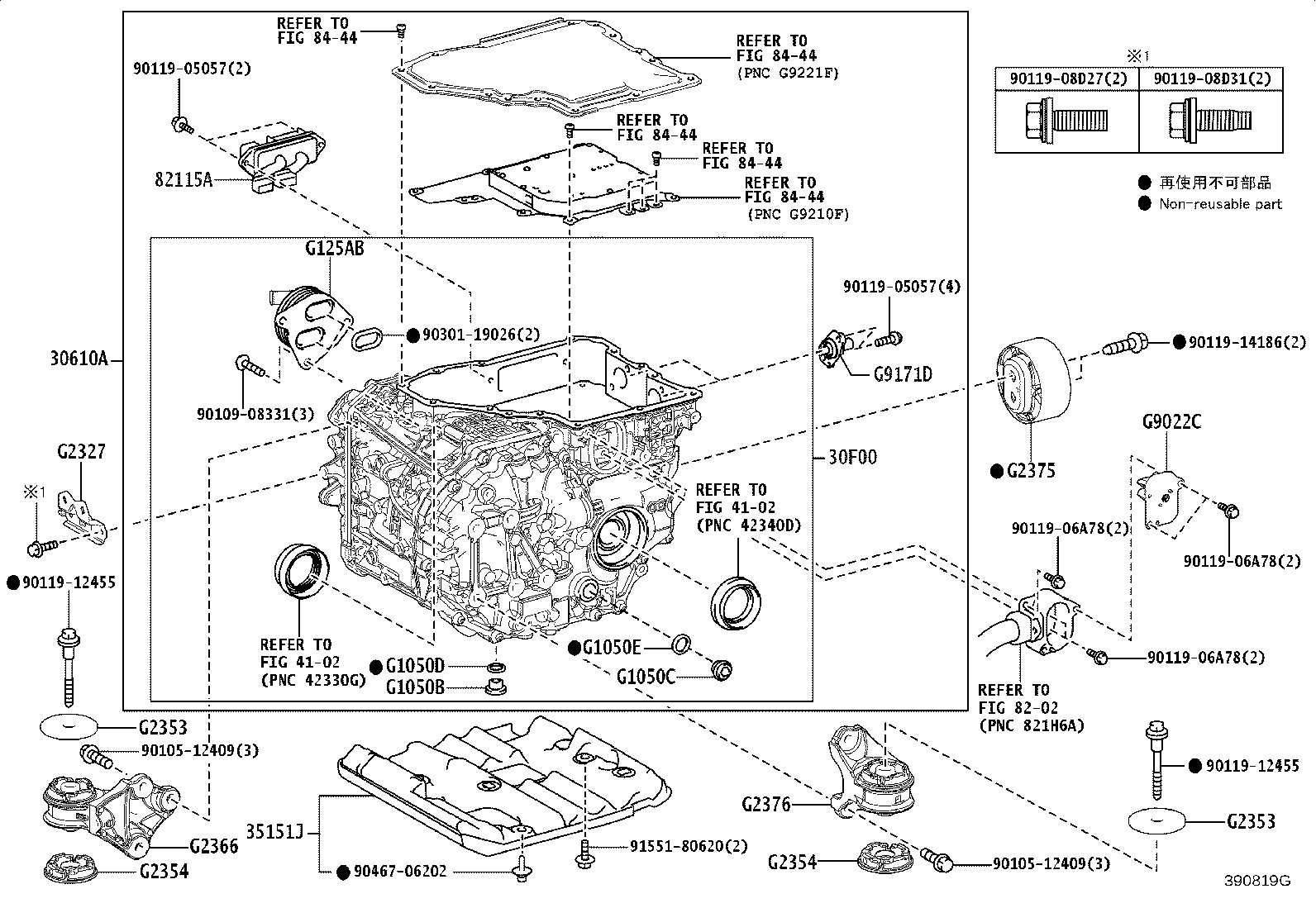

Exploded illustration 390819G 30610A — TRANSAXLE ASSY, REAR W/MOTOR & INVERTER (4 parts) G2375 — INSULATOR, REAR MOTOR MOUNTING, REAR (3 parts) G2376 — INSULATOR, REAR MOTOR MOUNTING, LH (3 parts) G2354 — STOPPER, MOTOR MOUNTING, LOWER (3 parts) G2354 — STOPPER, MOTOR MOUNTING, LOWER (3 parts) G2353 — STOPPER, MOTOR MOUNTING, UPPER (3 parts) 9011914186 — not listed in this catalogue G9022C — COVER SUB-ASSY, INVERTER, UPPER, NO.2 (4 parts) 9010512409 — not listed in this catalogue 9010512409 — not listed in this catalogue G2353 — STOPPER, MOTOR MOUNTING, UPPER (3 parts) G2366 — INSULATOR, REAR MOTOR MOUNTING, RH (3 parts) G2327 — STAY, REAR MOTOR MOUNTING, RH (3 parts) 9155180620 — not listed in this catalogue 9046706202 — not listed in this catalogue 9011906A78 — not listed in this catalogue 9011906A78 — not listed in this catalogue 9011912455 — not listed in this catalogue 9011906A78 — not listed in this catalogue 9010908331 — not listed in this catalogue 9011912455 — not listed in this catalogue 35151J — COVER, AUTOMATIC TRANSMISSION CASE (3 parts) 9030119026 — not listed in this catalogue G1050C — PLUG, FILLER(FOR REAR TRACTION MOTOR) (3 parts) G1050B — PLUG, DRAIN(FOR REAR TRACTION MOTOR) (3 parts) G1050D — GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR) (3 parts) G1050E — GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) (3 parts) G125AB — COOLER, MOTOR COOLING (FOR REAR TRANSAXLE) (3 parts) 8202 — not listed in this catalogue 9011908D31 — not listed in this catalogue 9011908D27 — not listed in this catalogue 4102 — not listed in this catalogue 4102 — not listed in this catalogue 30F00 — REAR TRANSAXLE ASSY, W/MOTOR (2 parts) 9011905057 — not listed in this catalogue G9171D — PIPE, INVERTER COOLING, NO.1 (FOR REAR TRANSAXLE) (2 parts) 9011905057 — not listed in this catalogue 8444 — not listed in this catalogue 8444 — not listed in this catalogue 8444 — not listed in this catalogue 8444 — not listed in this catalogue 82115A — WIRE, MOTOR COMPARTMENT, MAIN (FOR REAR TRANSAXLE) (2 parts) 8444 — not listed in this catalogue
390819G · 19 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
30610A — Transaxle Assy, Rear W/Motor & Inverter
30610-46021 Transaxle Assy, Rear W/Motor & Inverter
2023-11 → 2025-01 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
30610-46022 Transaxle Assy, Rear W/Motor & Inverter
2025-01 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
30610-46021 Transaxle Assy, Rear W/Motor & Inverter
2023-01 → —
XEBM15 B CHI —
30610-46021 Transaxle Assy, Rear W/Motor & Inverter
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
30F00 — Rear Transaxle Assy, W/Motor
30600-42060 Rear Transaxle Assy, W/Motor
2023-11 → —
XEBM15 (C,L) (ARL,CHI,GEN) —
30600-42060 Rear Transaxle Assy, W/Motor
2023-01 → —
XEBM15 ARL,CHI,GEN —
35151J — Cover, Automatic Transmission Case
35151-46030 Cover, Automatic Transmission Case
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
35151-46030 Cover, Automatic Transmission Case
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
35151-46030 Cover, Automatic Transmission Case
2023-01 → —
XEBM15 B CHI —
82115A — Wire, Motor Compartment, Main (FOR REAR TRANSAXLE)
82115-42Q20 Wire, Motor Compartment, Main (FOR REAR TRANSAXLE)
2023-11 → —
XEBM15 (C,L) (ARL,CHI,GEN) —
82115-42Q20 Wire, Motor Compartment, Main (FOR REAR TRANSAXLE)
2023-01 → —
XEBM15 ARL,CHI,GEN —
G1050B — Plug, Drain(FOR REAR TRACTION MOTOR)
90341-18016 Plug, Drain(FOR REAR TRACTION MOTOR)
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90341-18016 Plug, Drain(FOR REAR TRACTION MOTOR)
2023-01 → —
XEBM15 B CHI —
90341-18016 Plug, Drain(FOR REAR TRACTION MOTOR)
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G1050C — Plug, Filler(FOR REAR TRACTION MOTOR)
90341-18090 Plug, Filler(FOR REAR TRACTION MOTOR)
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90341-18090 Plug, Filler(FOR REAR TRACTION MOTOR)
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90341-18090 Plug, Filler(FOR REAR TRACTION MOTOR)
2023-01 → —
XEBM15 B CHI —
G1050D — Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90430-18008 Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90430-18008 Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2023-01 → —
XEBM15 B CHI —
G1050E — Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90430-18008 Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
90430-18008 Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2023-01 → —
XEBM15 B CHI —
G125AB — Cooler, Motor Cooling (FOR REAR TRANSAXLE)
G125A-42030 Cooler, Motor Cooling (FOR REAR TRANSAXLE)
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G125A-42030 Cooler, Motor Cooling (FOR REAR TRANSAXLE)
2023-01 → —
XEBM15 B CHI —
G125A-42030 Cooler, Motor Cooling (FOR REAR TRANSAXLE)
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2327 — Stay, Rear Motor Mounting, RH
G2327-42010 Stay, Rear Motor Mounting, RH
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2327-42010 Stay, Rear Motor Mounting, RH
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2327-42010 Stay, Rear Motor Mounting, RH
2023-01 → —
XEBM15 B CHI —
G2353 — Stopper, Motor Mounting, Upper
G2353-0R021 Stopper, Motor Mounting, Upper
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2353-0R021 Stopper, Motor Mounting, Upper
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2353-0R021 Stopper, Motor Mounting, Upper
2023-01 → —
XEBM15 B CHI —
G2354 — Stopper, Motor Mounting, Lower
G2354-0R020 Stopper, Motor Mounting, Lower
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2354-0R020 Stopper, Motor Mounting, Lower
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2354-0R020 Stopper, Motor Mounting, Lower
2023-01 → —
XEBM15 B CHI —
G2366 — Insulator, Rear Motor Mounting, RH
G2366-0R020 Insulator, Rear Motor Mounting, RH
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2366-0R020 Insulator, Rear Motor Mounting, RH
2023-01 → —
XEBM15 B CHI —
G2366-0R020 Insulator, Rear Motor Mounting, RH
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2375 — Insulator, Rear Motor Mounting, Rear
G2375-0R021 Insulator, Rear Motor Mounting, Rear
2023-11 → 2024-04 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2375-0R022 Insulator, Rear Motor Mounting, Rear
2024-05 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2375-0R020 Insulator, Rear Motor Mounting, Rear
2023-01 → 2023-11 ended
XEBM15 —
G2376 — Insulator, Rear Motor Mounting, LH
G2376-0R020 Insulator, Rear Motor Mounting, LH
2023-11 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2376-0R020 Insulator, Rear Motor Mounting, LH
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G2376-0R020 Insulator, Rear Motor Mounting, LH
2023-01 → —
XEBM15 B CHI —
G9022C — Cover Sub-assy, Inverter, Upper, NO.2
G9022-42030 Cover Sub-assy, Inverter, Upper, NO.2
2023-11 → 2025-01 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G9022-42031 Cover Sub-assy, Inverter, Upper, NO.2
2025-01 → —
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G9022-42030 Cover Sub-assy, Inverter, Upper, NO.2
2023-01 → 2023-11 ended
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN —
G9022-42030 Cover Sub-assy, Inverter, Upper, NO.2
2023-01 → —
XEBM15 B CHI —
G9171D — Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE)
G9171-42020 Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE)
2023-11 → —
XEBM15 (C,L) (ARL,CHI,GEN) —
G9171-42020 Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE)
2023-01 → —
XEBM15 ARL,CHI,GEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
