Brake Pedal & Bracket

5 part groups · 2 illustrations

Illustrations

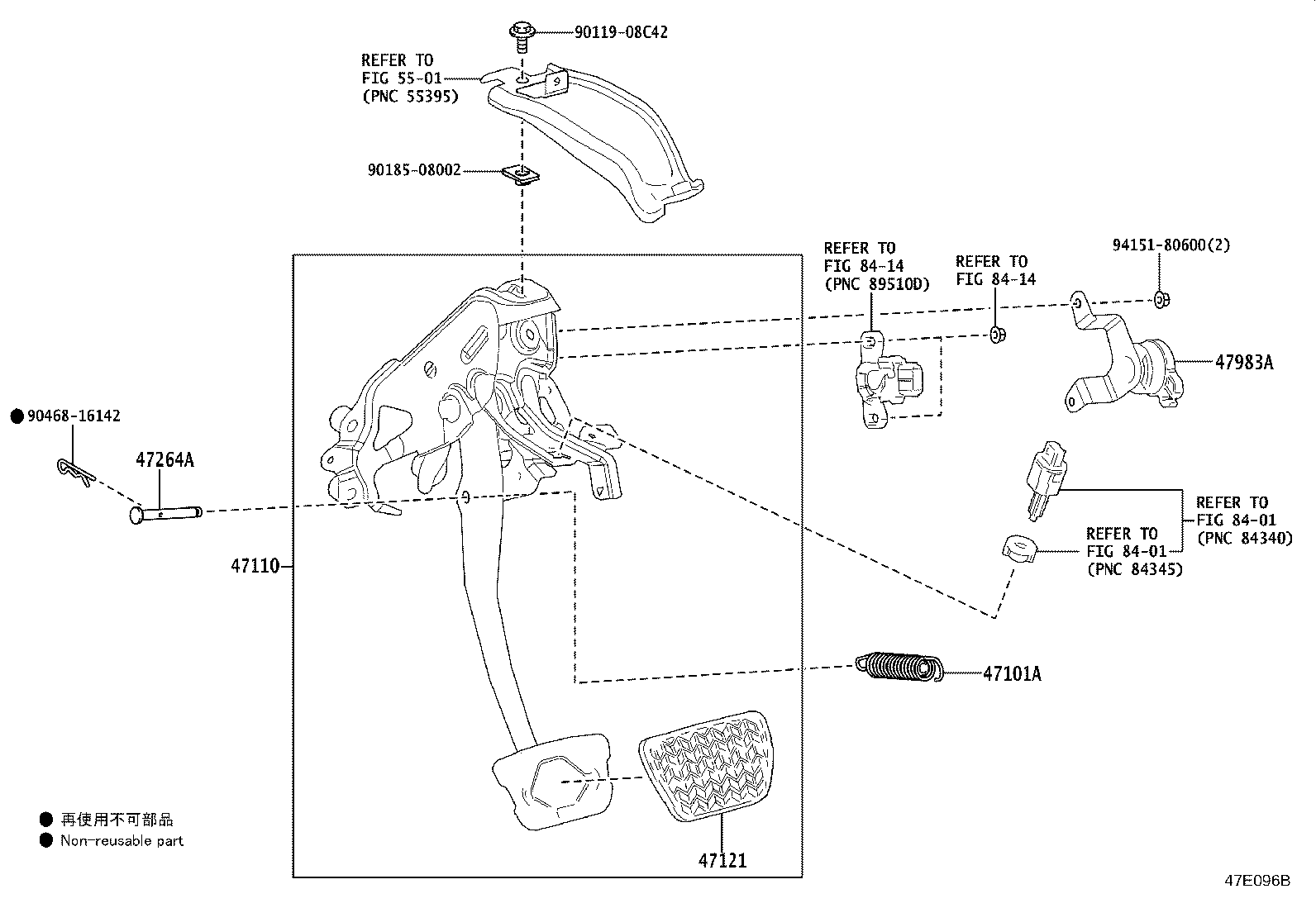

Figure 47E097C 47E097C 2023-01 → — Figure 47E096B 47E096B 2023-01 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
47983A Damper, Brake Traction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
