Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

10 part groups · 5 illustrations

Illustrations

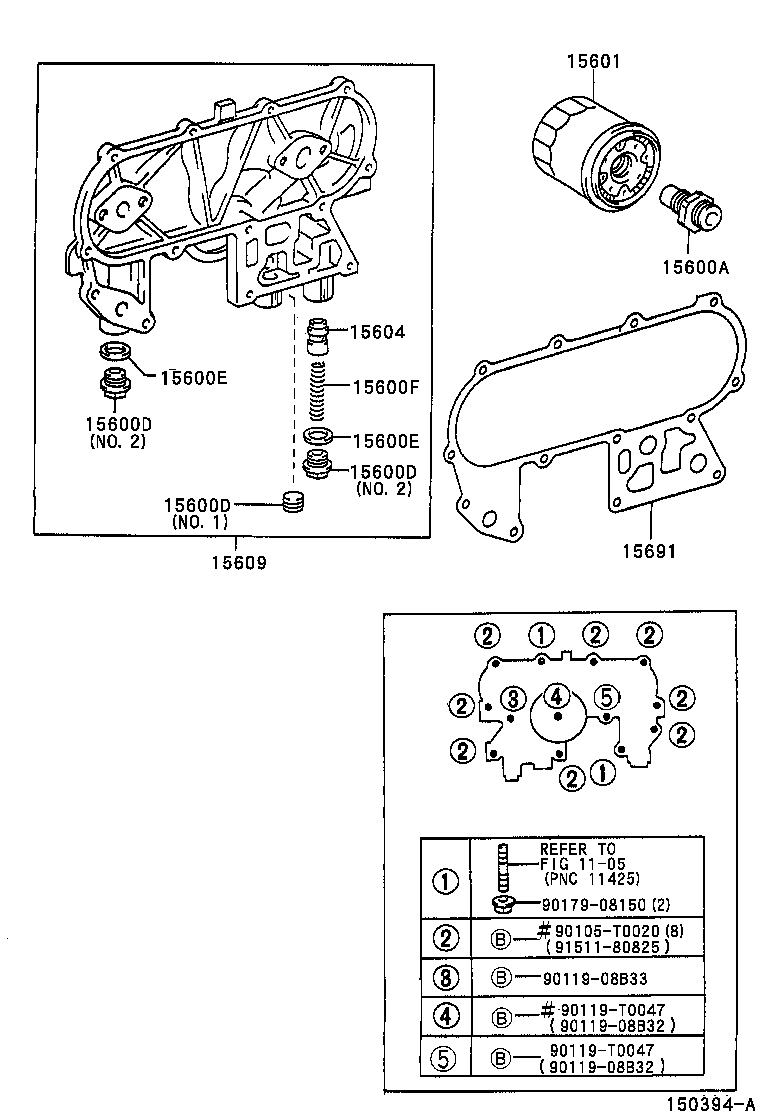

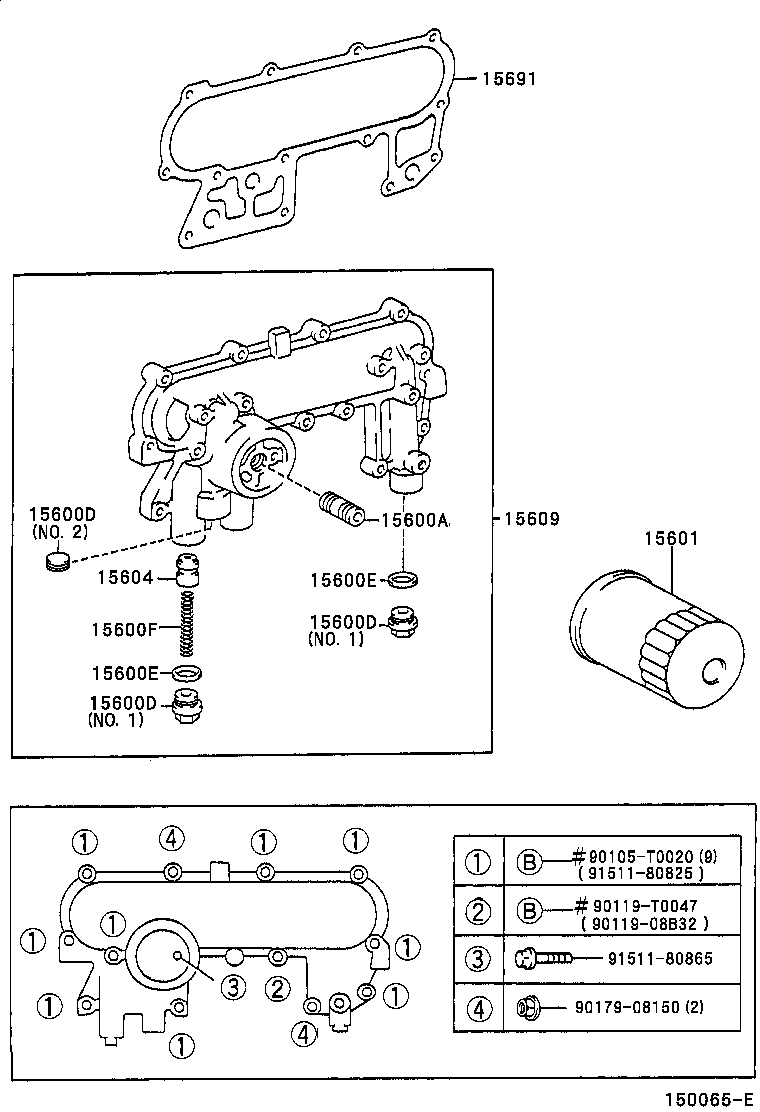

Figure 150052A 150052A 1996-12 → — Figure 150065E 150065E 1996-12 → 2005-01 Figure 150394A 150394A 2000-04 → 2005-03 Figure 150363 150363 1999-11 → — Figure 150506 150506 2000-04 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
