Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

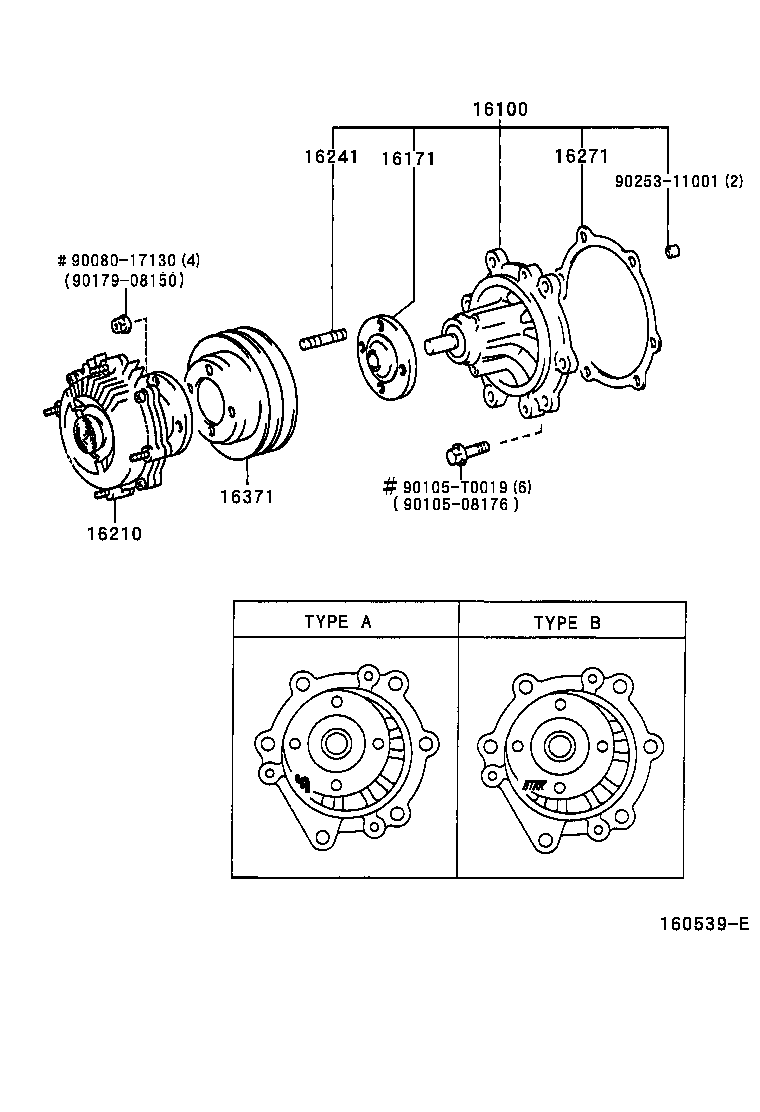

Water Pump
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16104 | Seal Set, Water Pump |
| 16117 | Plate, Water Pump |
| 16119 | Gasket, Water Pump Body |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
