Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 9 illustrations

Illustrations

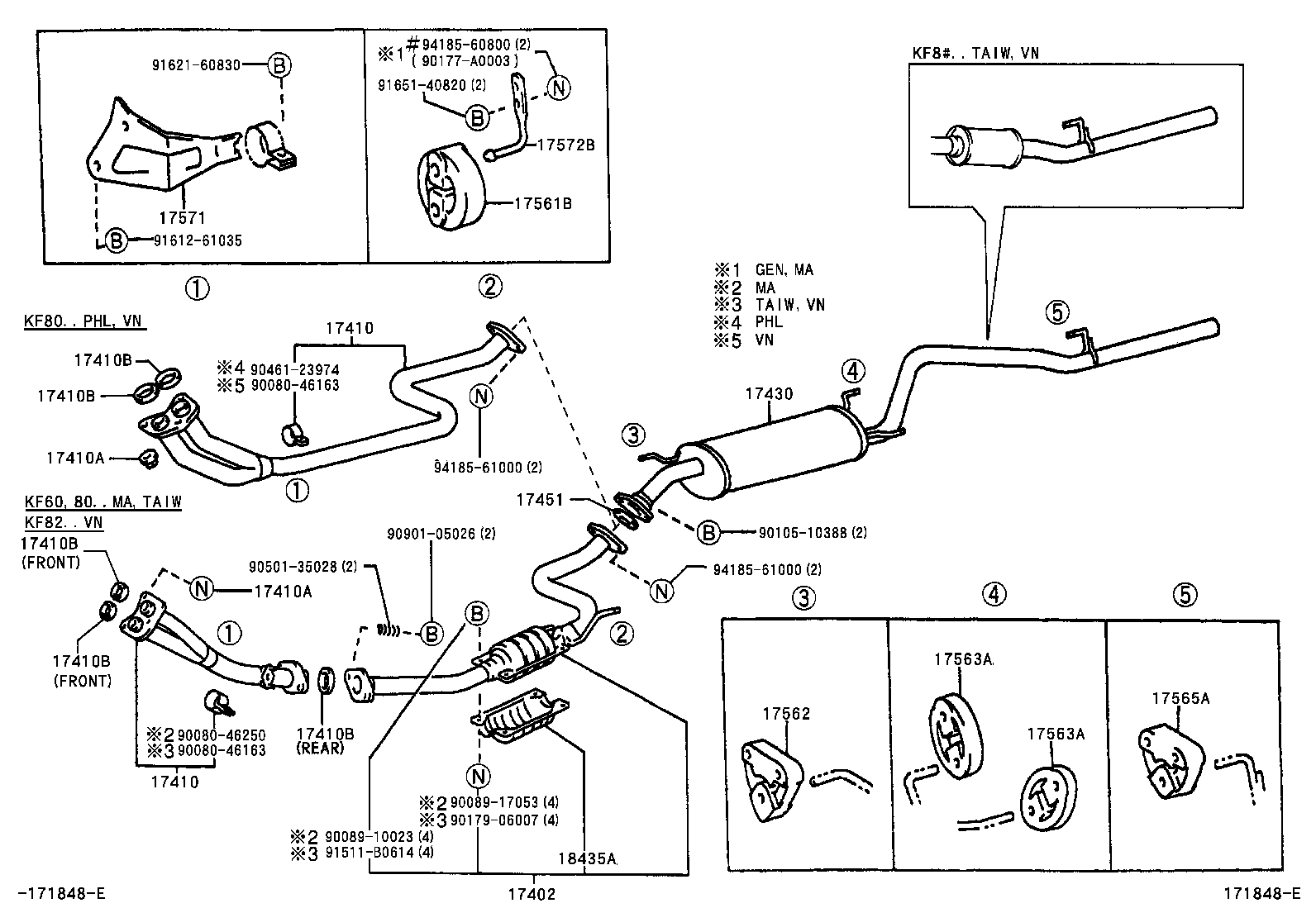

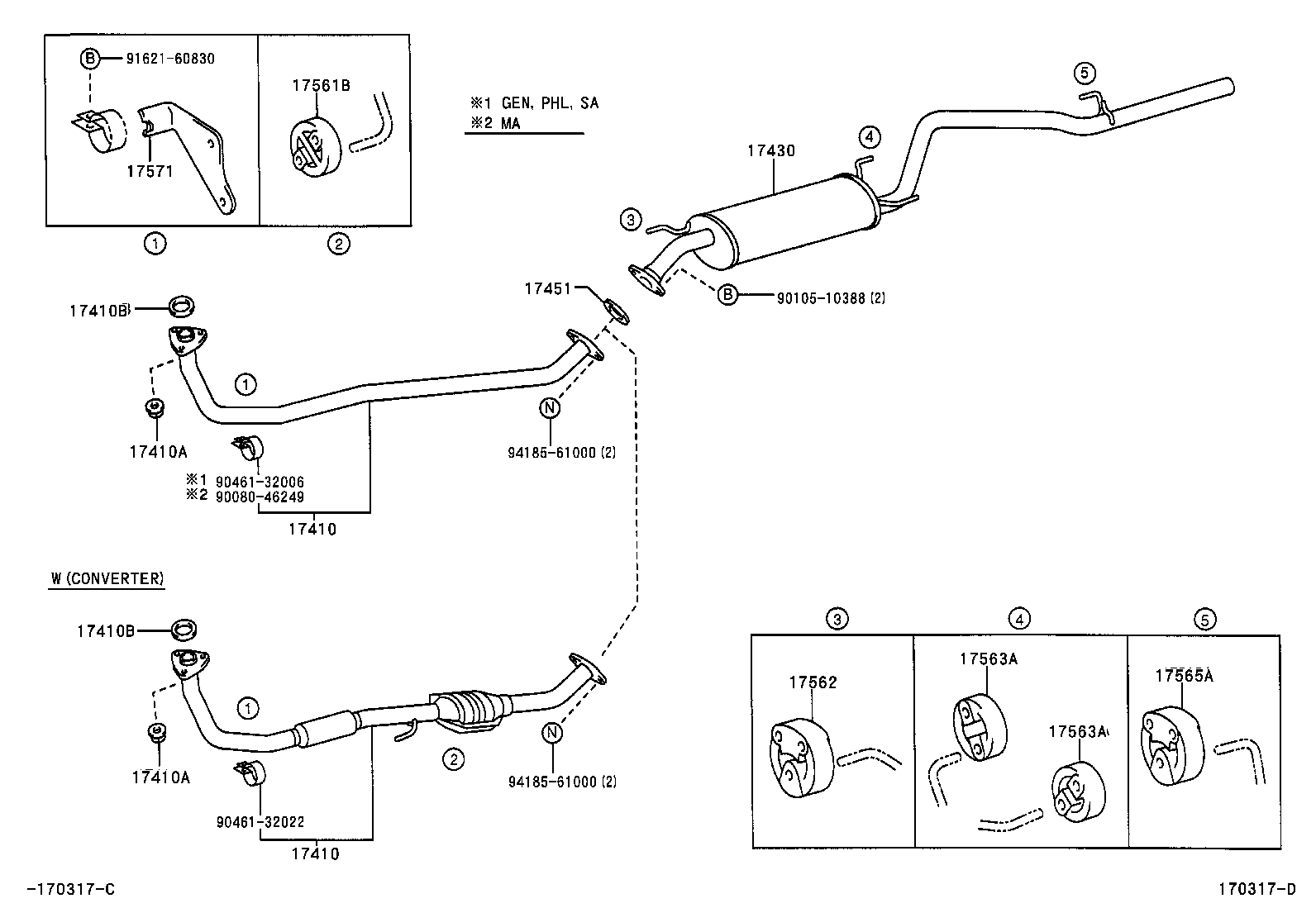

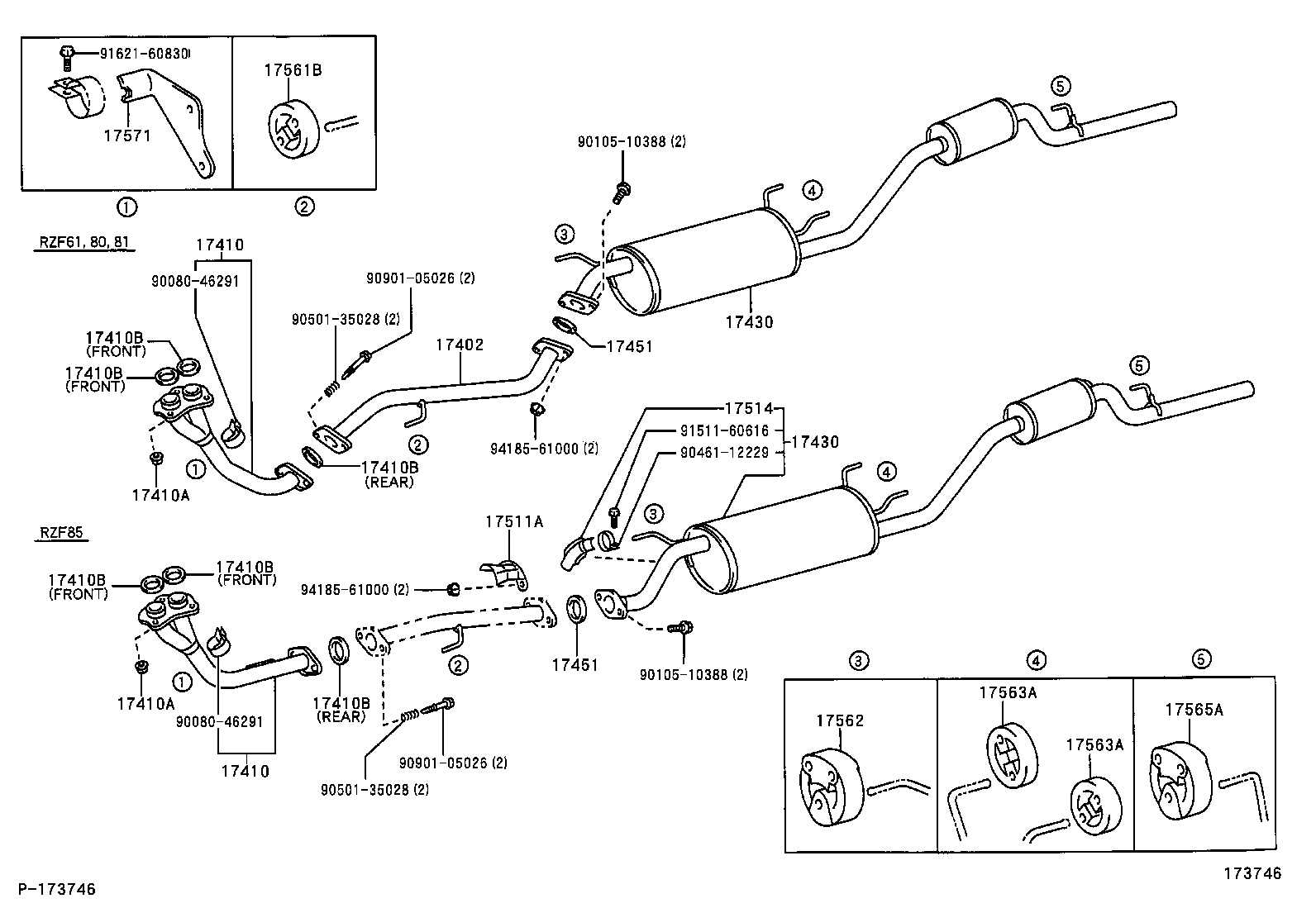

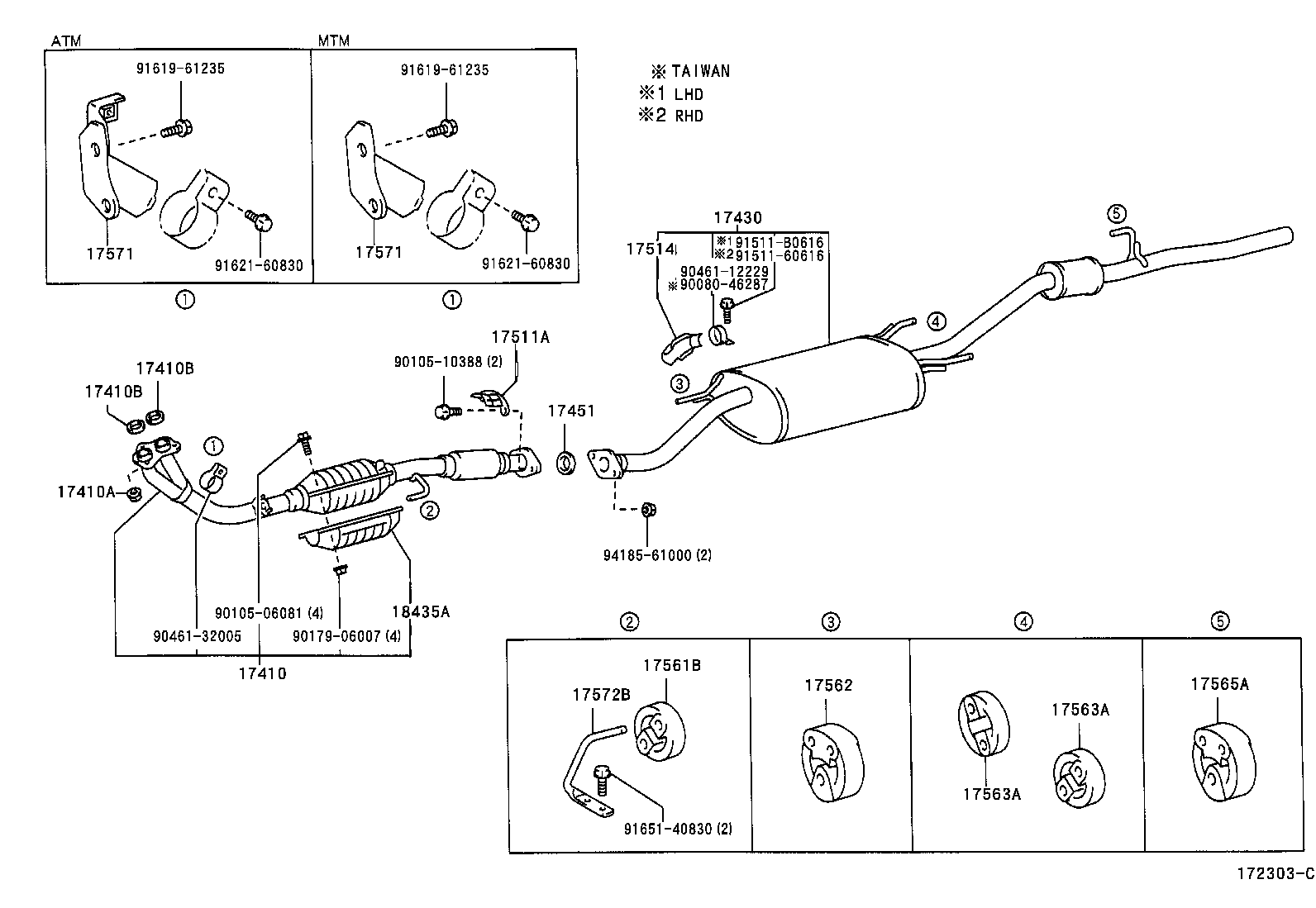

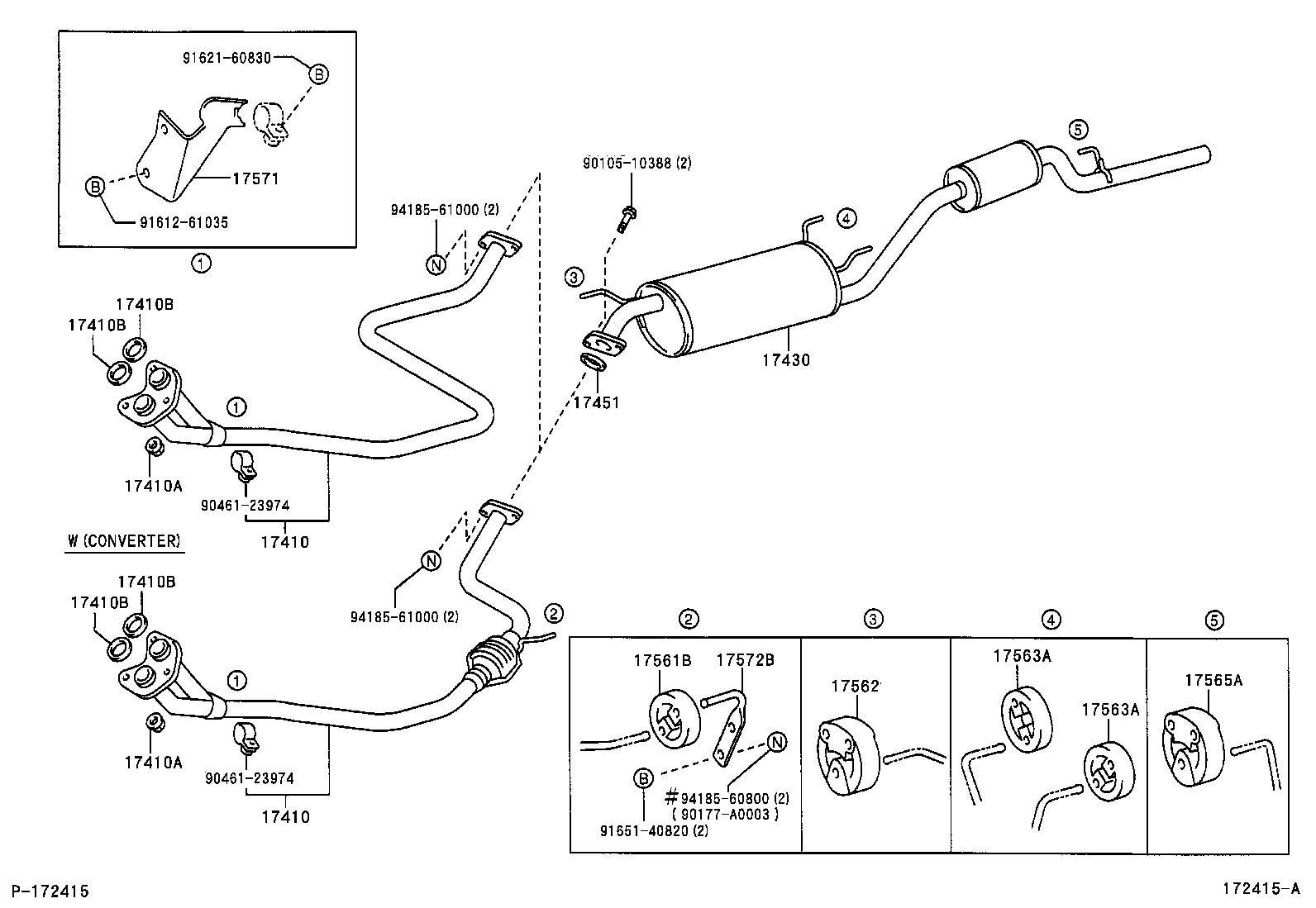

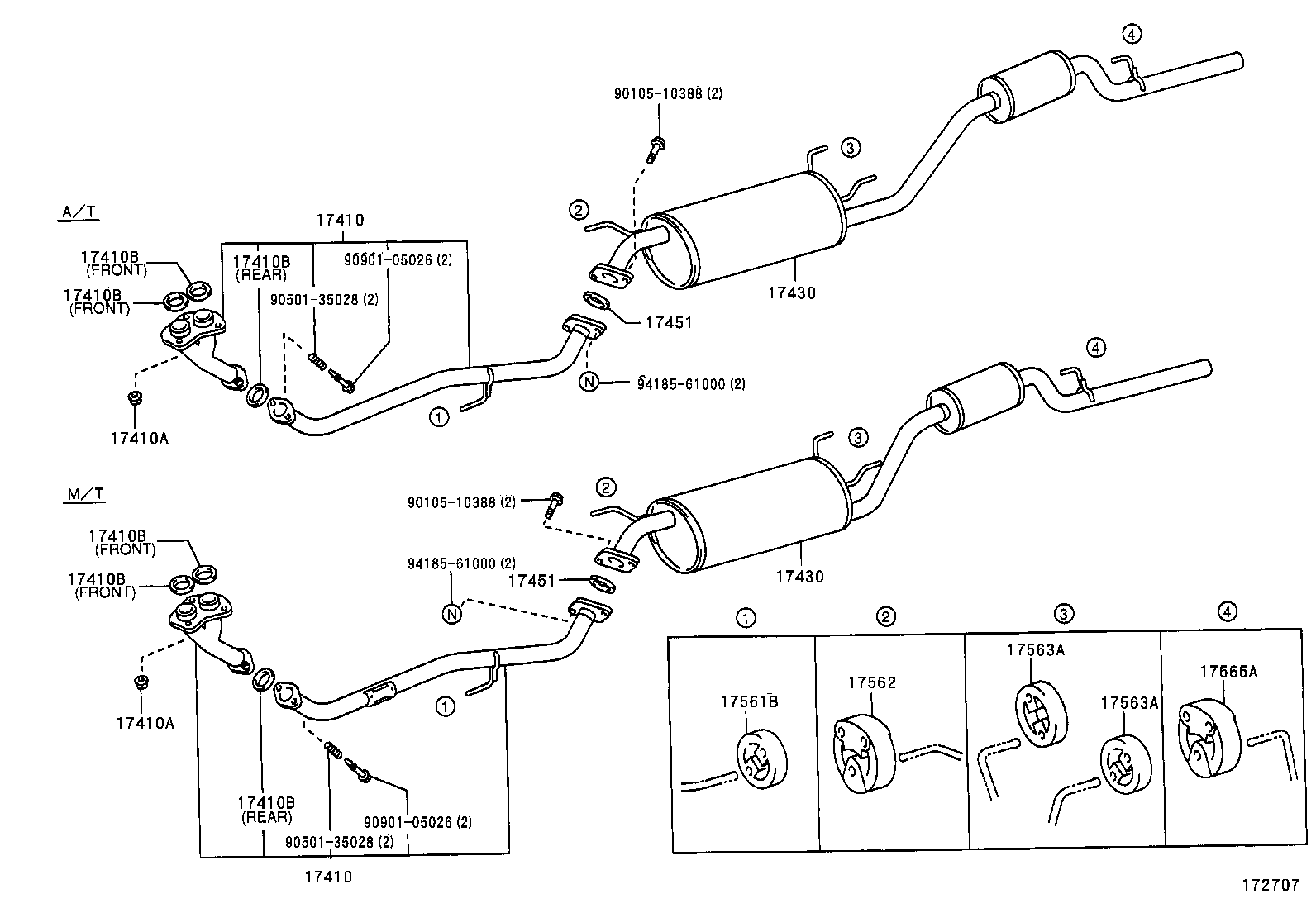

Figure 170316D 170316D 1996-12 → — Figure 171848E 171848E 1998-04 → — Figure 171848E 171848E 2003-02 → — Figure 172415A 172415A 2000-01 → — Figure 170317D 170317D 1996-12 → — Figure 172707 172707 2000-10 → — Figure 172303C 172303C 1999-11 → 2003-06 Figure 172303C 172303C 2003-06 → — Figure 173746 173746 2003-06 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17511A Insulator, Exhaust Pipe, Upper NO.1
17514 Insulator, Exhaust Pipe, Lower NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
