Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 13 illustrations

Illustrations

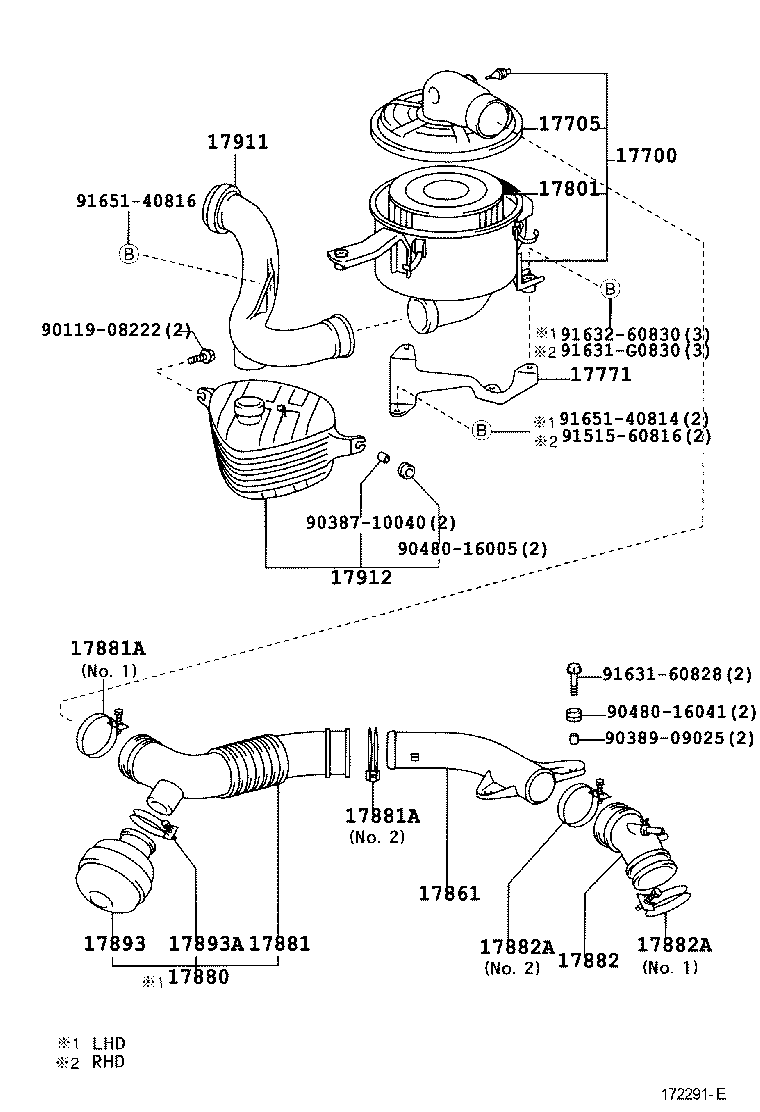

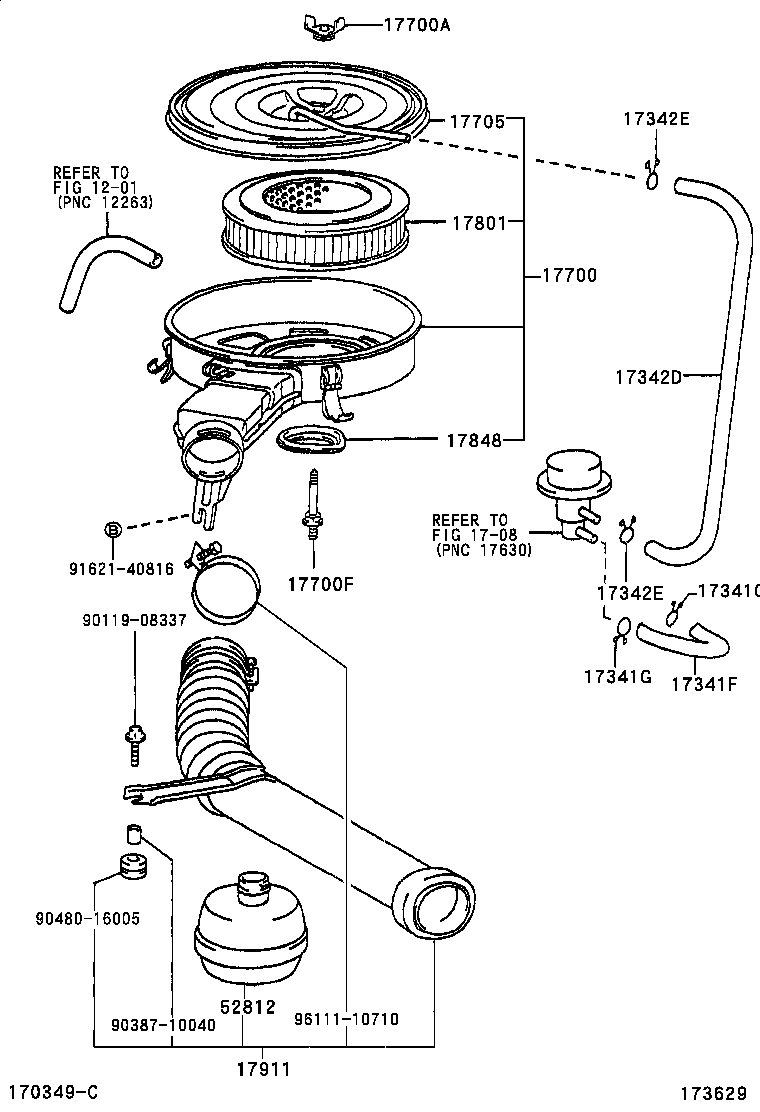

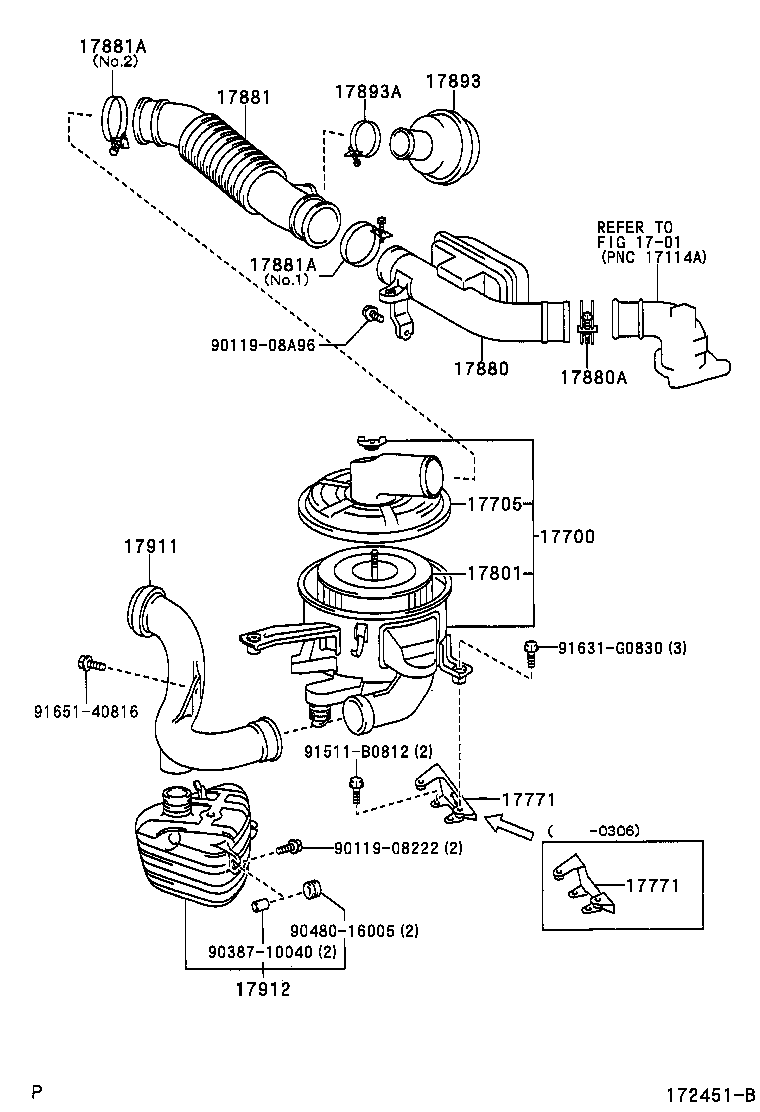

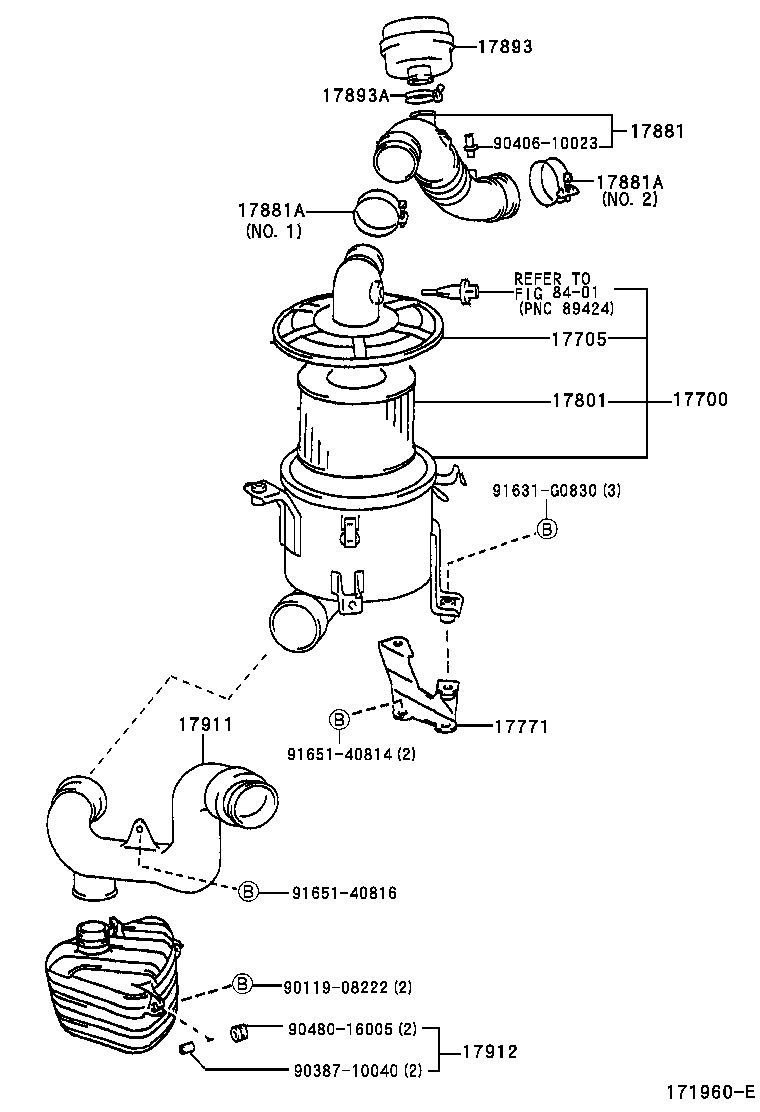

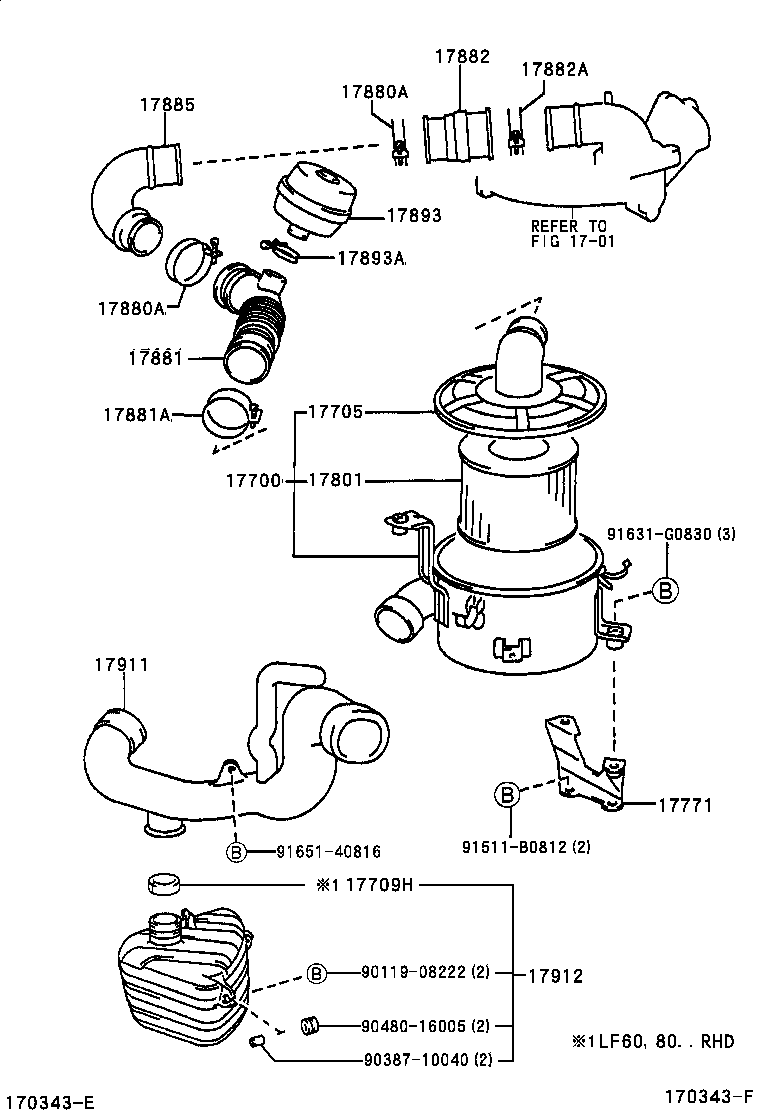

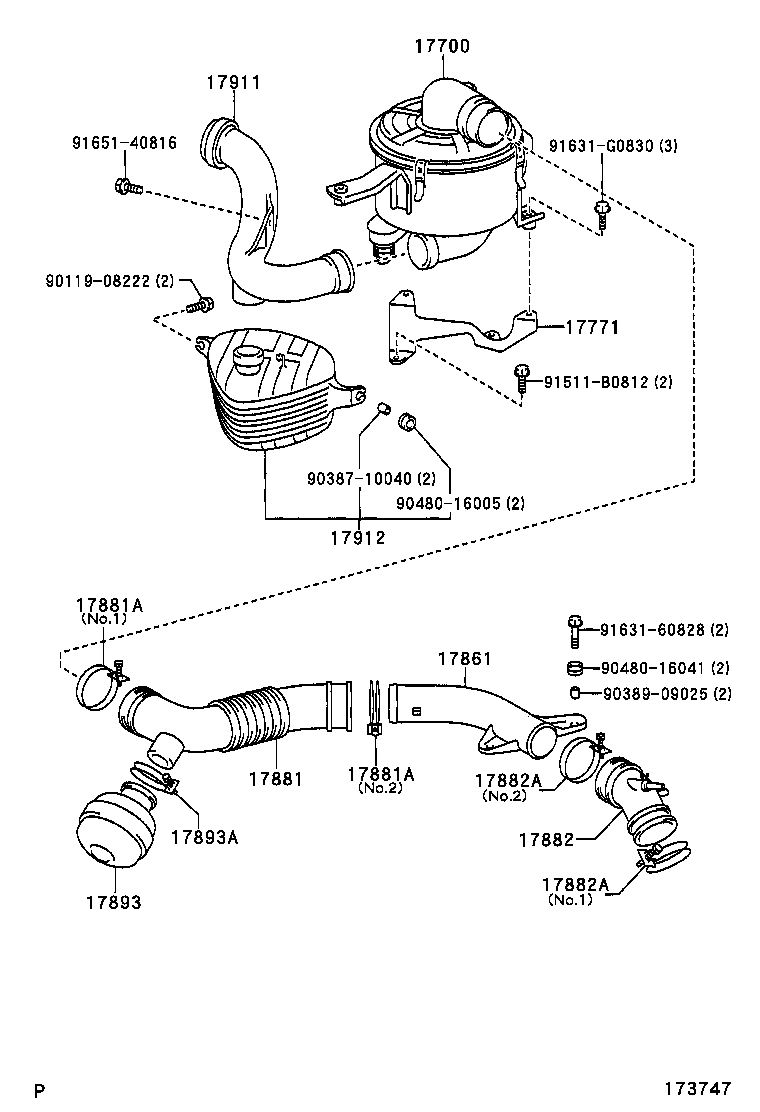

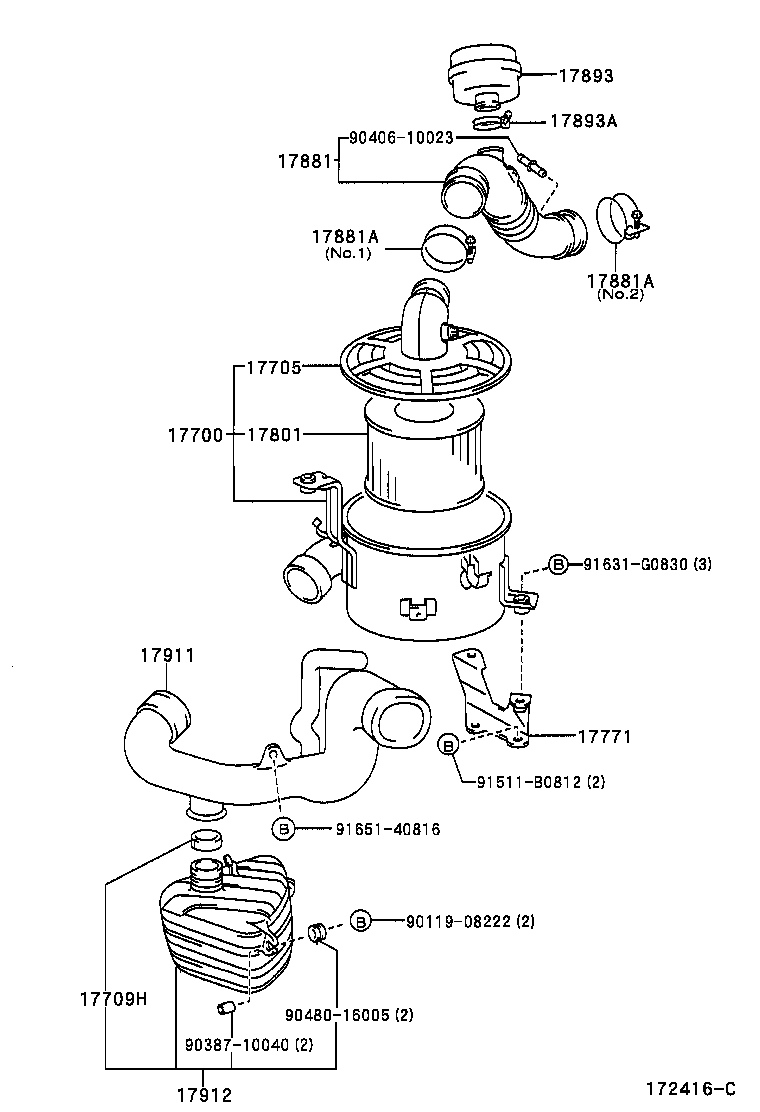

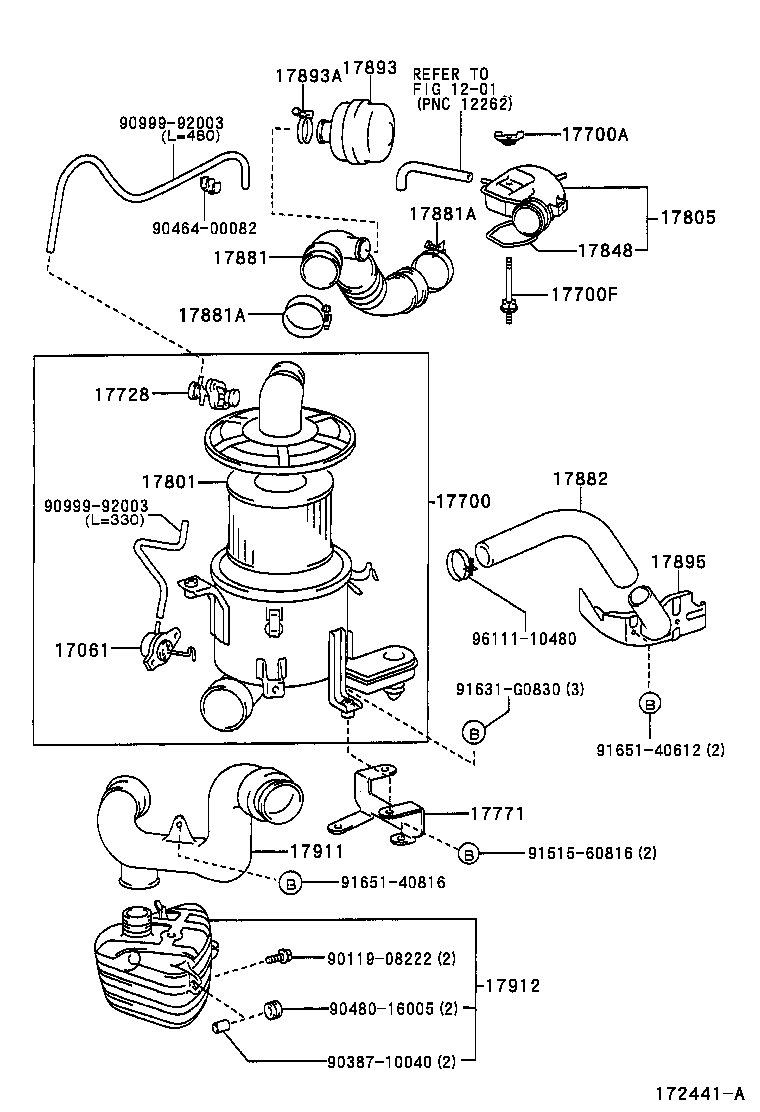

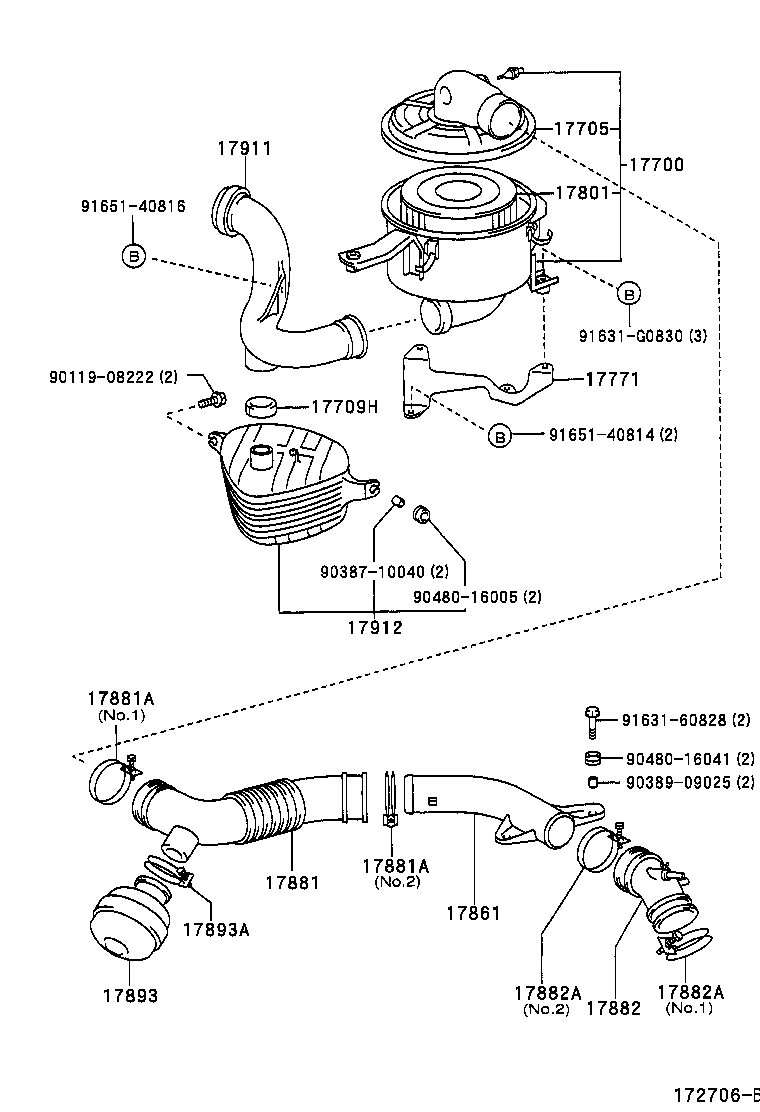

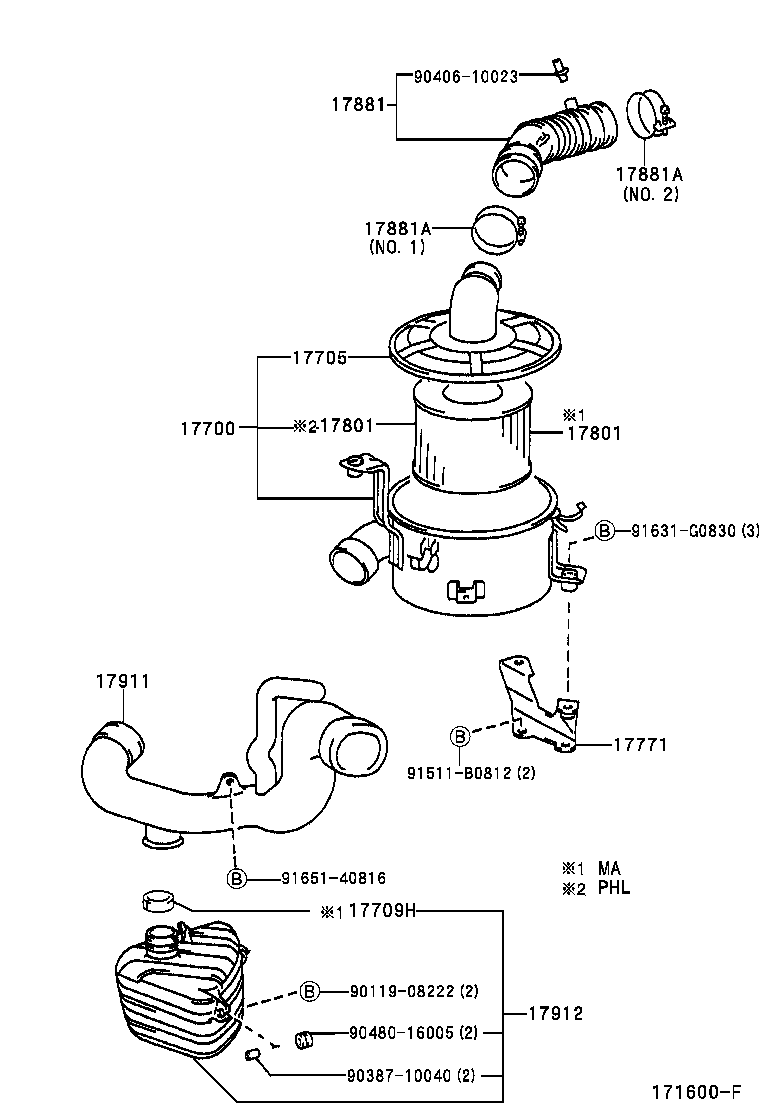

Figure 170349C 170349C 1996-12 → 2002-12 Figure 173629 173629 2002-12 → — Figure 171960E 171960E 1999-02 → — Figure 171600F 171600F 1998-04 → 2001-03 Figure 171600F 171600F 2001-03 → — Figure 172416C 172416C 2000-01 → — Figure 172416C 172416C 2001-03 → — Figure 170343F 170343F 1996-12 → 2005-01 Figure 172451B 172451B 2000-04 → 2005-03 Figure 173747 173747 2003-06 → — Figure 172291E 172291E 1999-11 → — Figure 172706B 172706B 2000-10 → — Figure 172441A 172441A 2000-04 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17709H Pad, Air Cleaner Inlet, NO.1
17728 Valve, Thermostatic
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17895 Shroud, Hot Air
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
52812 Duct, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
