Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 7 illustrations

Illustrations

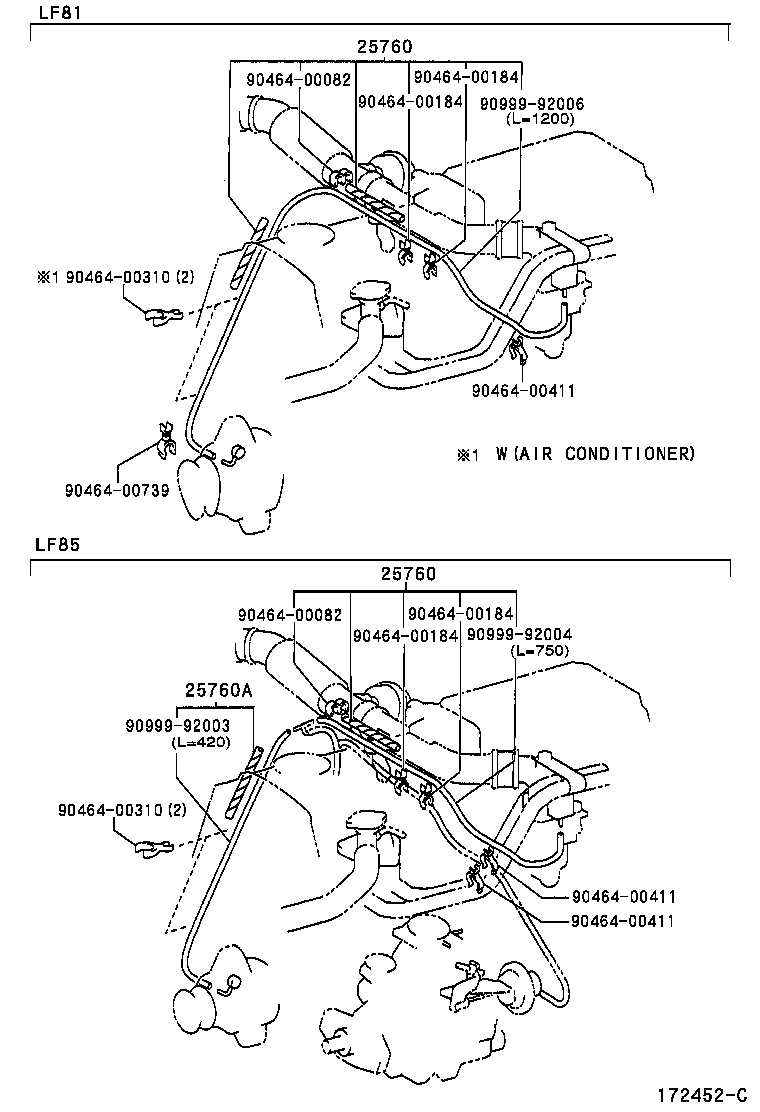

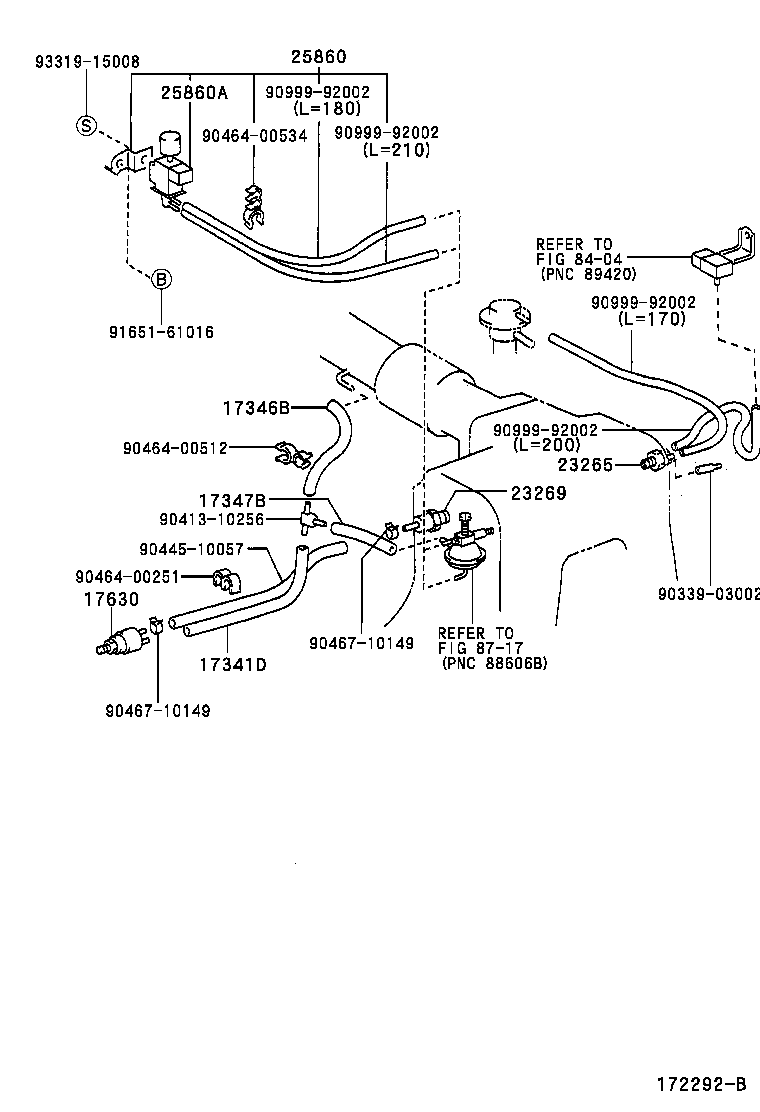

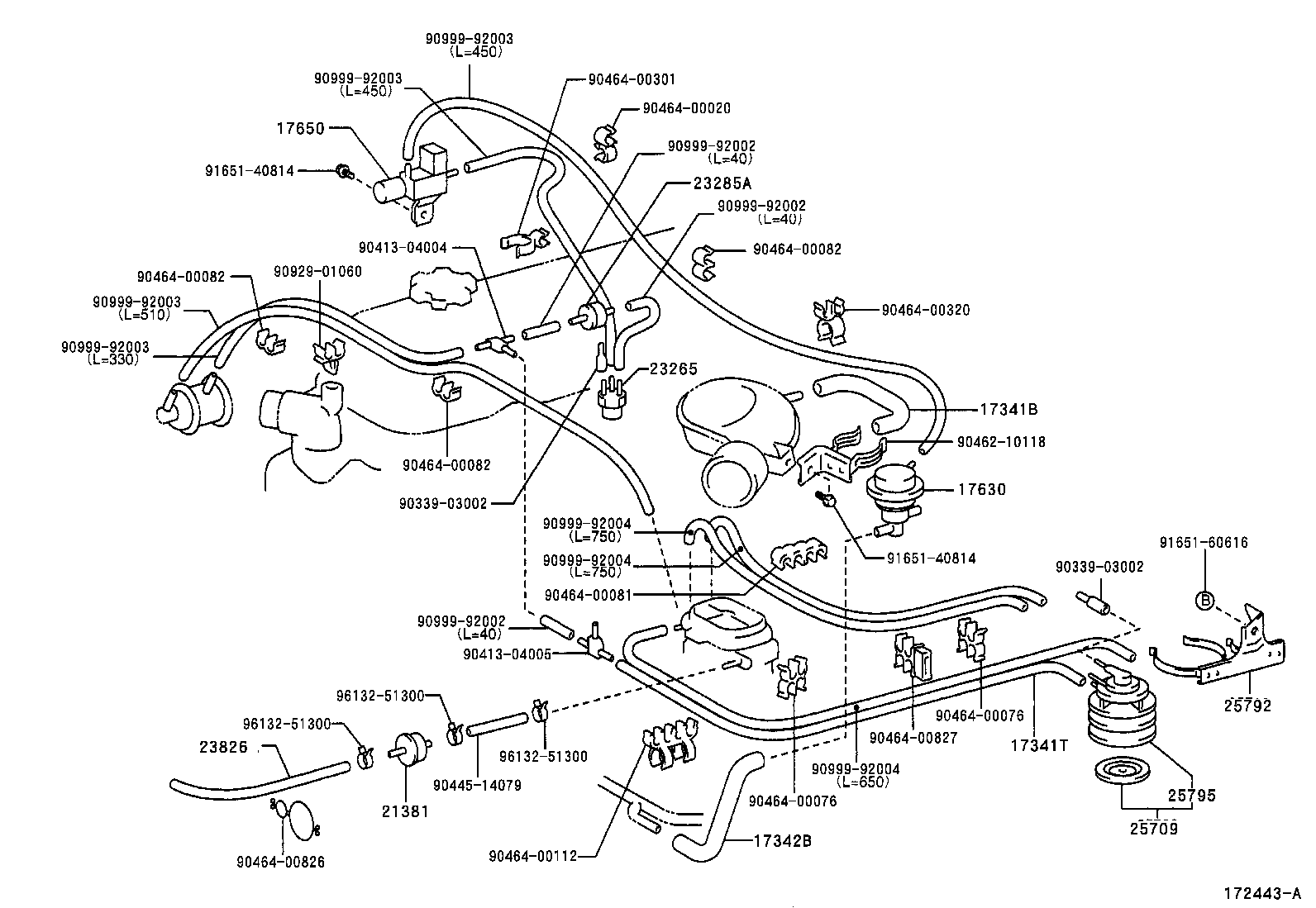

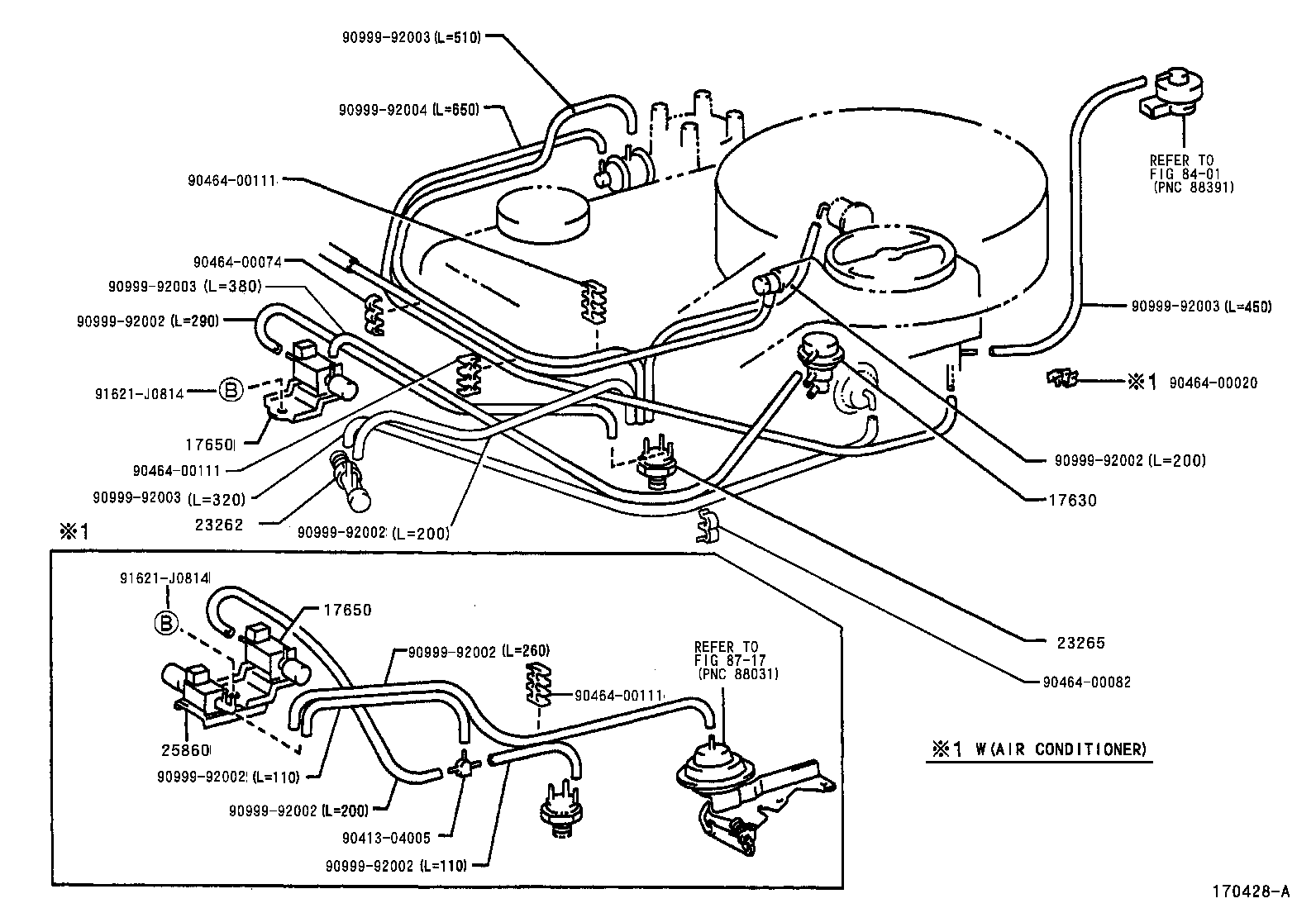

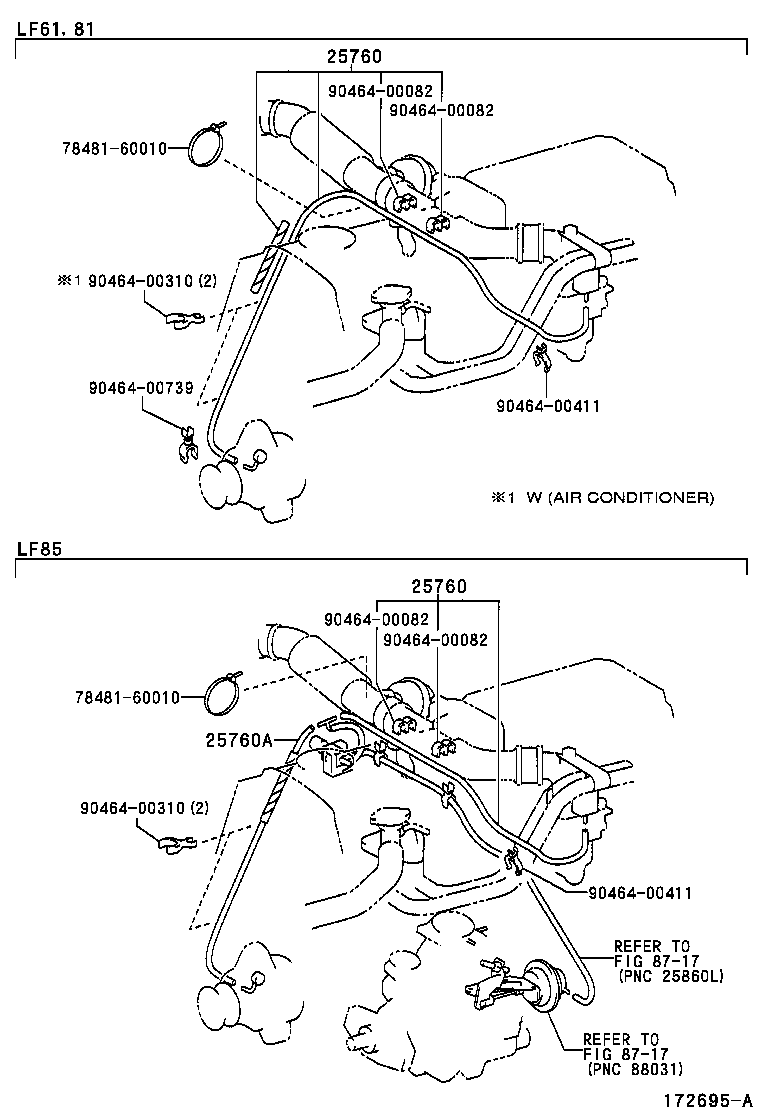

Figure 170021 170021 1996-12 → — Figure 170428A 170428A 1996-12 → — Figure 171601B 171601B 1998-04 → — Figure 172695A 172695A 2000-04 → 2005-03 Figure 172452C 172452C 2000-04 → 2005-03 Figure 172292B 172292B 1999-11 → — Figure 172443A 172443A 2000-04 → —

Part groups

PNCDescription
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25792 Bracket, Altitude Compensator Valve
25795 Element, Altitude Compensator Filter
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
