Alternator

31 part groups · 13 illustrations

Illustrations

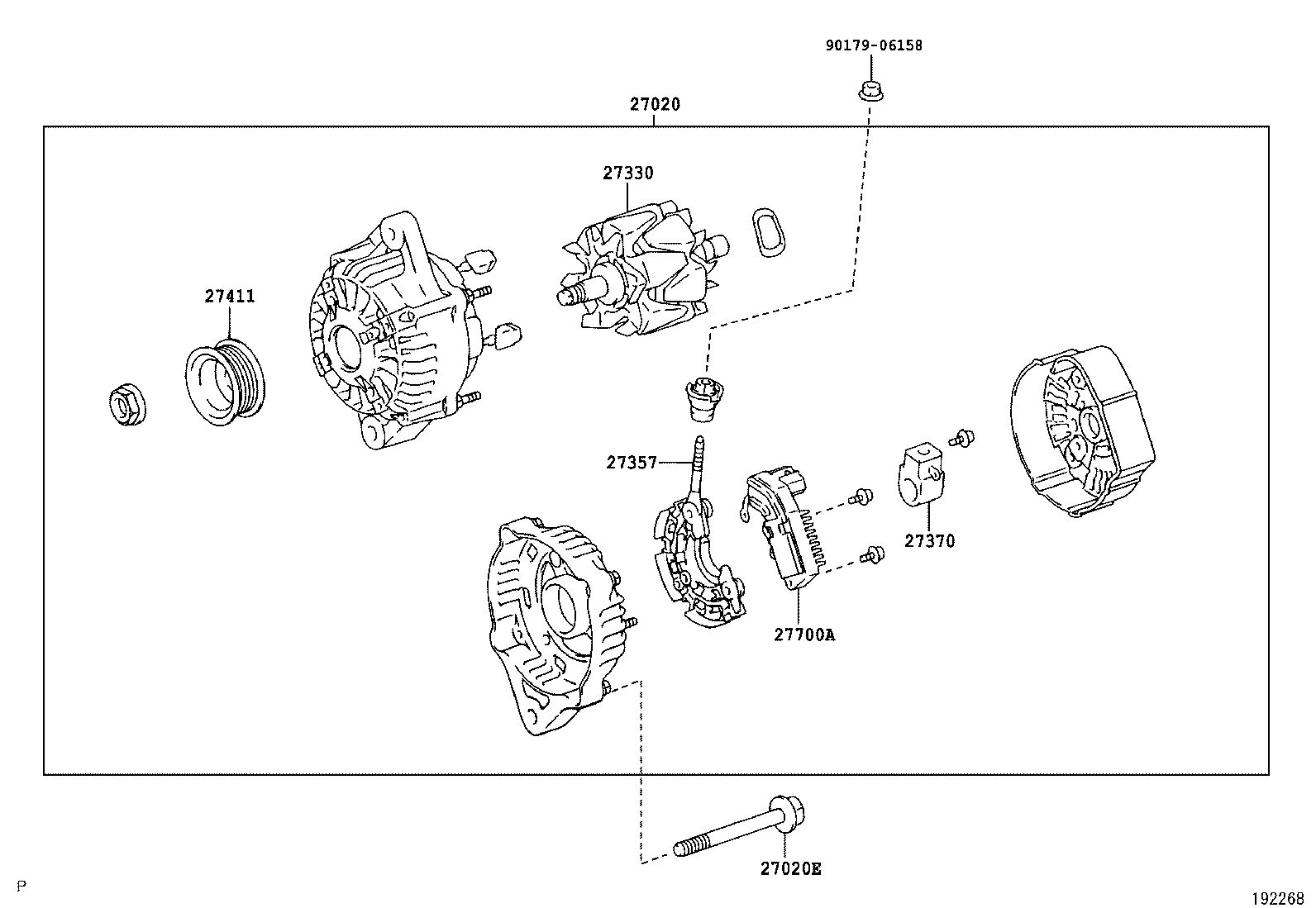

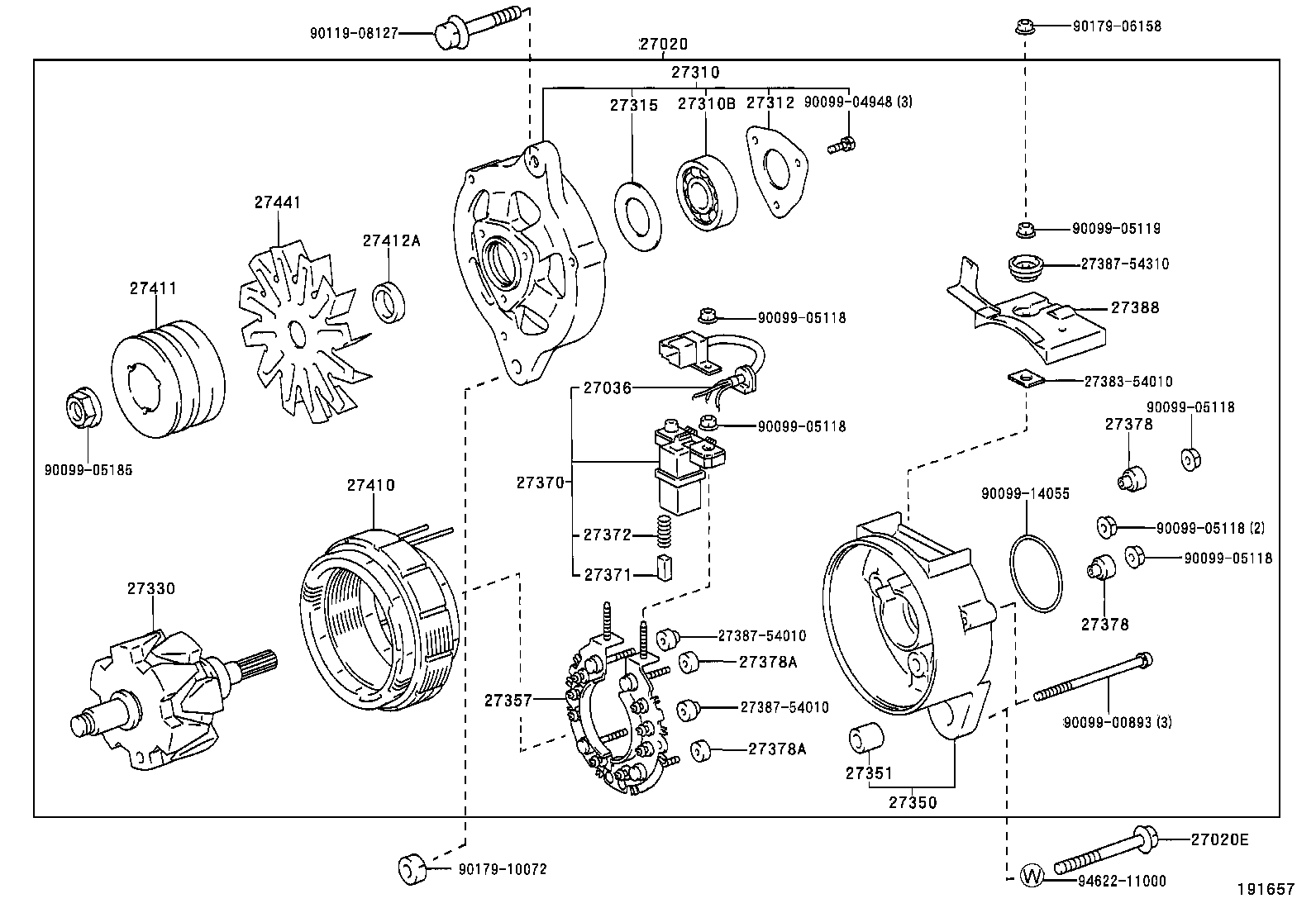

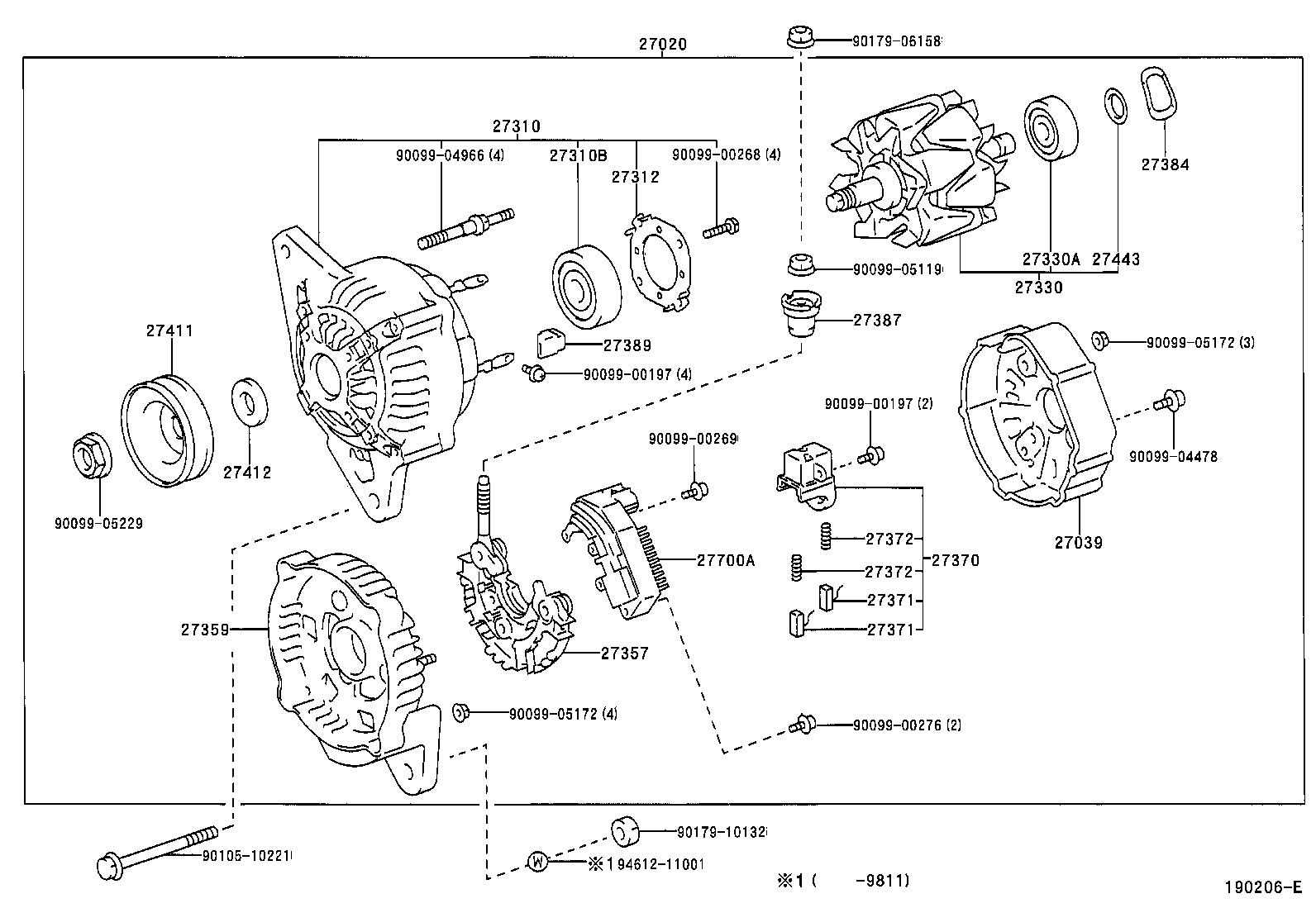

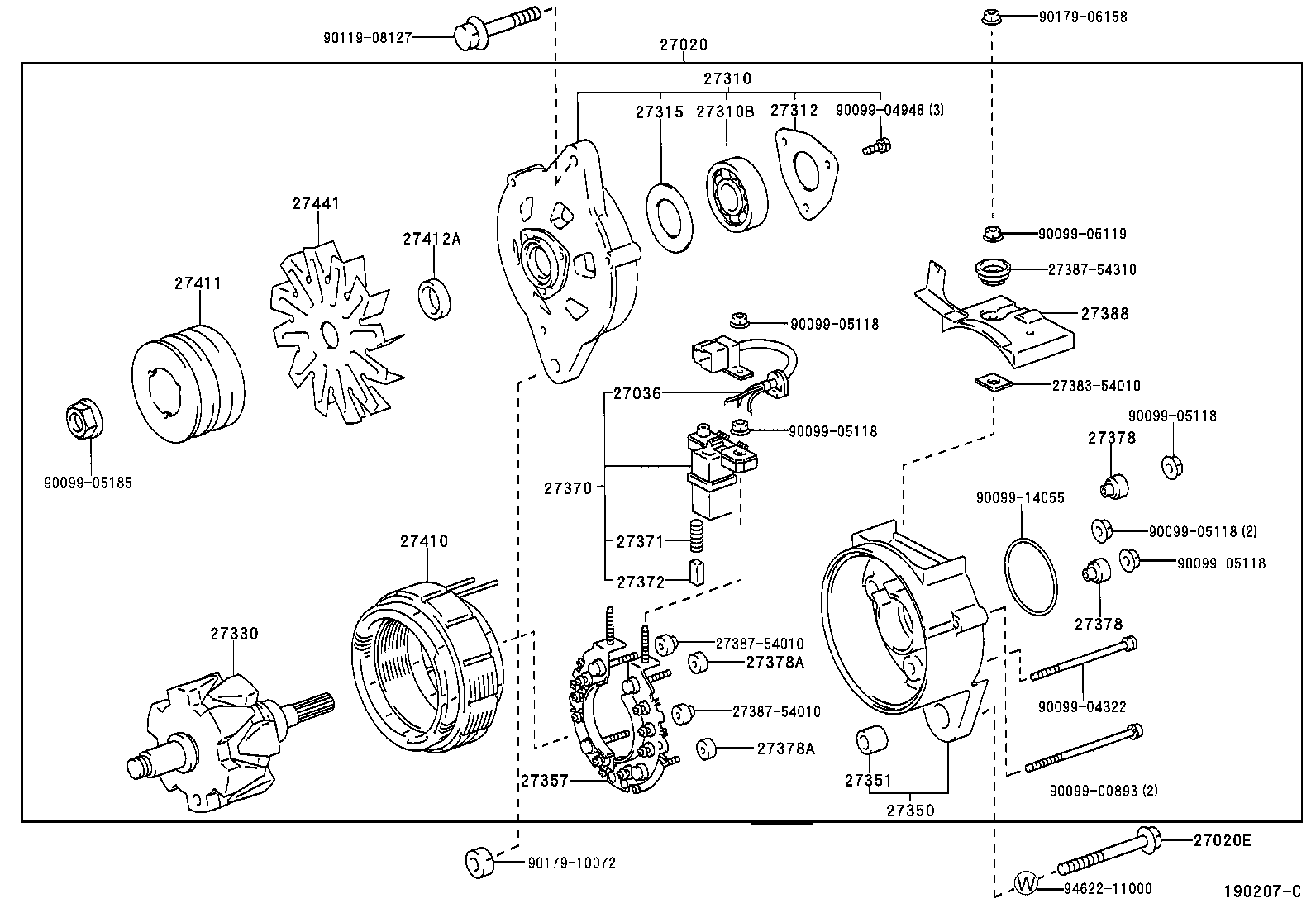

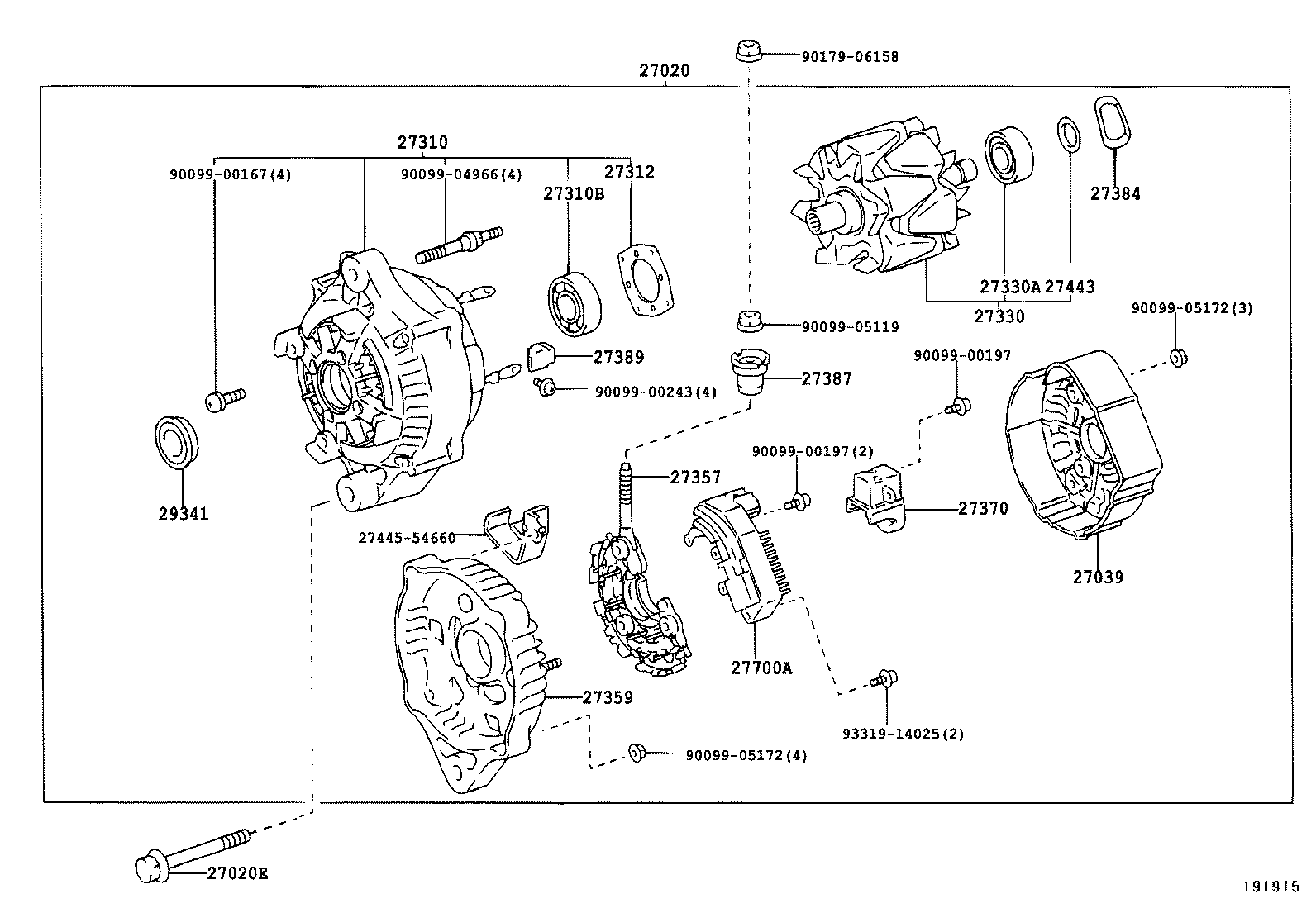

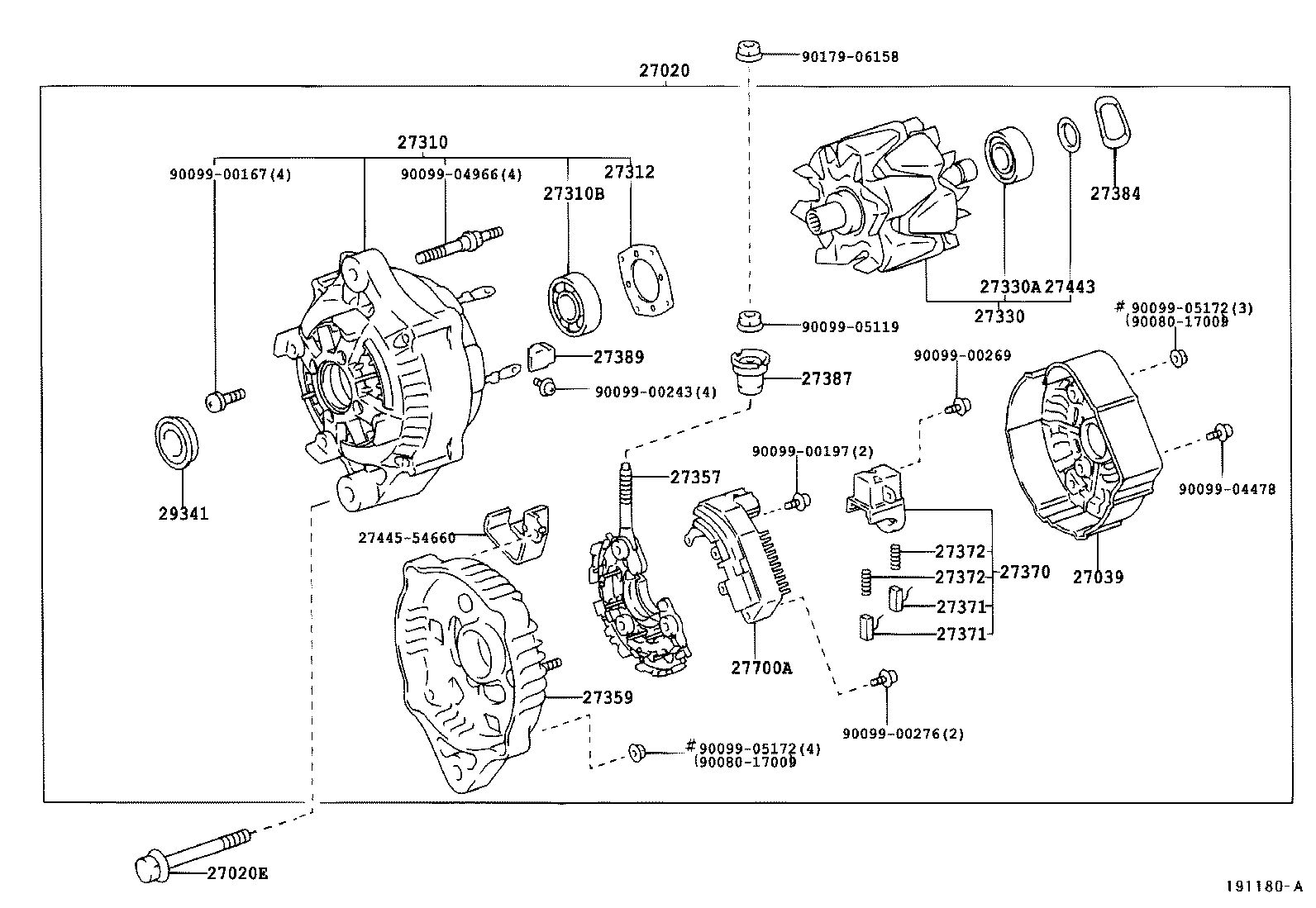

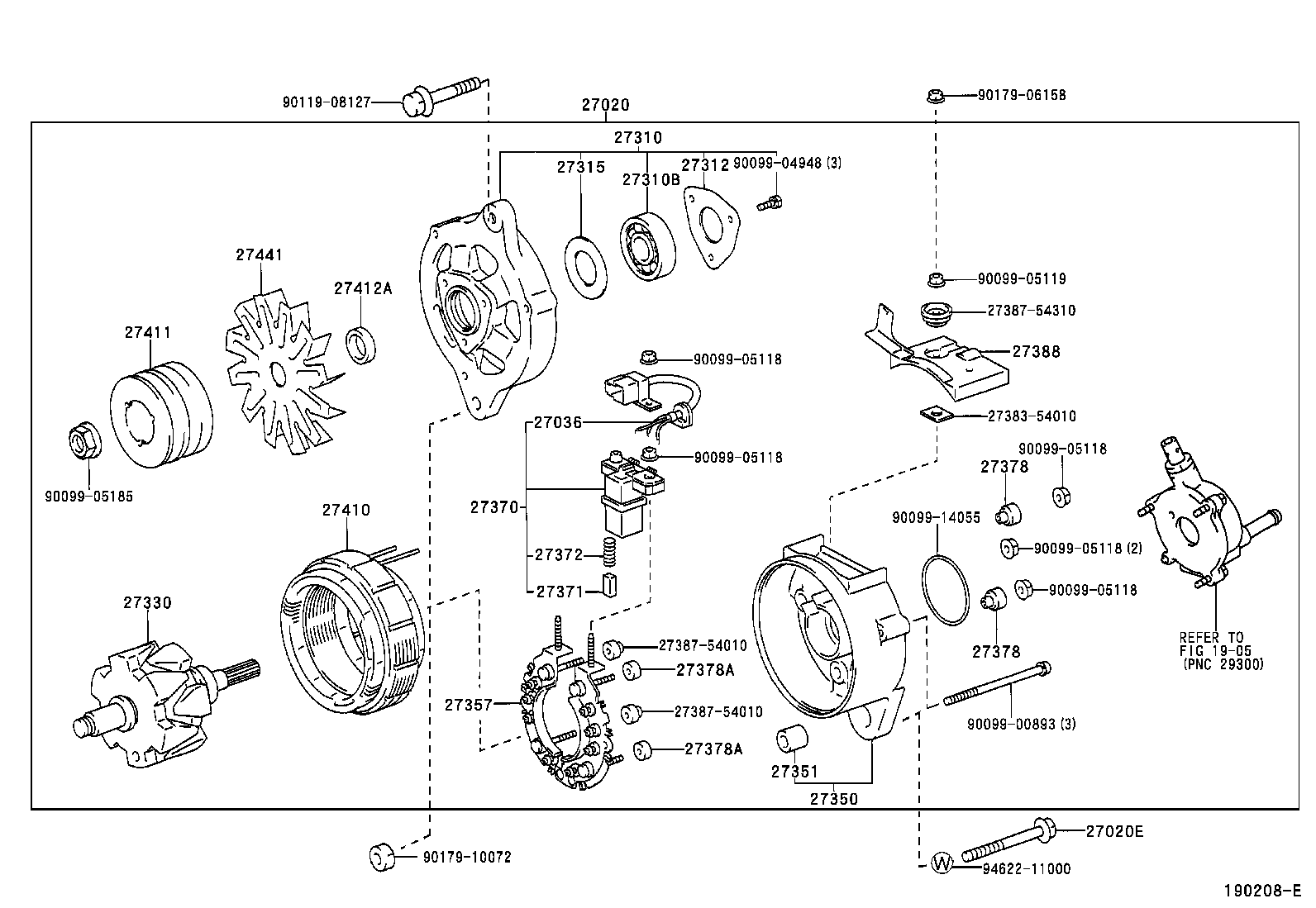

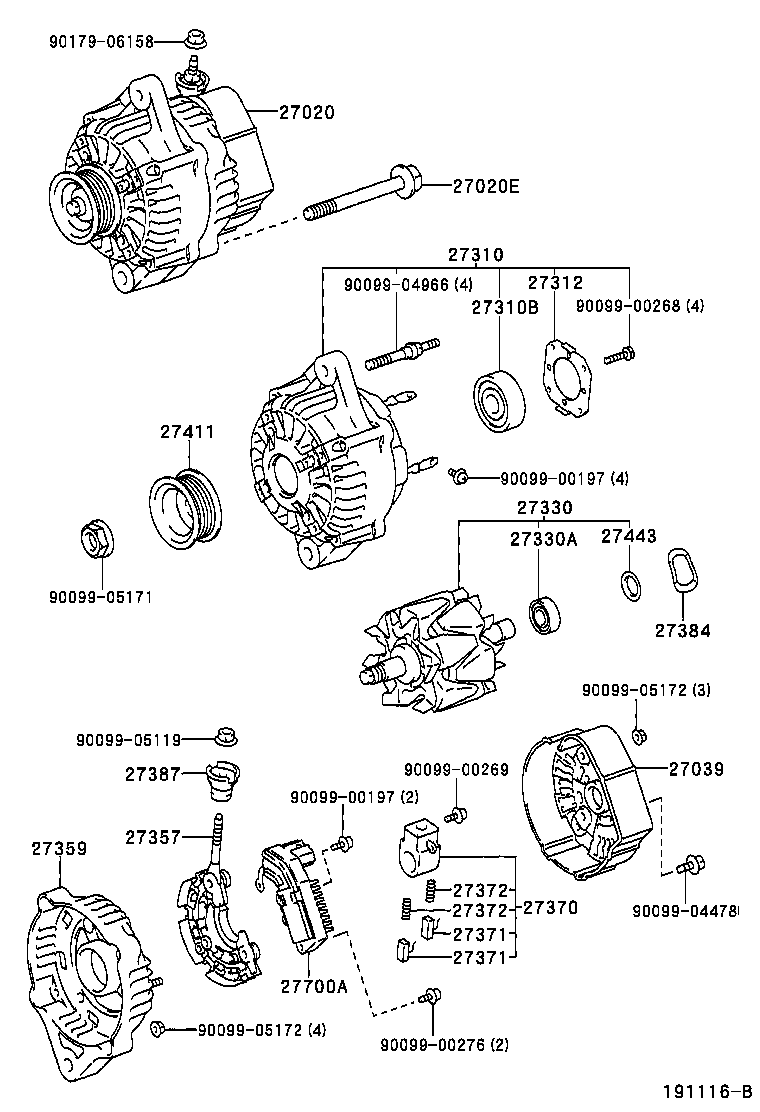

Figure 190205D 190205D 1996-12 → — Figure 190206E 190206E 1996-12 → — Figure 190207C 190207C 1996-12 → — Figure 190207C 190207C 1998-10 → — Figure 191657 191657 1998-04 → — Figure 191657 191657 1998-10 → — Figure 190208E 190208E 1996-12 → — Figure 191116B 191116B 1999-11 → 2002-10 Figure 192268 192268 2002-08 → — Figure 191180A 191180A 2000-04 → 2003-06 Figure 191915 191915 2003-06 → — Figure 191183 191183 2000-04 → — Figure 191911 191911 2003-06 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27378 Insulator, Alternator, NO.1
27378A Insulator, Alternator, NO.2
27384 Washer
27387 Insulator, Terminal
27388 Cover, Alternator Brush
27389 Insulator, Terminal
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412 Collar, Spacer(FOR ALTERNATOR PULLEY)
27412A Collar, Space(FOR ALTERNATOR DRIVE END FRAME)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27700A Regulator Assy, Generator
29341 Seal, Alternator Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
