Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

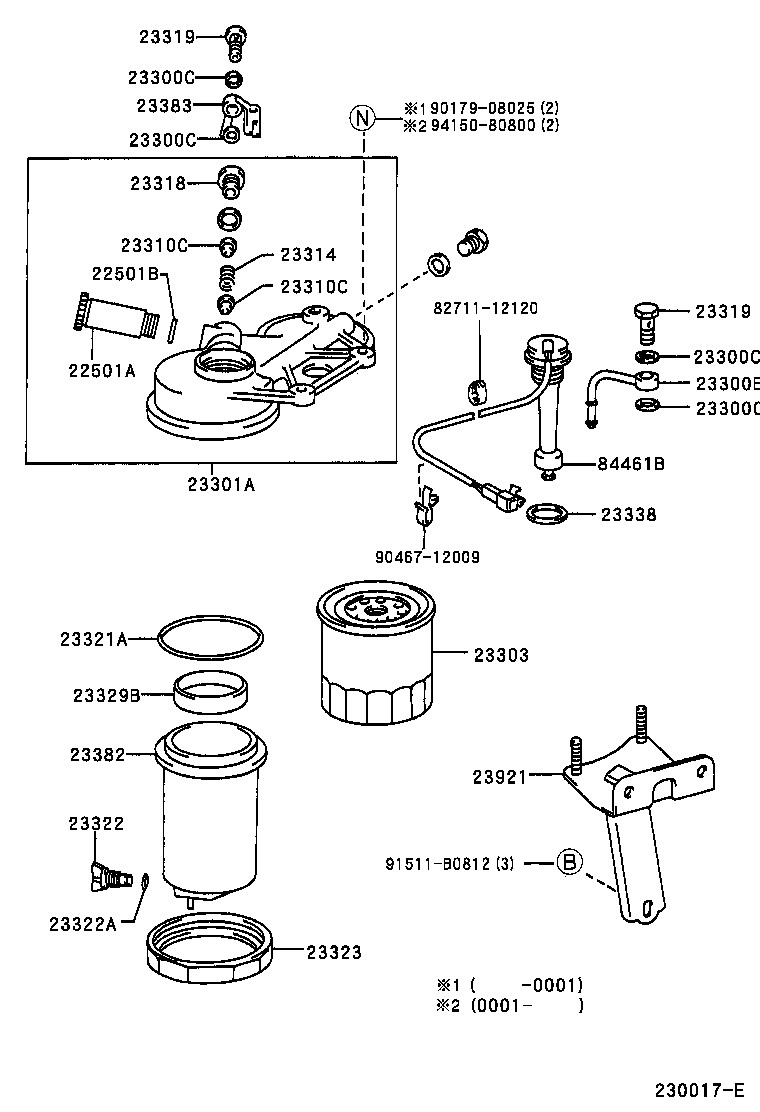

Fuel Filter
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 22501A | Pump Sub-assy, Priming |
| 22501B | Gasket(FOR PRIMING PUMP) |
| 23300 | Filter Assy, Fuel |
| 23300B | Union, Nipple(FOR FUEL FILTER OUTLET) |
| 23300C | Gasket, Nipple Union(FOR FUEL) |
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23310C | Valve Sub-assy, Fuel Filter |
| 23314 | Spring, Fuel Filter |
| 23318 | Bolt, Union |
| 23319 | Screw, Fuel Pipe Follow |
| 23321A | Gasket, Fuel Filter Cap |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23323 | Nut(FOR FUEL FILTER CASE SUPPORT) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23329B | Float, Level Warning |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23380 | Cap Assy, Fuel Filter |
| 23382 | Case, Fuel Filter |
| 23383 | Union, Fuel Filter |
| 23921 | Support, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
