Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

21 part groups · 9 illustrations

Illustrations

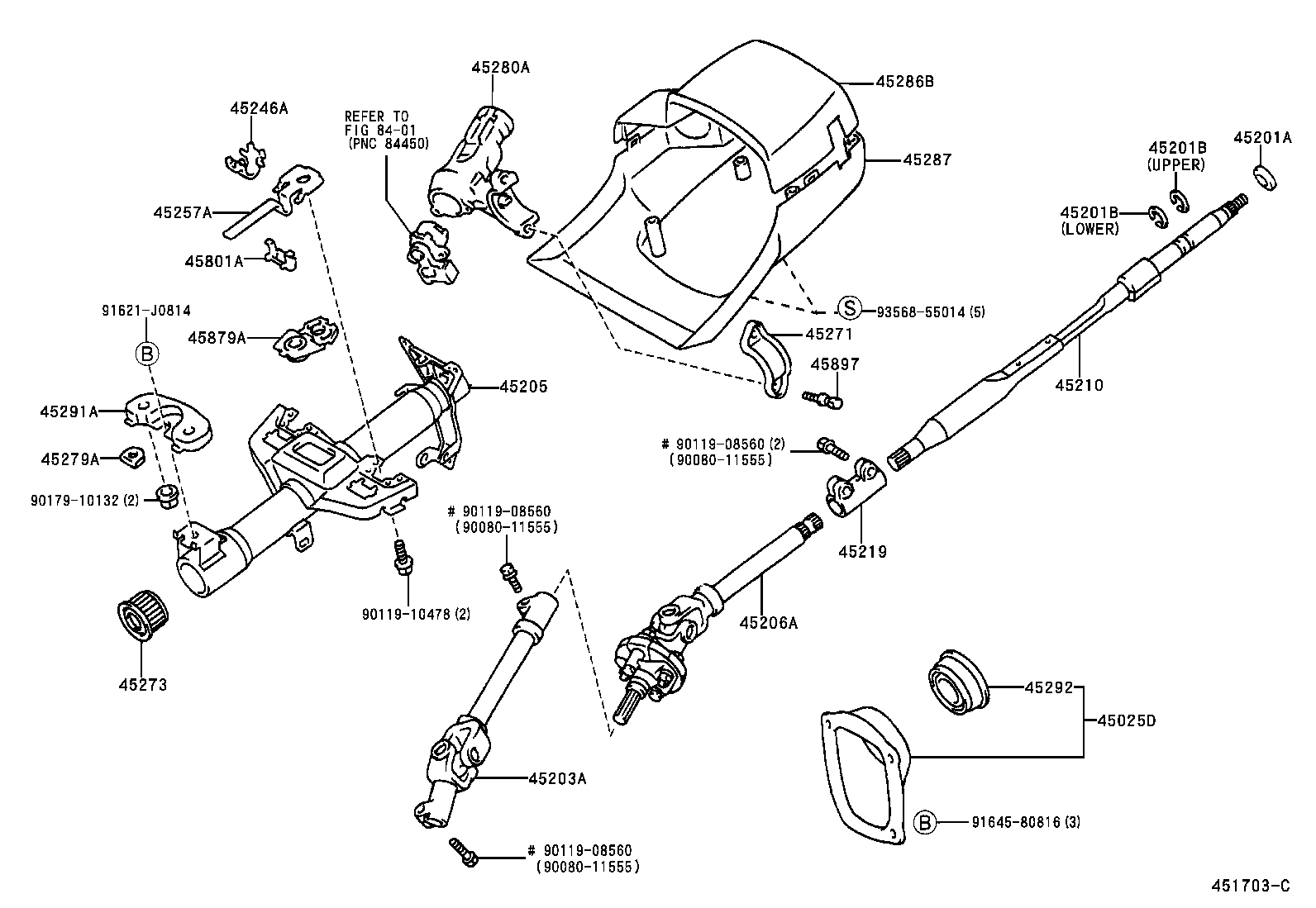

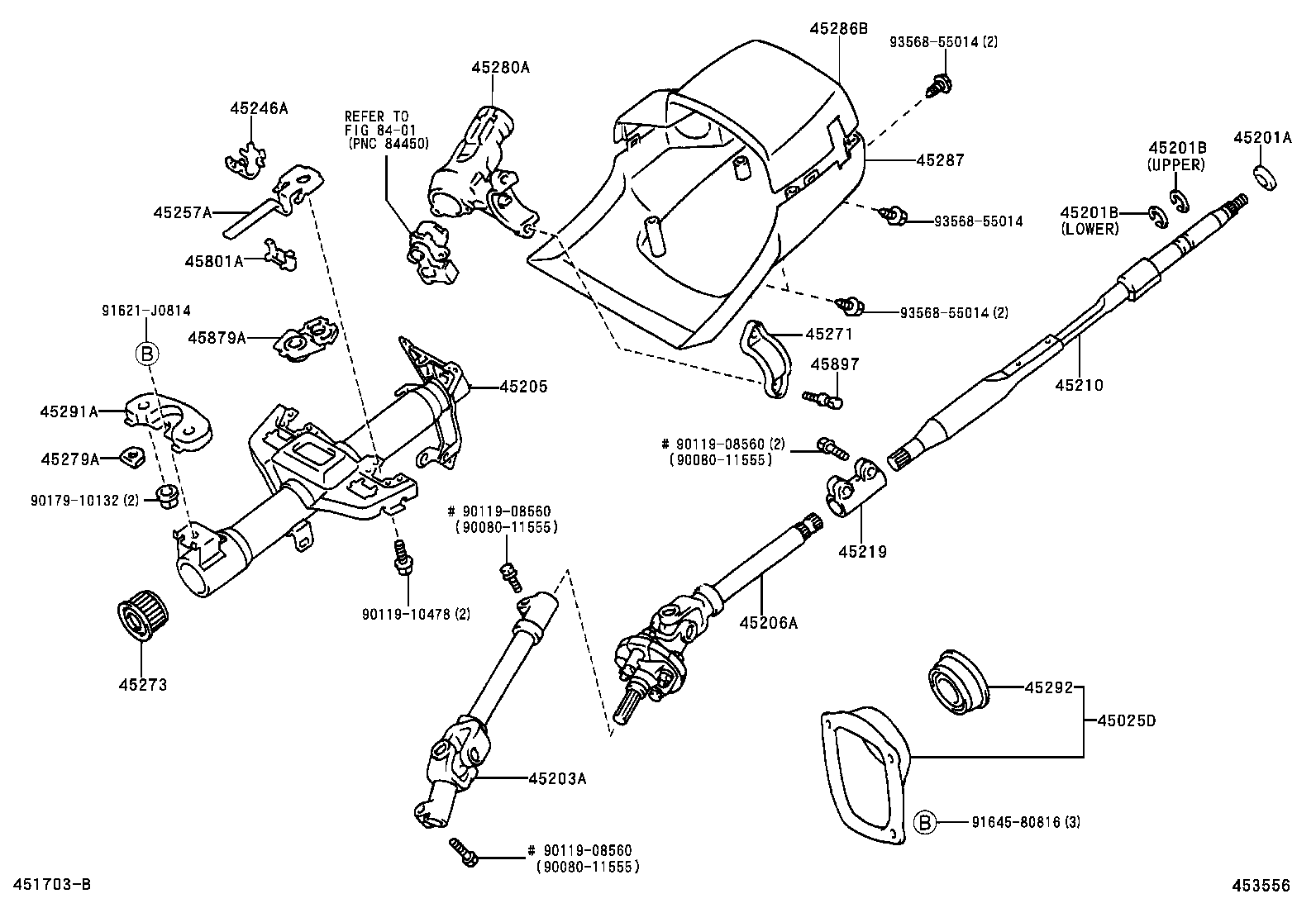

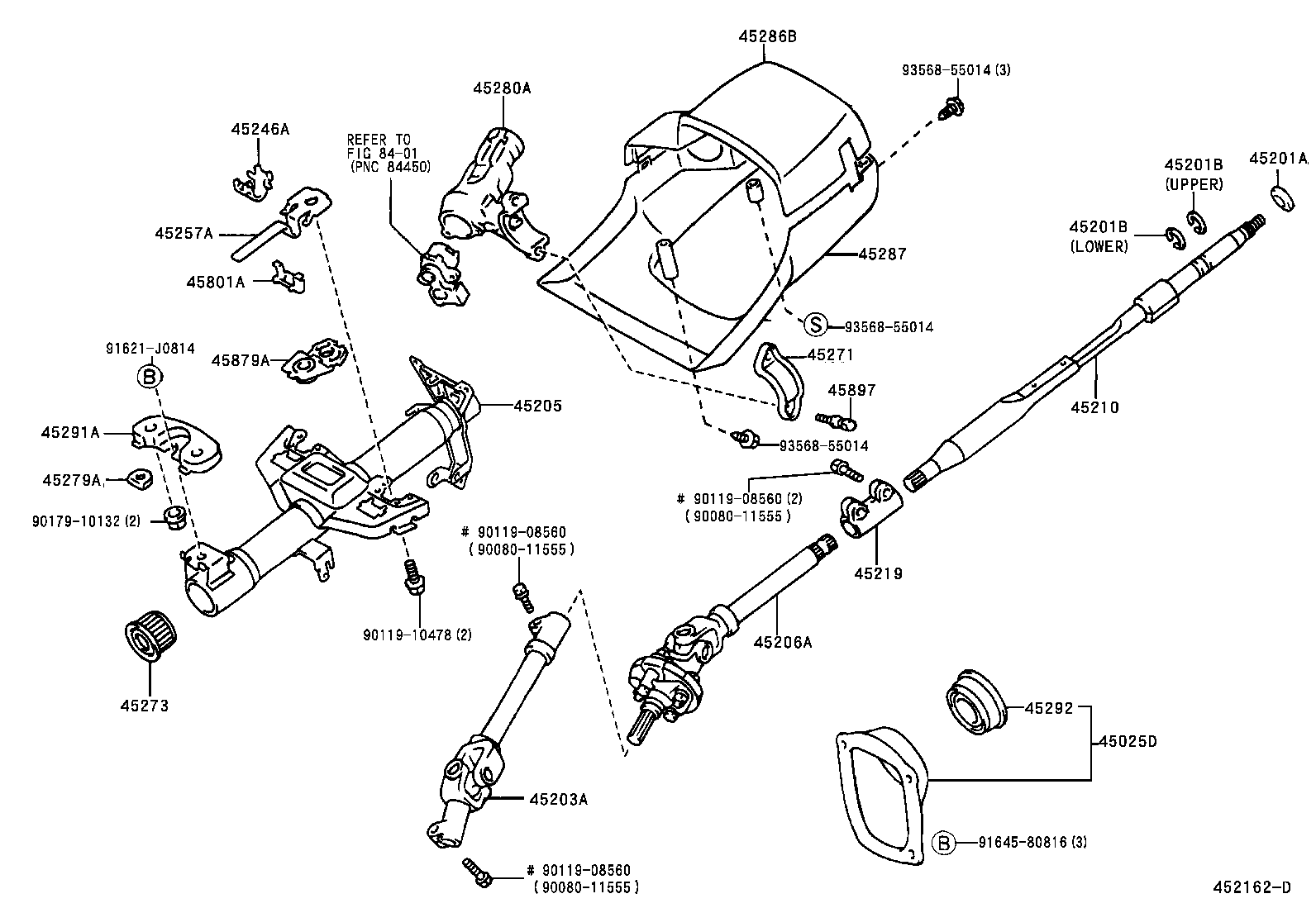

Figure 450206J 450206J 1996-12 → 2000-01 Figure 450206J 450206J 1998-04 → 2001-03 Figure 450206J 450206J 1998-10 → 2001-02 Figure 451703C 451703C 1999-02 → 2002-08 Figure 452162D 452162D 2000-01 → 2002-08 Figure 452162D 452162D 2000-03 → 2002-08 Figure 452162D 452162D 2001-02 → 2002-08 Figure 452162D 452162D 2001-03 → 2002-08 Figure 453556 453556 2002-08 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45203A Shaft, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45206A Yoke Sub-assy, Steering Sliding W/Coupling
45210 Shaft Assy, Steering Main
45219 Yoke, Steering Sliding
45246A Guide, Steering Energy Absorbing Plate
45257A Plate, Steering Column Energy Absorbing
45271 Clamp, Steering Column, Upper
45273 Bush, Steering Main Shaft
45279A Attachment, Steering Column Tube, Lwr
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45291A Support, Steering Column Tube
45292 Seal, Main Shaft Lower Dust
45801A Pin Sub-assy, Steering Energy Absorbing
45879A Capsule, Break Away
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
