Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

19 part groups · 17 illustrations

Illustrations

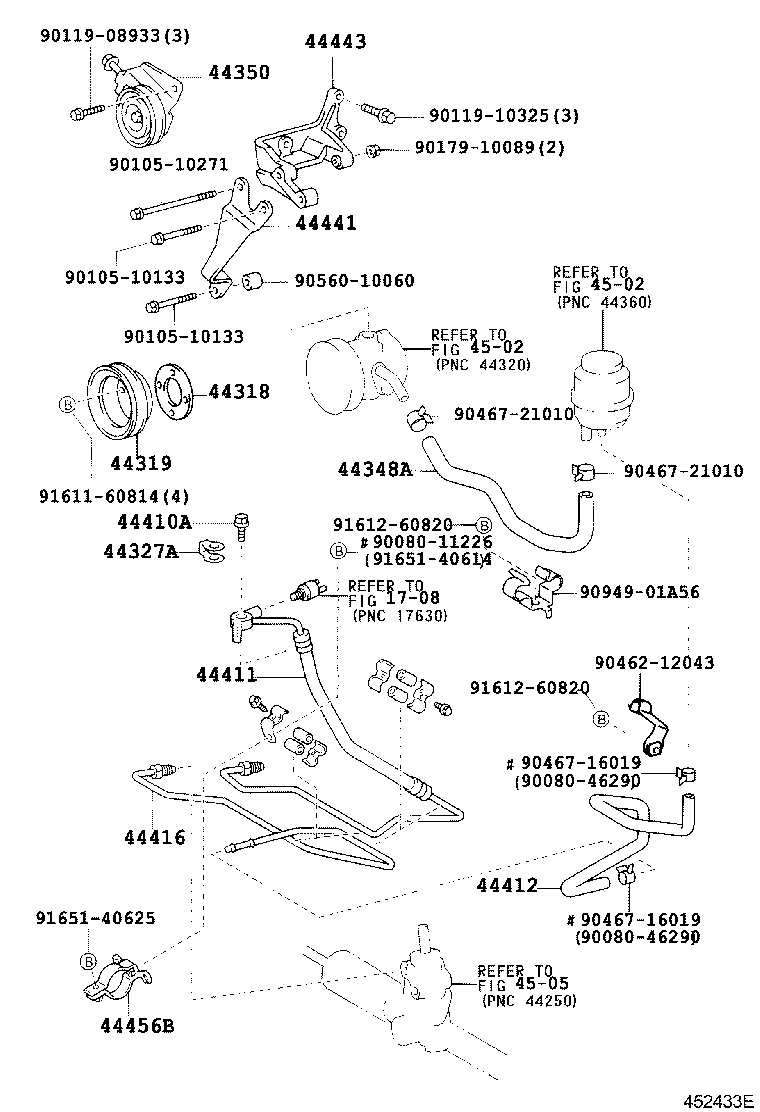

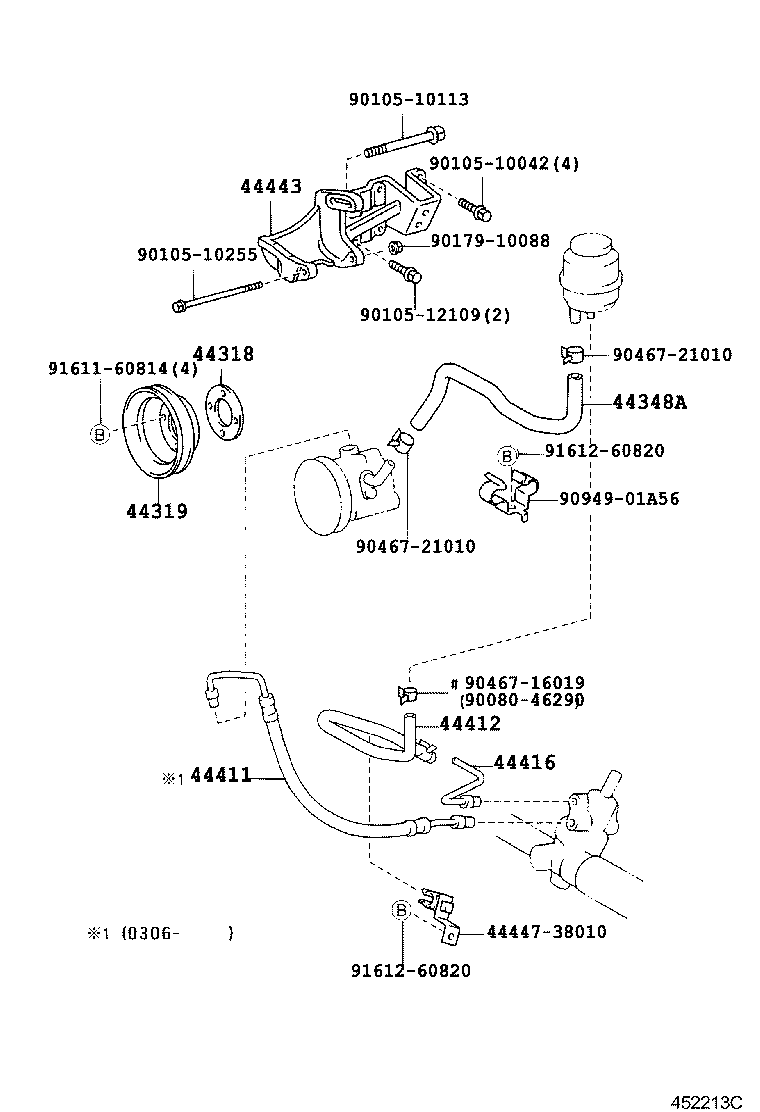

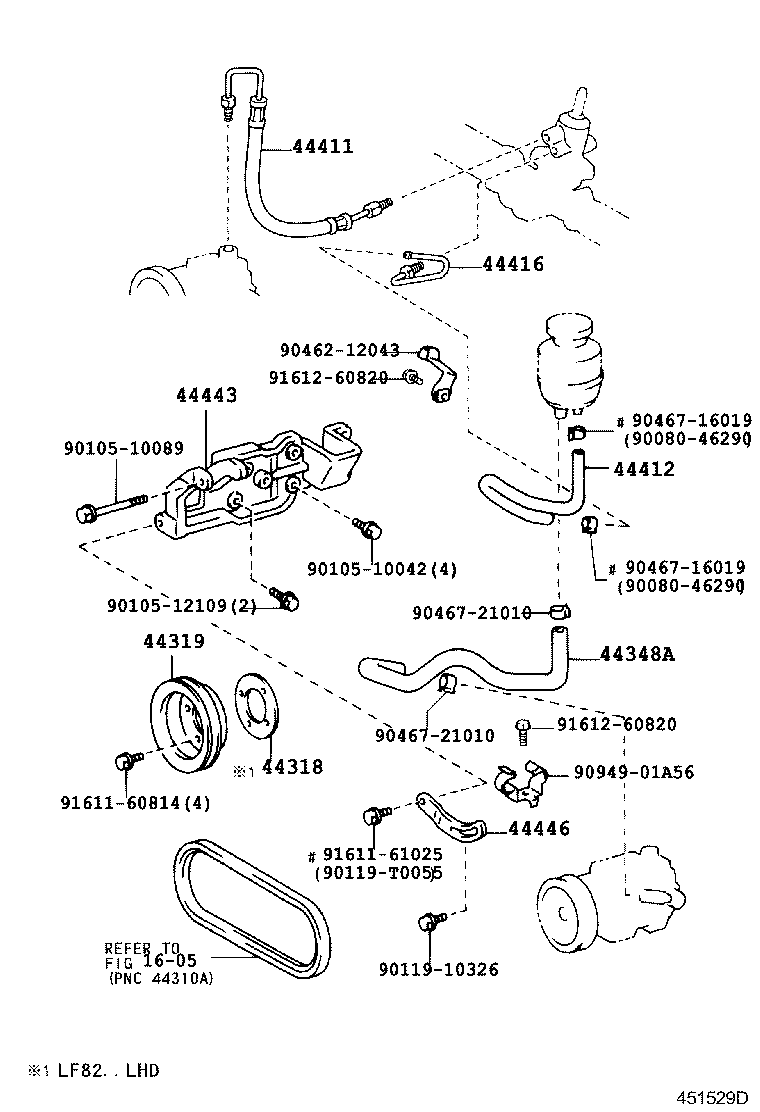

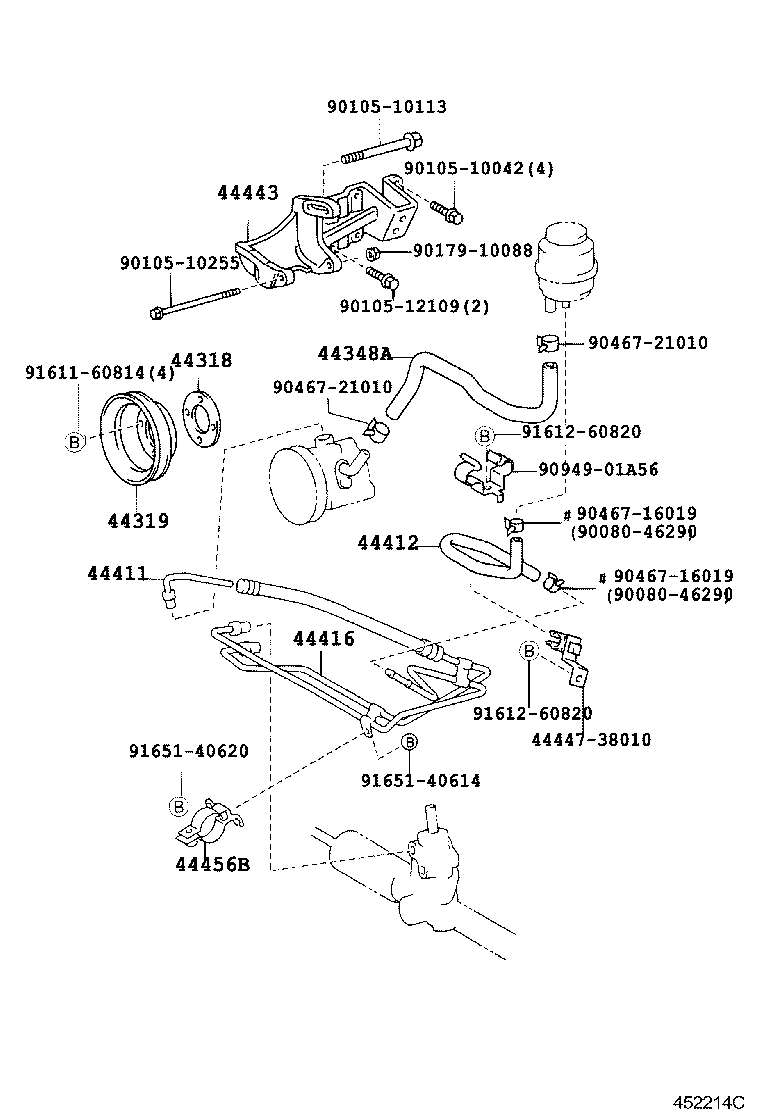

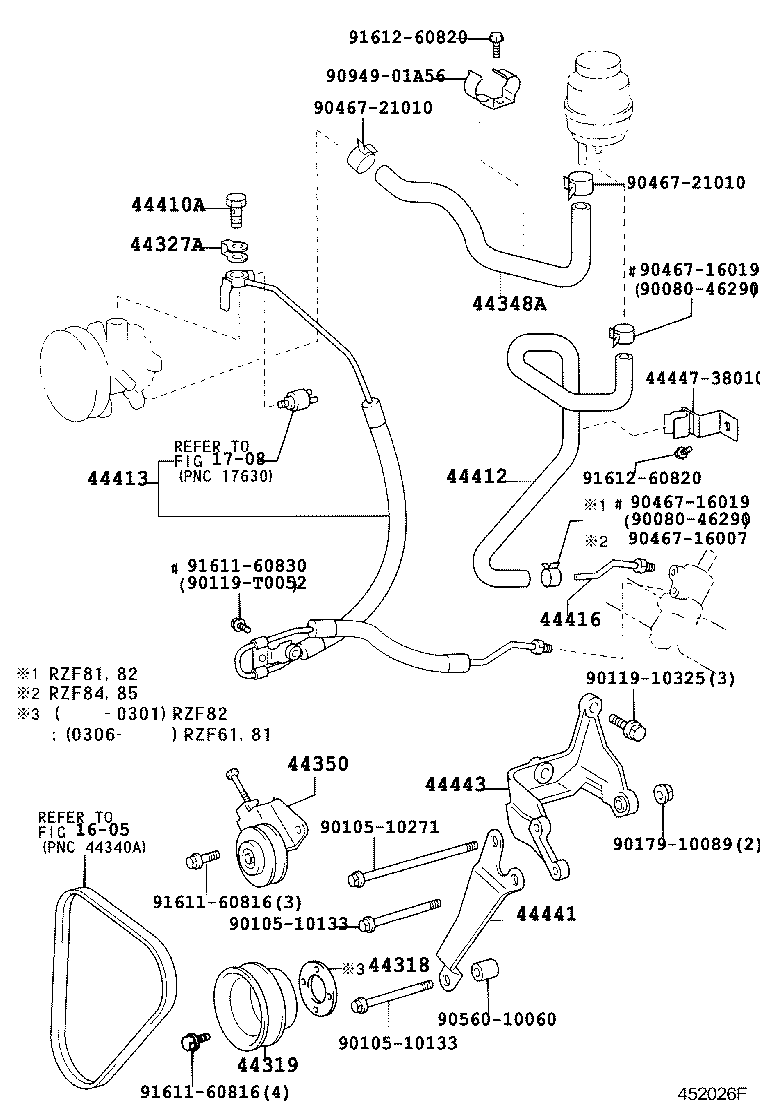

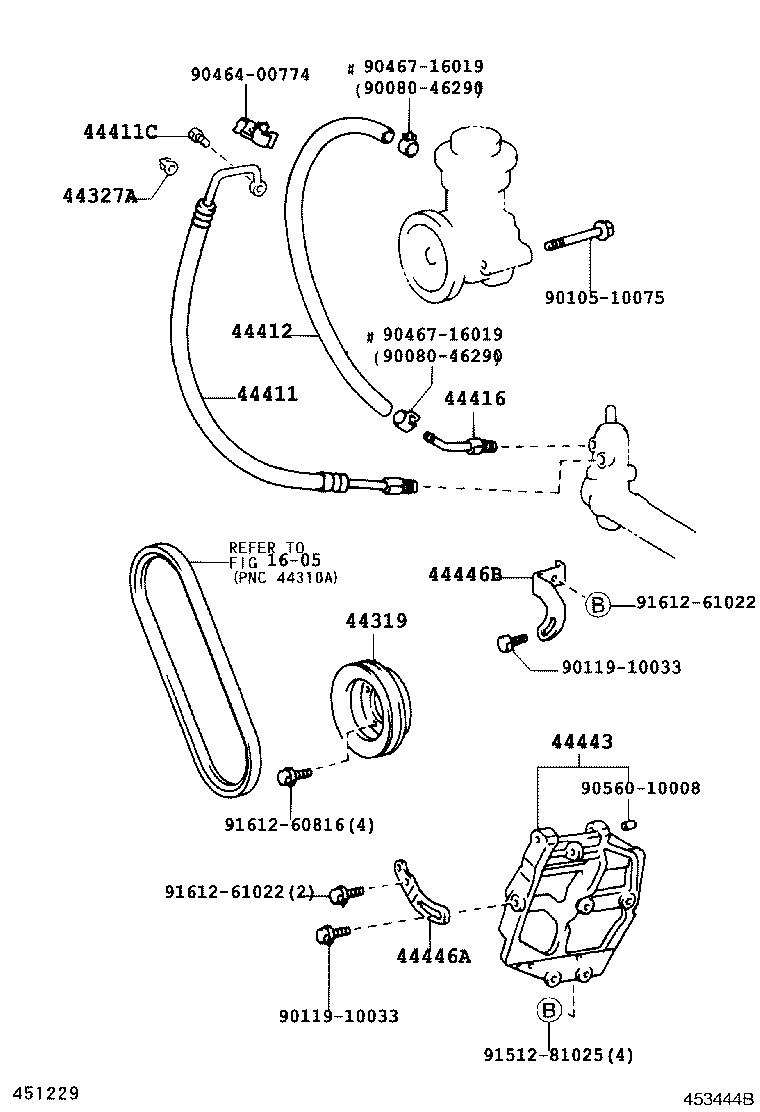

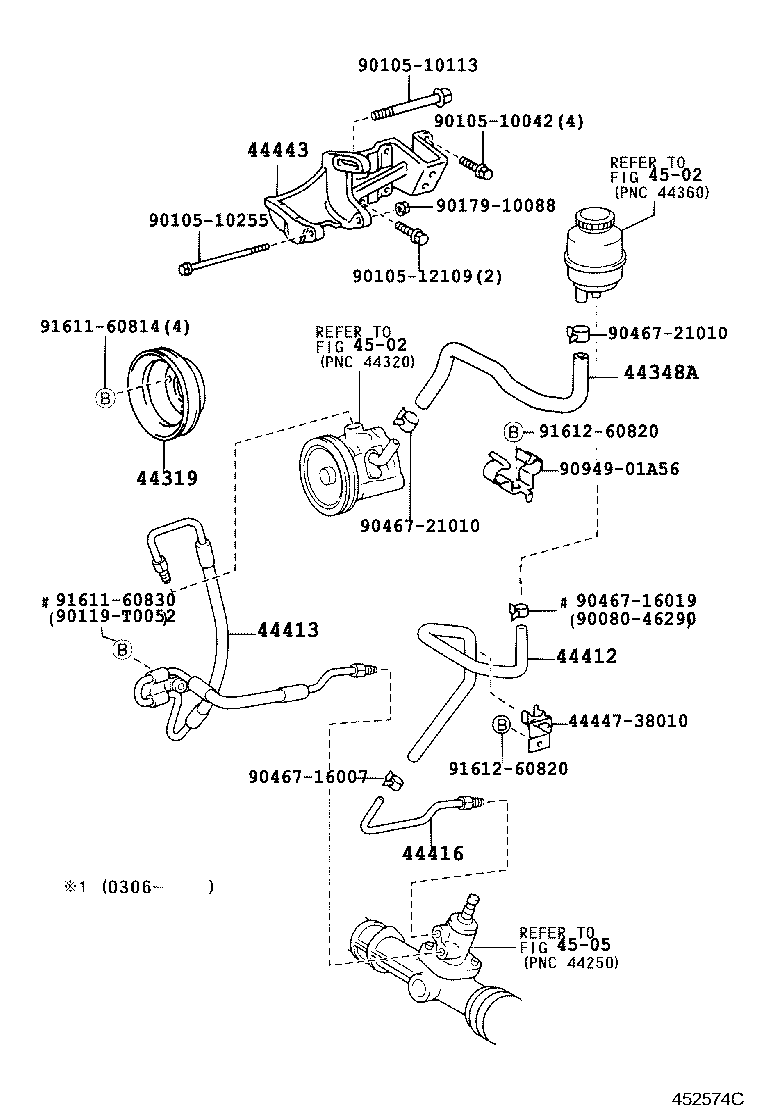

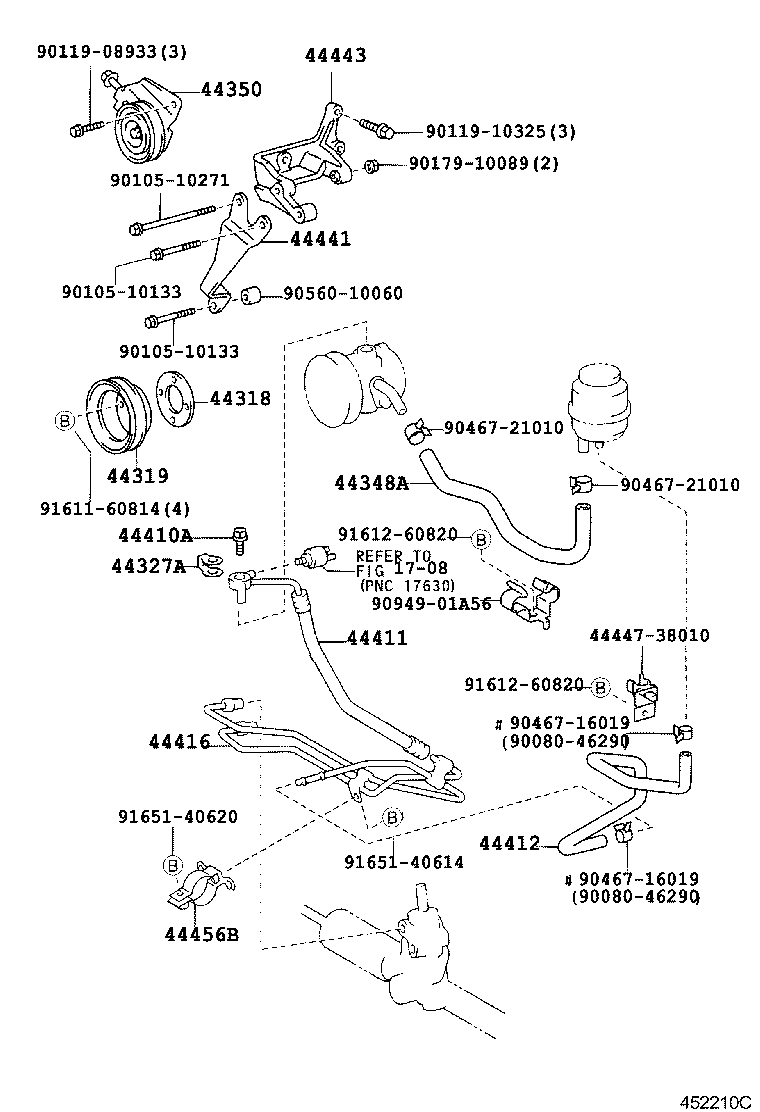

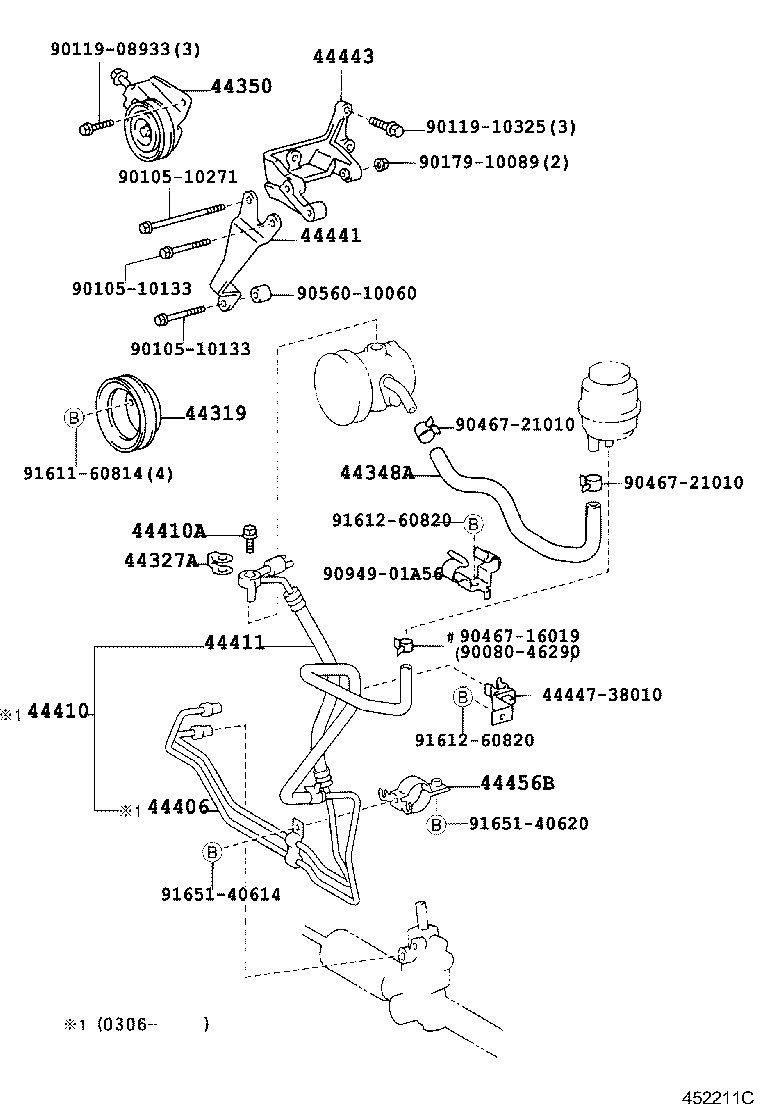

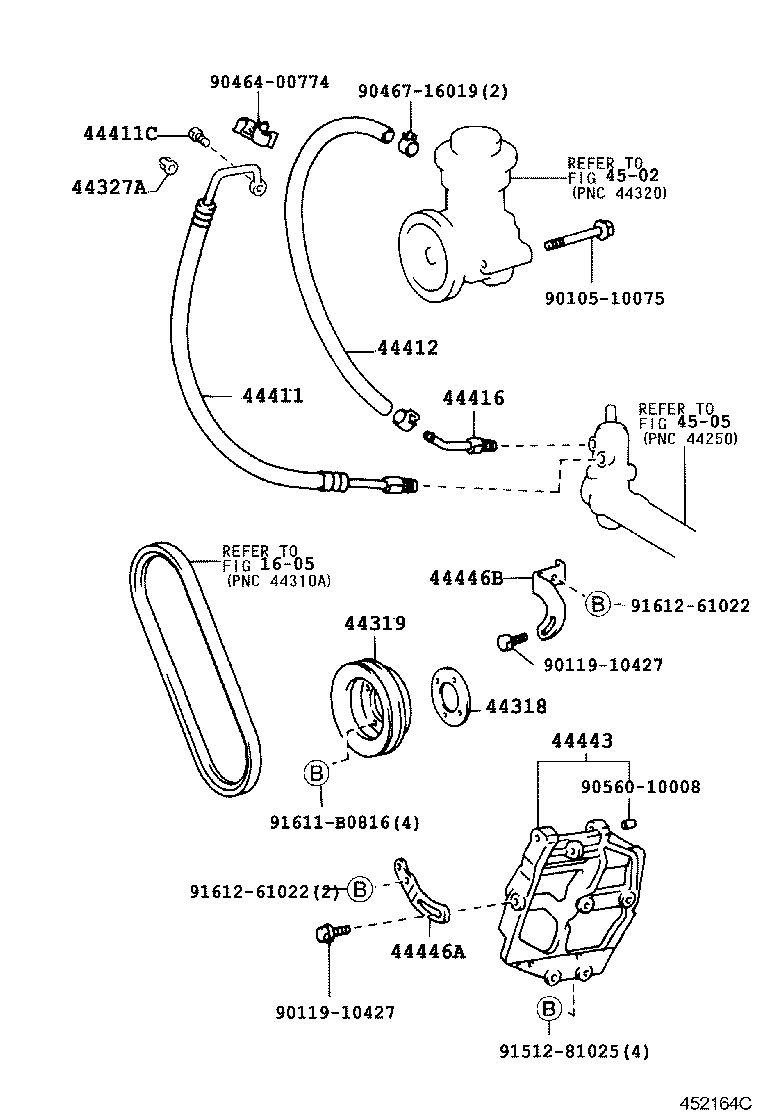

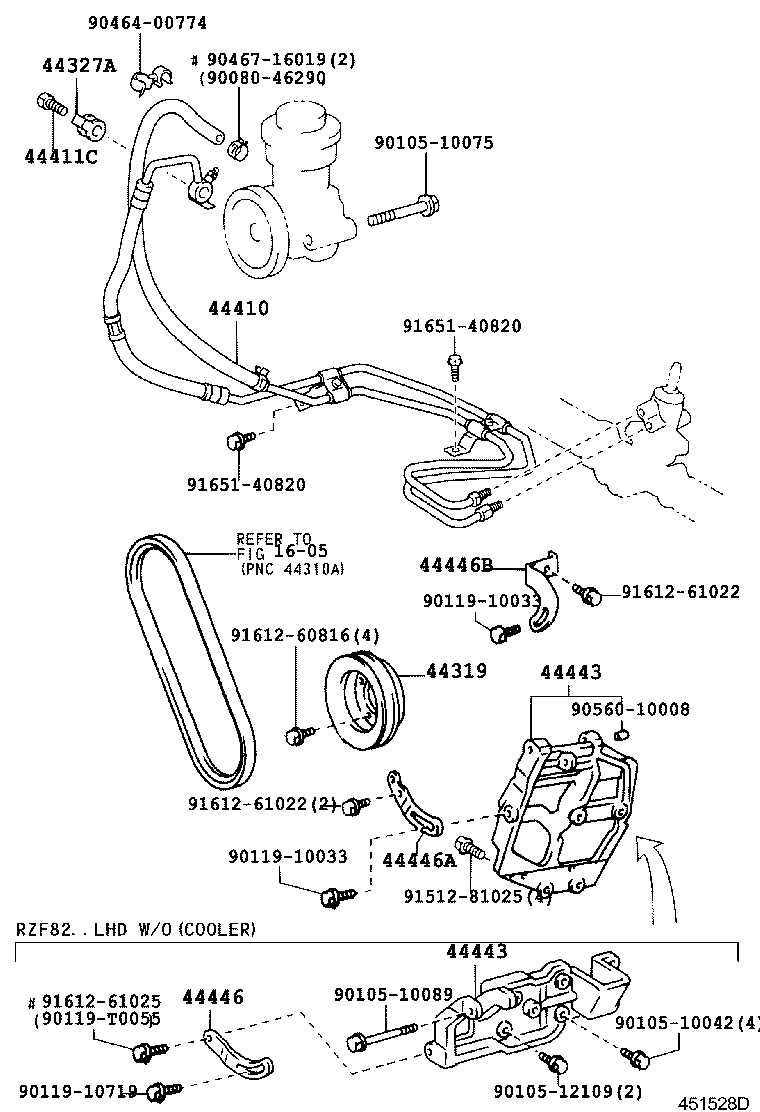

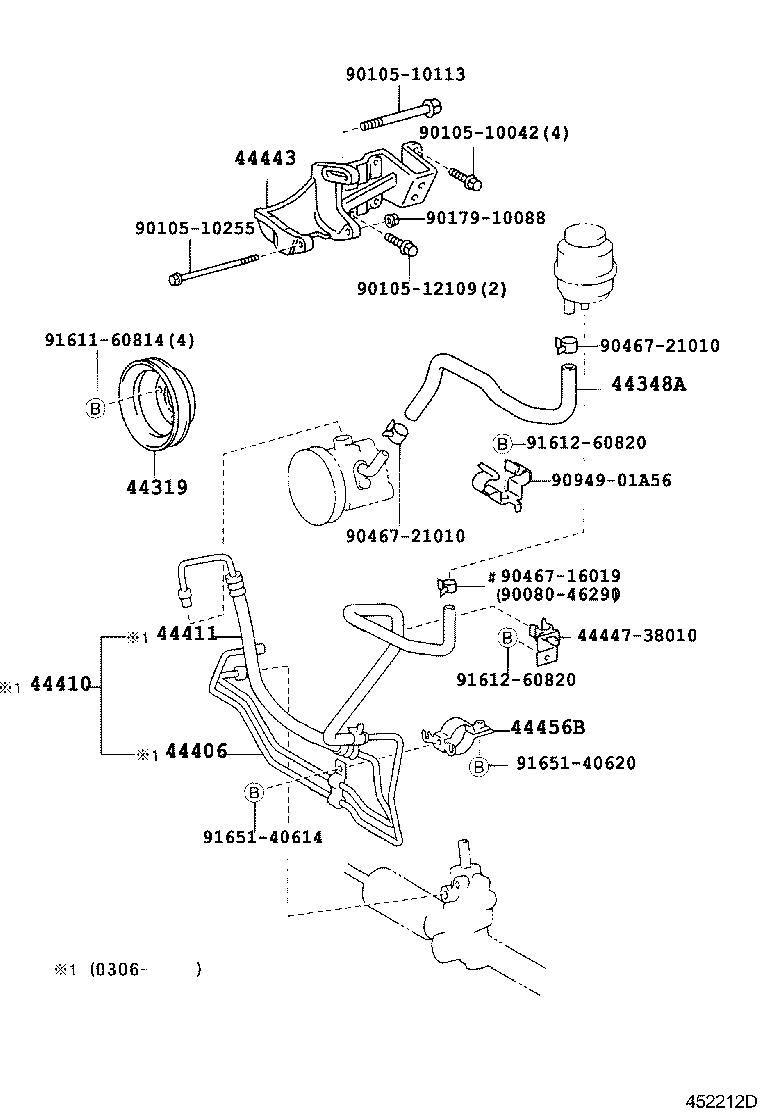

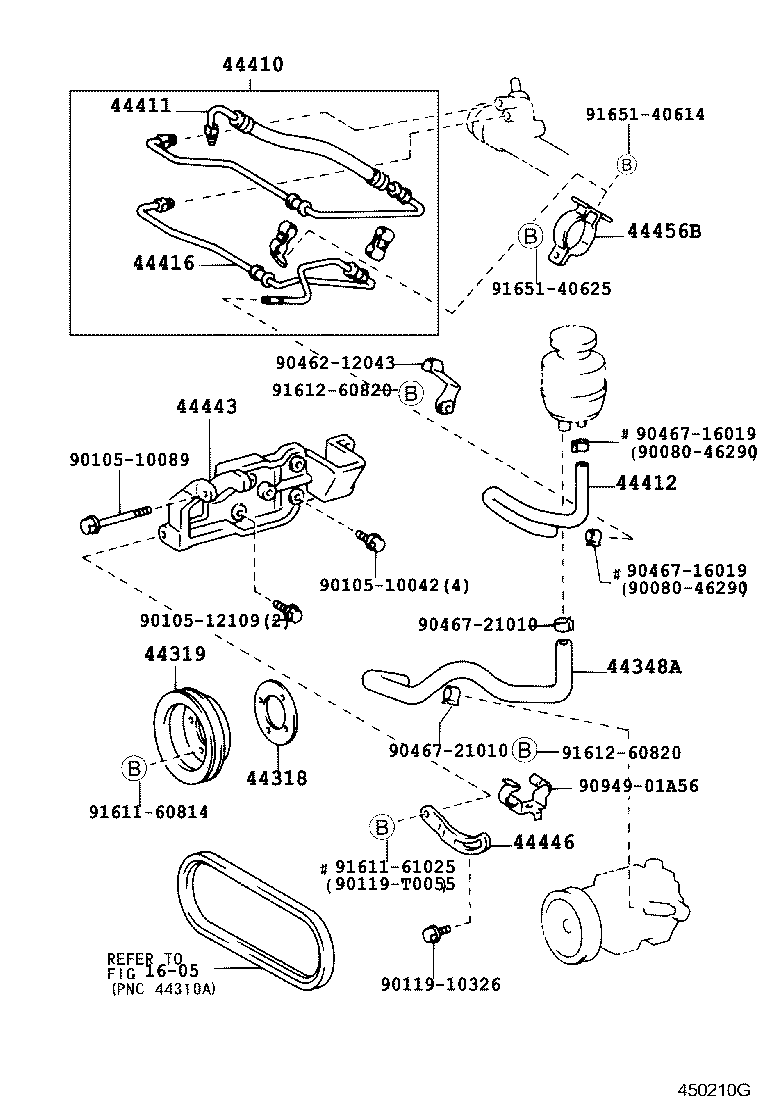

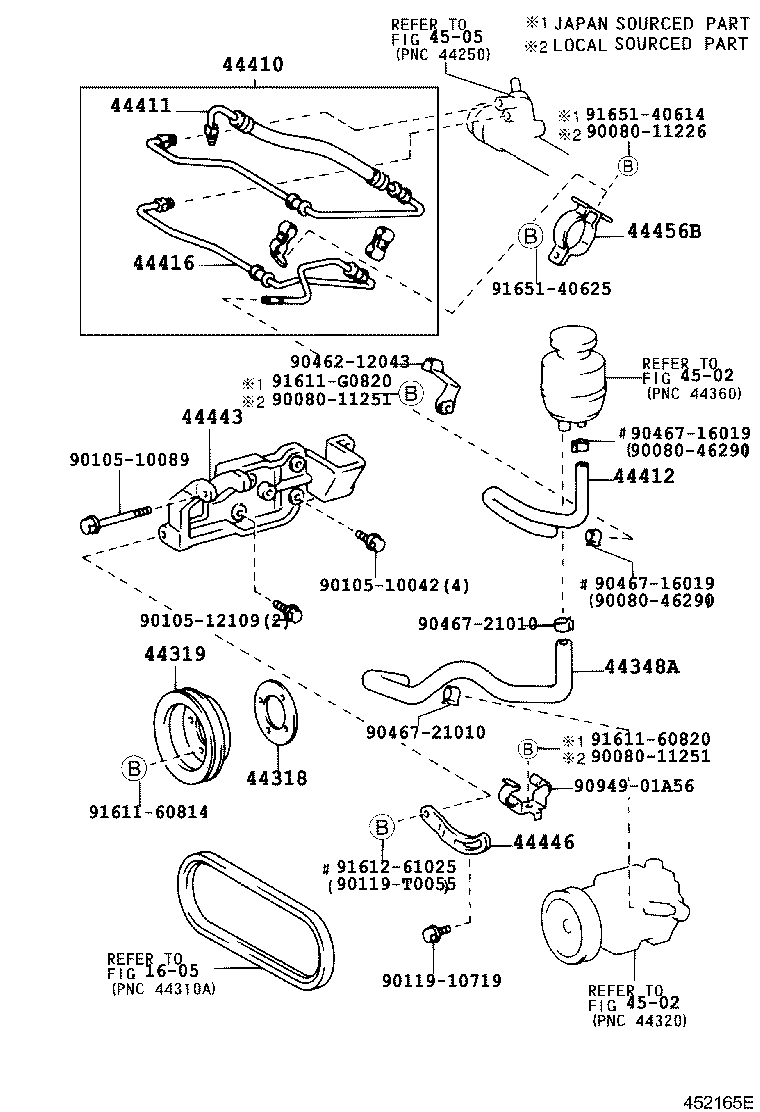

Figure 450209F 450209F 1996-12 → — Figure 450210G 450210G 1996-12 → — Figure 453444B 453444B 1998-04 → — Figure 451528D 451528D 1998-10 → — Figure 451528D 451528D 1999-02 → — Figure 451528D 451528D 1999-09 → — Figure 451529D 451529D 1998-10 → — Figure 452026F 452026F 1999-11 → — Figure 452164C 452164C 2000-01 → — Figure 452165E 452165E 2000-01 → — Figure 452210C 452210C 2000-04 → — Figure 452211C 452211C 2000-04 → — Figure 452212D 452212D 2000-04 → — Figure 452213C 452213C 2000-04 → — Figure 452214C 452214C 2000-04 → — Figure 452433E 452433E 2000-10 → — Figure 452574C 452574C 2001-04 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
44446A Strut, Adjusting NO.1
44446B Strut, Adjusting NO.2
44456B Retainer, Tube Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
