Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

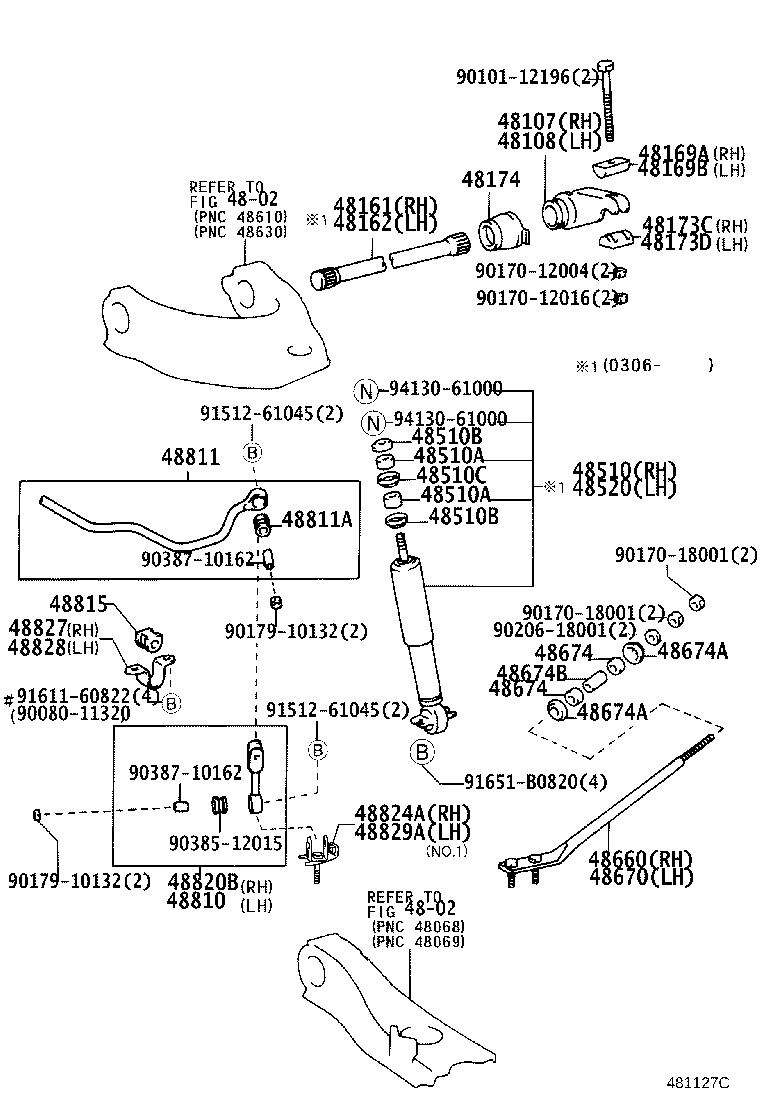

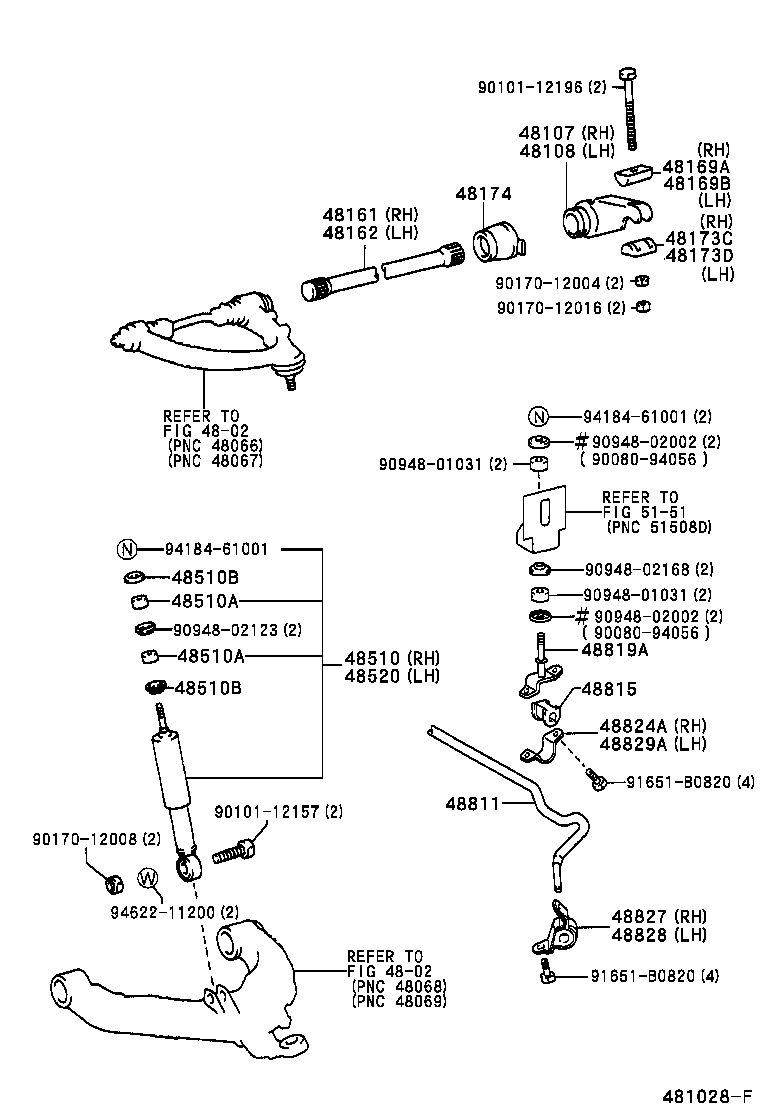

Front Spring & Shock Absorber
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 48107 | Arm Sub-assy, Anchor, RH |
| 48108 | Arm Sub-assy, Anchor, LH |
| 48161 | Spring, Torsion Bar, RH |
| 48162 | Spring, Torsion Bar, LH |
| 48169A | Swivel, Anchor Arm, RH |
| 48169B | Swivel, Anchor Arm, LH |
| 48173C | Seat, Anchor Arm Adjuster, RH |
| 48173D | Seat, Anchor Arm Adjuster, LH |
| 48174 | Cover, Torsion Bar Dust |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510A | Cushion, Front Shock Absorber |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48660 | Bar Assy, Strut, RH |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674A | Retainer, Cushion(FOR STRUT BAR CUSHION) |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48810 | Link Assy, Front Stabilizer, LH |
| 48811 | Bar, Stabilizer, Front |
| 48811A | Bush(FOR FRONT STABILIZER BAR) |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48819A | Bolt, Front Stabilizer |
| 48820B | Link Assy, Front Stabilizer, RH |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48827 | Bracket, Front Stabilizer, NO.2 RH |
| 48828 | Bracket, Front Stabilizer, NO.2 LH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
