Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

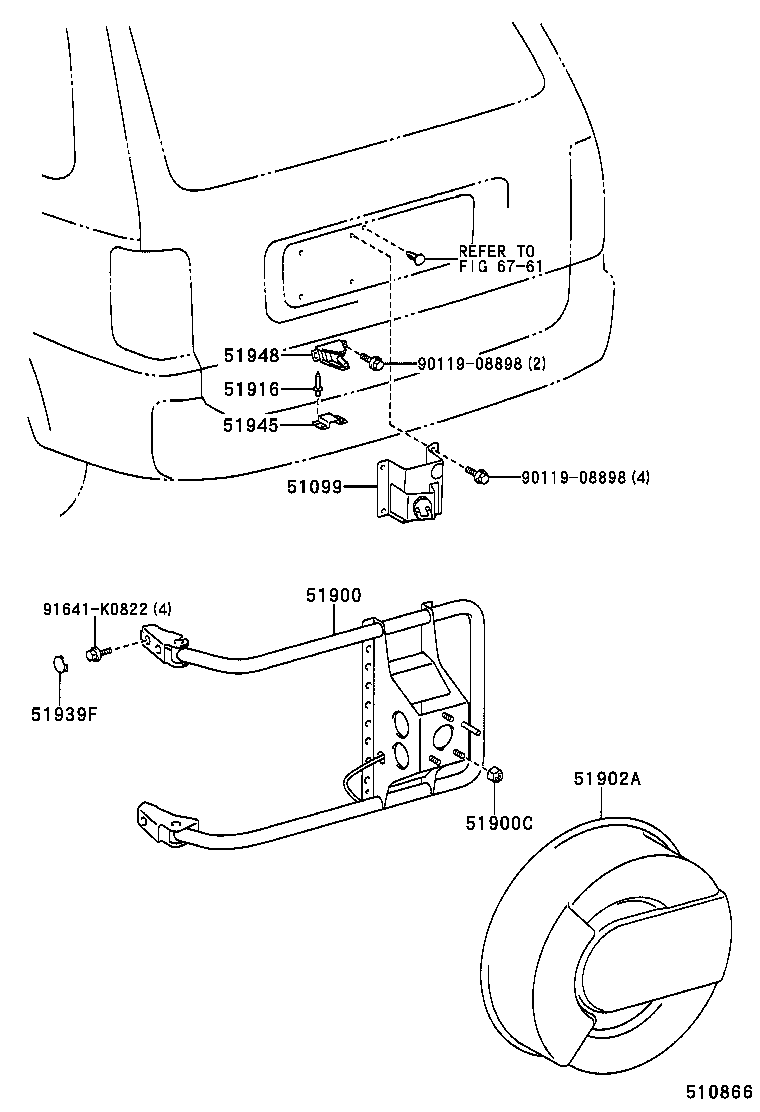

Spare Wheel Carrier
9 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51099 | Plate Sub-assy, Spare |
| 51900 | Carrier Assy, Spare Wheel |
| 51900C | Nut, Spare Wheel, Hub |
| 51902A | Cover Sub-assy, Spare Wheel |
| 51916 | Pin, Spare Tire Carrier |
| 51933C | Stopper, Spare Wheel |
| 51939F | Plug, Spare Wheel Carrier |
| 51945 | Bracket, Spare Wheel Carrier Cushion |
| 51948 | Stopper, Spare Wheel Carrier Auxiliary |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
