Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

10 part groups · 2 illustrations

Illustrations

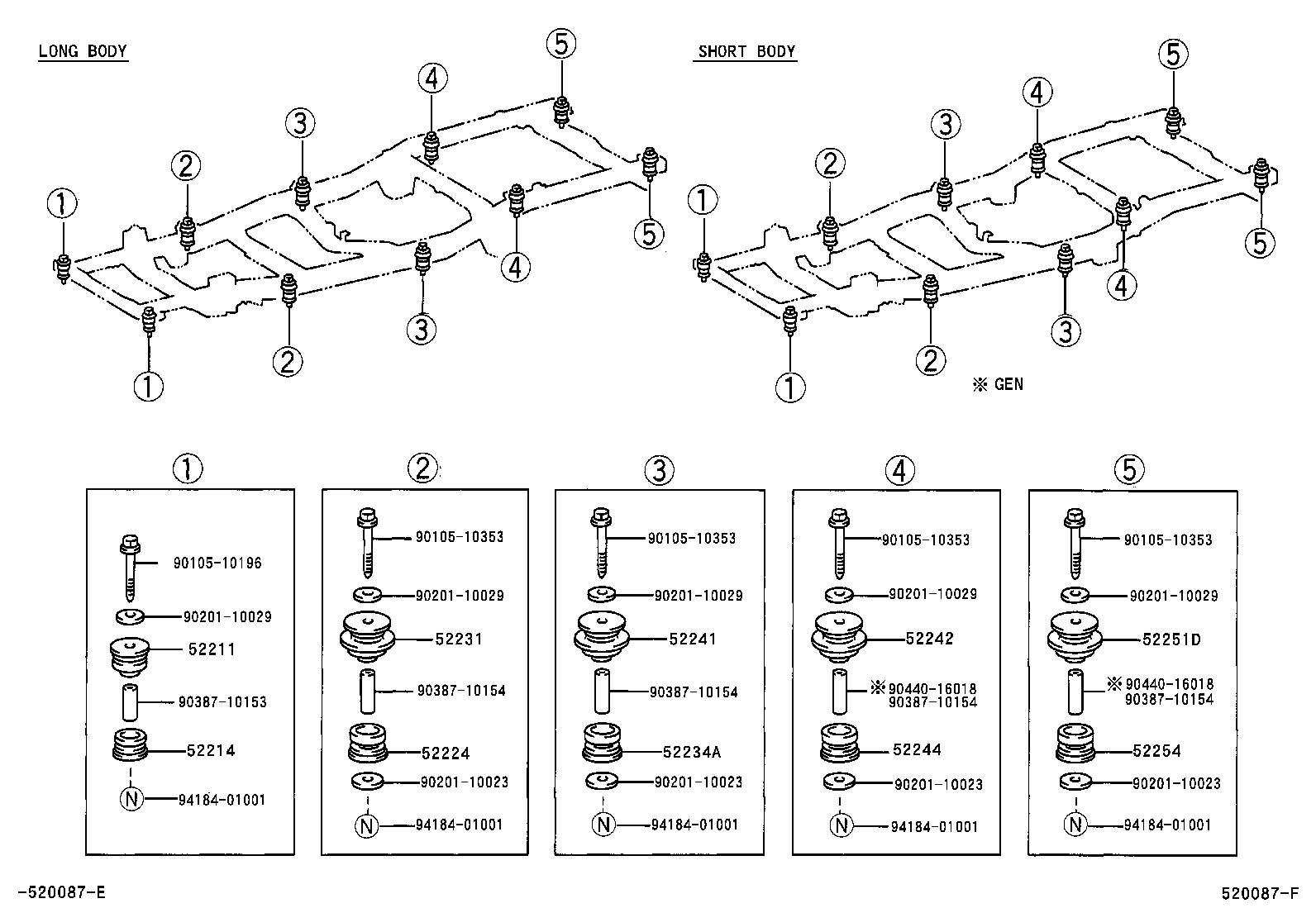

Figure 520086D 520086D 1996-12 → — Figure 520087F 520087F 1996-12 → —

Part groups

PNCDescription
52211 Cushion, Body Mounting, NO.1 Upper
52214 Cushion, Body Mount, NO.1 Lower
52224 Cushion, Body Mount, NO.2 Lower
52231 Cushion, Body Mount, NO.3 Upper
52234A Cushion, Cab Mounting, NO.4 Lower
52241 Cushion, Body Mount, NO.4 Upper
52242 Cushion, Cab Rear Mounting Rebound
52244 Cushion, Body Mount, NO.4 Lower
52251D Cushion, Cab Mounting, NO.4 Upper
52254 Cushion, Body Mount, NO.5 Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
