Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

25 part groups · 14 illustrations

Illustrations

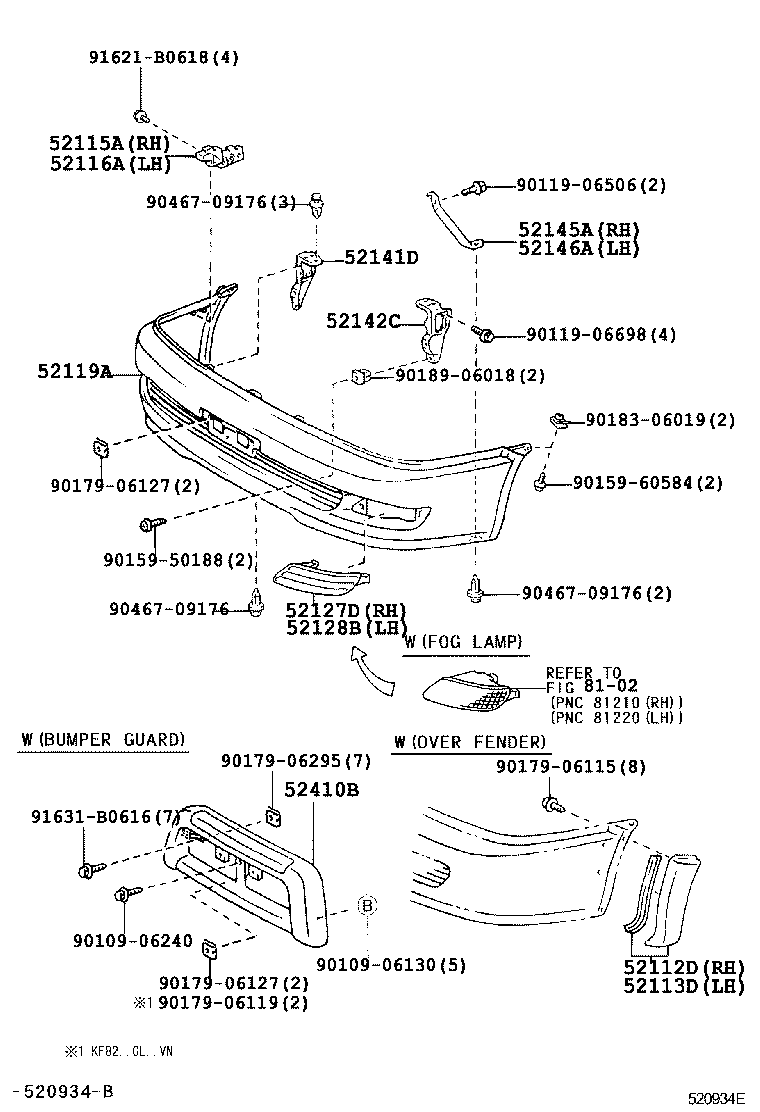

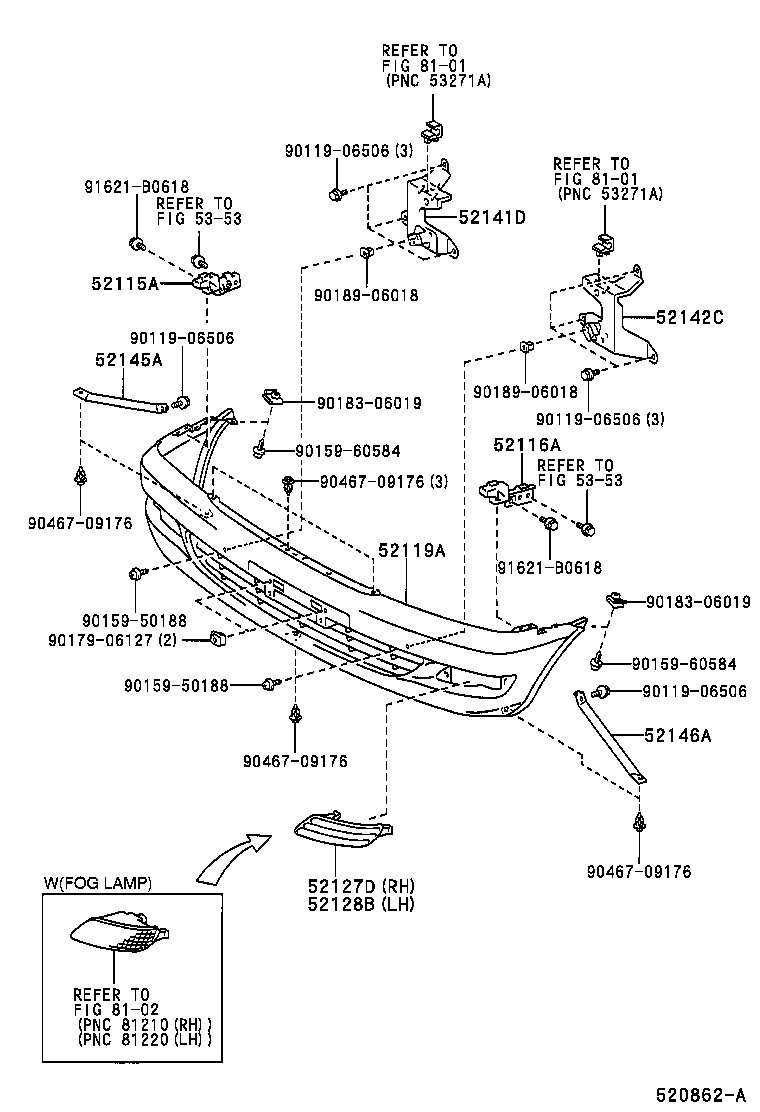

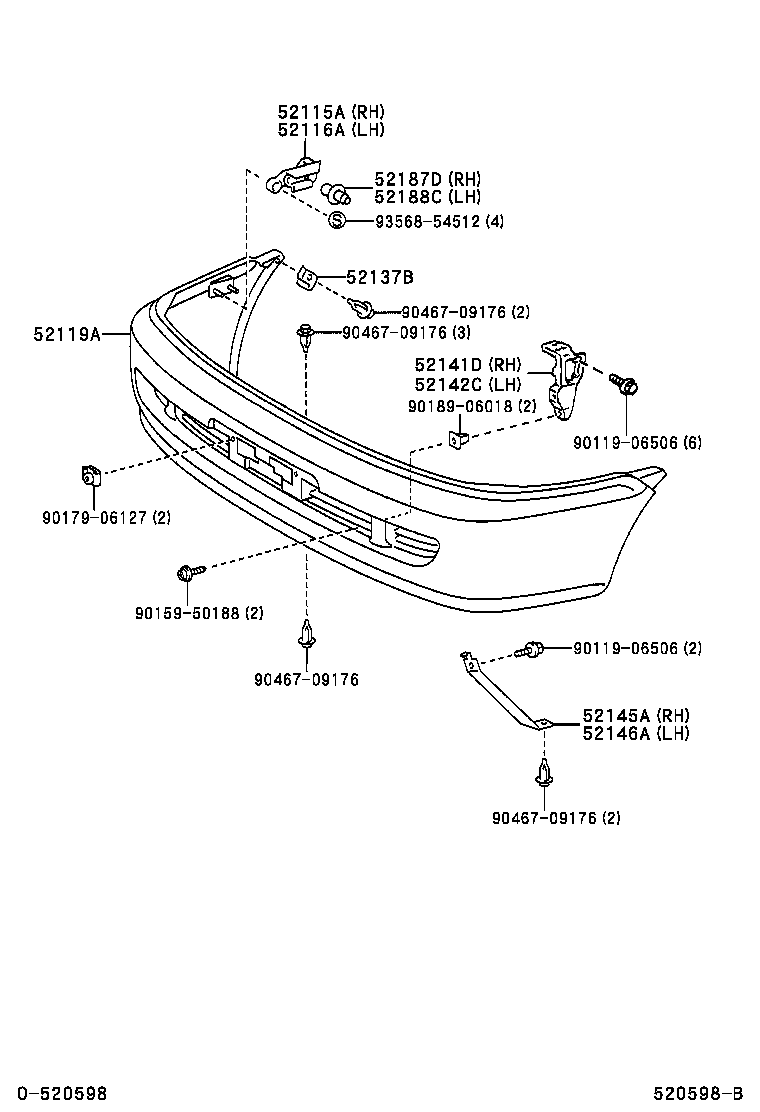

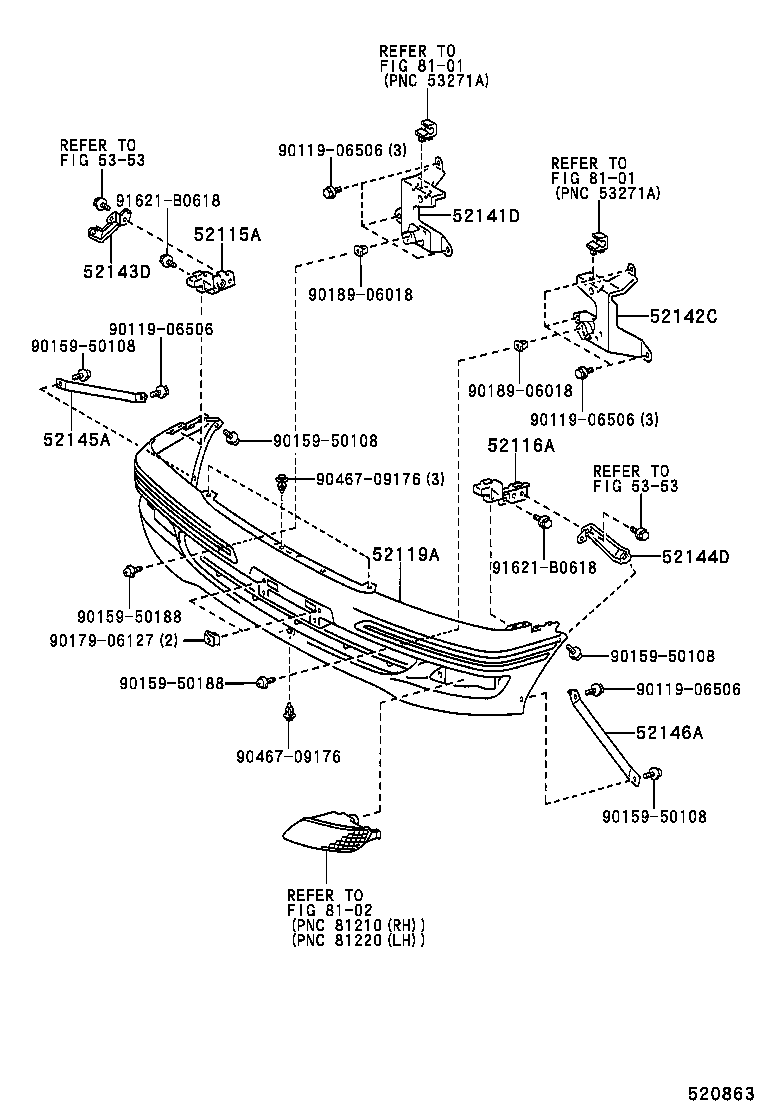

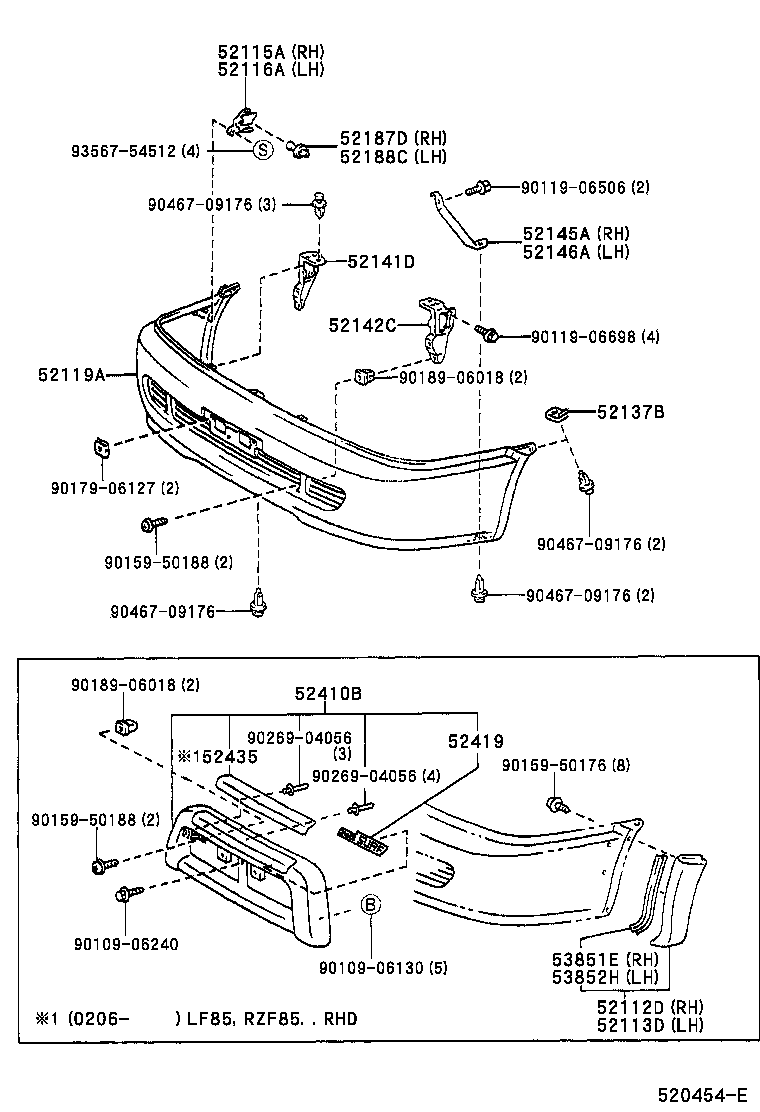

Figure 520088A 520088A 1996-12 → 2000-01 Figure 520088A 520088A 2000-01 → 2001-02 Figure 520088A 520088A 2001-02 → 2001-03 Figure 520454E 520454E 1999-02 → 2002-10 Figure 520454E 520454E 2002-10 → 2003-06 Figure 520934E 520934E 2002-10 → — Figure 520934E 520934E 2003-06 → — Figure 520598B 520598B 2000-01 → 2002-08 Figure 520598B 520598B 2001-02 → — Figure 520598B 520598B 2001-03 → — Figure 520598B 520598B 2002-08 → — Figure 520598B 520598B 2003-06 → — Figure 520862A 520862A 2002-08 → — Figure 520863 520863 2002-08 → —

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52137B Plate, Front Bumper Bracket, NO.1
52141B Stay, Front Bumper
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52187D Guide, Front Bumper Location, RH
52188C Guide, Front Bumper Location, LH
52410B Guard Assy, Front Bumper
52419 Plate, Front Bumper Guard
52435 Garnish, Front Bumper Guard
53851E Pad, Front Wheel Opening Extension, NO.1
53852H Pad, Front Wheel Opening Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
