Rear Bumper & Bumper Stay

17 part groups · 10 illustrations

Illustrations

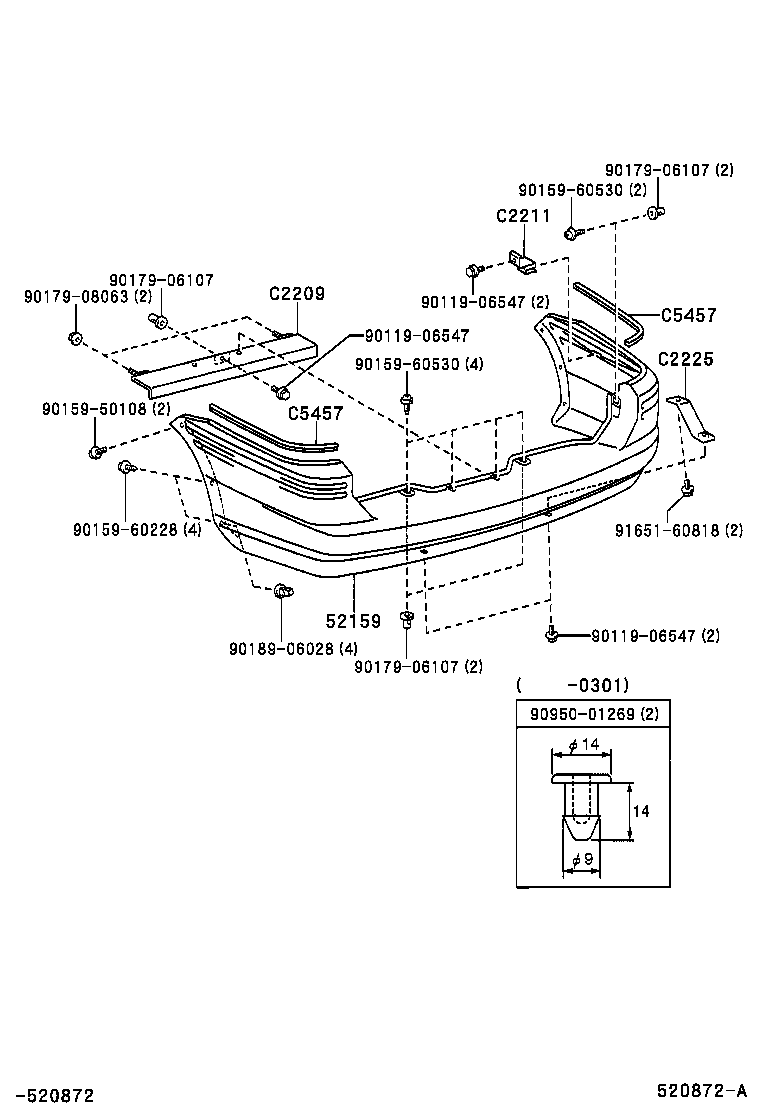

Figure 520089A 520089A 1996-12 → 2001-02 Figure 520089A 520089A 2001-02 → 2001-03 Figure 520455B 520455B 1999-02 → — Figure 520455B 520455B 1999-02 → — Figure 520455B 520455B 2001-02 → — Figure 520455B 520455B 2001-03 → — Figure 520455B 520455B 2002-11 → — Figure 520455B 520455B 2003-02 → — Figure 520455B 520455B 2003-06 → — Figure 520872A 520872A 2002-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52055A Pad Sub-assy, Rear Bumper, RH
52056A Pad Sub-assy, Rear Bumper, LH
52150A Bumper Assy, Rear
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52169A Support, Rear Bumper Side, NO.3
52187E Guide, Rear Bumper Location, RH
52188D Guide, Rear Bumper Location, LH
52421C Pad, Rear Bumper
C2209 Reinforce Sub-assy, Rear Bumper Bar
C2211 Bracket, Front Bumper, Front RH
C2225 Bar, Rear Bumper, Center
C5457 Pad, Side Panel, NO.2
