Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 15 illustrations

Illustrations

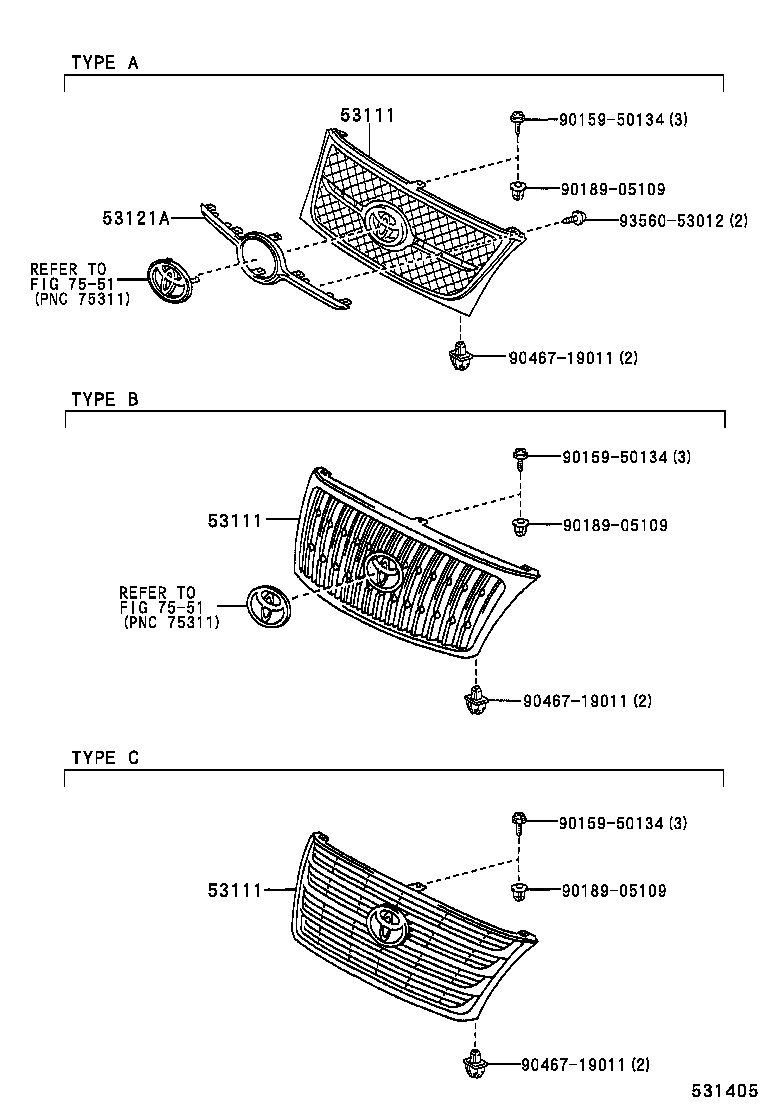

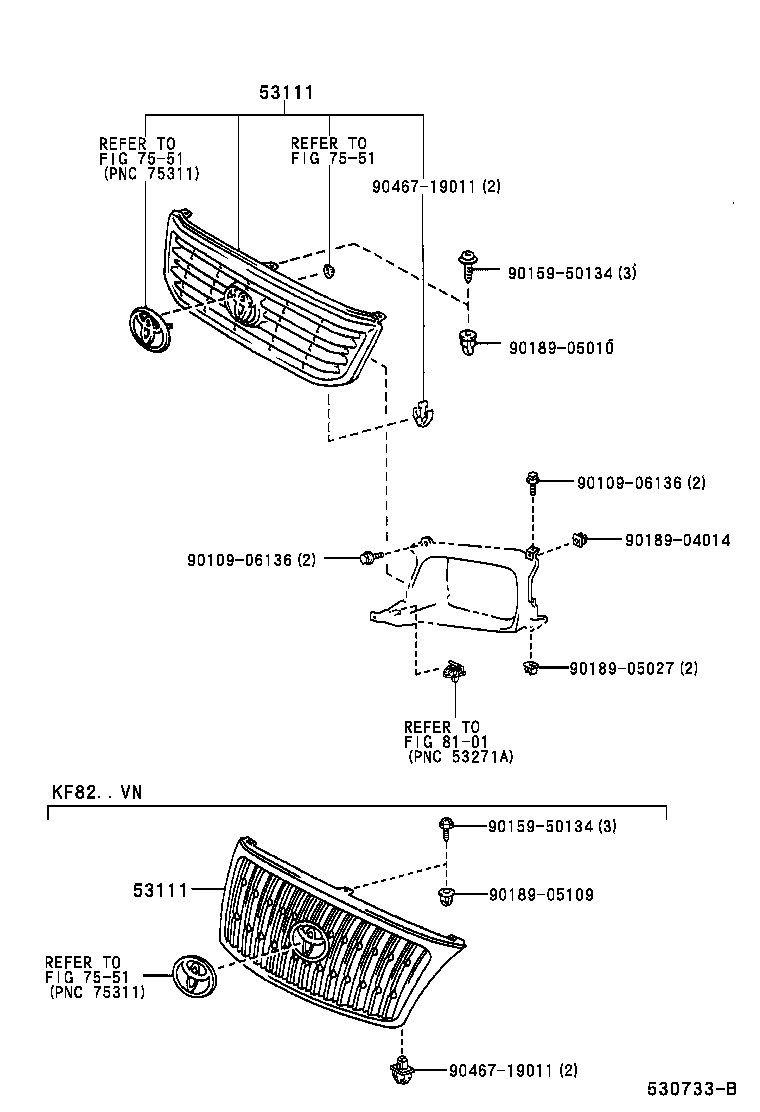

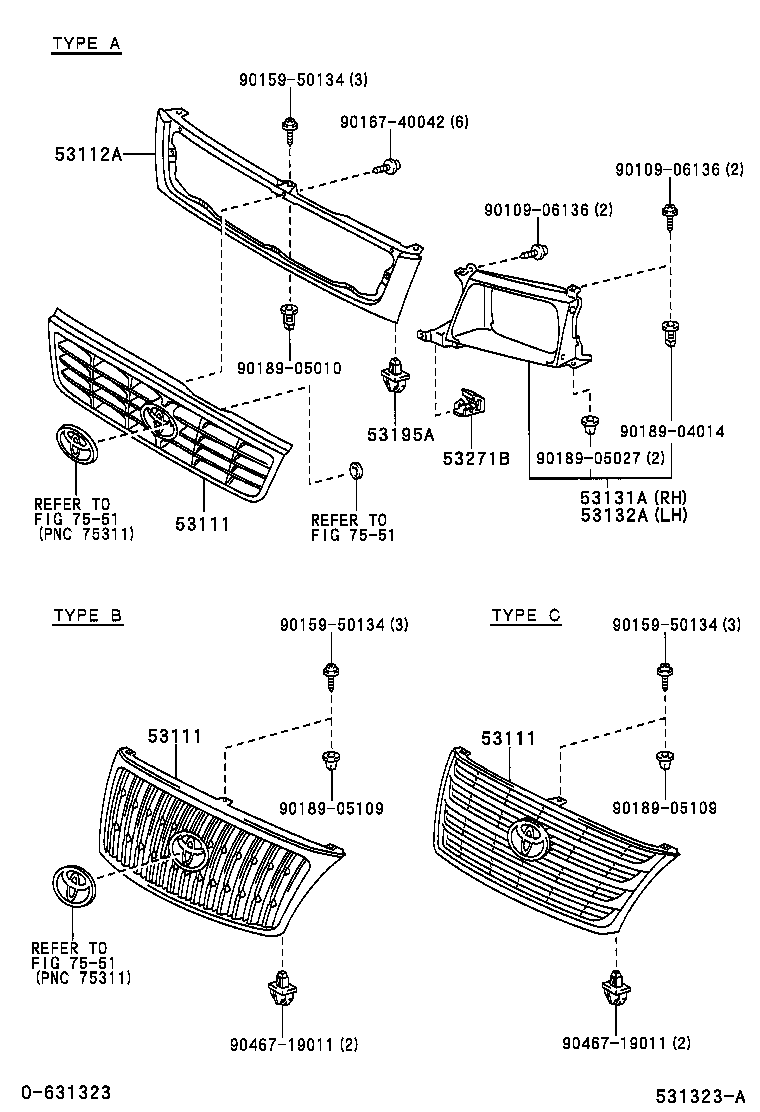

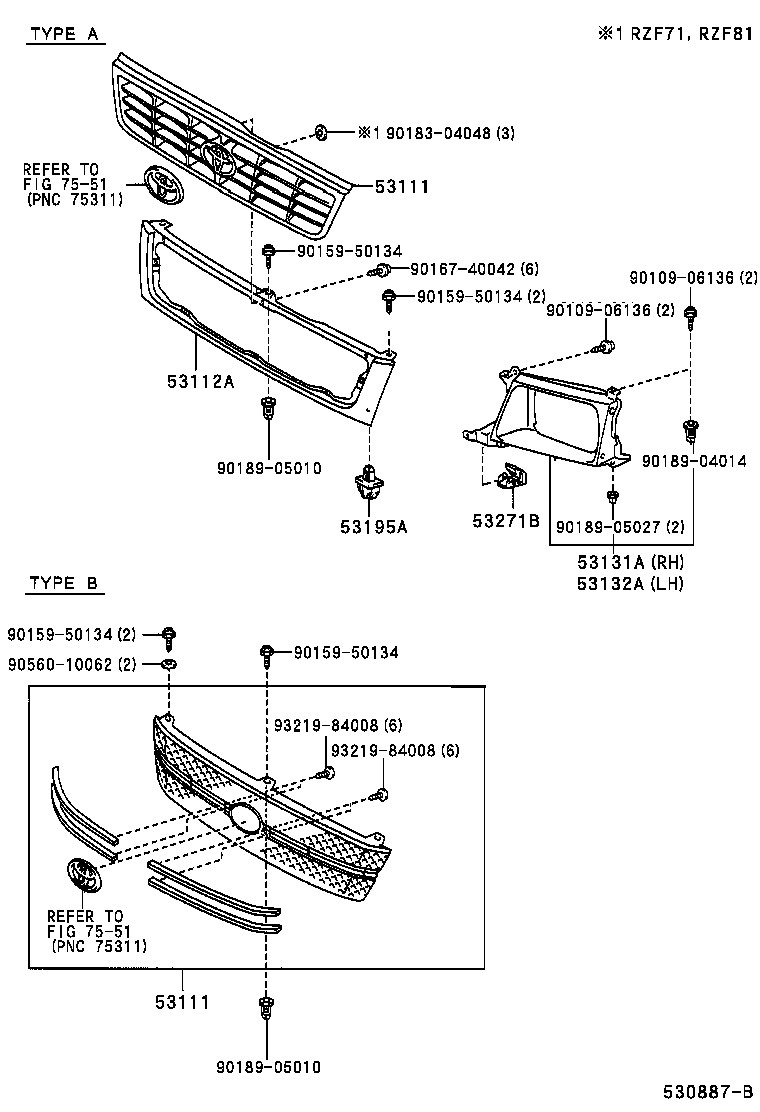

Figure 530110A 530110A 1996-12 → 2000-01 Figure 530110A 530110A 1998-10 → 2001-02 Figure 530111A 530111A 1996-12 → 2001-03 Figure 530111A 530111A 1998-10 → 2001-02 Figure 530733B 530733B 1999-02 → 2002-10 Figure 530733B 530733B 2002-10 → 2002-12 Figure 530733B 530733B 2002-10 → — Figure 530733B 530733B 2003-02 → — Figure 531405 531405 2002-10 → — Figure 531405 531405 2002-12 → — Figure 530887B 530887B 2000-01 → 2002-08 Figure 530887B 530887B 2001-02 → — Figure 530887B 530887B 2001-03 → — Figure 531323A 531323A 2002-08 → — Figure 531323A 531323A 2003-06 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53121A Moulding, Radiator Grille
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53137B Retainer, Headlamp Door
53145B Clip, Radiator Grille Garnish
53195A Retainer, Radiator Grille, Lower NO.1
53271B Bracket, Headlamp Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
