Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 10 illustrations

Illustrations

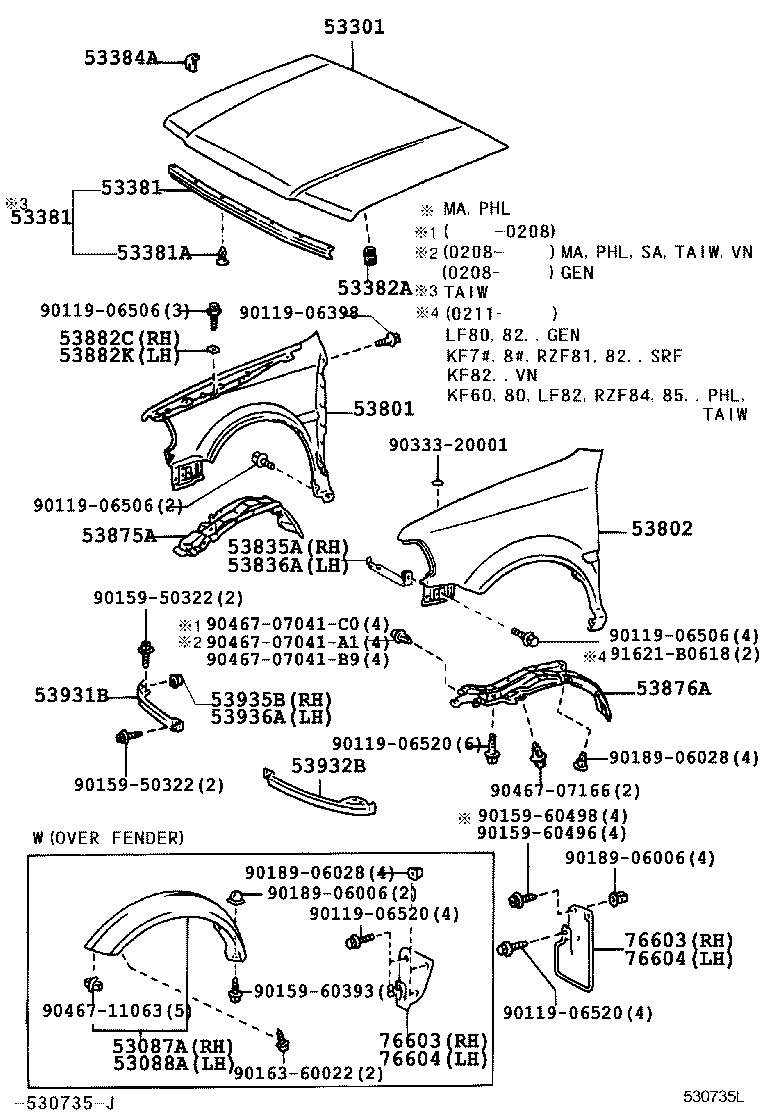

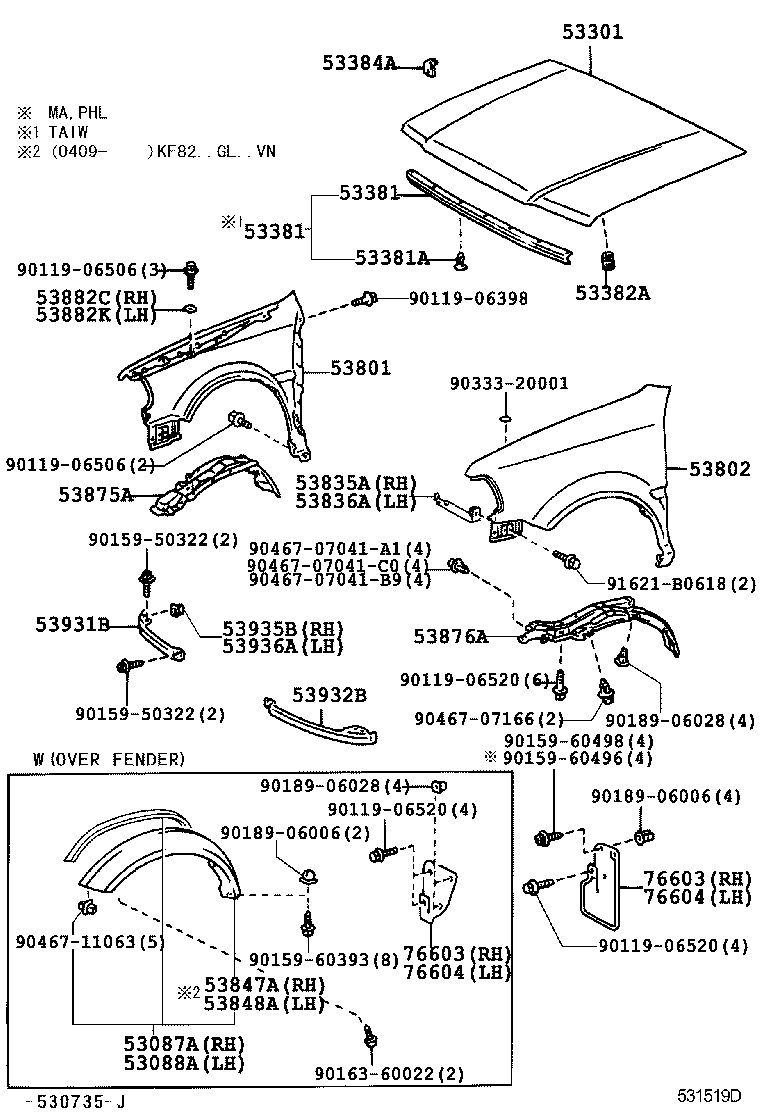

Figure 530115C 530115C 1996-12 → 2000-01 Figure 530115C 530115C 2000-01 → 2001-02 Figure 530115C 530115C 2001-02 → 2001-03 Figure 530735L 530735L 1999-02 → 2003-06 Figure 530735L 530735L 2000-01 → 2003-06 Figure 530735L 530735L 2001-02 → 2003-06 Figure 530735L 530735L 2001-03 → 2003-06 Figure 530735L 530735L 2002-11 → 2003-06 Figure 530735L 530735L 2003-02 → 2003-06 Figure 531519D 531519D 2003-06 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382A Bumper, Hood, Rear
53384A Bumper, Fender TO Hood
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53835A Brace, Front Fender TO Apron, RH
53836A Brace, Front Fender TO Apron, LH
53847A Extension, Front Wheel Opening OR Arch Moulding, RH
53848A Extension, Front Wheel Opening OR Arch Moulding, LH
53851 Brace, Front Fender TO Radiator Support, RH
53852C Brace, Front Fender TO Radiator Support, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882C Seal, Front Fender Main
53882K Seal, Front Fender
53931B Panel, Front End, RH
53932B Panel, Front End, LH
53935B Protector, Front End Panel
53936A Protector, Front End Panel, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
