Front Fender Apron & Dash Panel

26 part groups · 11 illustrations

Illustrations

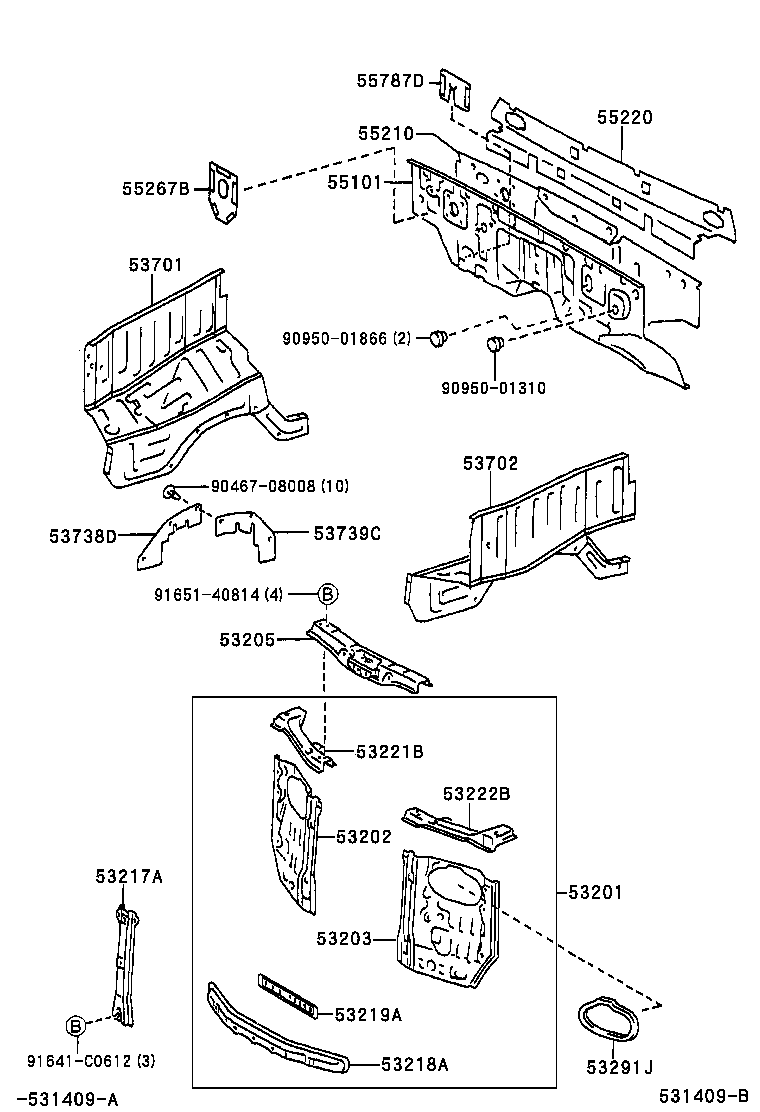

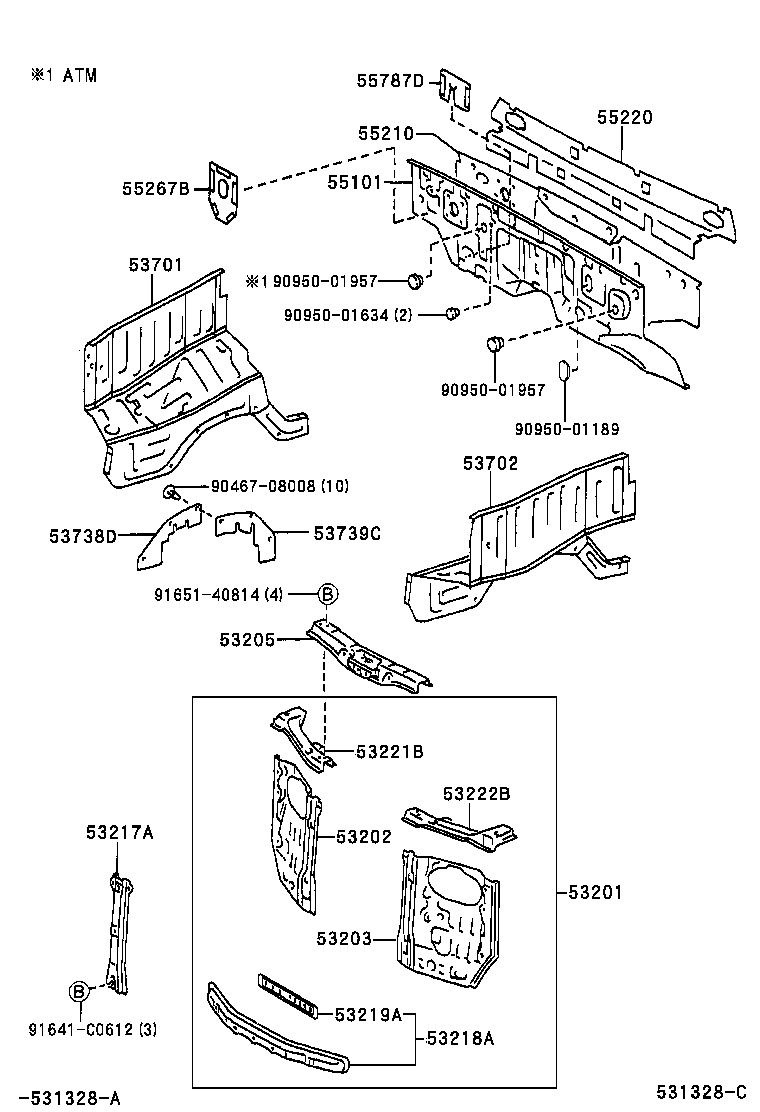

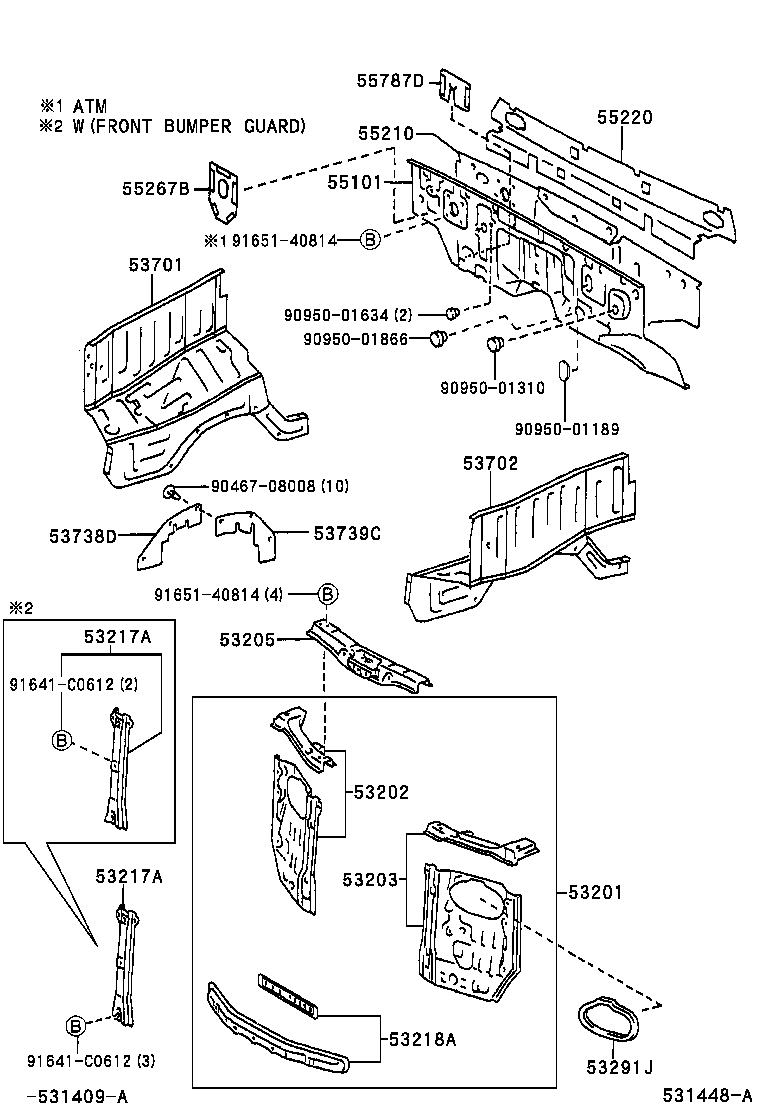

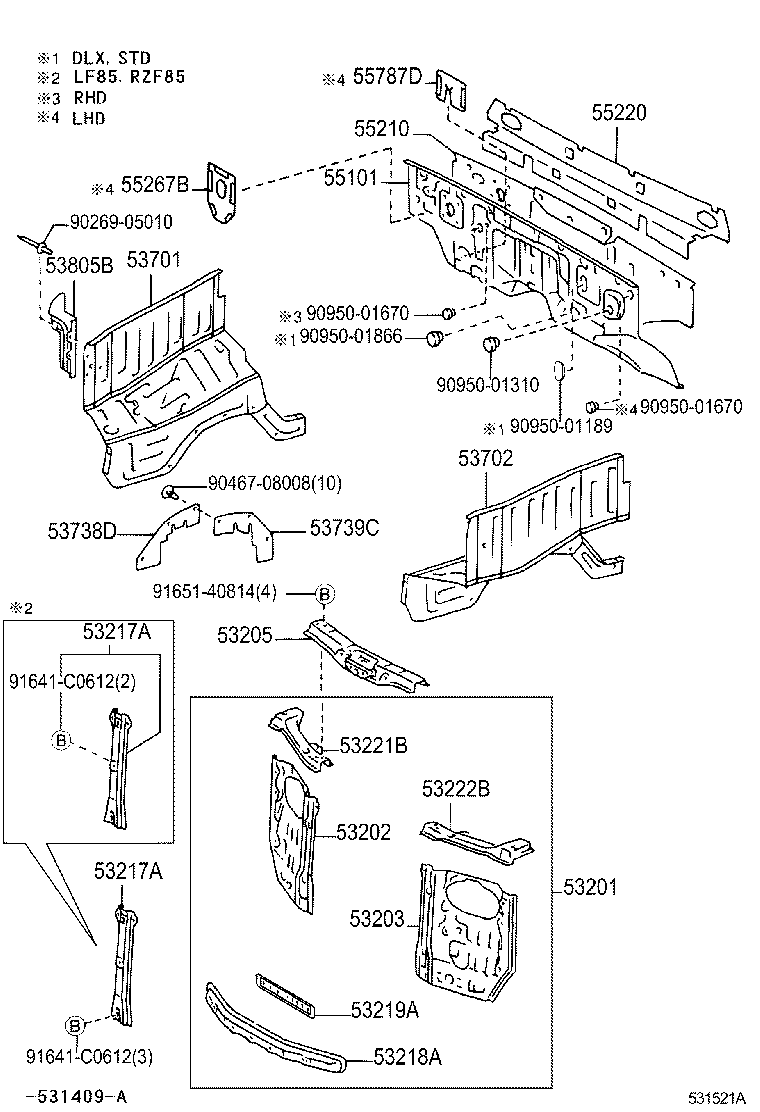

Figure 530113Q 530113Q 1996-12 → 2002-08 Figure 530113Q 530113Q 2002-08 → 2002-10 Figure 530113Q 530113Q 2002-08 → 2003-06 Figure 531328C 531328C 2002-08 → 2003-06 Figure 531328C 531328C 2002-08 → — Figure 531328C 531328C 2003-06 → — Figure 531520 531520 2002-08 → 2003-06 Figure 531520 531520 2003-06 → — Figure 531448A 531448A 2002-10 → — Figure 531521A 531521A 2003-06 → — Figure 531409B 531409B 2003-02 → —

Part groups

PNCDescription
53201 Support Sub-assy, Radiator
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53218A Support, Radiator, Lower
53219A Support, Radiator, Lower Rear
53221B Brace, Radiator Support Apron, RH
53222B Brace, Radiator Support Apron, LH
53257B Bracket, Radiator Support TO Front Fender
53291J Seal, Radiator Support
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53738D Seal, Front Fender Apron TO Frame, Front
53739C Seal, Front Fender Apron TO Frame, Rear
53805B Shield Sub-assy, Fender Splash, Front RH
53885F Shield, Front Fender Splash, Rear RH
53886H Shield, Front Fender Splash, Rear LH
53887D Seal, Front Fender Splash Shield, NO.1
53888B Seal, Front Fender Splash Shield, RH NO.2
53889B Seal, Front Fender Splash Shield, LH NO.2
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55220 Insulator Assy, Dash Panel, NO.2
55267B Cover, Dash Panel Insulator, NO.3
55787D Insulator, Cowl Top Panel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
