Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

12 part groups · 13 illustrations

Illustrations

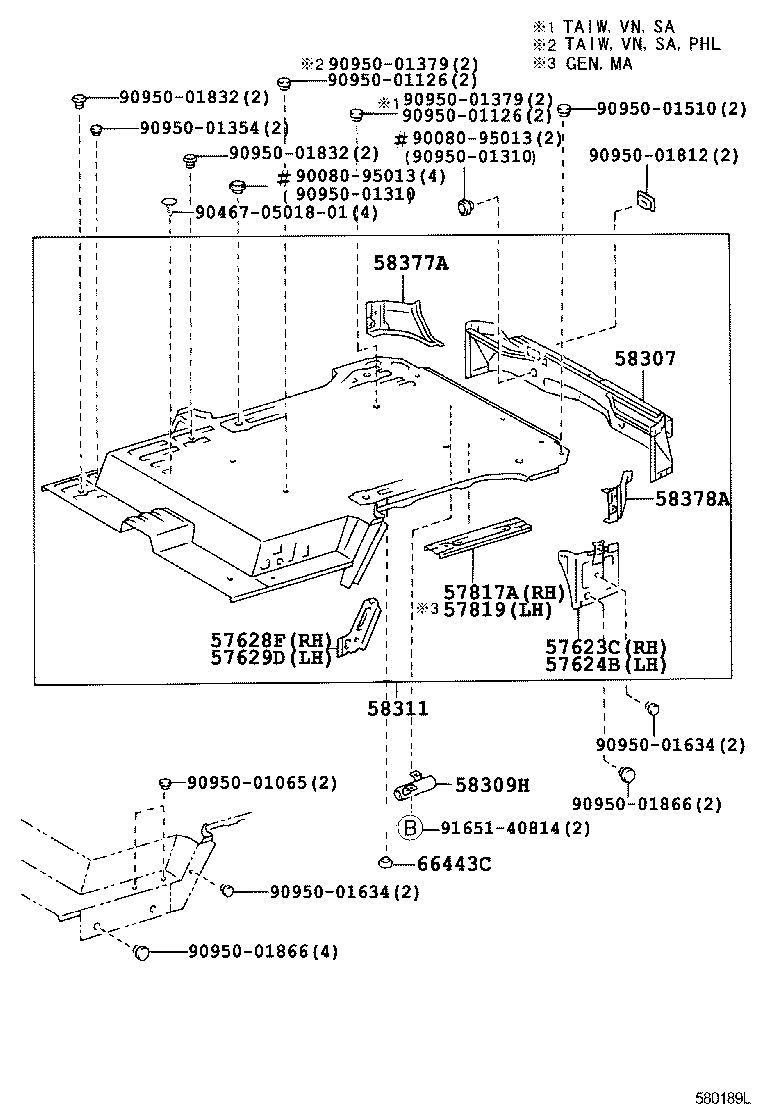

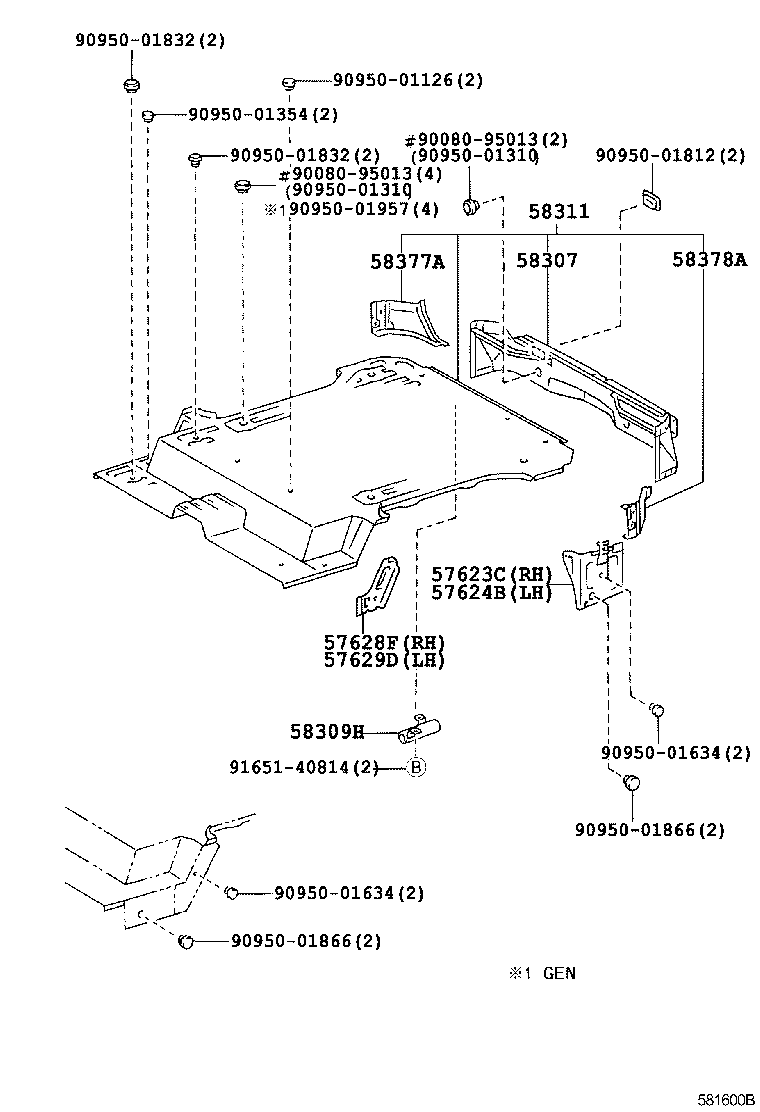

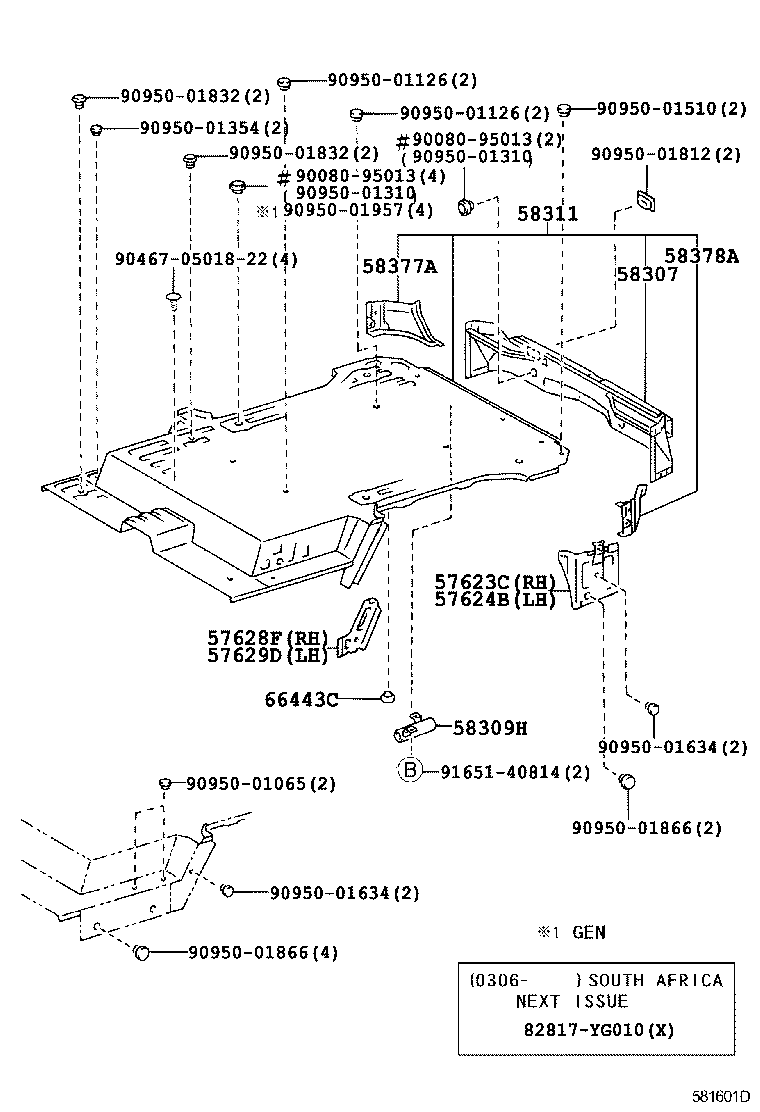

Figure 580188D 580188D 1996-12 → 2002-08 Figure 580189L 580189L 1996-12 → 2002-08 Figure 580189L 580189L 1998-04 → 2002-12 Figure 580189L 580189L 1998-10 → 2002-11 Figure 580189L 580189L 1999-02 → 2002-10 Figure 580189L 580189L 1999-09 → — Figure 580189L 580189L 2000-04 → 2003-06 Figure 581600B 581600B 2002-08 → — Figure 581601D 581601D 2002-08 → — Figure 581601D 581601D 2002-10 → — Figure 581601D 581601D 2002-11 → — Figure 581601D 581601D 2002-12 → — Figure 581601D 581601D 2003-06 → —

Part groups

PNCDescription
57623C Rail Sub-assy, Floor Side, Rear RH
57624B Rail Sub-assy, Floor Side, Rear LH
57628F Plate, Rear Floor Side Member, RH
57629D Plate, Rear Floor Side Member, LH
57817A Reinforcement, Belt Anchor, NO.2
57819 Reinforcement, Belt Anchor, NO.2 LH
58307 Panel Sub-assy, Body Lower Back
58309H Lock Sub-assy, Spare Wheel Carrier Handle Guide
58311 Pan, Rear Floor
58377A Panel, Body Lower Back, RH
58378A Panel, Body Lower Back, LH
66443C Cushion, Rear Floor Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
