Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

19 part groups · 7 illustrations

Illustrations

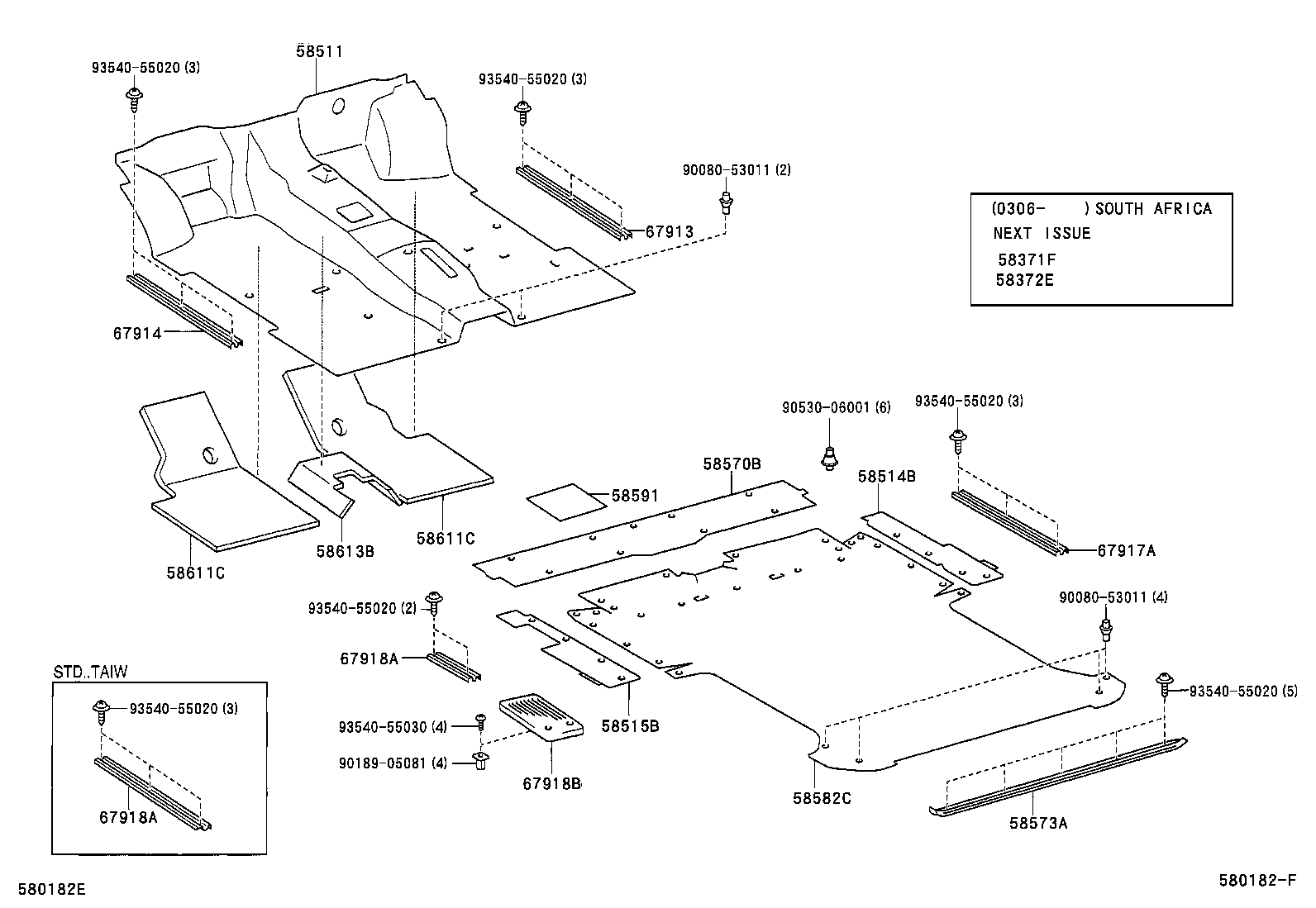

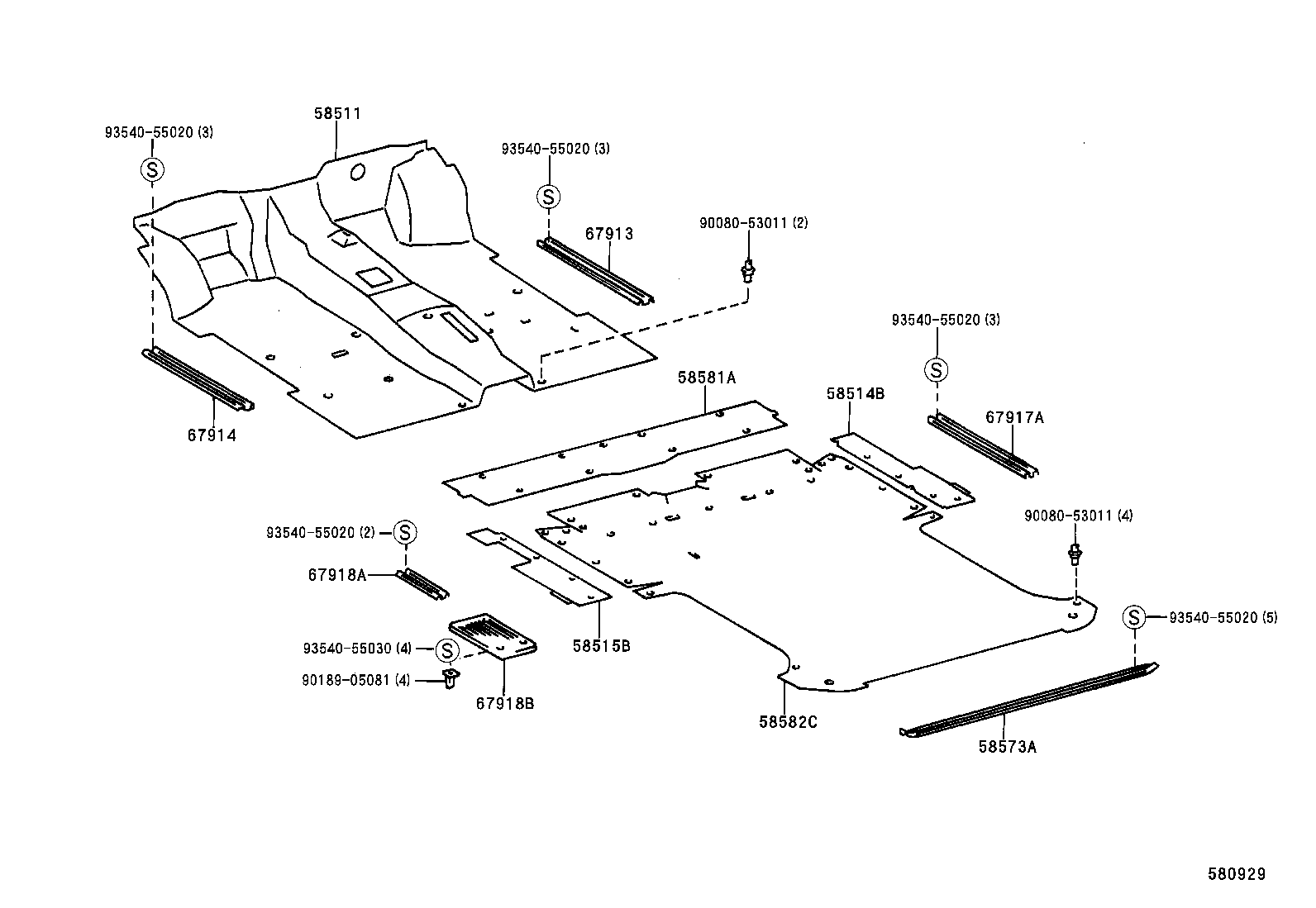

Figure 580181E 580181E 1996-12 → — Figure 580181E 580181E 1996-12 → — Figure 580181E 580181E 2003-06 → — Figure 580182F 580182F 1996-12 → — Figure 580182F 580182F 1996-12 → — Figure 580182F 580182F 2003-06 → — Figure 580929 580929 1998-04 → 2001-03

Part groups

PNCDescription
58371F Cover, Rear Floor Step, NO.1
58372E Cover, Rear Floor Step, NO.2
58510C Carpet Assy, Front Floor, Front
58511 Mat, Floor, Front
58514B Mat, Floor, Rear RH
58515B Mat, Floor, Rear LH
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58573A Plate, Rear Floor Mat Support
58581A Mat, Rear Floor
58582C Mat, Rear Floor, Rear
58591 Cover, Floor Carpet
58611C Sheet, Front Floor Silencer, RH
58613B Sheet, Front Floor Silencer, Center
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67918B Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
