Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

26 part groups · 22 illustrations

Illustrations

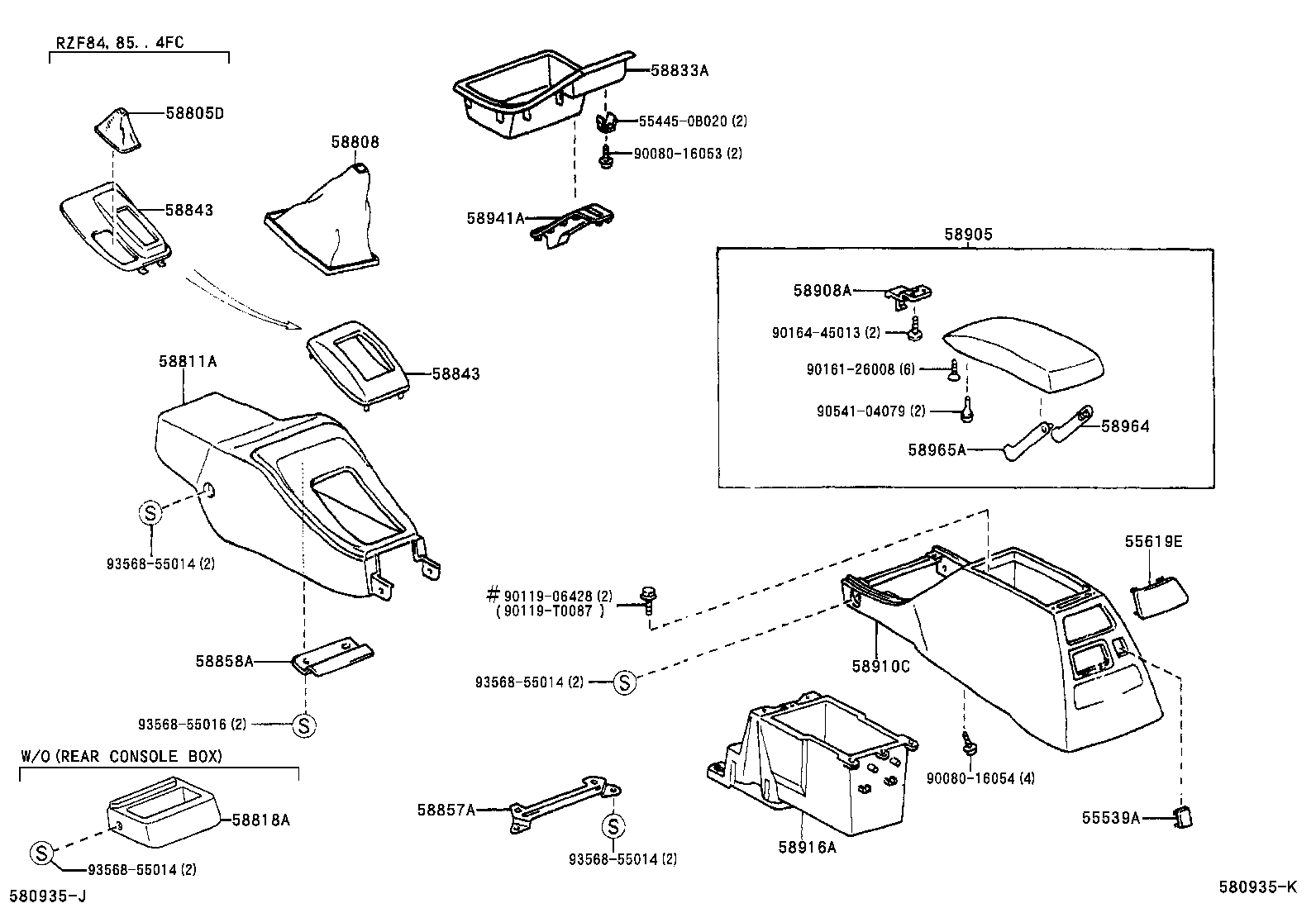

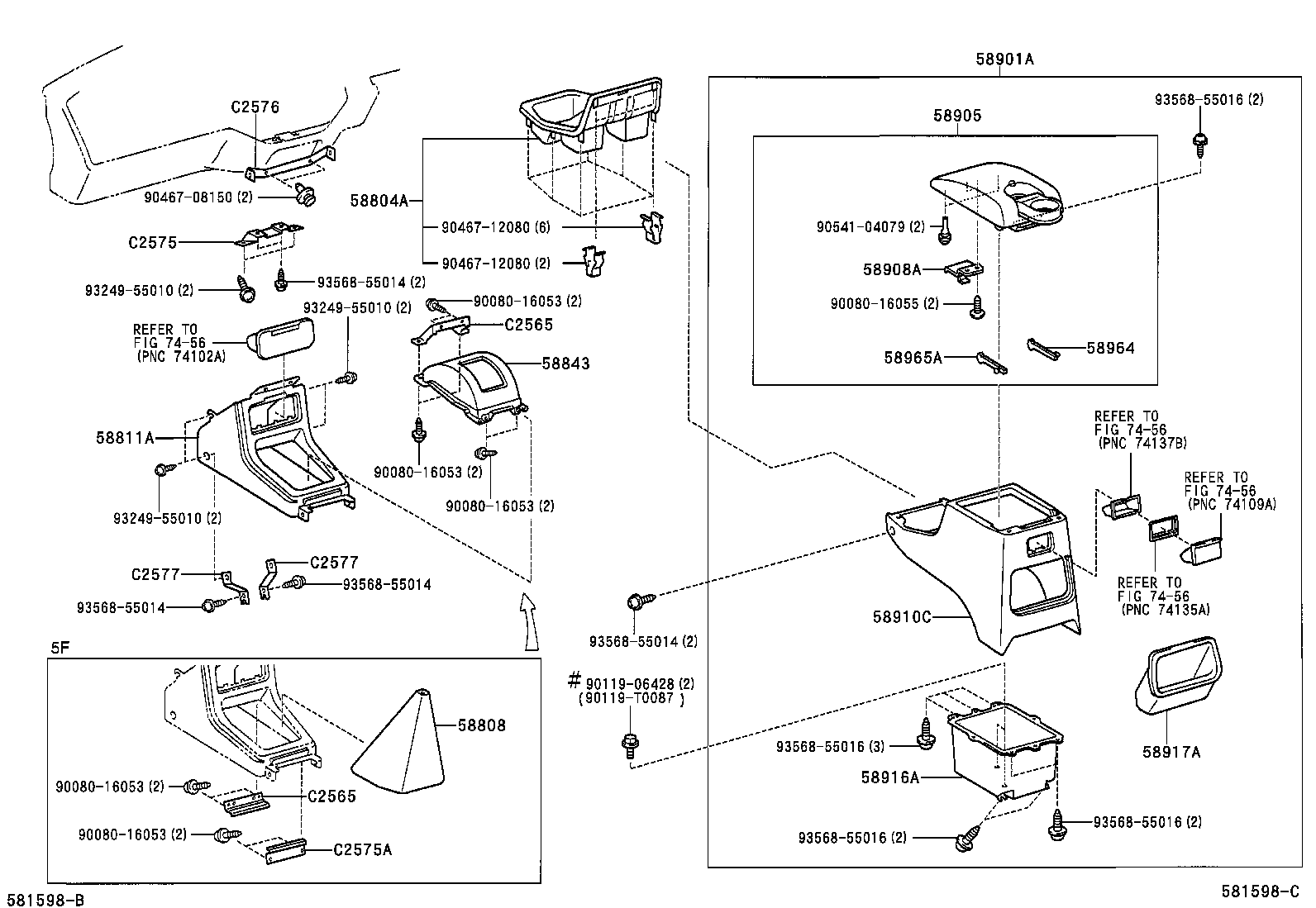

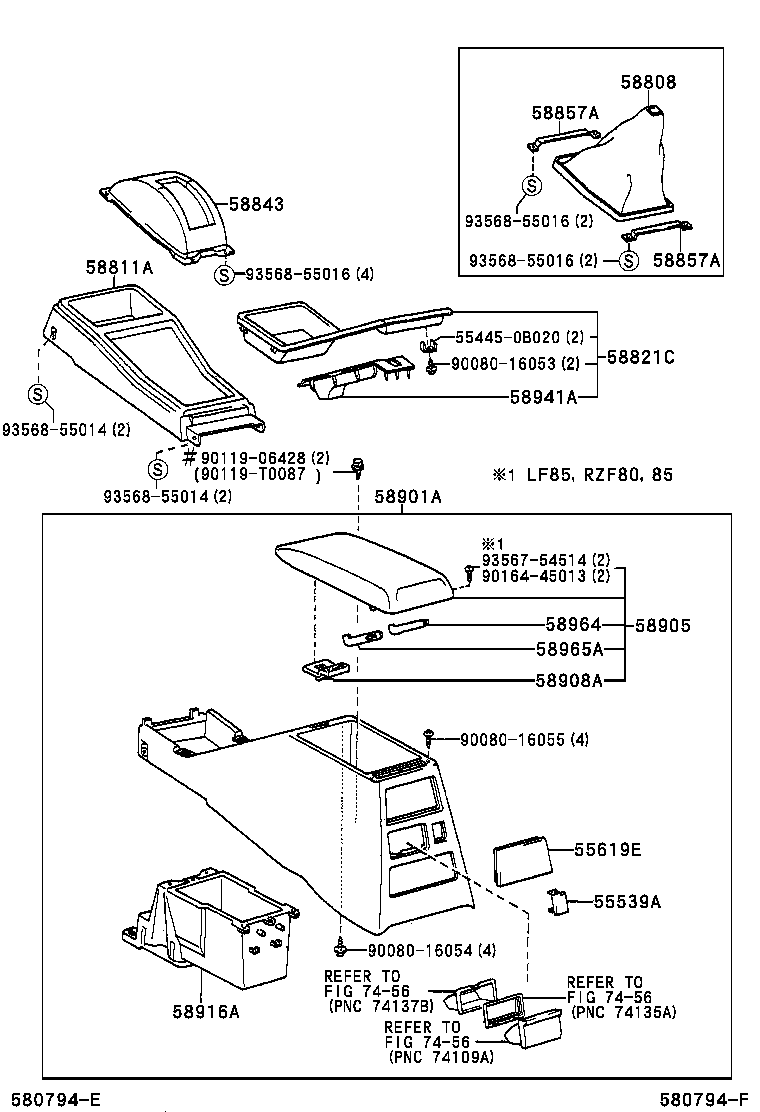

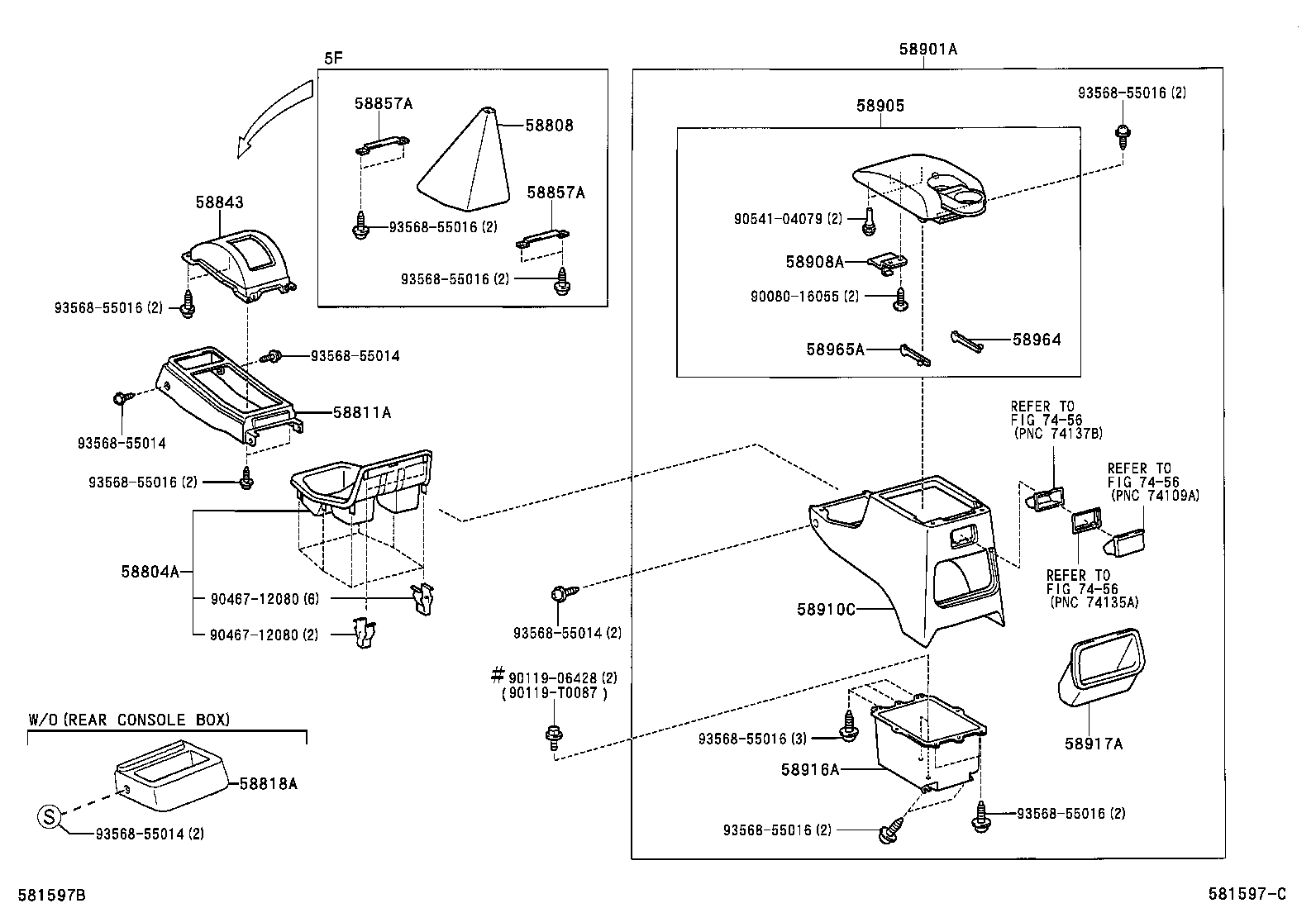

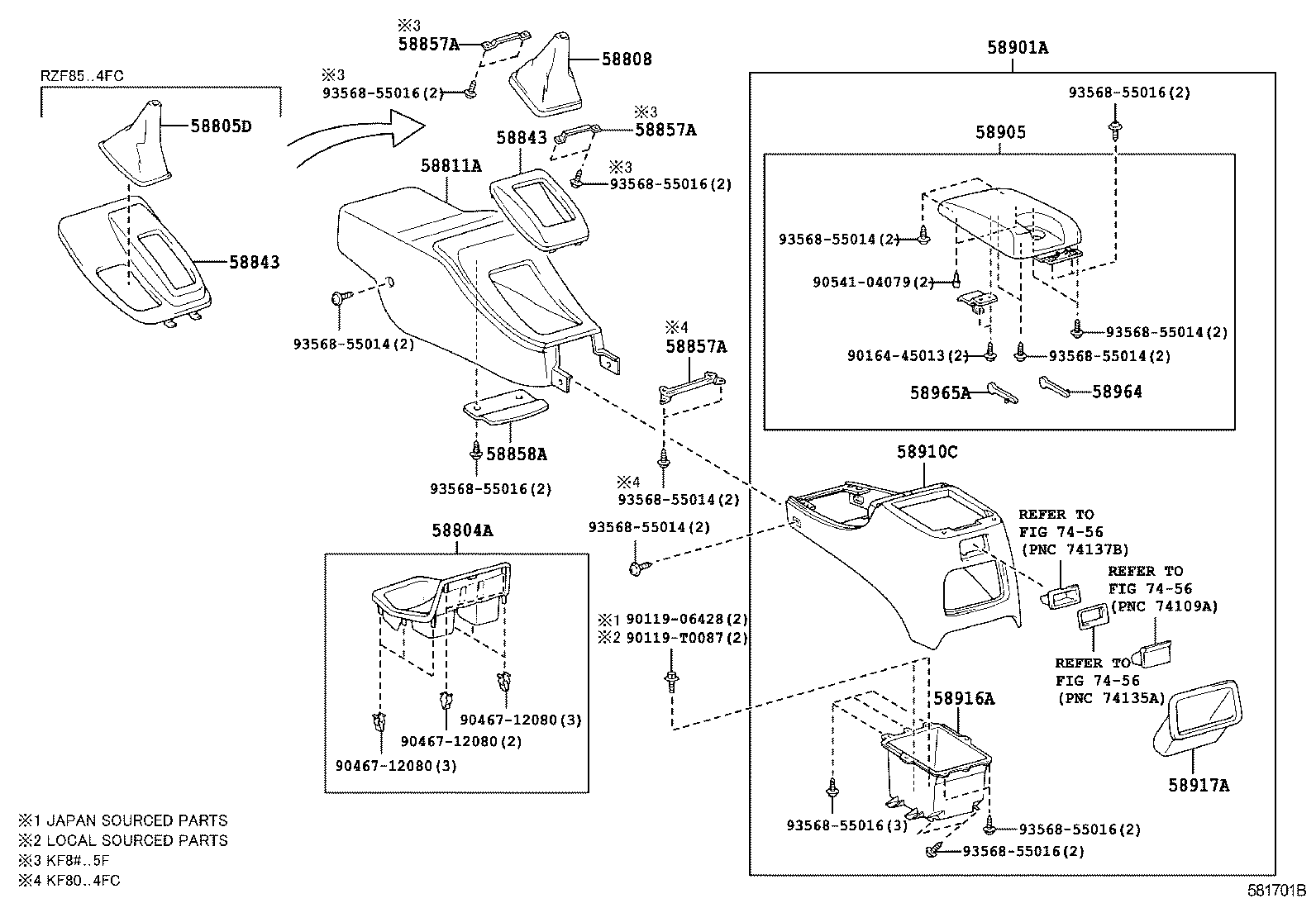

Figure 580176B 580176B 1996-12 → — Figure 580176B 580176B 2003-06 → — Figure 580794F 580794F 1996-12 → 2002-08 Figure 580794F 580794F 1998-04 → — Figure 580794F 580794F 2002-08 → 2002-12 Figure 580794F 580794F 2002-12 → — Figure 580905C 580905C 1998-10 → 2001-02 Figure 580905C 580905C 1998-10 → — Figure 580935K 580935K 1999-02 → 2002-10 Figure 580935K 580935K 1999-11 → 2002-10 Figure 580935K 580935K 2002-10 → 2003-06 Figure 580935K 580935K 2003-06 → — Figure 580936B 580936B 1999-02 → 2002-12 Figure 580936B 580936B 2002-12 → — Figure 580936B 580936B 2003-02 → — Figure 581597C 581597C 2002-08 → — Figure 581597C 581597C 2002-12 → — Figure 581597C 581597C 2003-06 → — Figure 581598C 581598C 2002-08 → — Figure 581598C 581598C 2002-12 → — Figure 581701C 581701C 2002-10 → — Figure 581701C 581701C 2003-02 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55619E Cover, Cup Holder Hole
58804A Panel Sub-assy, Console, Upper
58805D Cover Sub-assy, Transfer Lever Hole
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58818A Cover, Console Box, FR
58821C Panel, Console, Upper
58833A Cover, Console, Upper
58843 Bezel, Shifting Hole
58857A Bracket, Console Support, Upper NO.1
58858A Bracket, Console Support, Upper NO.2
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916A Insert, Console Box, Rear
58917A Cover, Console Box, Rear
58941A Cover, Parking Brake Hole
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
C2565 Holder, Console
C2575 Support, Console Box, NO.1
C2575A Support, Console Box, NO.2
C2576 Bracket, Console Box, NO.2
C2577 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
