Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01
Side Window
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

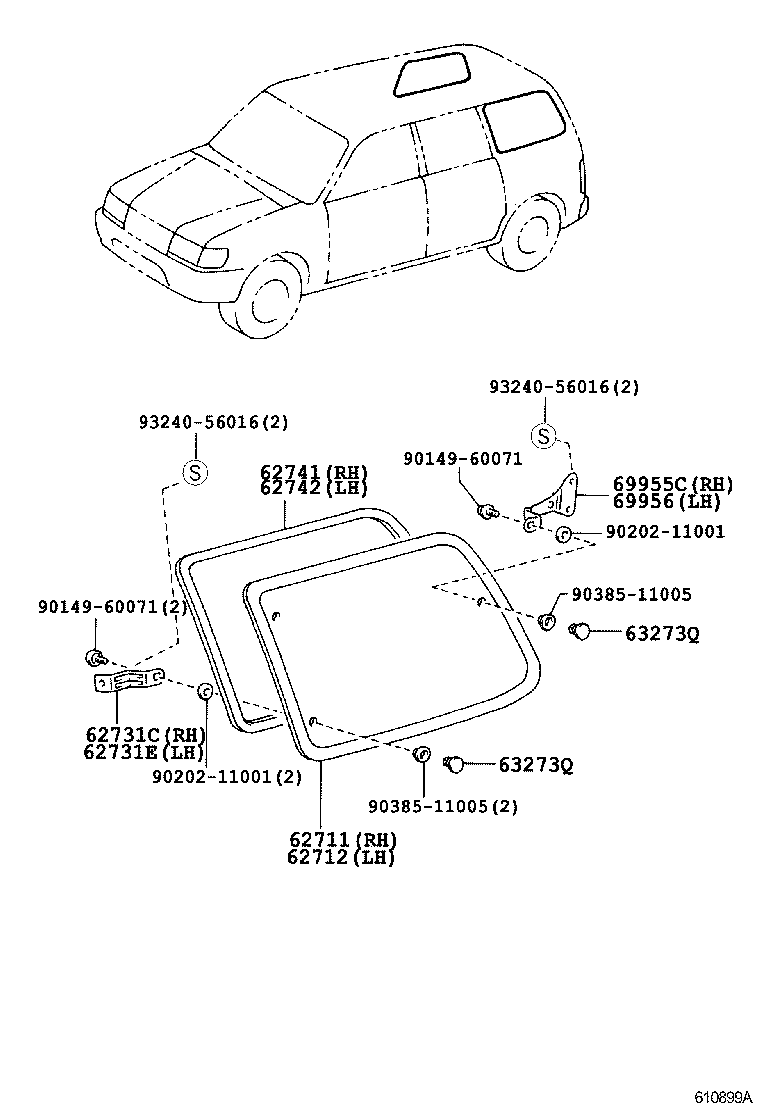

| 62711 | Glass, Quarter Window, RH |
| 62711J | Panel, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62712J | Panel, Quarter Window, LH |
| 62731C | Hinge, Quarter Window, RH |
| 62731E | Hinge, Quarter Window, LH |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62742 | Weatherstrip, Quarter Window, LH |

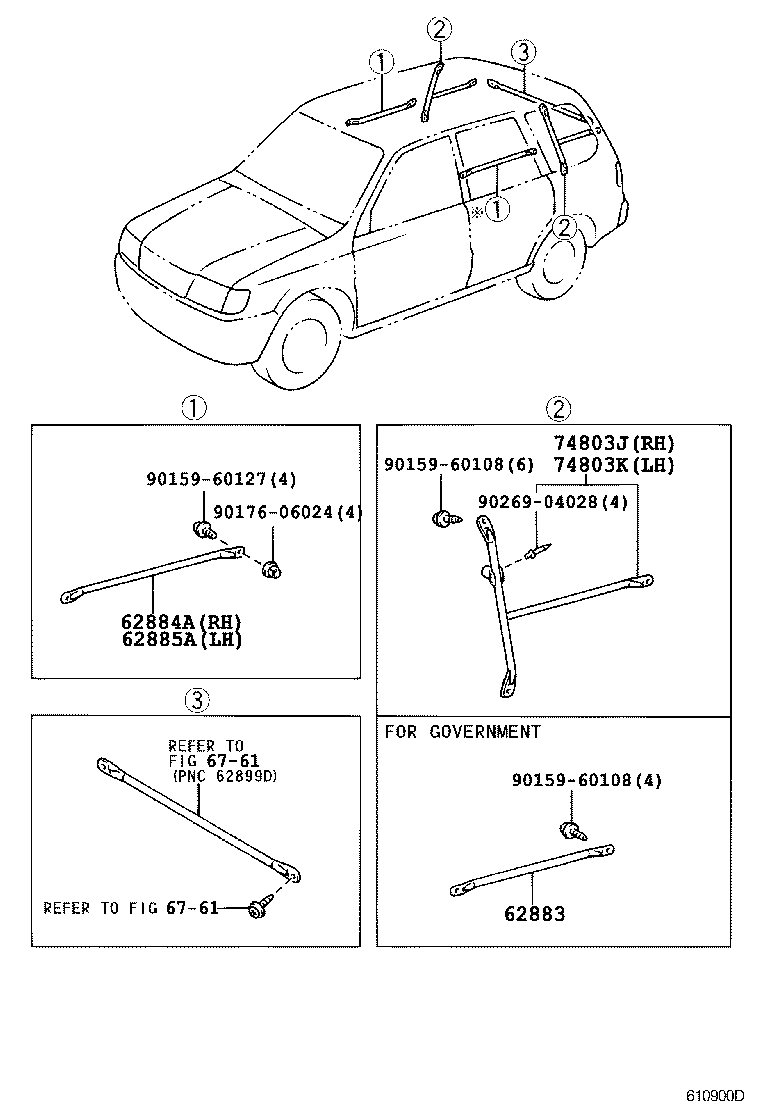

| 62883 | Guard Assy, Side Window |
| 62884A | Guard, Quarter Window, RH |
| 62885A | Guard, Quarter Window, LH |
| 62910K | Lock Assy, Quarter Window, RH |
| 62920 | Lock Assy, Quarter Window, LH |
| 63273Q | Retainer, Quarter Window Hinge |
| 69955C | Bracket, Quarter Window Glass, RH |
| 69956 | Bracket, Quarter Window Glass, LH |
| 74803J | Guard Sub-assy, Separator Window |
| 74803K | Guard Sub-assy, Separator Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
