Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

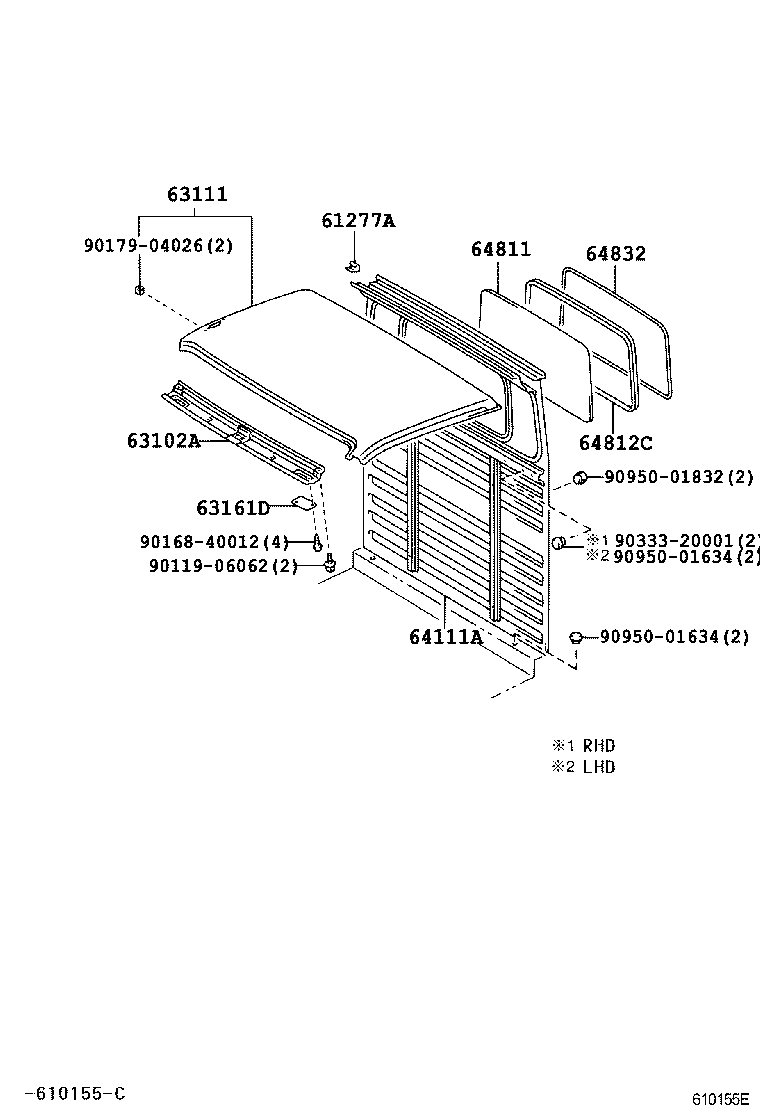

Roof Panel & Back Panel
22 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 61277A | Joint, Roof Drip Channel |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63111 | Panel, Roof |
| 63112B | Panel, Roof, Rear |
| 63127E | Brace, Roof Panel Support |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63161D | Plate, Roof Header Panel, NO.1 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63187C | Bracket, Roof Rack, NO.1 Rear RH |
| 63188B | Bracket, Roof Rack, NO.1 Rear LH |
| 63189C | Bracket, Roof Rack, Center RH |
| 63199 | Bracket, Roof Rack, Center LH |
| 63460A | Rack Assy, Roof, RH |
| 63470A | Rack Assy, Roof, LH |
| 64111A | Panel, Back |
| 64811 | Glass, Back Window |
| 64812C | Weatherstrip, Back Window Glass |
| 64832 | Key, Back Window Weatherstrip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
