Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

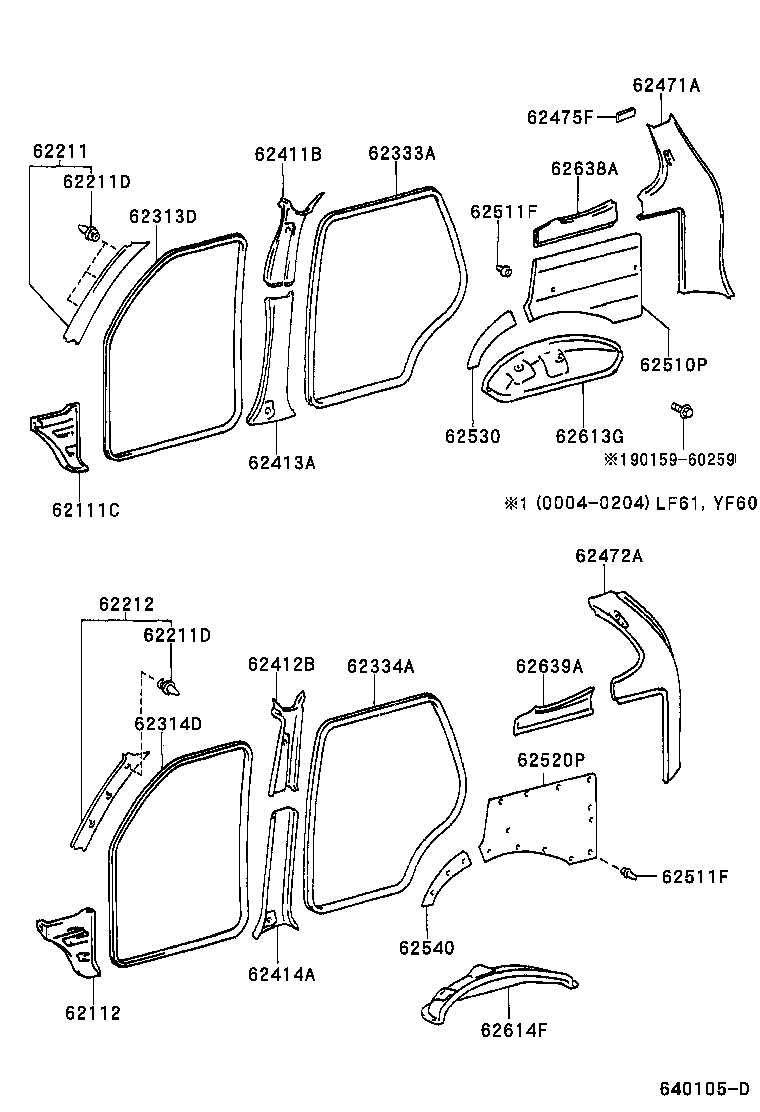

Inside Trim Board
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62475F | Pad, Roof Side Inner Garnish, NO.1 |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62530 | Panel Assy, Quarter Trim, Lower RH |
| 62540 | Panel Assy, Quarter Trim, Lower LH |
| 62613G | Cover Assy, Quarter Wheel House, RH |
| 62614F | Cover Assy, Quarter Wheel House, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
