Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 13 illustrations

Illustrations

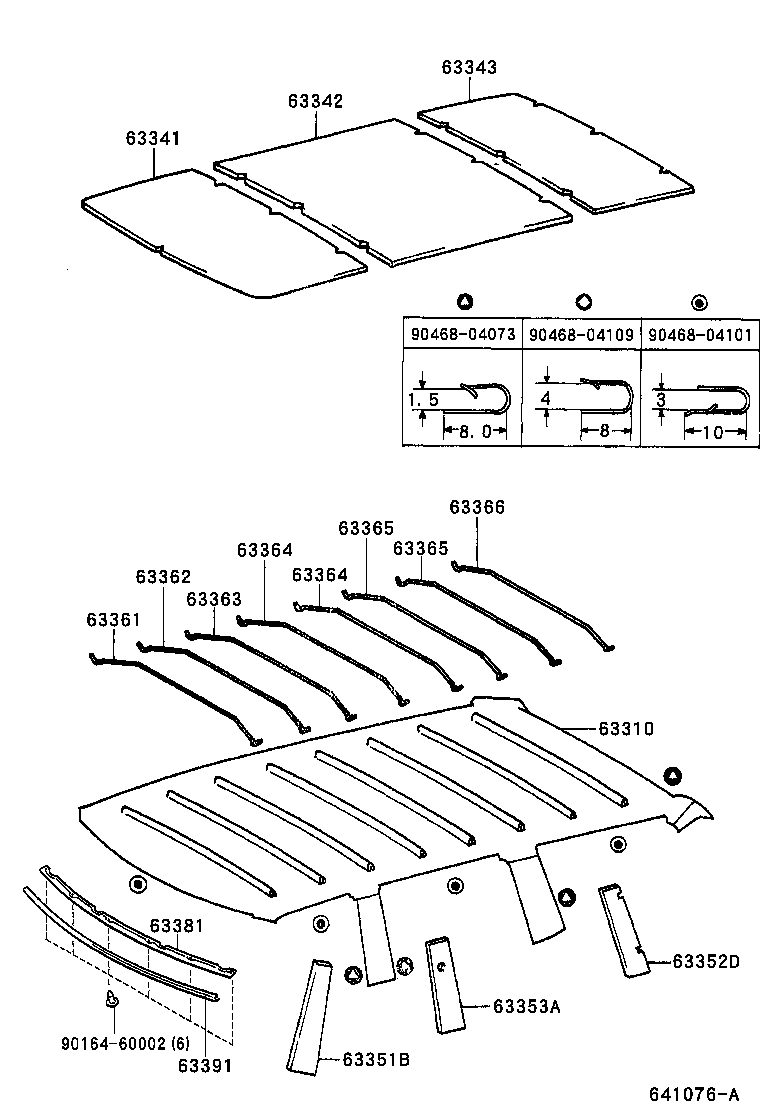

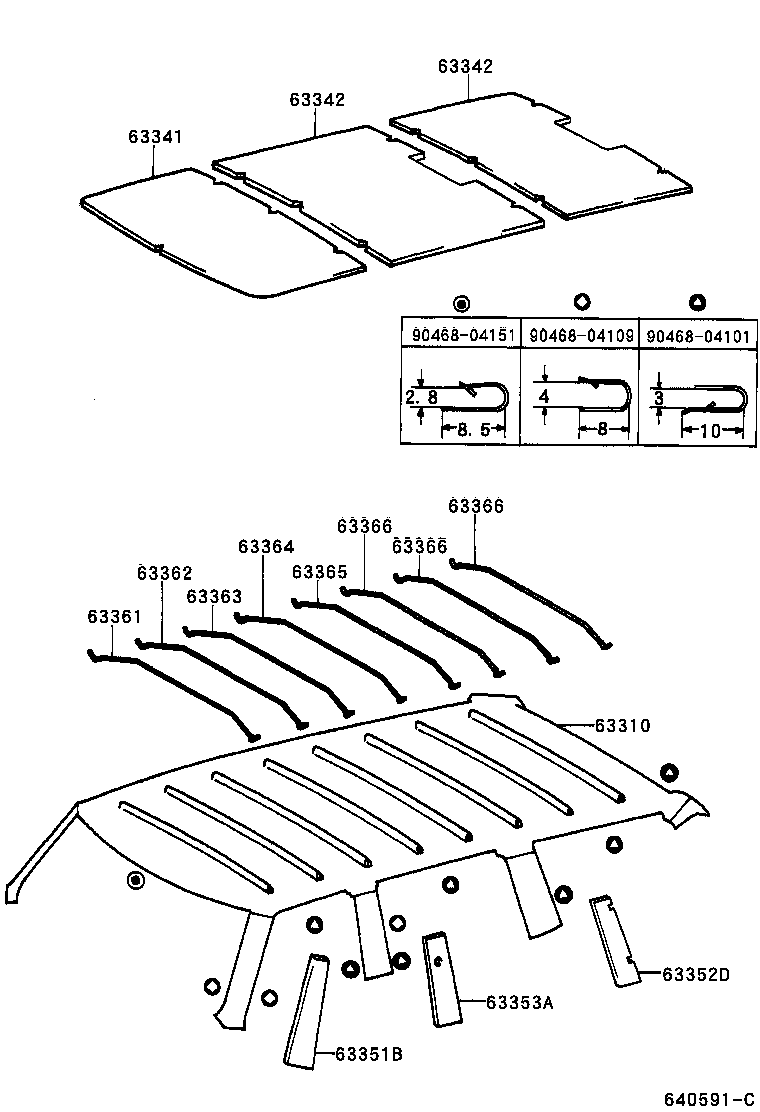

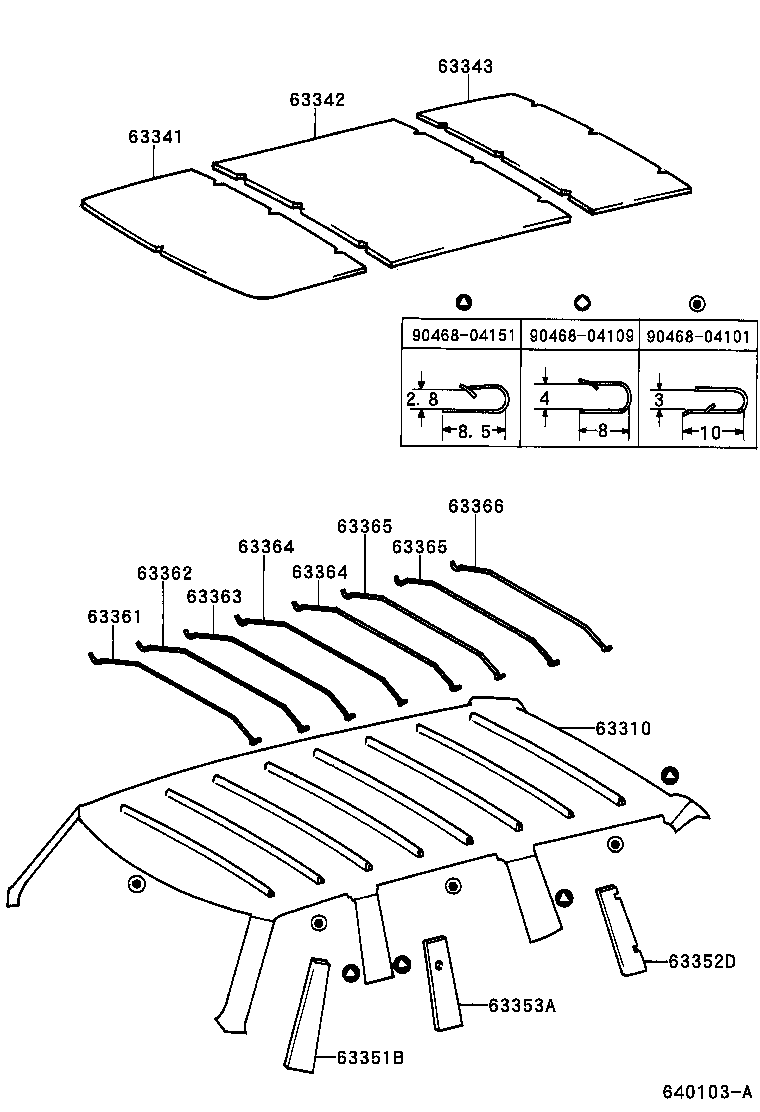

Figure 640102 640102 1996-12 → — Figure 640103A 640103A 1996-12 → 2002-08 Figure 640103A 640103A 2002-08 → 2002-08 Figure 640103A 640103A 2002-08 → 2003-06 Figure 640103A 640103A 2002-08 → — Figure 640591C 640591C 1999-02 → — Figure 640591C 640591C 2003-02 → — Figure 640591C 640591C 2003-06 → — Figure 640748A 640748A 2000-04 → — Figure 640748A 640748A 2003-06 → — Figure 641076A 641076A 2002-08 → 2002-12 Figure 641076A 641076A 2002-08 → — Figure 641076A 641076A 2002-12 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63353A Pad, Roof Headlining Center Pillar
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63366 Support, Roof Headlining, NO.6
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63391C Trim, Roof Headlining, NO.1
63395 Clip, Roof Headlining Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
