Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

13 part groups · 3 illustrations

Illustrations

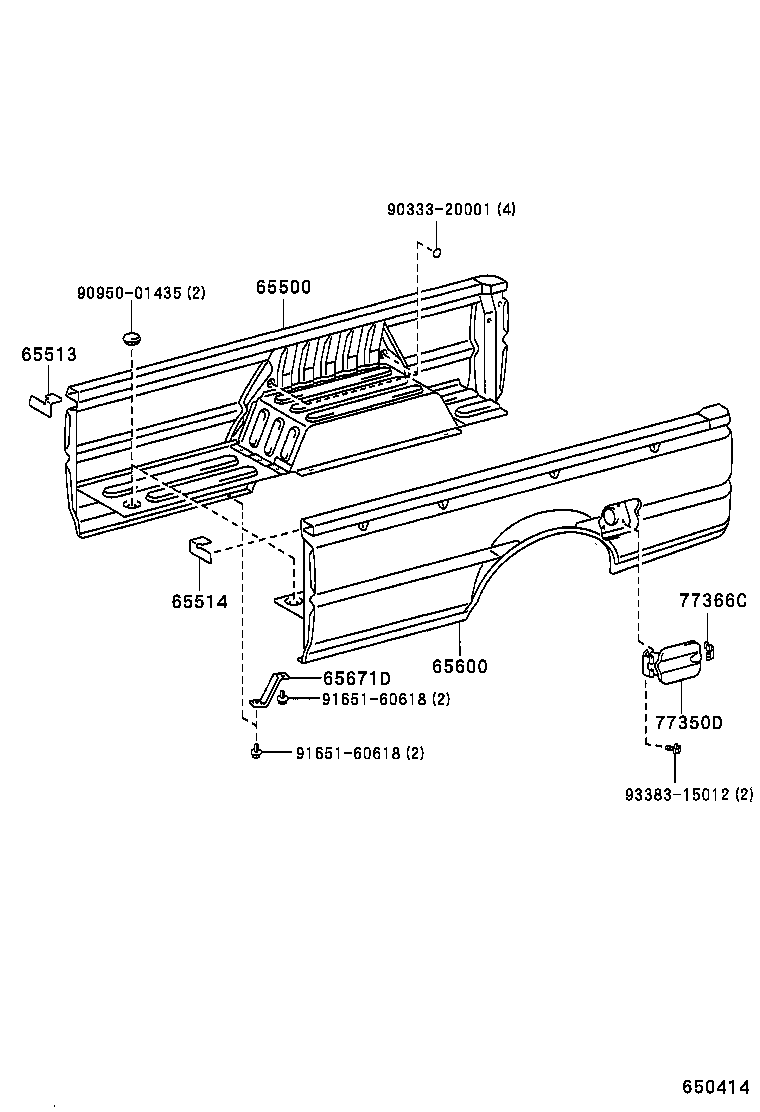

Figure 650203B 650203B 1999-02 → — Figure 650416 650416 2002-08 → — Figure 650414 650414 2002-08 → —

Part groups

PNCDescription
65500 Panel Assy, Rear Body Side, RH
65513 Lid, Top Rail, Front RH
65514 Lid, Top Rail, Front LH
65600 Panel Assy, Rear Body Side, LH
65671D Brace, Side Panel Skirt, Front RH
66014 Support Sub-assy, Corner, LH
66110C Hinge Assy, Side Gate, NO.1 RH
66110G Hinge Assy, Side Gate, NO.2 RH
66167 Cap, Side Gate Latch Handle
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
77350D Lid Assy, Fuel Filler Opening
77366C Spring, Fuel Filler Opening Lid Hinge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
