Toyota T.U.V
1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General
Discontinued model
Data version 2008-01

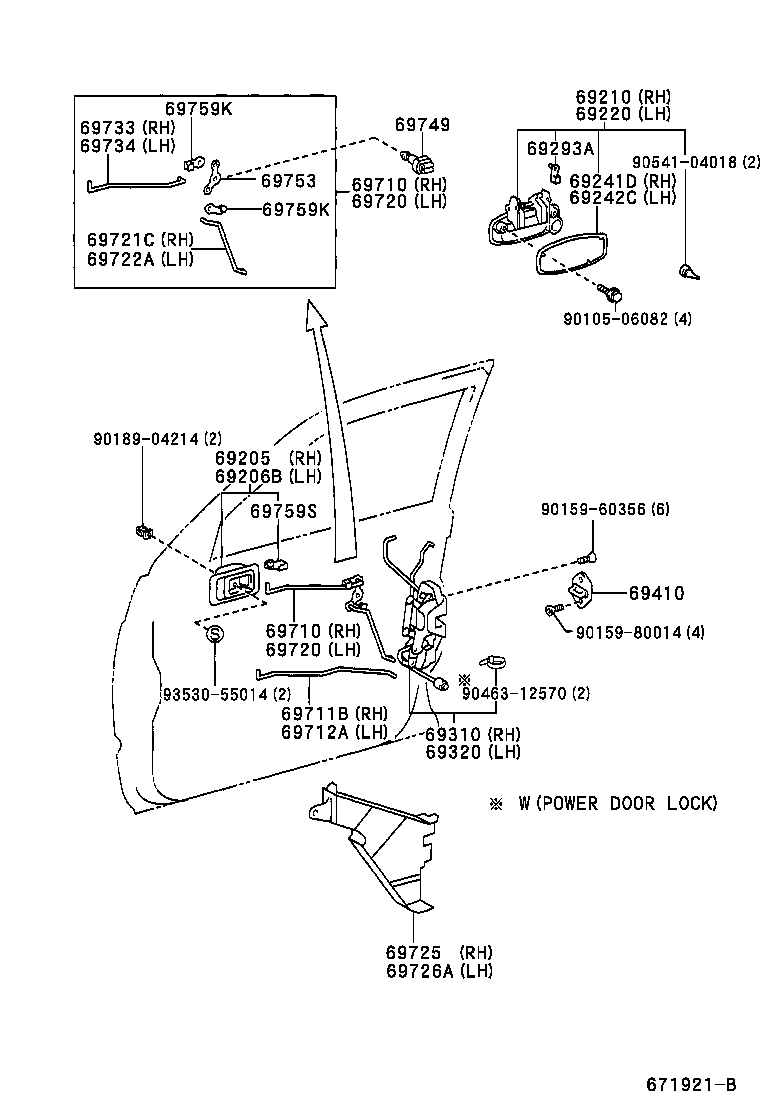

Front Door Lock & Handle
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67787C | Silencer, Front Door Locking Button Knob |
| 69110 | Actuator Assy, Front Door Lock, RH |
| 69120A | Actuator Assy, Front Door Lock, LH |
| 69205 | Handle Sub-assy, Front Door Inside, RH |
| 69205B | Cushion(FOR FRONT DOOR INSIDE HANDLE) |
| 69206B | Handle Sub-assy, Front Door Inside, LH |
| 69210 | Handle Assy, Front Door, Outside RH |
| 69220 | Handle Assy, Front Door Outside, LH |
| 69241D | Pad, Front Door Outside Handle, RH |
| 69242C | Pad, Front Door Outside Handle, LH |
| 69293A | Snap, Front Door Outside Handle |
| 69310 | Lock Assy, Front Door, RH |
| 69320 | Lock Assy, Front Door, LH |
| 69410 | Plate Assy, Front Door Lock Striker |
| 69710 | Link Assy, Front Door Open Control, RH |
| 69711B | Link, Front Door Lock Remote Control, RH |
| 69712A | Link, Front Door Lock Remote Control, LH |
| 69720 | Link Assy, Front Door Open Control, LH |
| 69721C | Link, Front Door Inside Locking, NO.3 RH |
| 69722A | Link, Front Door Inside Locking, NO.3 LH |
| 69725 | Protector, Front Door Inside Locking Link, RH |
| 69726A | Protecter, Front Door Inside Locking Link, LH |
| 69733 | Link, Front Door Inside Locking, RH |
| 69734 | Link, Front Door Inside Locking, LH |
| 69741B | Knob, Front Door Lock Control |
| 69749 | Clamp, Front Door Lock Link |
| 69751A | Holder, Door Locking(FOR FRONT DOOR) |
| 69753 | Bellcrank, Door Lock Control, RH |
| 69755 | Silencer, Front Door Lock Link |
| 69759H | Snap, Door Lock Control Link, NO.2 |
| 69759K | Snap, Door Lock Control Link |
| 69759S | Snap, Front Door Inside Handle |
| 69759V | Silencer, Front Door Lock Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
