Toyota T.U.V

1996-12 → 2007-07 · chassis KF60,7#,8#,LF6#,7#,8#,RZF61,71,8#,YF60,80 · catalogue 611240 · General

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

46 part groups · 15 illustrations

Illustrations

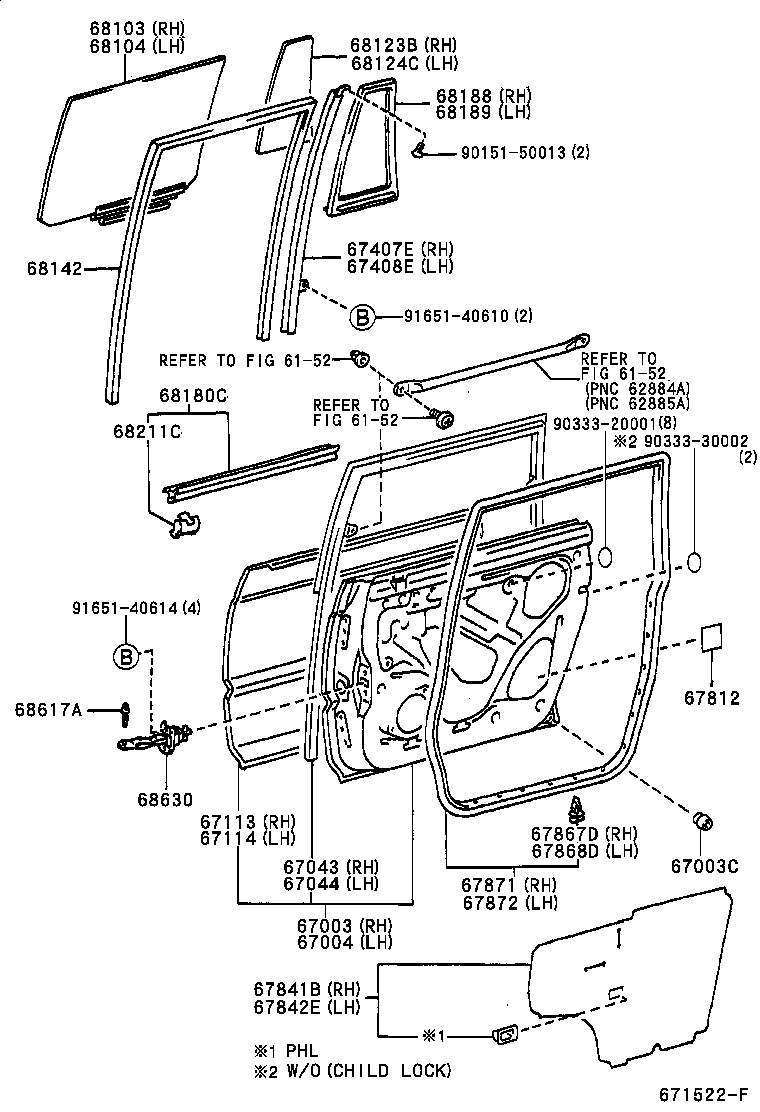

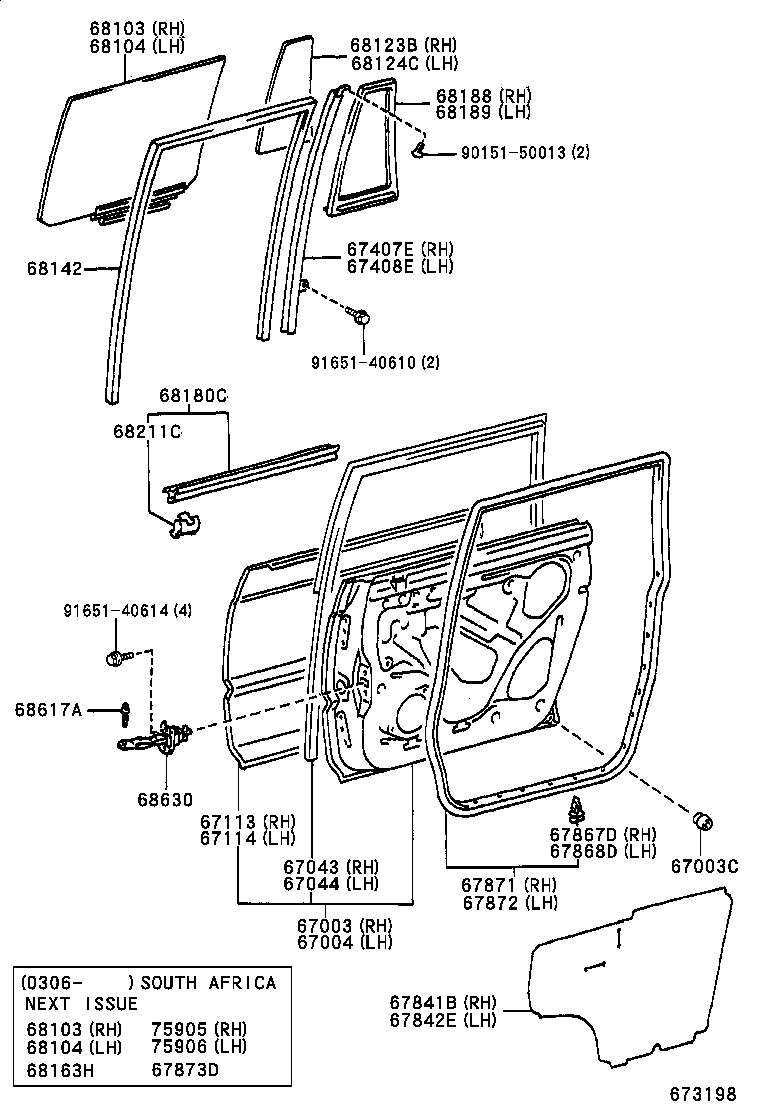

Figure 670266B 670266B 1996-12 → 2002-08 Figure 670266B 670266B 2002-08 → 2002-10 Figure 670266B 670266B 2002-08 → 2003-06 Figure 670266B 670266B 2002-08 → — Figure 673198 673198 1996-12 → — Figure 670266B 670266B 2002-10 → 2002-12 Figure 670266B 670266B 2002-10 → — Figure 670266B 670266B 2002-12 → 2003-06 Figure 670266B 670266B 2003-06 → — Figure 672794A 672794A 2002-08 → — Figure 672794A 672794A 2002-10 → — Figure 672794A 672794A 2002-11 → — Figure 672794A 672794A 2002-12 → — Figure 671522F 671522F 1998-10 → — Figure 673200A 673200A 2003-06 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67043 Frame Sub-assy, Rear Door Window, RH
67044 Frame Sub-assy, Rear Door Window, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407E Bar Sub-assy, Rear Door Window Division, RH
67408E Bar Sub-assy, Rear Door Window Division, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67603B Clip(FOR REAR DOOR TRIM BOARD)
67603C Cap(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67626C Bracket, Rear Door Trim, NO.2
67653A Grille, Speaker Rear Door, RH
67654A Grille, Speaker Rear Door, LH
67730 Panel Assy, Rear Door Trim, Upper RH
67740 Panel Assy, Rear Door Trim, Upper LH
67812 Pad, Rear Door Silencer
67841B Cover, Rear Door Service Hole
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67873D Weatherstrip, Access Panel, Rear RH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68123B Glass, Rear Door Quarter Window, RH
68124C Glass, Rear Door Quarter Window, LH
68142 Run, Rear Door Glass
68163H Weatherstrip, Rear Door Glass, Outer RH
68173B Weatherstrip, Rear Door Glass, Inner RH
68180C Weatherstrip Assy, Rear Door Glass, Outer RH
68188 Weatherstrip, Rear Door Quarter Window, RH
68189 Weatherstrip, Rear Door Quarter Window, LH
68190A Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68190C Weatherstrip Assy, Rear Door Glass, Inner RH
68211C Clip(FOR REAR DOOR GLASS WEATHERSTRIP)
68240A Weatherstrip Assy, Rear Door Glass, Inner LH
68617A Pin, Rear Door Check
68630 Check Assy, Rear Door
69751F Holder, Rear Door Lock Control Knob
75905 Tape Set, Black Out, RH
75906 Tape Set, Black Out, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
